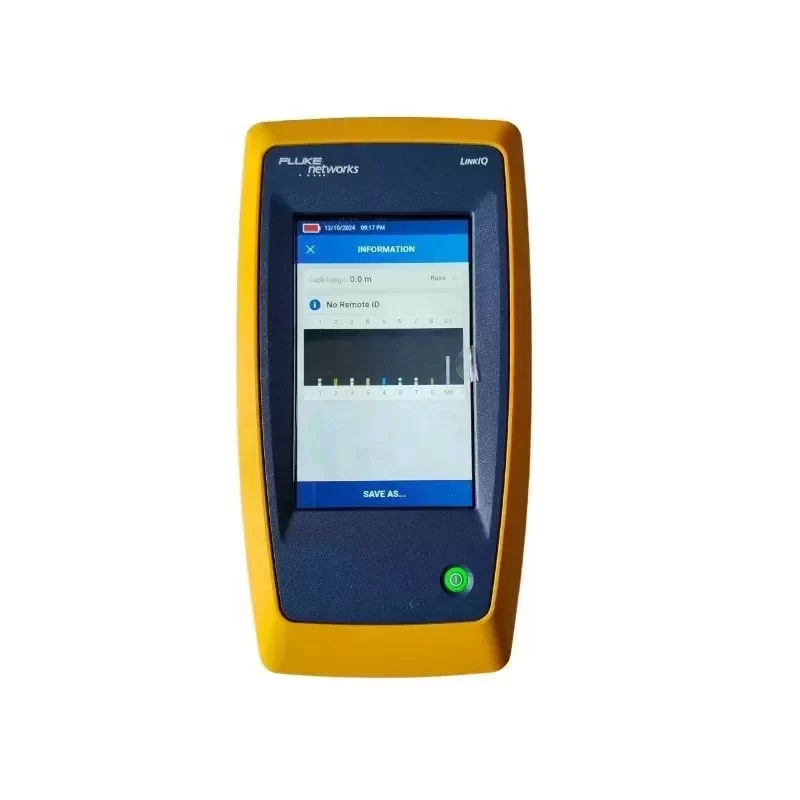

Fluke Networks LIQ-100 Electronic Cable and Network Tester

Description

The Fluke Networks LIQ-100 LinkIQ Cable and Network Tester is a professional-grade diagnostic instrument designed for comprehensive network infrastructure validation. Engineered for network technicians and system integrators, this device bridges the gap between physical cable certification and active network troubleshooting. It provides Original Engineering reliability to ensure accurate verification of copper cable performance up to 10GBASE-T and comprehensive Power over Ethernet (PoE) load testing.

Technical Specifications:
Brand: Fluke Networks
Model Number: LIQ-100
Device Type: Electronic Cable and Network Tester
Supported Media: Twisted Pair (Cat 5e, 6, 6A, 7, 8)
Maximum Data Rate Validation: 10 Gigabits per second (10GBASE-T)
PoE Testing Capacity: IEEE 802.3af/at/bt, Class 1 to 8 (Up to 90W)
Network Diagnostics: Switch Name, Port Number, VLAN, Advertised Data Rates
Display: Color capacitive multi-touch screen
Interface: RJ45 (Test Port), USB-C (Data Transfer and Charging)
Power Source: Rechargeable Lithium-ion Battery
Battery Life: 8 hours (Typical operation)
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 50°C
Operating Humidity: 0% to 90% (Non-condensing)
Dimensions: 21.6 cm x 11.4 cm x 5.3 cm
Weight: 1.04 kg
Certifications: CE, CSA, FCC

Industrial Application:
The LIQ-100 is critical in industrial automation environments and enterprise data centers where network downtime directly impacts operational output. By utilizing frequency-based measurements, it calculates the distance to faults such as opens, shorts, and unterminated cables, allowing rapid remediation of physical layer issues. Furthermore, its loaded PoE testing verifies that the network switch can deliver adequate power to edge devices like PTZ cameras, wireless access points, and industrial sensors under actual load conditions.

Procurement Information:
Technical Compatibility: Seamlessly integrates with Fluke Networks LinkWare PC reporting software for comprehensive documentation.
Lead Time: Standard industrial distribution timelines apply; verify current stock for immediate deployment needs.
Original Engineering: Guaranteed authentic Fluke Networks diagnostic equipment ensuring precise measurement fidelity.

Key Attributes
Place of origin: China
Model number: LIQ-100
Brand name: Fluke
Customized support: OEM, ODM
Material: Plastic
Power: Lithium battery powered
Size: 21*15*10cm
Warranty: 1 years
Test Port: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
Test Speed: 6 seconds for lengths <229.6' (70 m)
Nominal Velocity of Propagation (NVP): User settable
Diagnostic Protocols: LLDP, CDP, FLP, ICMP, DHCP
Port Blink: Blink the light of the connected port
Length (Maximum): 1000' (305 m)
Cable Types: 2-pair and/or 4-pair

Packaging and Delivery
Selling Units: Single item
Single package size: 41X30X25 cm
Single gross weight: 3.000 kg
