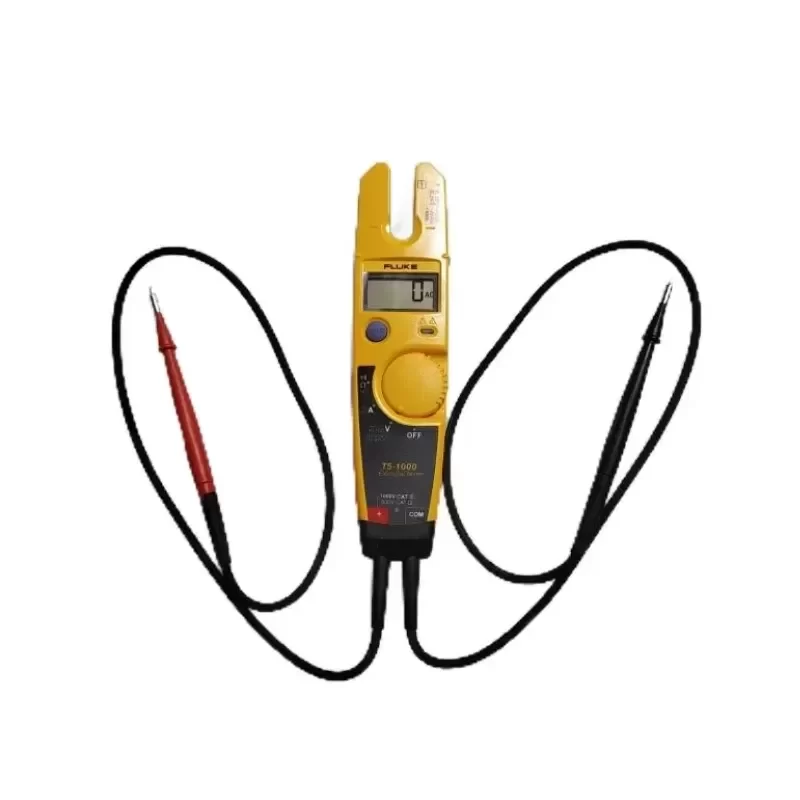

Fluke T5-1000 Voltage and Current Tester Measures DC Current

Description

Fluke T5-1000 Electrical Voltage, Continuity, and Current Tester, Engineered for rigorous industrial diagnostics, the Fluke T5-1000 provides seamless measurement of voltage, continuity, and current in a single compact architecture. This instrument automatically detects and measures AC or DC voltage, while the proprietary OpenJaw design enables rapid current diagnostics without breaking the circuit.

Technical Specifications:
Brand: Fluke
Model: T5-1000
Measurement Capabilities: AC/DC Voltage, AC Current, Resistance, Continuity
Maximum AC/DC Voltage: 1000V
Maximum AC Current: 100A (OpenJaw Technology)
Resistance Range: 0 to 1000 Ω
Continuity Beeper: On at <25 Ω, off at >400 Ω
Safety Category Rating: Overvoltage CAT III 1000V, CAT IV 600V
Operating Temperature: -10°C to 50°C
Storage Temperature: -30°C to 60°C
Operating Altitude: 2000 m
Power Supply: 2 x AA batteries
Battery Life: 400 hours (typical)
Dimensions: 30.5 x 5.1 x 3.0 cm
Weight: 0.3 kg
Agency Approvals: UL, CSA, VDE, CE

System Architecture & Integration:
The T5-1000 streamlines electrical troubleshooting by eliminating the need to select specific measurement modes manually. The OpenJaw technology allows technicians to measure AC current up to 100A simply by sliding the fork over a conductor, avoiding direct metallic contact. Note: While the instrument measures DC voltage up to 1000V, current measurement via the OpenJaw is specific to AC. The device features detachable SlimReach test probes customized for national electrical standards, enhancing Technical Compatibility with various industrial test leads, replacement probes, and AC285 alligator clips.

Industrial Application:
This tester is specifically designed for commercial electricians, plant maintenance engineers, and field service technicians working within heavy-duty environments. It is highly effective for troubleshooting 480V/600V three-phase systems, motor control centers, and complex HVAC electrical panels. The compact OpenJaw easily navigates crowded distribution boards, solving the critical problem of measuring current in tightly packed wire bundles where traditional closed-loop clamp meters cannot fit.

Procurement & Lifecycle Value:
Original Engineering: Guaranteed authentic Fluke diagnostic equipment, ensuring factory-level calibration and strict adherence to global safety protocols.
Lead Time: Optimized inventory processing ensures rapid global dispatch to mitigate critical facility downtime.

Key Attributes
Max. Ac Current: 100.0 A
Max. DC Current: 100.0 A
Measuring Voltage Range: 0 to 1000 V
Place of Origin: China
Model Number: T5-1000
Brand Name: Fluke
Dimensions: 1.2 x 2 x 8" (30.5 x 51 x 203 mm)
Display Type: Digital Only
Max. Ac Voltage: 1000V
Max. DC Voltage: 1000V
Measuring Capacitance Range: ,
Measuring Current Range: 0 to 100.0 A
Measuring Inductance Range: ,
Measuring Resistance Range: 0 to 1000 Ω
Operating Temperature: 14 to 122°F (-10 to 50°C)
Parameters Measured: AC Voltage, DC Current
Weight: 0.7kg
Current Range AC/DC RMS: 0 to 100.0 A
Accuracy AC Current (50/60 Hz): 3% ± 3 counts
Operating Temperature: 14 to 122°F (-10 to 50°C)
Dimensions: 1.2 x 2 x 8" (30.5 x 51 x 203 mm)
Battery Type: 2 x AA Batteries
Volts Indicator LED Threshold: Guaranteed on by 30 V AC
