Description

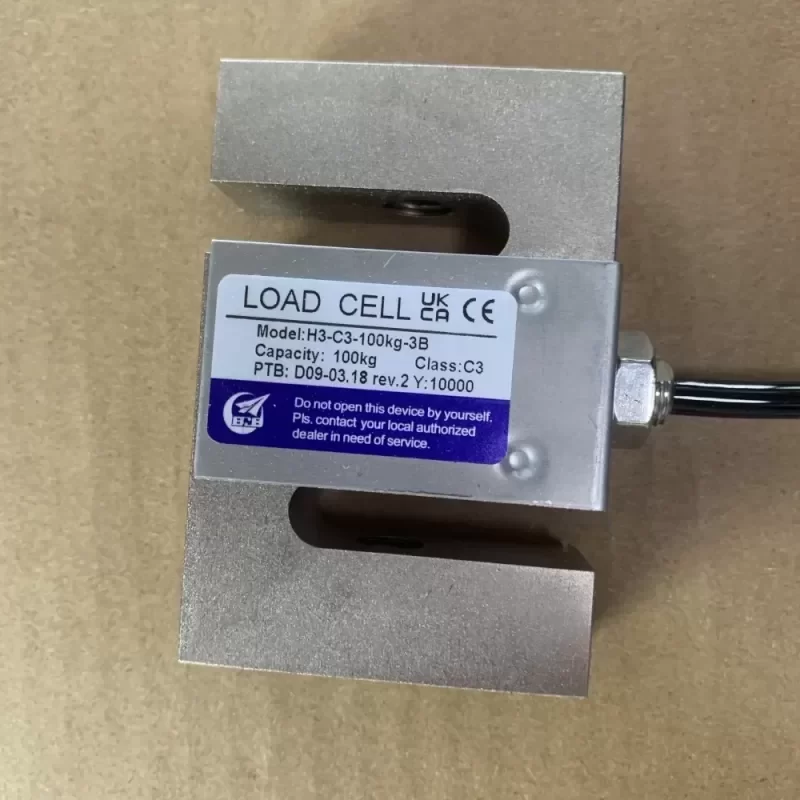

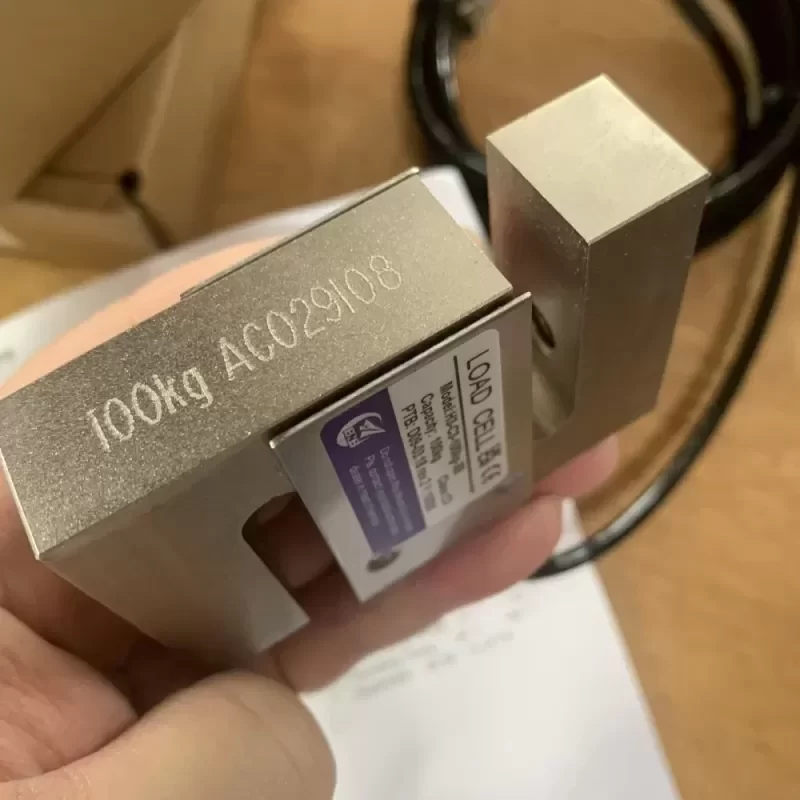

The Zemic H3-C3-100KG-3B is a high-precision S-type tension and compression load cell engineered for industrial weighing and force measurement applications. This model is constructed from nickel-plated alloy steel, providing robust protection against harsh industrial environments while maintaining OIML R60 Class C3 accuracy standards.
Technical Specifications:
Model: H3-C3-100KG-3B
Manufacturer: Zemic
Rated Capacity: 100 kg
Accuracy Class: OIML R60 C3
Maximum Number of Verification Intervals (nLC): 3000
Minimum Load Cell Verification Interval (vmin): Emax / 7000
Combined Error: ≤ ±0.020 %FS
Creep (30 min): ≤ ±0.016 %FS
Temperature Effect on Sensitivity: ≤ ±0.011 %FS / 10°C
Temperature Effect on Zero: ≤ ±0.015 %FS / 10°C
Rated Output (Sensitivity): 2.0 ± 0.002 mV/V
Input Resistance: 350 ± 3.5 Ω
Output Resistance: 351 ± 2.0 Ω
Insulation Resistance: ≥ 5000 MΩ (50V DC)
Zero Balance: ± 1.0 %FS
Excitation, Recommended: 5 ~ 12 V (DC/AC)
Excitation, Maximum: 18 V (DC/AC)
Compensated Temperature Range: -10°C to +40°C
Operating Temperature Range: -35°C to +65°C
Safe Overload: 150 %FS
Ultimate Overload: 300 %FS
Protection Class: IP67
Material: Nickel-plated alloy steel
Cable Length: 3.0 meters
Cable Diameter: Ø 5 mm
Thread Specification: M12
Original Engineering and Design:
The H3 series utilizes a specialized S-beam geometry that ensures excellent linearity and symmetry in both tension and compression modes. The IP67 environmental rating is achieved through high-quality adhesive sealing, protecting the internal strain gauge bridge from moisture and dust ingress. This unit is optimized for Technical Compatibility with standard digital indicators and PLC weighing modules.
Industrial Application:
The Zemic H3-C3-100KG-3B is specifically designed for integration into suspended hoppers, crane scales, mechanical-to-electronic scale conversions, and material testing machines. Its C3 accuracy rating makes it ideal for legal-for-trade applications where precise weight measurement is critical for inventory control and process automation. The robust alloy steel construction ensures a long lifecycle and minimal maintenance requirements in high-cycle industrial environments.
Logistics and Availability:
Lead Time: Standard stock item; typically ships within 2-5 business days.

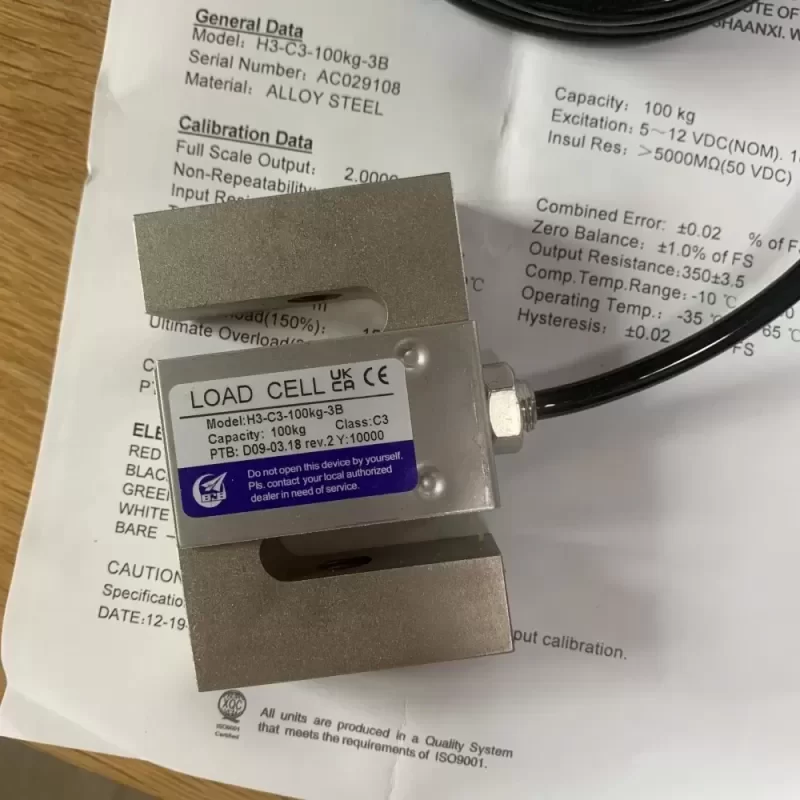

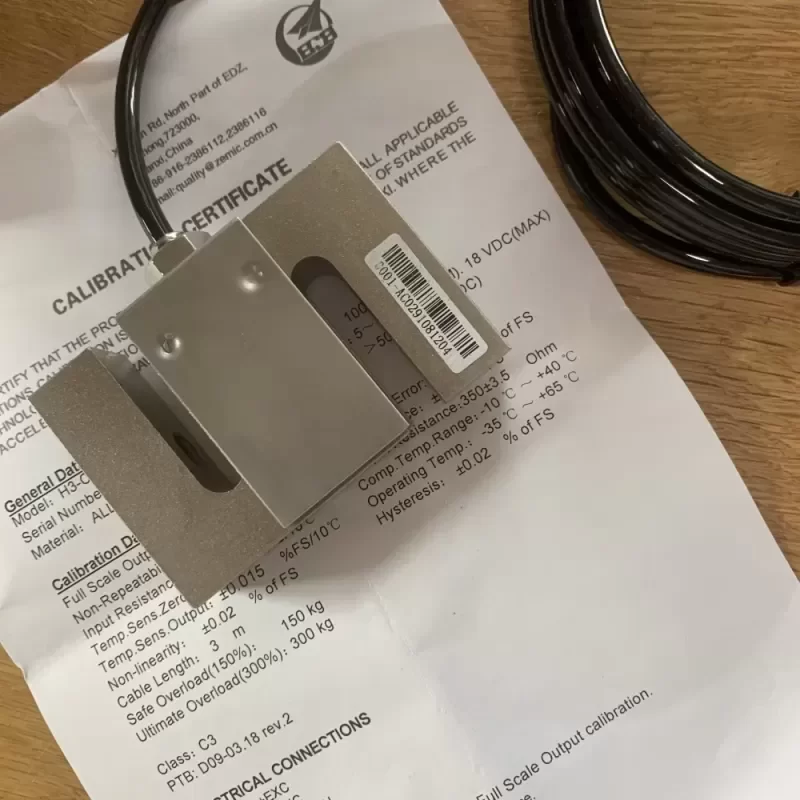

Packaging: Individual factory calibration certificate included.
Key Attributes
Mounting Type: Manual installation
Manufacturing Date Code: 2024.11.20
Model Number: H3-C3-100KG-3B
Brand Name: Original
Usage: Automation field
Accuracy: ±0.02%
Description: S-Type Force Sensor
Type: Load Cell
Place of Origin: Anhui, China
Series: Force Sensor
Features: S-Type Force Sensor
Theory: Resistont Sensor
Output: Analog Sensor
Description: Zemic H3-C3-500KG-3b Load Cells
Voltage - Supply: 220V
Capacity: 100kg
Maximum Voltage: 15VDC
Overall Accuracy: ±0.02%FS
Safe Overload: 150%
MOQ: 1 Pieces
Place of Origin: China
Material: Alloy steel material, nickel-plated
Size / Dimension: Original standard
Condition: 100%New Original
Delivery time: 3-5working Day

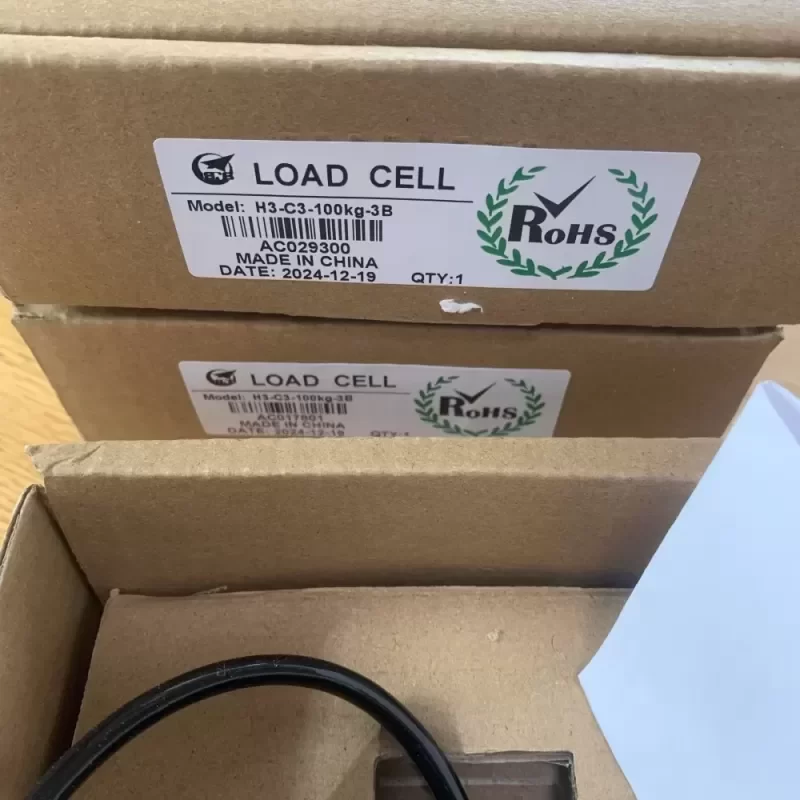

Packaging and Delivery
Selling Units: Single item
Single package size: 18X12X10 cm
Single gross weight: 1.000 kg
