Description

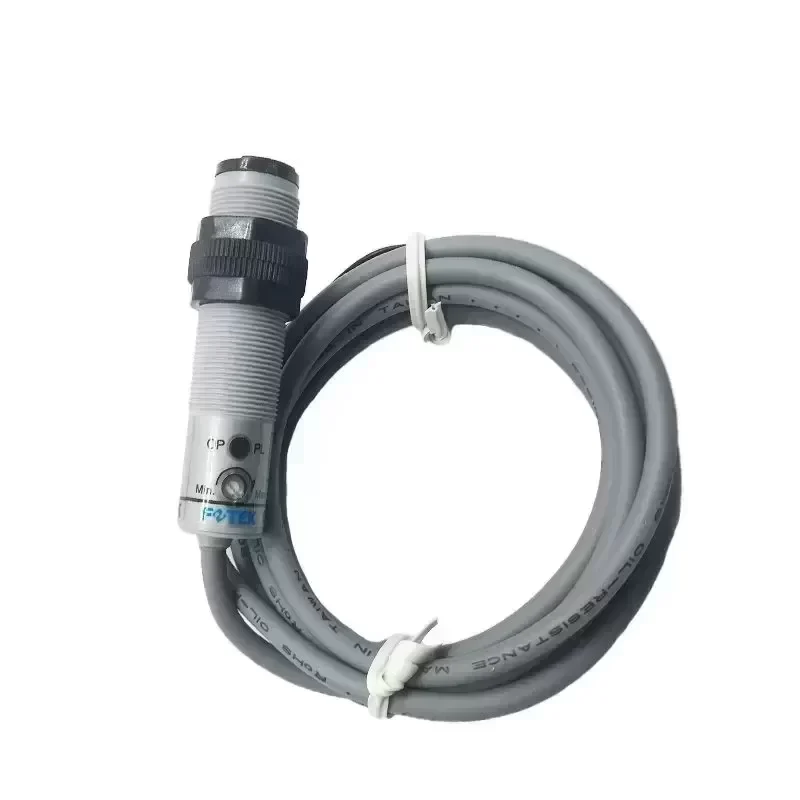

The Fotek CDM-2MX retro-reflective photoelectric sensor, supplied with the dedicated MR-1 optical reflector, delivers high-accuracy presence detection tailored for industrial automation, conveyor sorting, and high-speed packaging machinery. Built on an M18 standard cylindrical footprint with robust IP66 ingress sealing, the sensor utilizes specialized optical polarization filtration to eliminate false triggers caused by specular reflection from high-gloss, metallic, or shrink-wrapped targets.
TECHNICAL SPECIFICATIONS
Manufacturer: Fotek
Model Number: CDM-2MX+MR-1
Device Type: Cylindrical M18 Retro-Reflective Photoelectric Sensor
Sensing Distance: 0.1 m to 2.0 m (with MR-1 Reflector)
Emitting Light Source: Visible Red LED (660 nm)
Operating Supply Voltage: 10 to 30 V DC
Output Configuration: Dual NPN and PNP Open Collector (Selectable NO / NC)
Maximum Output Load Current: 100 mA (30 V DC max)
Voltage Drop: Less than 1.5 V DC
Response Time: Less than 2.0 ms
Current Consumption: Less than 25 mA
Optical Polarization: Integrated Polarizing Filter for Specular Target Suppression
Circuit Protection: Reverse Polarity Protection, Output Short-Circuit Protection, Surge Suppression
Indicator LEDs: Orange Output Indicator, Green Stability Indicator
Ingress Protection Rating: IP66 (IEC 60529)

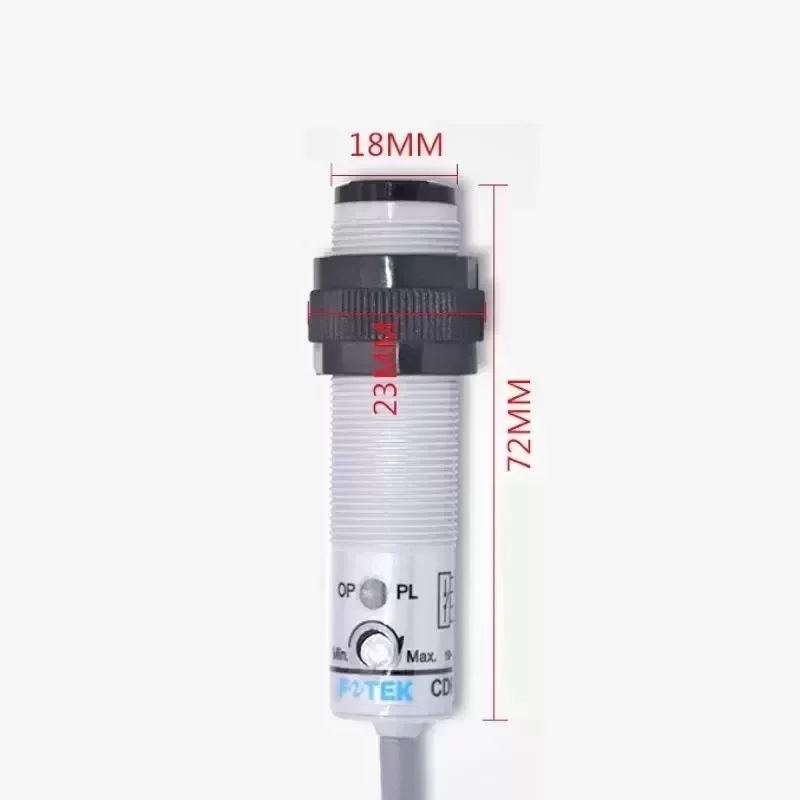

Housing Dimensions: M18 x 1.0 Threaded Barrel, Overall Length 65 mm
Housing Material: Nickel-Plated Brass with Polycarbonate Optical Window

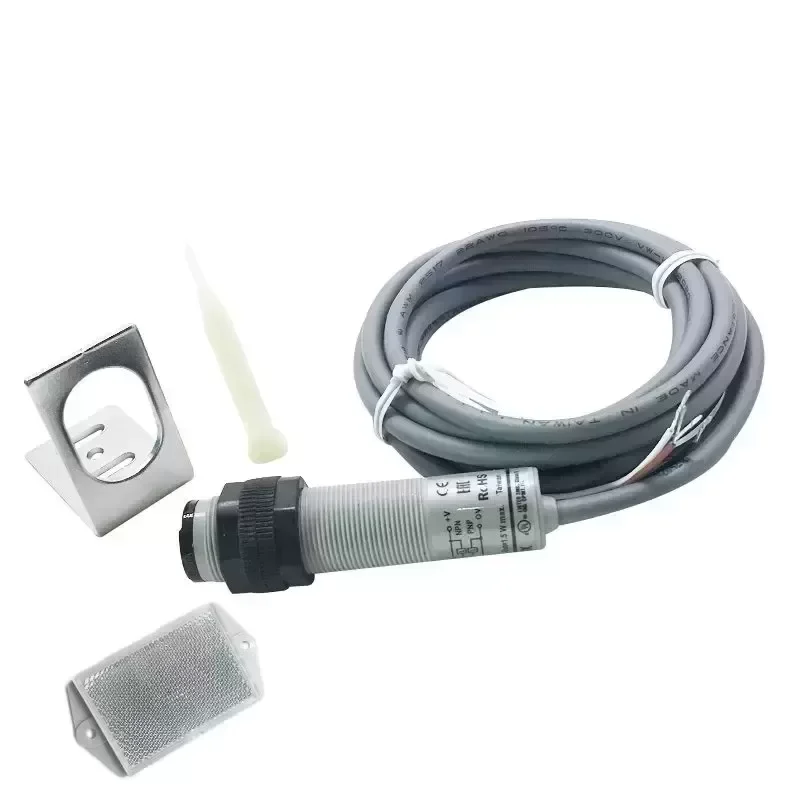

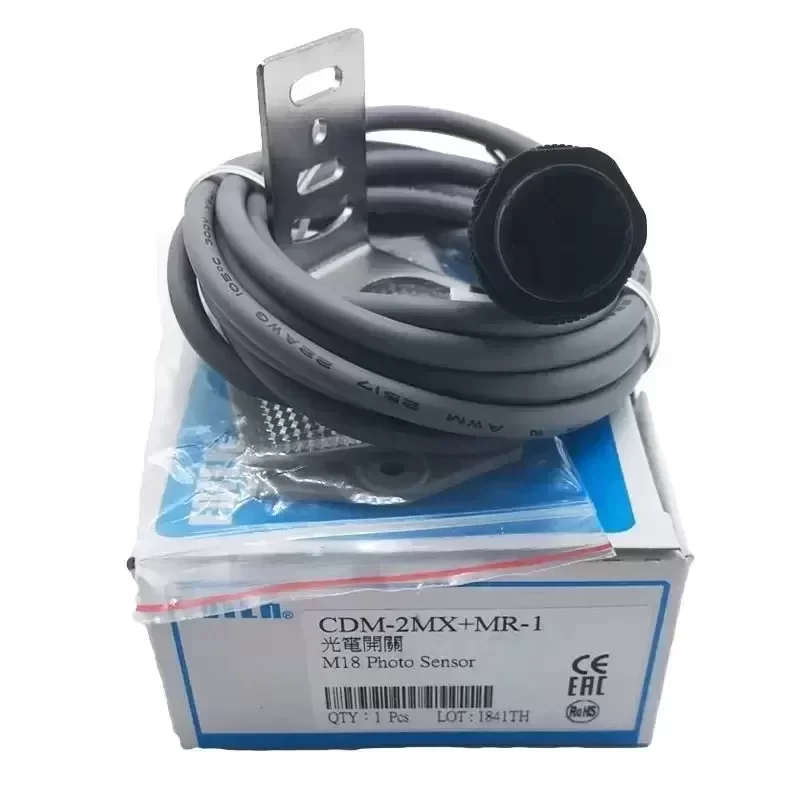

Included Reflector: MR-1 Prismatic Corner-Cube Reflector (51 mm x 61 mm)
Electrical Connection: Pre-wired 4-Core PVC Cable, Length 2.0 m, Outer Diameter Ø 4.5 mm
Operating Ambient Temperature: -20 °C to +60 °C
Ambient Operating Humidity: 35% to 85% RH (Non-condensing)
Weight: Approx. 125 g
Certifications: CE Compliant
INDUSTRIAL APPLICATION & SOLVED ISSUES

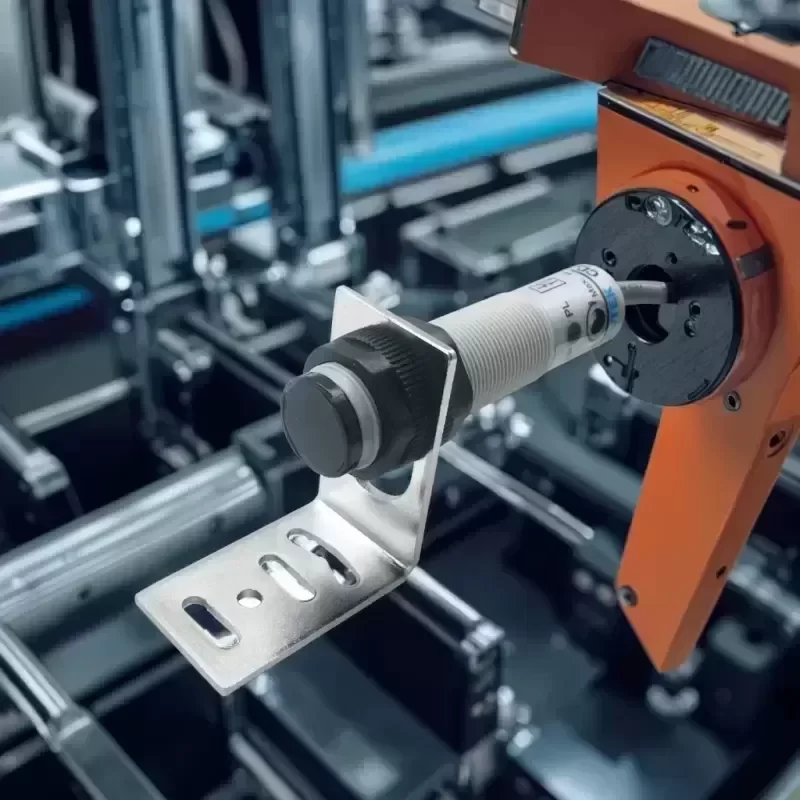

Standard diffuse sensors often experience false switching when detecting reflective packaging materials, polished aluminum tooling, or wet surfaces. The Fotek CDM-2MX paired with the MR-1 reflector solves this issue by rotating polarized light waves, ensuring the internal receiver only triggers when light is returned via the specialized corner-cube prism array. This makes it ideal for automated bottling lines, clear container tracking, logistics palletizing, and metal stamping stations.
INTEGRATION & SUPPLY
This sensor represents genuine Original Engineering from Fotek, offering universal Technical Compatibility with sinking (NPN) and sourcing (PNP) industrial PLC digital inputs without external signal conditioning. Inquire with technical sales for inventory availability and standard Lead Time.
Key Attributes
Mounting Type: Manual installation
Manufacturing Date Code: 2023.06.05
Model Number: CDM-2MX+MR-1
Brand Name: FOTEK
Usage: PHOTO SENSOR
Active area: Non
Description: Sensor
Type: PHOTO SENSOR
Place of Origin: Taiwan, China
Series: CDM
Features: M18 TUBULAR TYPE
Theory: Diffuse reflection
Output: NPN&PNP NO
Description: Sensor
Viewing Angle: NON
Response Time: 10ms
Voltage - Supply: 10vdc
Wavelength: Non
Dark Count Rate: Non
Packaging and Delivery
Selling Units: Single item
Single package size: 25X20X20 cm
Single gross weight: 0.250 kg
