Description

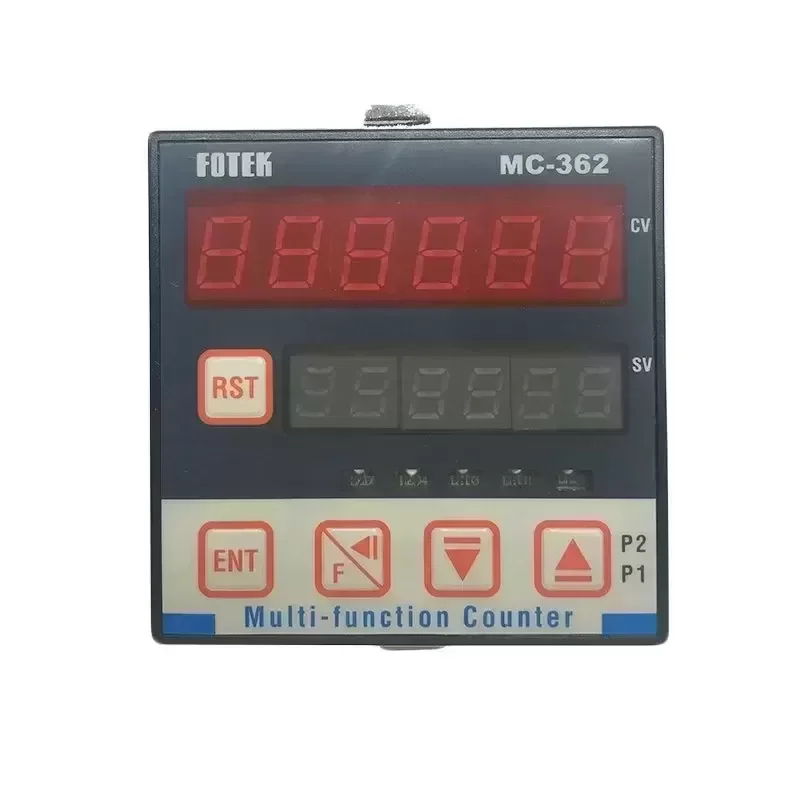

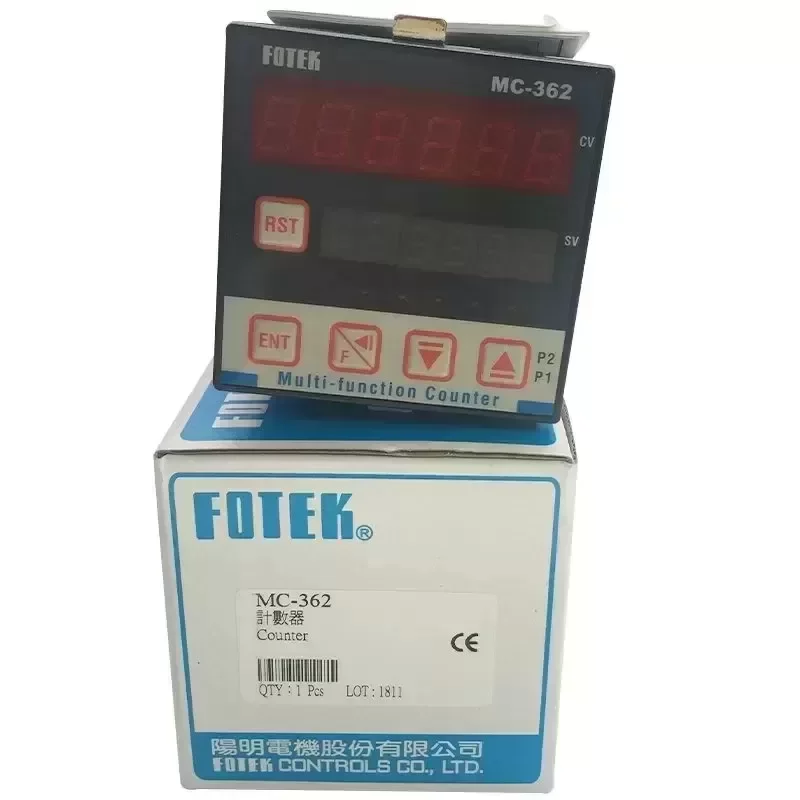

The FOTEK MC-362 is an industrial-grade, panel-mount digital multi-function preset counter engineered for high-precision dual-stage batching, totalizing, and position tracking. Utilizing robust Original Engineering architecture, this 72 x 72 mm DIN-standard instrument features a 6-digit high-visibility LED display and dual independent output relays to automate complex industrial sequencing, cutoff operations, and pre-warn batch control.
Technical Specifications:
Manufacturer: FOTEK
Model: MC-362
Device Type: Multi-Function Digital Preset Counter / Length Totalizer
Display: 6-Digit Red 7-Segment LED, 0 to 999999

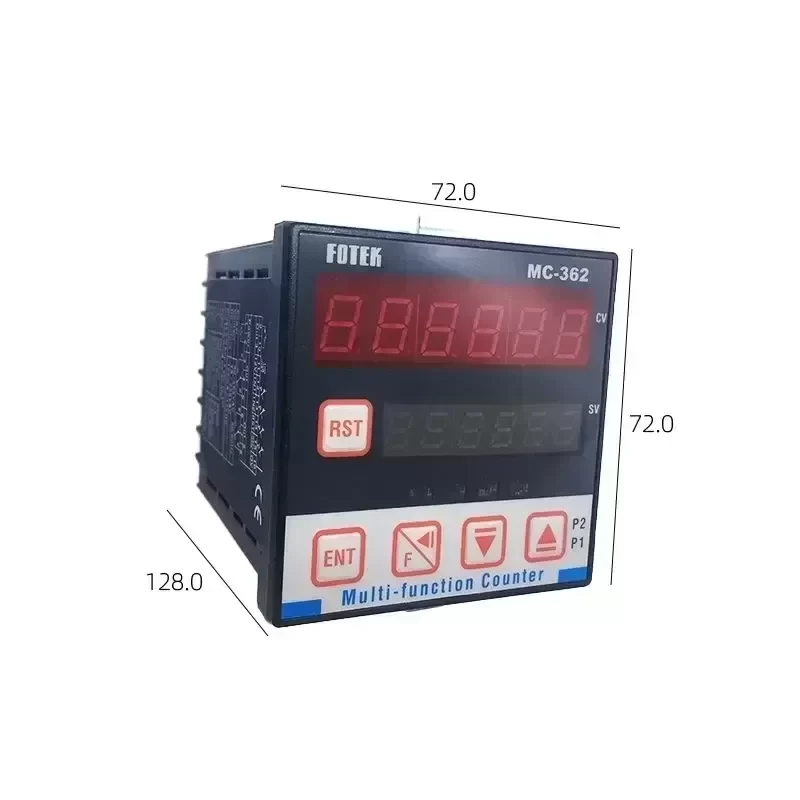

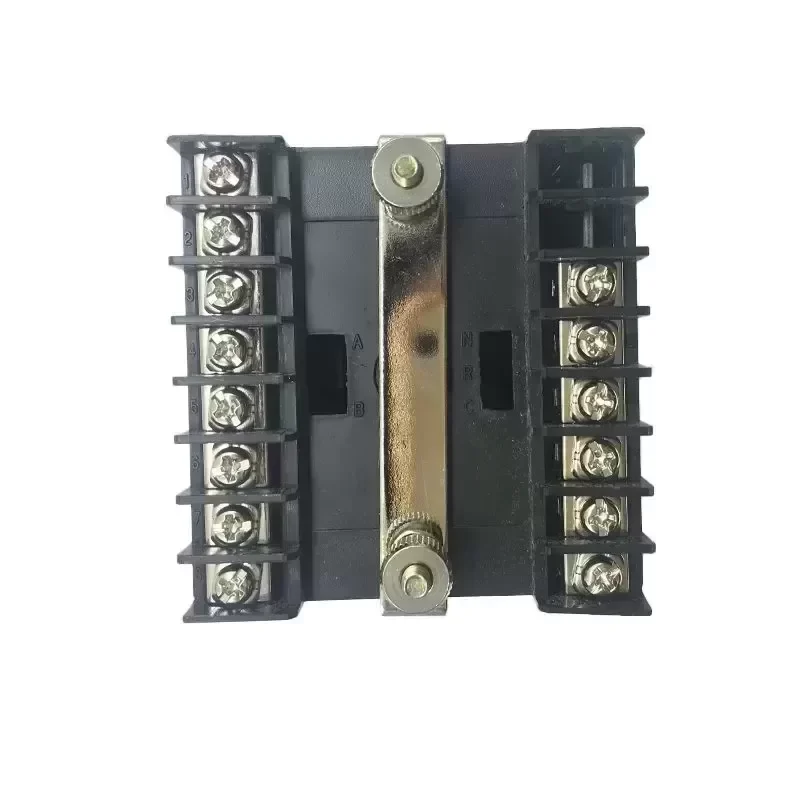

Form Factor: DIN 72 x 72 mm
Panel Cutout Dimensions: 68 x 68 mm
Depth Behind Panel: 95 mm

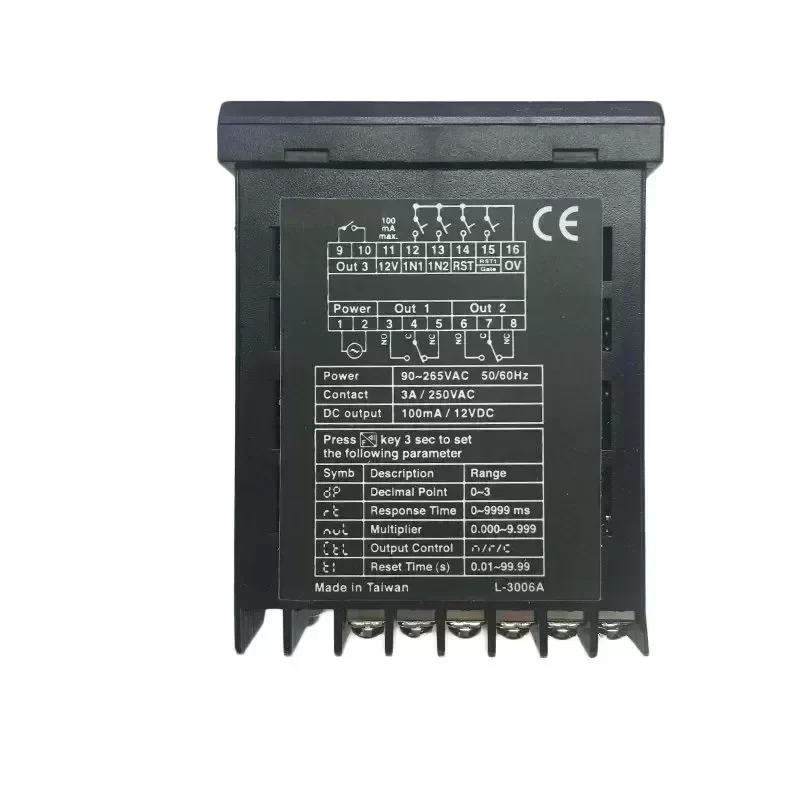

Operating Voltage: 100 to 240 VAC, 50/60 Hz
Power Consumption: 5.0 VA max
Sensor Power Supply Output: 12 VDC ±10%, 100 mA max
Input Modes: Up, Down, Up/Down (Phase Difference / Quadrature, Independent Inputs)
Input Types: NPN Open Collector, PNP Transistor, Contact Switch, Proximity Sensor, Rotary Encoder
Input Counting Speed: 30 Hz (Contact / Debounce Mode), 1 kHz / 5 kHz (High-Speed Electronic Mode)
Output Configuration: 2 Form C Relay Outputs (Relay 1 Pre-warn / Relay 2 Final Cutoff)
Contact Rating: 250 VAC, 3 A resistive load
Output Reset Modes: Manual Reset, External Signal Reset, Automatic Reset (0.1 to 9.9 s programmable delay)
Data Retention: Non-volatile EEPROM (10 years minimum without external power)
Insulation Resistance: 100 MΩ min at 500 VDC
Dielectric Strength: 2000 VAC at 50/60 Hz for 1 minute between current-carrying terminals and chassis
Operating Temperature: -10 °C to +50 °C
Operating Humidity: 35% to 85% RH (non-condensing)
Enclosure Protection: Front Panel IP65 (with sealing gasket), Terminals IP20
Weight: 320 g
Certifications: CE, RoHS compliant
Control Logic and Operational Interface:
The dual-relay architecture provides dedicated two-stage control logic. Stage 1 (Preset 1) executes speed reduction, deceleration ramping, or warning alerts as the target count approaches, while Stage 2 (Preset 2) triggers instantaneous final cycle termination or material cutoff. User-selectable input scaling factors, decimal point positioning, and debounce filtering ensure seamless compatibility with pulse-generating encoders, photoelectric sensors, and mechanical limit switches.
Application Architecture:
Designed specifically for automated packaging machines, coil winding systems, sheet extrusion cut-to-length lines, and textile processing. The high-speed response prevents cumulative drift errors during continuous rotary encoder tracking, allowing synchronized machinery to execute precise multi-stage cutoffs at line speeds exceeding standard PLC scan loop rates.
Technical Compatibility and Commercial Availability:
Technical Compatibility covers standard 72 x 72 mm instrument cutouts and universal 12 VDC sensor interfacing across all major industrial automation brands. Standard Lead Time applies for factory-fresh units supplied with complete mounting brackets, terminal barrier strips, and OEM documentation.
Key Attributes
Place of Origin: TAIWAN
Model Number: MC-362
Brand Name: FOTEK
Packaging and Delivery
Selling Units: Single item
Single package size: 8X8X13 cm
Single gross weight: 0.200 kg
