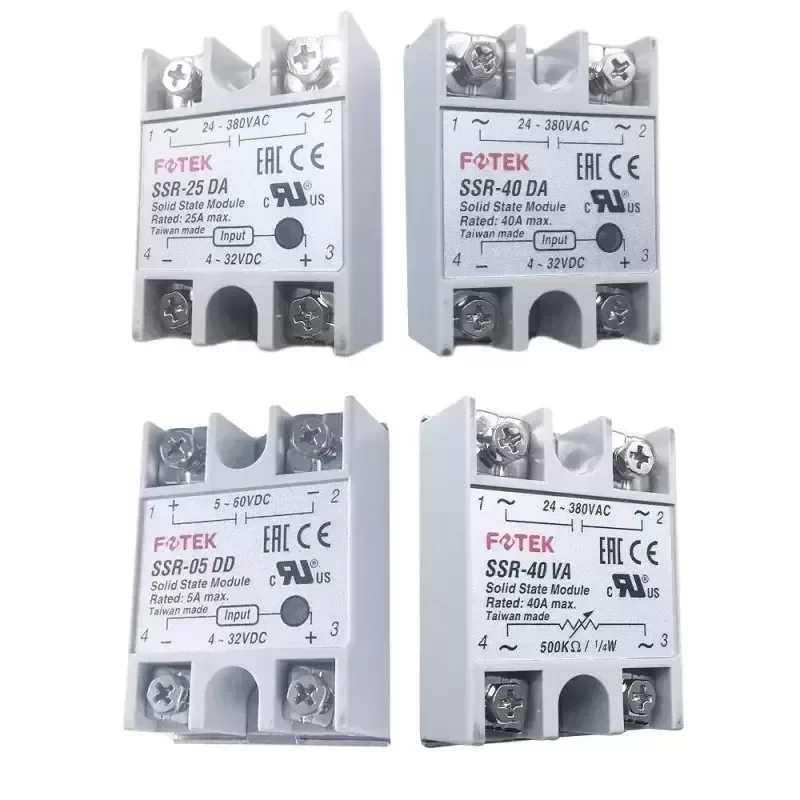

FOTEK SSR-40DA 40A DC Control Solid State Relay

Description

The Fotek SSR-40DA is an industrial-grade single-phase solid state relay engineered for contactless AC load switching via low-voltage DC logic signals. Utilizing original engineering standards, this module eliminates mechanical wear, contact bounce, and acoustic noise inherent to electromechanical contactors. It features an integrated optical isolation barrier and zero-crossing detection circuitry to minimize electromagnetic interference (EMI) and current inrush during AC resistive and inductive load activation.

MODEL DECODING & ARCHITECTURE
Series: SSR (Solid State Relay Series)
Current Rating: 40 (40 Amperes maximum nominal load current)
Input Control Mode: D (DC Control Signal, 4 to 32 VDC)
Output Switching Mode: A (AC Load Switching, 24 to 380 VAC)
Switching Topology: Zero Cross Triggering

TECHNICAL SPECIFICATIONS
Control Input Voltage: 4 to 32 VDC
Control Input Current: 6 mA to 25 mA
Must Turn-On Voltage: 3.0 VDC minimum
Must Turn-Off Voltage: 1.0 VDC maximum
Rated Load Voltage: 24 to 380 VAC (50/60 Hz)
Rated Load Current: 40 A continuous (with adequate heatsink)
Peak Non-Repetitive Surge Current: 410 A (10 ms)
On-State Voltage Drop: <= 1.6 VAC at rated current
Off-State Leakage Current: <= 3.0 mA at 220 VAC
Turn-On Time: <= 10 ms (half cycle)
Turn-Off Time: <= 10 ms (half cycle)
Dielectric Strength (Input to Output): >= 2500 VAC (1 minute)
Dielectric Strength (Input/Output to Base): >= 2500 VAC (1 minute)
Insulation Resistance: 100 MΩ at 500 VDC
Operating Temperature Range: -20°C to +80°C
Storage Temperature Range: -40°C to +100°C
Baseplate Material: High-thermal-conductivity aluminum
Housing Material: Flame-retardant PBT engineering plastic
Terminal Fastener Torque: 1.2 N·m (Input M3 screws), 1.5 N·m (Output M4 screws)
Dimensions (L x W x H): 62.0 mm x 45.0 mm x 22.5 mm
Mounting Hole Pitch: 47.5 mm (M4 screw)
Weight: 105 g

CRITICAL APPLICATION ARCHITECTURE
The Fotek SSR-40DA is deployed in continuous thermal management loops, such as plastic extrusion barrel heating, blow molding machines, thermoforming systems, packaging sealing bars, and industrial reflow ovens. In standard electromechanical systems, high-frequency PID cycling rapidly erodes mechanical contacts, resulting in downtime and uneven thermal distribution. The SSR-40DA provides solid-state switching speed compatible with microcontrollers, PLC transistor outputs, and temperature controllers, providing microsecond response without arcing. For applications exceeding 10A nominal load, mounting to an extruded aluminum heatsink with thermal interface material (thermal conductivity >= 1.5 W/m·K) is required to maintain junction temperature within the safe operating area.

COMMERCIAL & SUPPLY DATA
Technical Compatibility: Standard 47.5 mm industrial footprint compatible with standard panel and DIN-rail heatsink assemblies.
Standard Lead Time: In stock for immediate dispatch; batch orders adhere to standard 5 to 10 business day lead time windows.

Key Attributes
Brand Name: FOTEK
Model Number: SSR-40DA
Type: Single-phase
Relay Type: Single-phase
Mounting Type: Screw
Place of Origin: Taiwan, China
Description: -
Application: Load heating
Output Type: Exchange
Coil Type: DC control AC
Circuit: -
Connector Type: -
Voltage - Output: 24~380VAC
Contact Rating (Current): 40A
Voltage - Input: 4~32VDC
Switching Voltage: <3.5VDC
Current - Input: -
Contact Form: -
Voltage - Load: -
On-State Resistance (Max): -
Current - Output: -
Termination Style: -
Load Current: -
Coil Current: -
Coil Voltage: -
Series: SSR-DA
Features: -
Model: SSR-40DA
Rated current: 40A
I²t for fuse: 664A²S
Surge current: 410A
Peak voltage: 1200VAC min.
Output voltage: 24~380VAC
Lnput voltage: 4~32VDC
Turn off voltage: <3.5VDC

Packaging and Delivery
Selling Units: Single item
Single package size: 6.3X4.5X3 cm
Single gross weight: 0.100 kg
