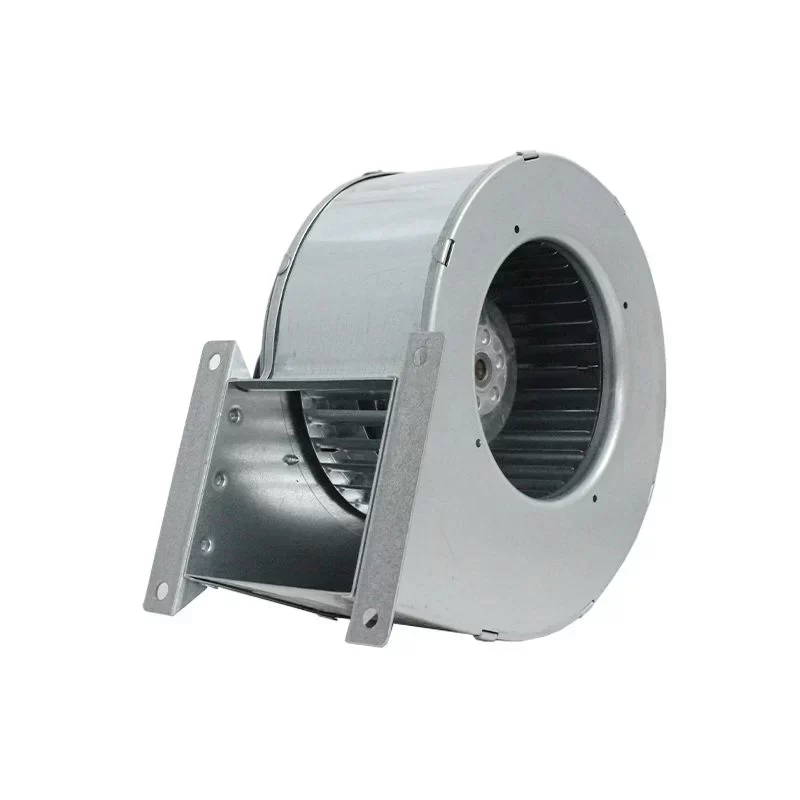

G2E120-CR21-01 ebmpapst 230V 83/100W Centrifugal Fan
G2E120-CR21-01 ebmpapst 230V 83/100W Centrifugal Fan

G2E120-CR21-01 ebmpapst 230V 83/100W Centrifugal Fan

$100.00

SKU: 1600747704007 Brand:

Description

The G2E120-CR21-01 is engineered for high-pressure requirements in restricted installation spaces. Its forward-curved impeller design provides optimal aerodynamic performance, making it critical for cooling high-load electronics cabinets and industrial ventilation systems. This unit is frequently utilized in gas boiler burner systems and cleanroom filtration units where Technical Compatibility with 230V AC grids is essential.

Manufacturer: ebm-papst
Model Number: G2E120-CR21-01
Product Category: AC Centrifugal Blower (Single Inlet)

Technical Specifications:
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Power Consumption: 83 W (50Hz) / 100 W (60Hz)
Current Draw: 0.37 A / 0.45 A
Speed: 2450 RPM / 2450 RPM
Air Flow: 260 m³/h / 255 m³/h
Static Pressure: 340 Pa / 360 Pa
Capacitor Requirement: 2.0 µF / 450 VDB
Bearing Type: Maintenance-free Ball Bearings
Direction of Rotation: Clockwise (seen on rotor)
Impeller Material: Sheet Steel, Galvanized
Housing Material: Die-cast Aluminum
Insulation Class: F
Protection Class: IP44
Weight: 2.0 kg

Dimensions and Mechanical Interface:
Impeller Diameter: 120 mm
Width: 175 mm
Height: 180 mm
Depth: 81 mm
Electrical Connection: Lead wires (stripped and tinned ends)

Environmental and Safety Compliance:
Operating Temperature Range: -25 °C to +55 °C
Approval Certifications: CE, VDE, UL, CSA, CCC
Service Life (L10 at 40 °C): 32,500 hours

Procurement and Lifecycle Value:
This component is an Original Engineering solution from ebm-papst, ensuring long-term reliability and reduced downtime in critical infrastructure. We maintain streamlined logistics to optimize Lead Time for MRO (Maintenance, Repair, and Operations) requirements. The robust die-cast aluminum housing ensures structural integrity in demanding thermal environments.

Key Attributes
Voltage: 230V
Blade Material: High-grade metal
Mounting: Free Standing
Customized support: OEM, ODM
After-sales Service Provided: Online support
Warranty: 1 Year
Electric current type: AC
Place of origin: Germany
Brand name: Ebmpapst
Model number: G2E120-CR21-01
Current: 0.37/0.45A
Power: 83/100W
Speed: 2200/2050RPM
Weight: 1.9KG
Operating Temperature: -25℃ to 50℃
Bearing Type: Ball

Packaging and Delivery
Selling Units: Single item
Single package size: 21X14X20 cm
Single gross weight: 0.500 kg

G2E120-CR21-01 ebmpapst 230V 83/100W Centrifugal Fan

G2E120-CR21-01 ebmpapst 230V 83/100W Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
