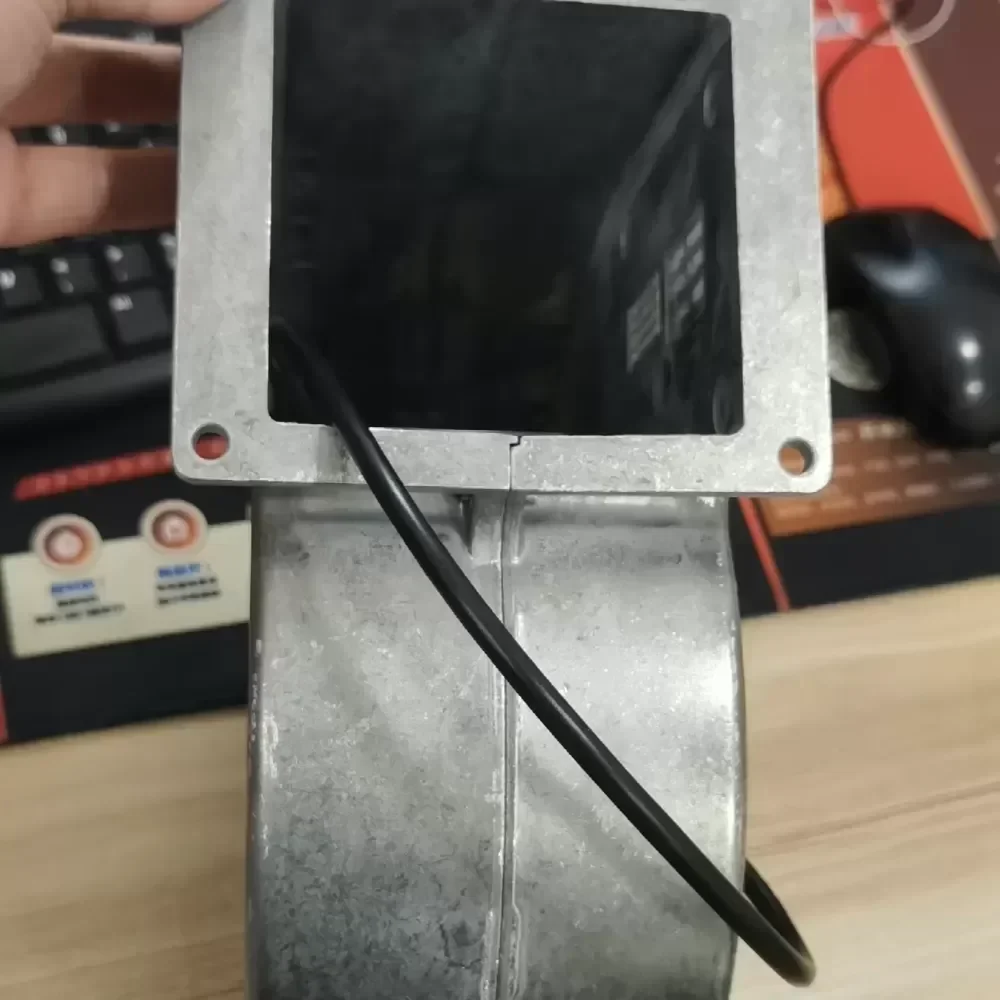

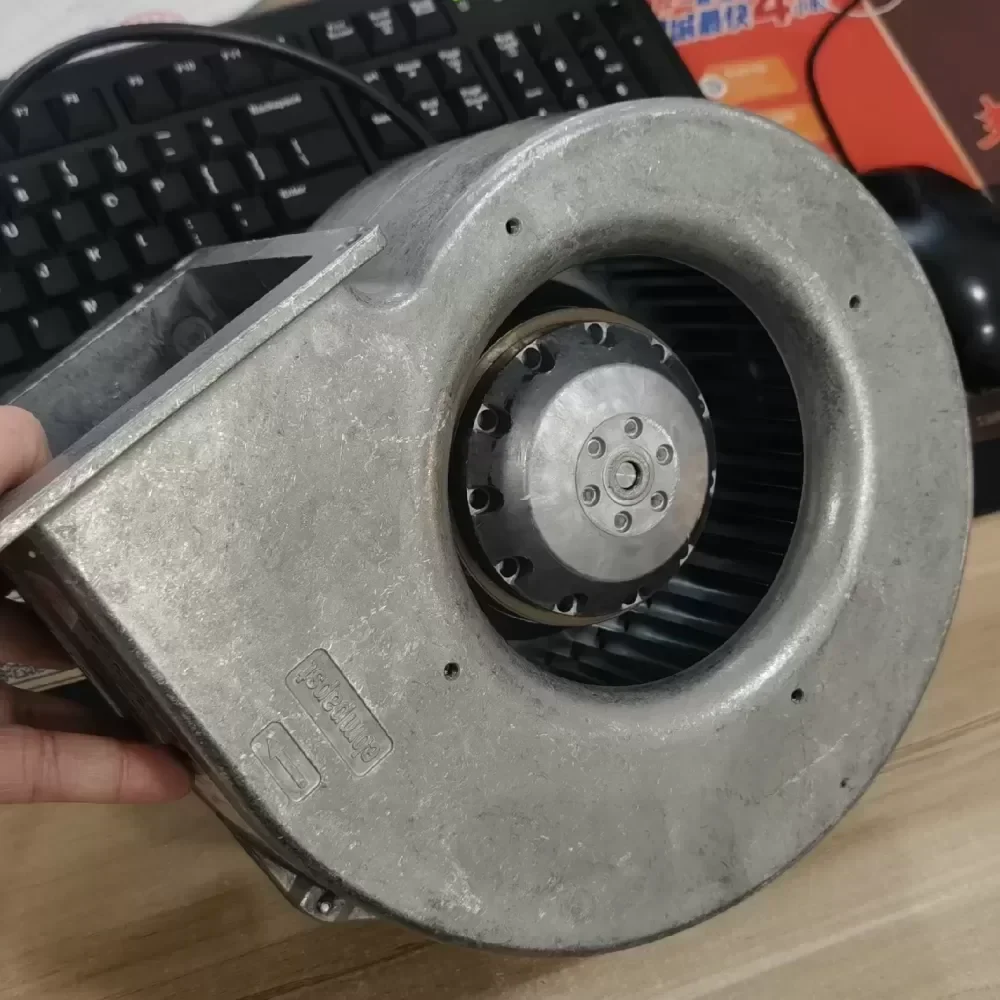

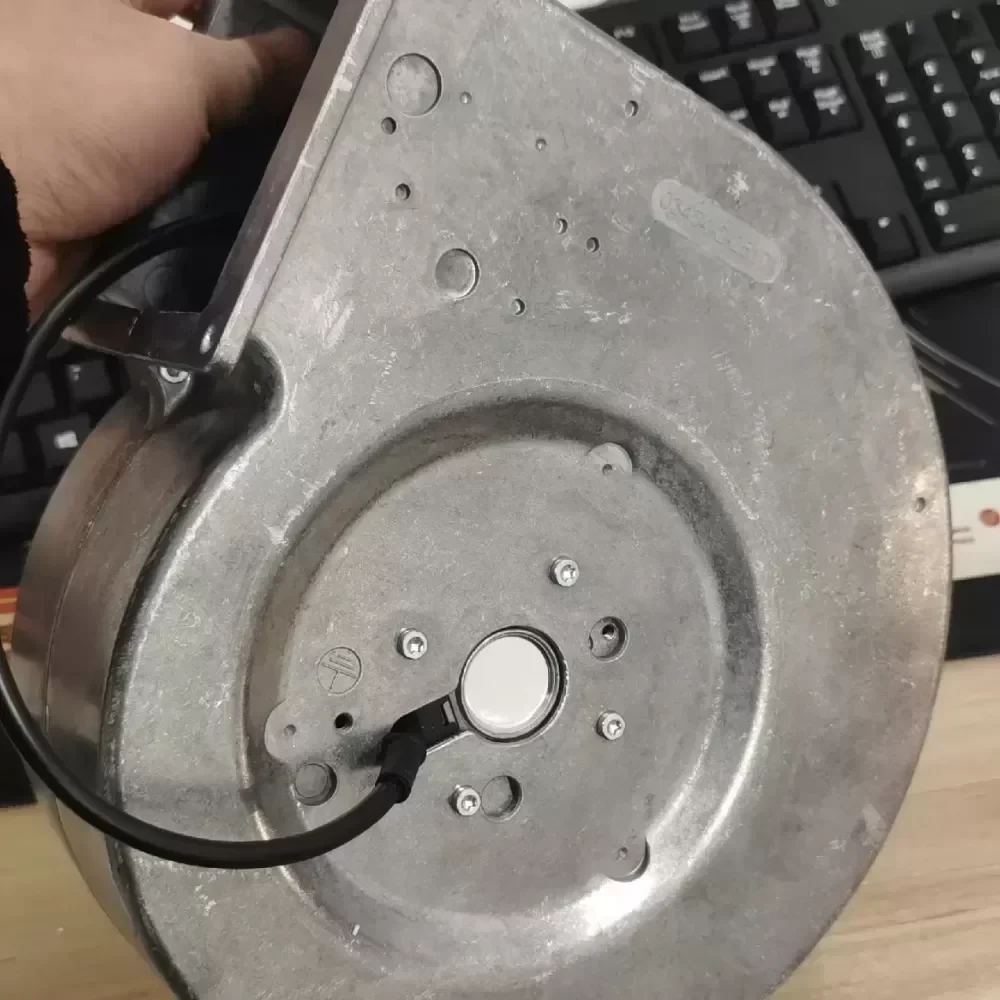

G2E140-AL40-01 ebmpapst fan centrifugal turbofan
G2E140-AL40-01 ebmpapst fan centrifugal turbofan
G2E140-AL40-01 ebmpapst fan centrifugal turbofan
G2E140-AL40-01 ebmpapst fan centrifugal turbofan

G2E140-AL40-01 ebmpapst fan centrifugal turbofan

$157.14

SKU: 717449553596 Brand:

Description

The ebm-papst G2E140-AL40-01 is a high-performance, single-inlet forward-curved centrifugal fan designed for demanding industrial ventilation and cooling applications. Driven by the robust M2E068-CF AC motor, this German-engineered turbofan delivers exceptional airflow efficiency and reliability in compact spaces. Maintaining Original Engineering standards, this unit ensures seamless Technical Compatibility with existing HVAC, telecommunications, and industrial machinery frameworks.

Technical Specifications:
Brand: ebm-papst
Model: G2E140-AL40-01
Motor Model: M2E068-CF
Fan Type: Centrifugal Blower (Single Inlet, Forward Curved)
Impeller Diameter: Ø 140 mm
Nominal Voltage: 230 VAC
Phase: 1-phase
Frequency: 50 / 60 Hz
Nominal Speed: 2400 RPM
Power Consumption: 115 W
Current Draw: 0.52 A
Motor Capacitor: 3.0 µF / 400 V
Maximum Airflow: 400 m³/h
Operating Temperature: -25°C to +55°C
Protection Rating: IP44
Insulation Class: B
Weight: 1.5 kg
Housing Material: Die-cast aluminum
Impeller Material: Galvanized sheet steel
Bearing Type: Maintenance-free ball bearings
Motor Protection: Thermal overload protector (TOP) wired internally

Application & Lifecycle:
The G2E140-AL40-01 is specifically engineered for high-impedance systems requiring concentrated airflow, such as control cabinet cooling, extrusion machinery, and medical equipment ventilation. The precision-balanced galvanized impeller minimizes vibration, extending the operational lifecycle of both the blower and the host equipment. With optimized Lead Time protocols, this component serves as a critical replacement part to minimize facility downtime and restore optimal thermal management.

G2E140-AL40-01 ebmpapst fan centrifugal turbofan

G2E140-AL40-01 ebmpapst fan centrifugal turbofan

G2E140-AL40-01 ebmpapst fan centrifugal turbofan

G2E140-AL40-01 ebmpapst fan centrifugal turbofan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
