Description

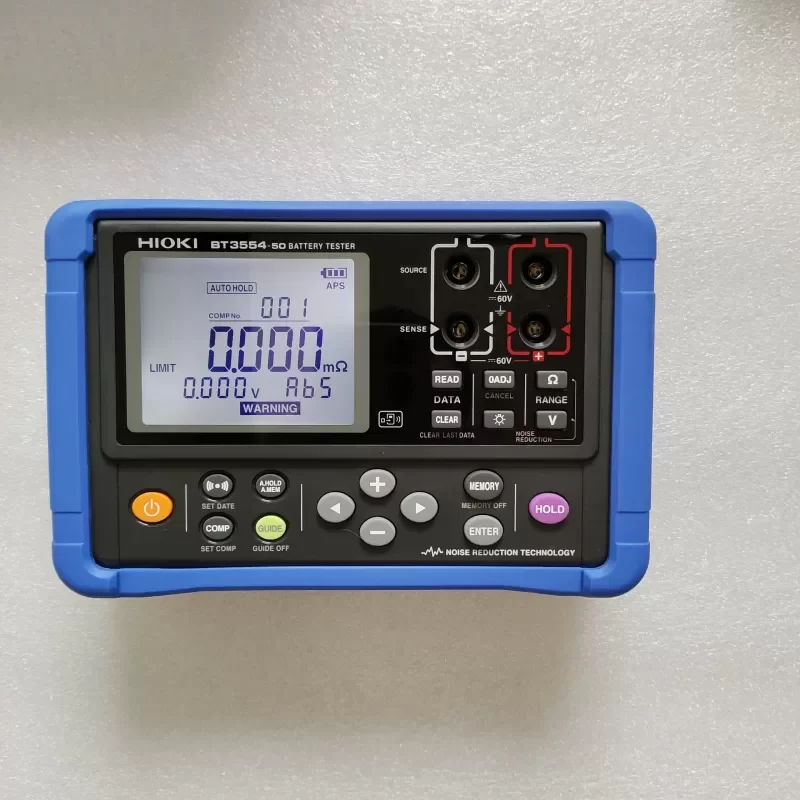

The Hioki BT3554-52 PRO KIT is a premier battery capacity and impedance tester engineered for the rapid diagnostics of lead-acid and lithium-ion batteries in uninterruptible power supply (UPS) systems. By utilizing advanced noise reduction technology, this instrument allows technicians to measure internal resistance and voltage without taking the battery bank offline, ensuring zero downtime for critical infrastructure.
Sourced through Original Engineering channels, this complete kit ensures seamless Technical Compatibility with enterprise-grade power management systems. We provide optimized Lead Time for global B2B procurement, ensuring your maintenance teams are equipped without delay.
Technical Specifications:
Brand: Hioki
Model: BT3554-52 PRO KIT
Measurement Method: AC four-terminal method (1 kHz ±30 Hz)
Resistance Measurement Range: 3 mΩ to 3 Ω (4 ranges)
Resistance Accuracy: ±0.8% rdg. ±6 dgt.
Voltage Measurement Range: 6 V to 60 V DC (2 ranges)
Voltage Accuracy: ±0.08% rdg. ±6 dgt.
Data Storage Capacity: Up to 6,000 data sets

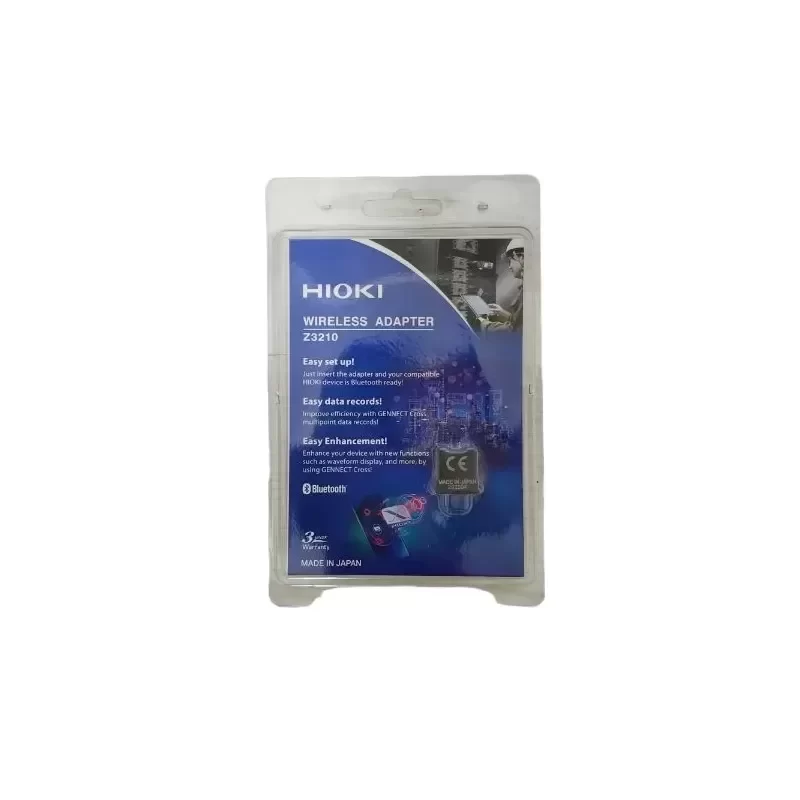

Connectivity: Bluetooth wireless communication via Z3210 Adapter
Software Compatibility: GENNECT Cross mobile application
Operating Temperature: 0°C to 40°C
Power Supply: 8 x AA alkaline batteries (LR6)
Dimensions: 199 mm W x 132 mm H x 60.6 mm D
Weight: 960 g

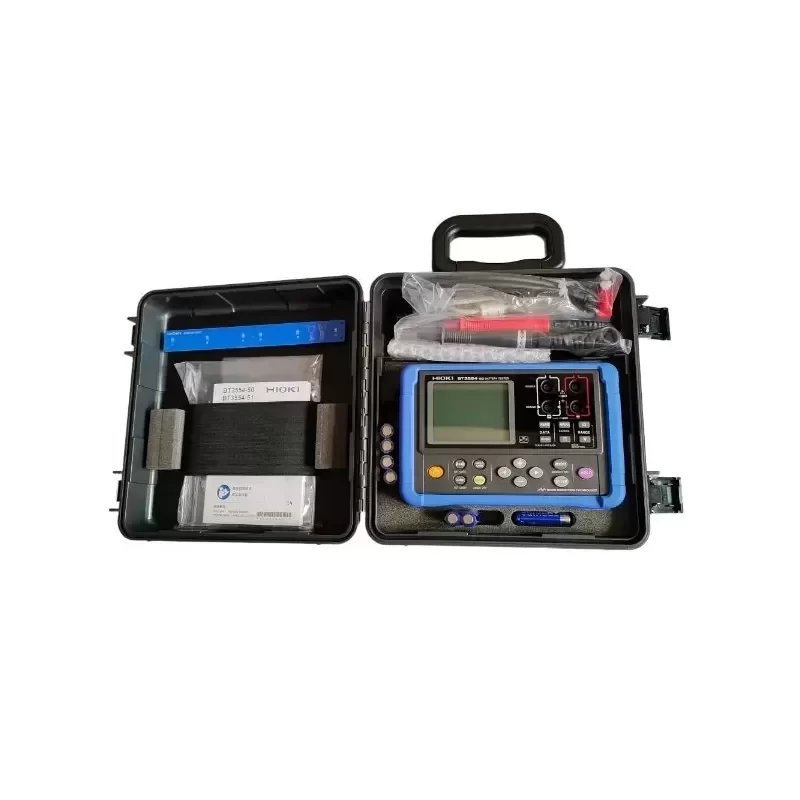

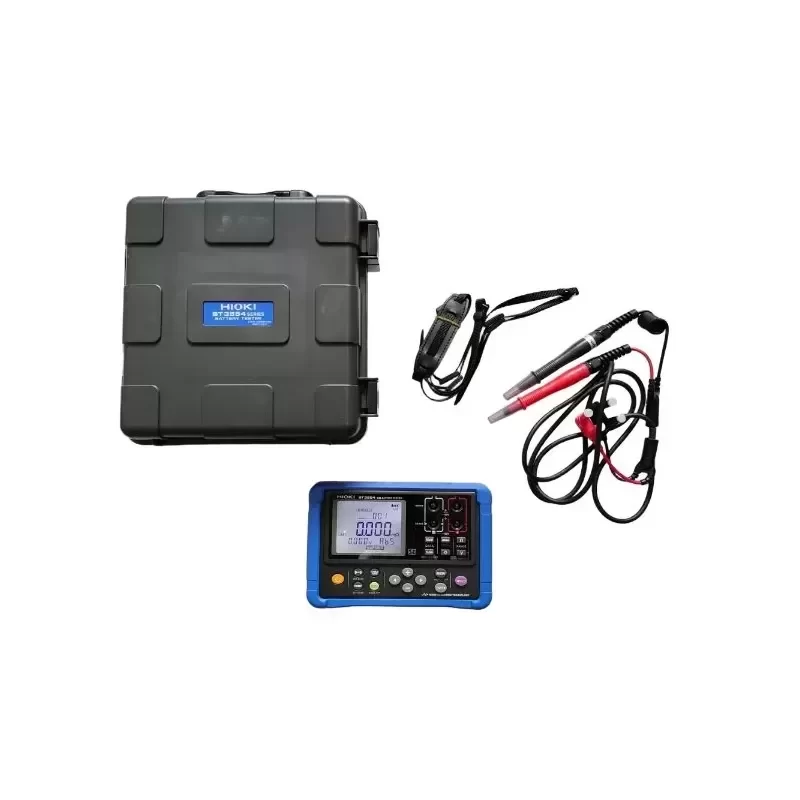

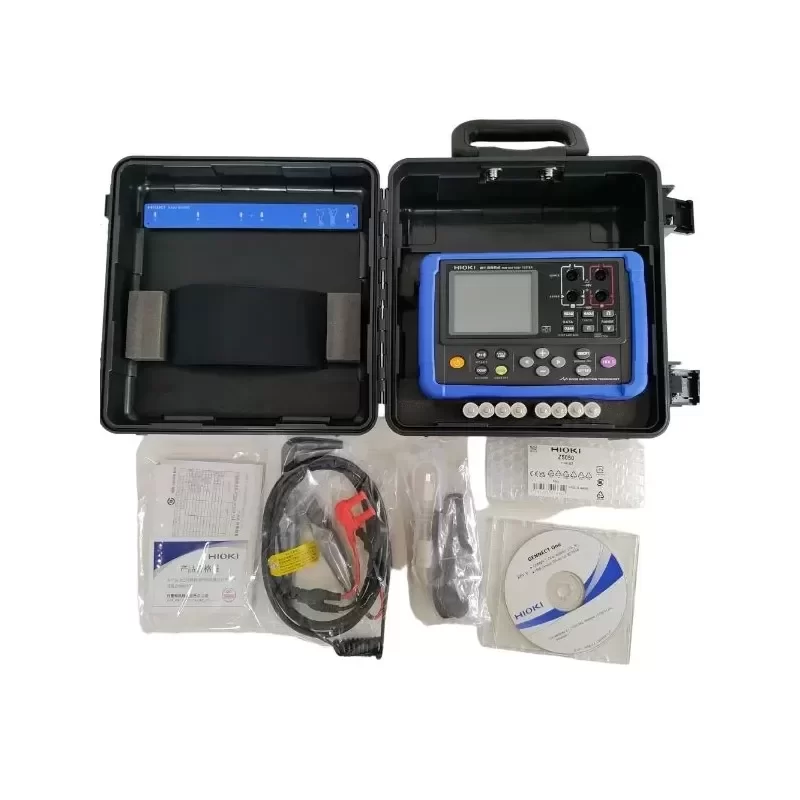

Included Components: BT3554-50 Main Unit, L2020 Pin Type Lead, Z3210 Wireless Adapter, Magnetic Strap, Hard Carrying Case
Industrial Application:
This professional kit is specifically designed for preventative maintenance in hyperscale data centers, telecommunications facilities, and industrial manufacturing plants. The included L2020 Pin Type Lead features an L-shaped design, allowing technicians to easily access deep-set battery terminals in confined server racks. Combined with the Z3210 Wireless Adapter, operators can instantly transmit measurement data to a smart device, automatically generating compliance reports and plotting degradation trends to predict battery failure before a critical power loss occurs.
Key Attributes
Application: BATTERY TESTER
Place of Origin: Japan
Model Number: BT3554-52
Brand Name: Hioki
Charge/Discharge Voltage: 0-5 V
Flashlight: Other
Input Resistance: 3 Ω
Maximum Measuring Voltage: 60v
Type: Battery Capacity Tester
Resistance Measurement Range: 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω
Voltage Measurement Range: ±6 V to ±60 V
Absolute Maximum Input Voltag: 60 V DC maximum (no AC input)
Measurement Time: 100 ms
Response Time: Approximately 1.6 seconds
Communication Interface: USB
Temperature measurement: -10 to 60°C (14 to 140°)
Power Supply: 8 x LR6 (AA) alkaline dry battery
Packaging and Delivery
Selling Units: Single item
Single package size: 46X32X16 cm
Single gross weight: 3.200 kg
