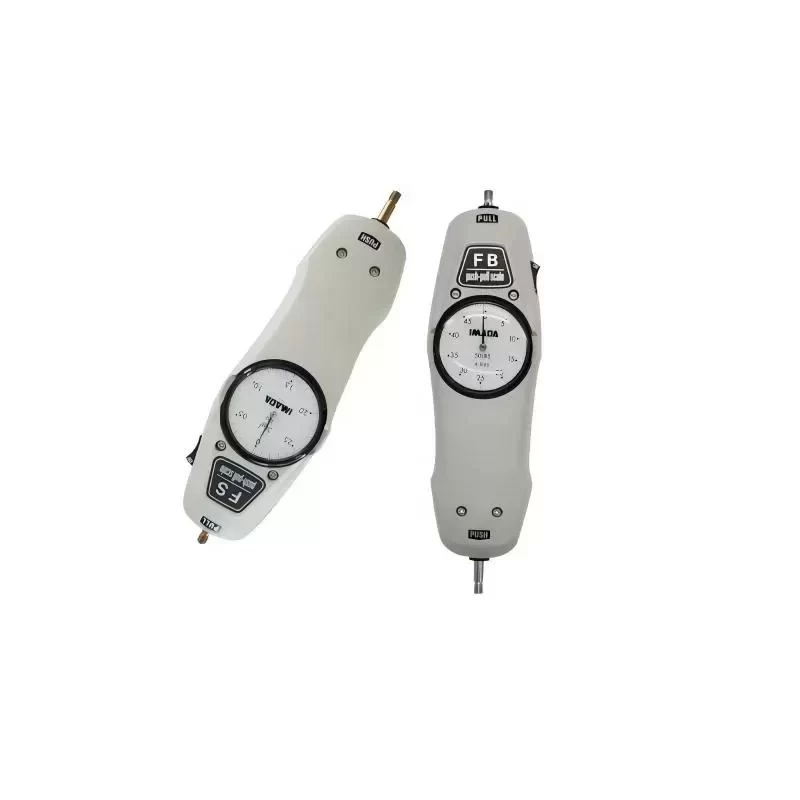

IMADA FB-300N FB-500N Mechanical Force Gauge 300N

Description

The IMADA FB-300N and FB-500N mechanical force gauges are precision analog instruments designed for high-repeatability tension and compression testing across demanding industrial environments. Built with original engineering from IMADA Co., Ltd., these push-pull gauges utilize a dedicated spring-balance measurement mechanism that operates entirely without electrical power. This design delivers zero-drift performance, complete immunity to electromagnetic interference (EMI), and safe operation in spark-sensitive or explosive atmospheres. Featuring an instantaneous switch for real-time tracking and peak-hold capture, the FB series is an essential tool for rapid quality verification on production lines and testing laboratories.

TECHNICAL SPECIFICATIONS
Manufacturer: IMADA Co., Ltd.
Product Series: FB Mechanical Force Gauge Series
Applicable Models: FB-300N, FB-500N
Measurement Capabilities: Compression (Push) and Tension (Pull)
FB-300N Rated Capacity: 300 N
FB-300N Resolution / Graduation: 2.5 N
FB-500N Rated Capacity: 500 N
FB-500N Resolution / Graduation: 5.0 N
Measurement Accuracy: ±0.3% Full Scale (F.S.)
Deflection / Measuring Stroke: 10 mm

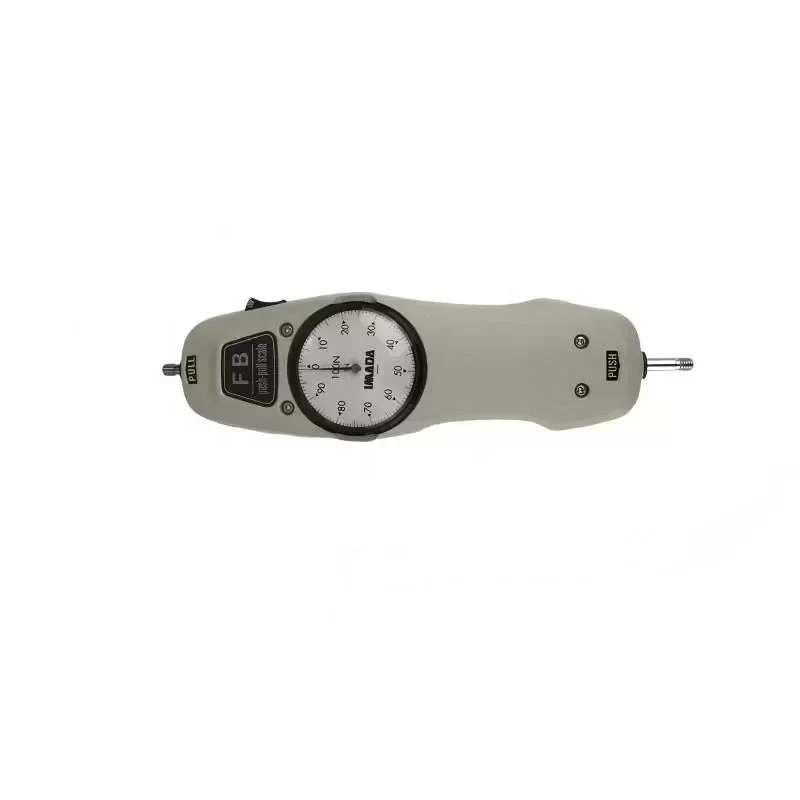

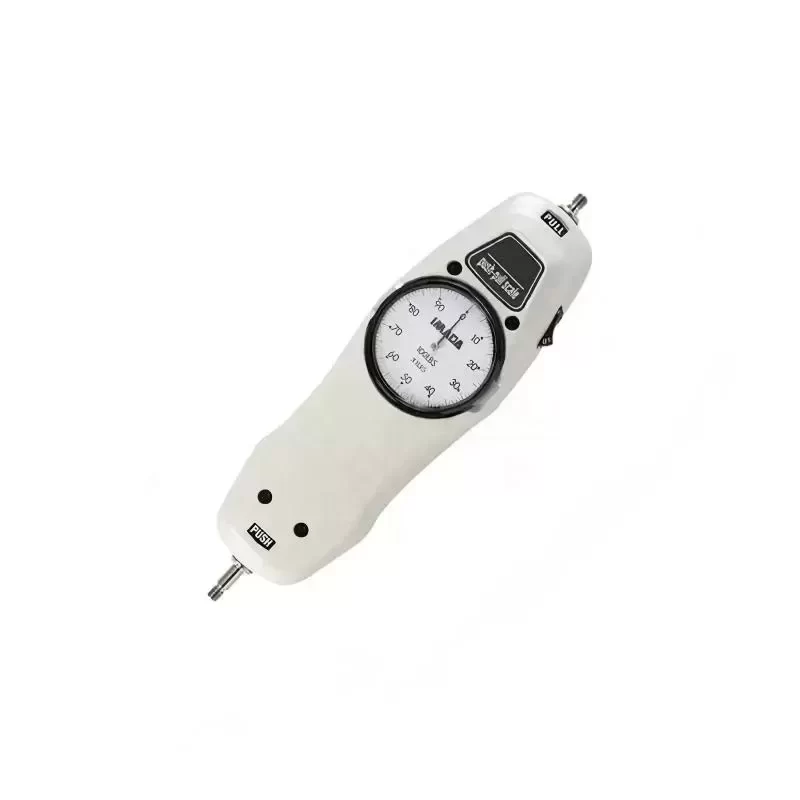

Display Mechanism: High-Contrast Circular Dial with Concentric Pointer
Operating Modes: Real-Time (Track Mode) and Peak Hold Mode
Attachment Thread Interface: M6 Male Spindle / Fixture Thread
Mechanical Overload Capacity: 120% F.S.
Housing Construction: Heavy-Duty Die-Cast Aluminum Alloy
Operating Temperature Range: 0 °C to +40 °C
Storage Temperature Range: -10 °C to +60 °C
Operating Humidity Range: 20% to 80% RH Non-Condensing
External Dimensions: 220.5 mm x 67.0 mm x 48.0 mm
Weight: 630 g
Power Requirements: None (Autonomous Mechanical Operation)
Quality Traceability: Factory Inspection Certificate Included, NIST/JCSS Traceable Calibration Ready

SYSTEM ARCHITECTURE AND TECHNICAL COMPATIBILITY
The FB series features a precision-machined rack-and-pinion transmission equipped with anti-backlash gearing to translate linear rod travel into dial pointer movement with minimal mechanical hysteresis. The internal spring pack is thermally stabilized to ensure measurement linearity across varying ambient temperatures. The rear chassis includes standard four-point M4 mounting patterns (30 mm x 145 mm spacing), ensuring seamless technical compatibility with IMADA manual test stands (SV, HV, KV series), motorized test benches (MX series), and universal automation fixtures.

CRITICAL APPLICATION SCENARIOS
The mechanical architecture of the FB-300N and FB-500N addresses specific testing demands where digital instruments are unsuitable or cost-prohibitive:
1. Hazardous and Explosive Environments: Completely intrinsically safe for use in chemical manufacturing, pyrotechnic assembly, and flammable solvent handling areas where electrical test equipment is restricted.
2. Automotive Wire Harness and Terminal Pull Testing: Rapid pass/fail validation of crimped terminal retention forces to verify compliance with industry tensile extraction standards.
3. Switch Actuation and Insertion Force Measurement: Precise verification of push-button tactile force, connector insertion and extraction forces, and automotive latch engagements.
4. Packaging and Material Strength Testing: Testing the puncture resistance, peel strength of heat-sealed medical packages, and burst strength of containers.

COMMERCIAL LOGISTICS AND ACCESSORIES
Standard Lead Time: 3 to 5 business days for standard inventory; 10 to 12 business days for complete ISO/IEC 17025 accredited calibration documentation.

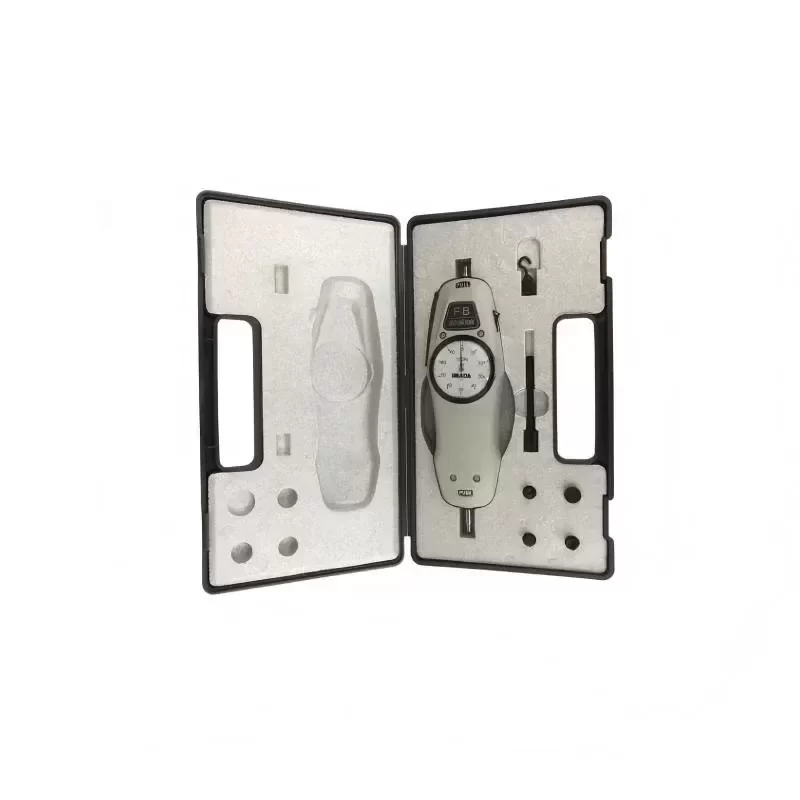

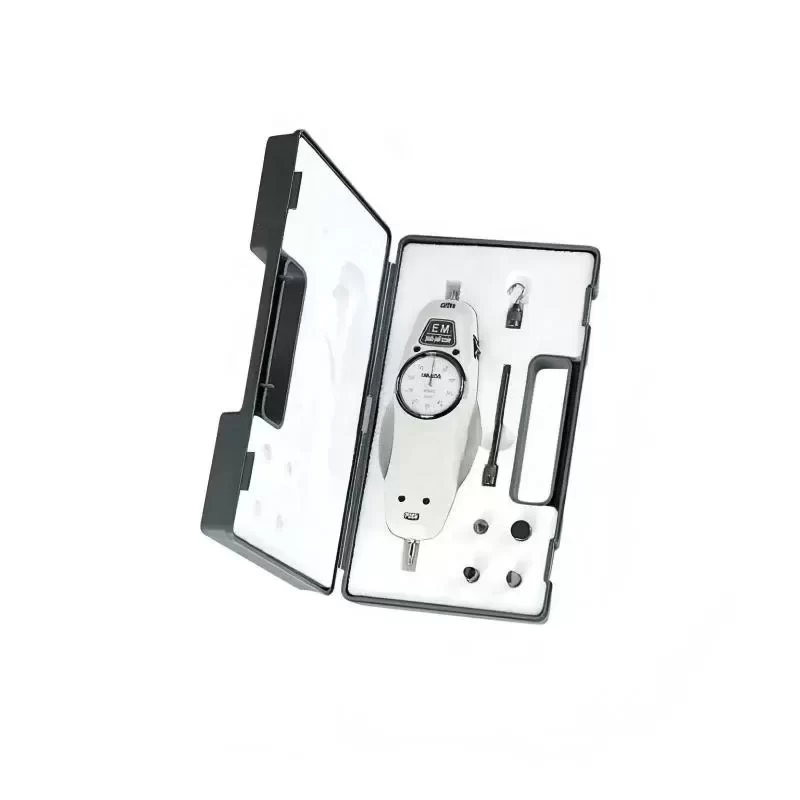

Included Tooling Set: Impact-resistant carrying case, M6 tension hook, flat tip, conical tip, chisel tip, V-notch tip, 85 mm extension rod, and M4 chassis mounting screws.

Key Attributes
Accuracy: ±0.3% FS
Type: Mechanical Force Gauge
Place of origin: Japan
Material: ABS Plastic
Relative humidity: 90%
Brand name: IMADA
Customized support: ODM
Size: 18*12*9cm
Warranty: 1 Year
Capacity: 300 N
Resolution: 2.5 N

Packaging and Delivery
Selling Units: Single item
Single package size: 35X20X14 cm
Single gross weight: 1.300 kg
