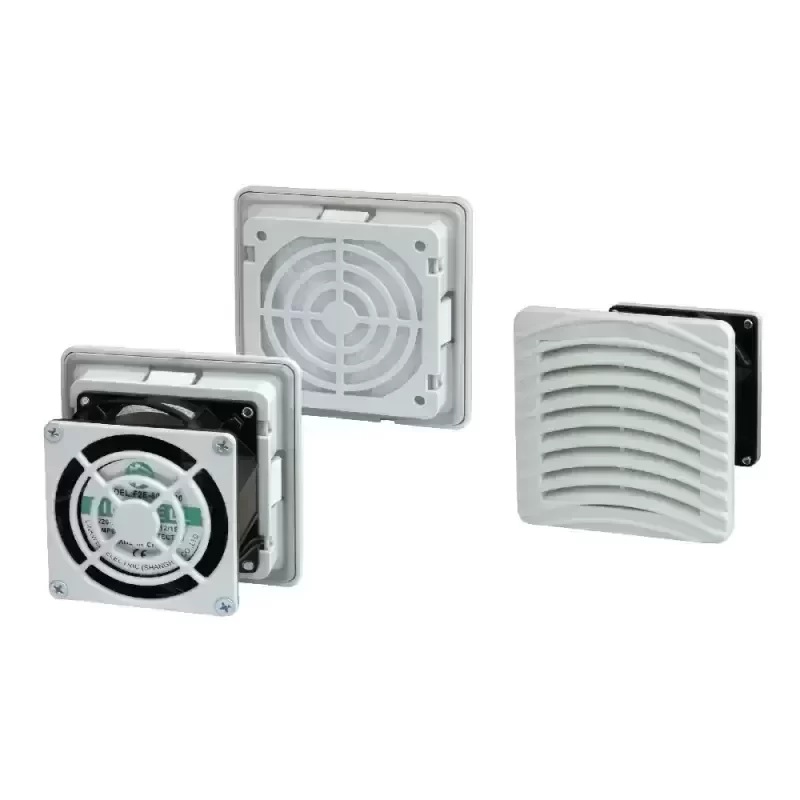

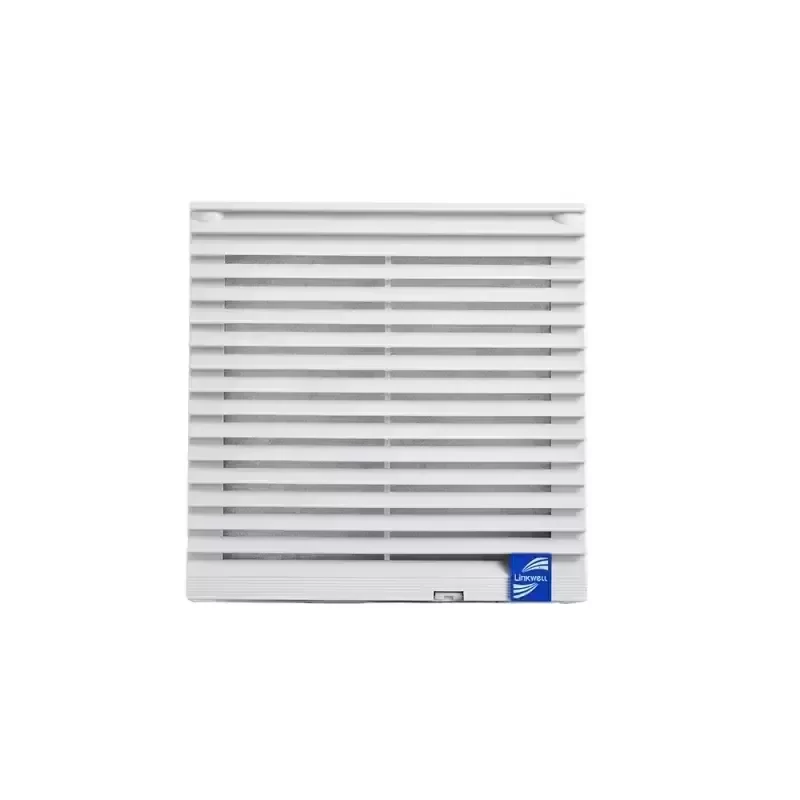

IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter
IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter
IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter

IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter

$2.00

SKU: 60502044834

Description

Engineered for optimal thermal management and particulate filtration, this 109mm x 109mm electrical enclosure fan filter provides critical protection for sensitive control cabinets. Designed to maintain internal airflow while preventing the ingress of dust and moisture, this component ensures the continuous, reliable operation of automation electronics, VFDs, and power distribution systems.

Technical Specifications:
Product Category: Enclosure Ventilation Cooling Fan Filter
Outer Dimensions: 109mm x 109mm
Mounting Cutout: 92mm x 92mm (± 0.5mm)
Ingress Protection Rating: IP54
Housing Material: Self-extinguishing ABS plastic (UL94 V-0)
Filter Mat Material: Progressive structure synthetic non-woven fiber
Filtration Class: G3 / EU3 (Efficiency > 90%)
Installation Method: Tool-free snap-in mounting mechanism
Operating Temperature Range: -10°C to +70°C
Standard Color: RAL 7035 (Light Grey)
Weight: 0.08 kg

Application Scenario:
This IP54 ventilation filter is specifically deployed in industrial automation panels, server racks, and motor control centers where airborne contaminants and heat buildup pose a risk to semiconductor lifespans. By pairing this filter with a standard 92mm axial fan, facilities can establish a positive pressure environment within the cabinet, effectively mitigating thermal throttling and preventing conductive dust from causing short circuits on PCBs.

Procurement & Lifecycle Value:
Manufactured to strict Original Engineering specifications, this filter assembly guarantees seamless Technical Compatibility with standard 92mm enclosure cutouts across major global cabinet brands. The tool-free snap-in design minimizes maintenance downtime during filter mat replacements. With a streamlined supply chain, we offer an expedited Lead Time to support urgent preventative maintenance schedules and large-scale OEM panel building projects.

Key Attributes
Mounting: Duct Fan
Voltage: 220 V
Control Method: Touch
Blade material: Plastic
Noise Level: 30.0-34.0db
Speed: 24-70rmp
Core components: Motor
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: Jiangsu, China
Brand name: Linkwell
Model number: FK5521
Type: Electrical Enclosure Panel Cabinet Ventilation Cooling Fan and Filter
Color: RAL7035 or RAL7032
Temperature: -10 to 55 degree
IP Grade: IP54
Noise: 30/35dB(A)
Air Direction: A/P
Installation: Inserting , tool-less installation
Seal Loop: Heat-proof, durable life
Environment: Healthy, recyclable
Exterior: Simple with multifunction

Packaging and Delivery
Selling Units: Single item
Single package size: 50X35X30 cm
Single gross weight: 1.000 kg

IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter

IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter

IP54 109mmx109mm Electrical Enclosure Panel Cabinet Ventilation Cooling Fan Filter

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
