Description

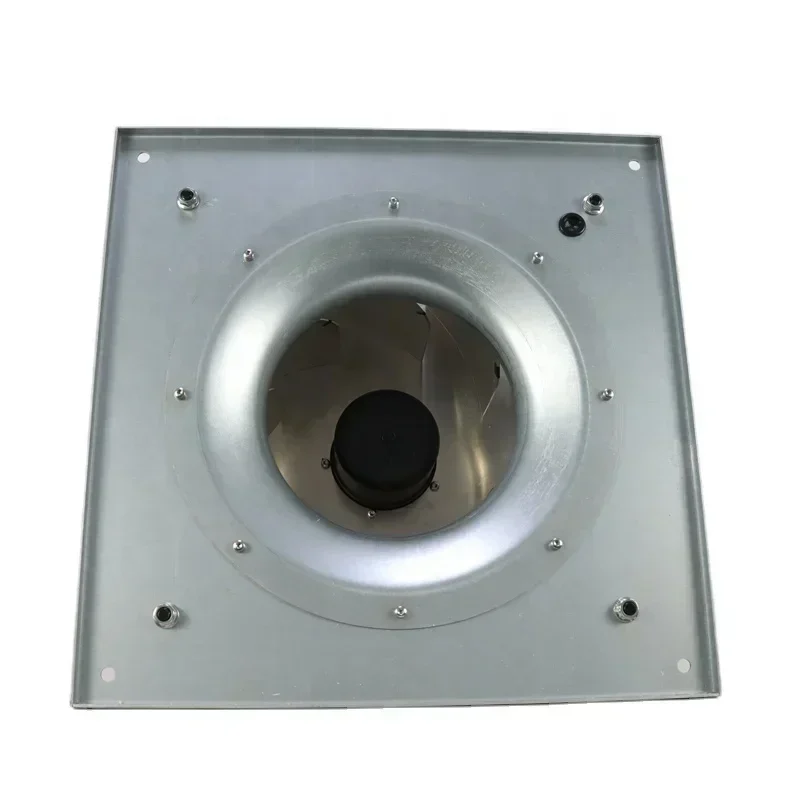

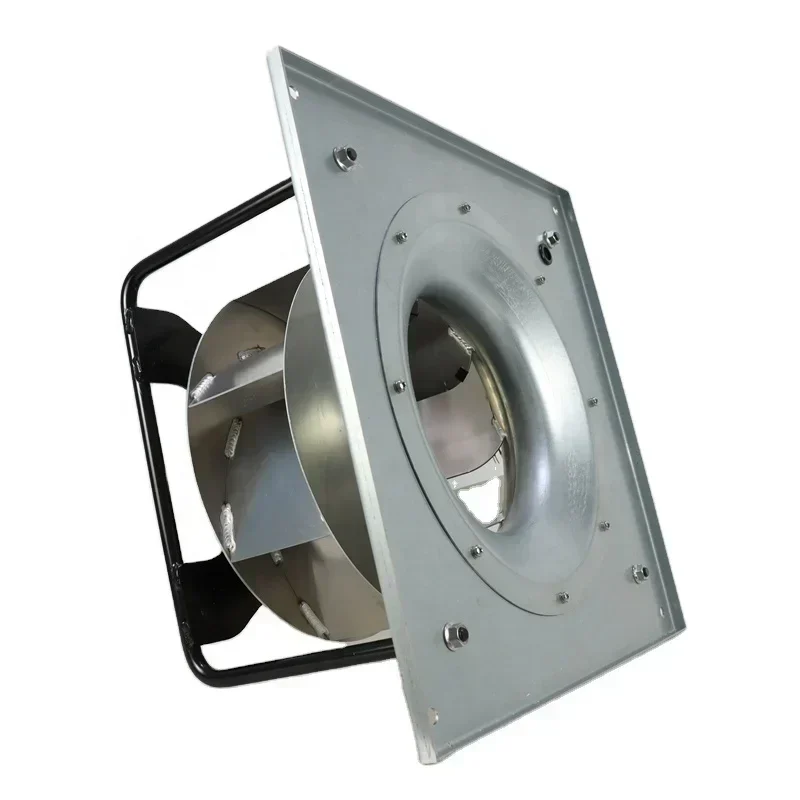

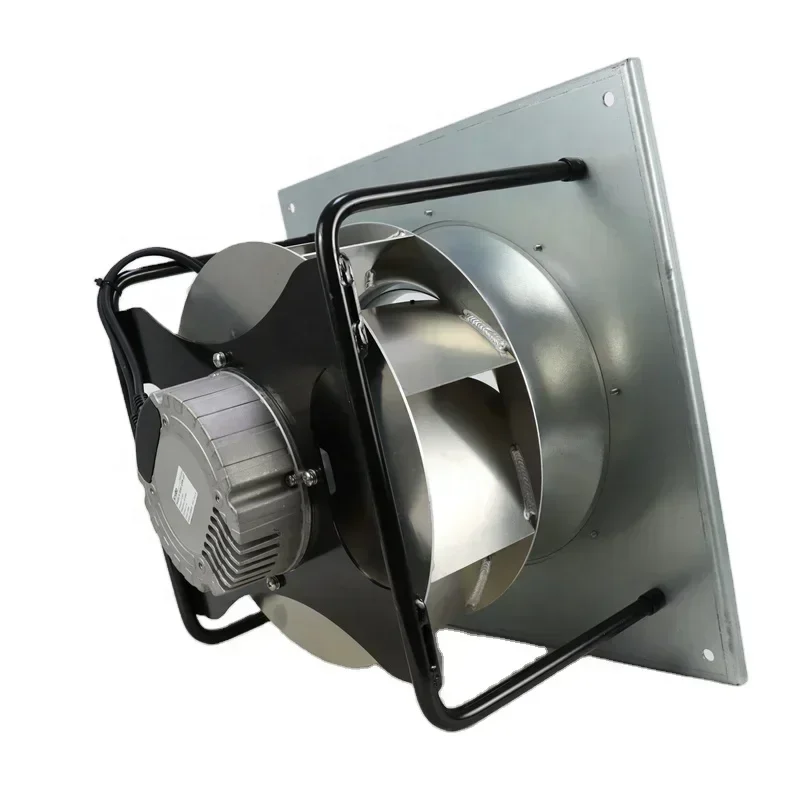

The K-355EC-230K-22Z is an industrial-grade electronically commutated (EC) centrifugal fan engineered for high-impedance thermal management applications. Utilizing an integrated brushless DC motor with direct AC-line commutation, this motorized impeller provides optimal aerodynamic efficiency, precision modulation, and continuous performance under rigorous operating conditions.
Technical Specifications:
Model: K-355EC-230K-22Z

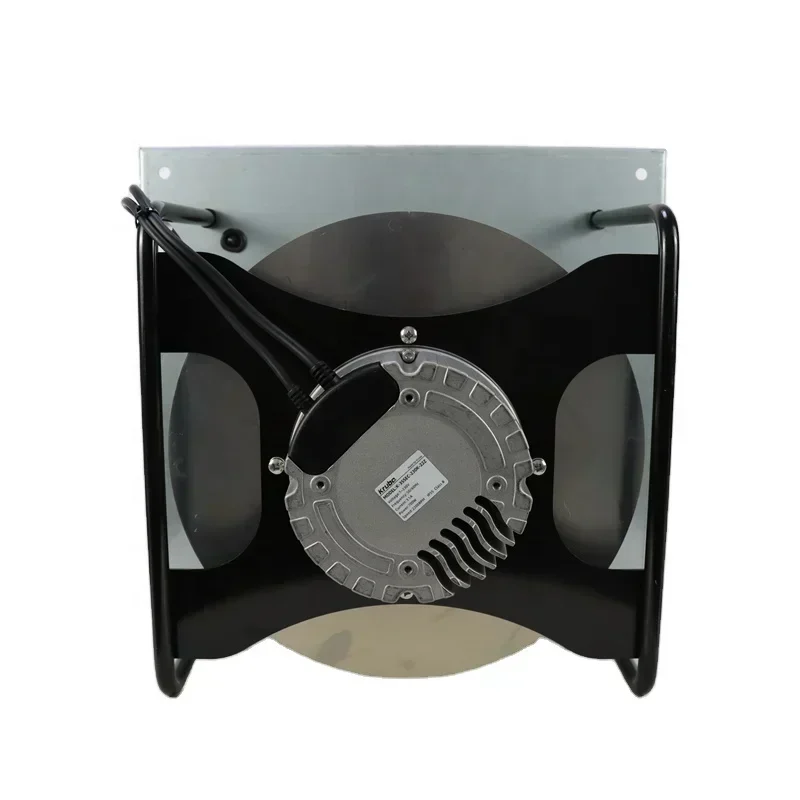

Motor Technology: Electronically Commutated (EC) External Rotor
Nominal Voltage: 230V AC
Supply Frequency: 50/60 Hz
Rated Power Input: 700 W
Rated Current: 3.1 A
Nominal Speed: 2200 RPM
Impeller Diameter: Ø 220 mm

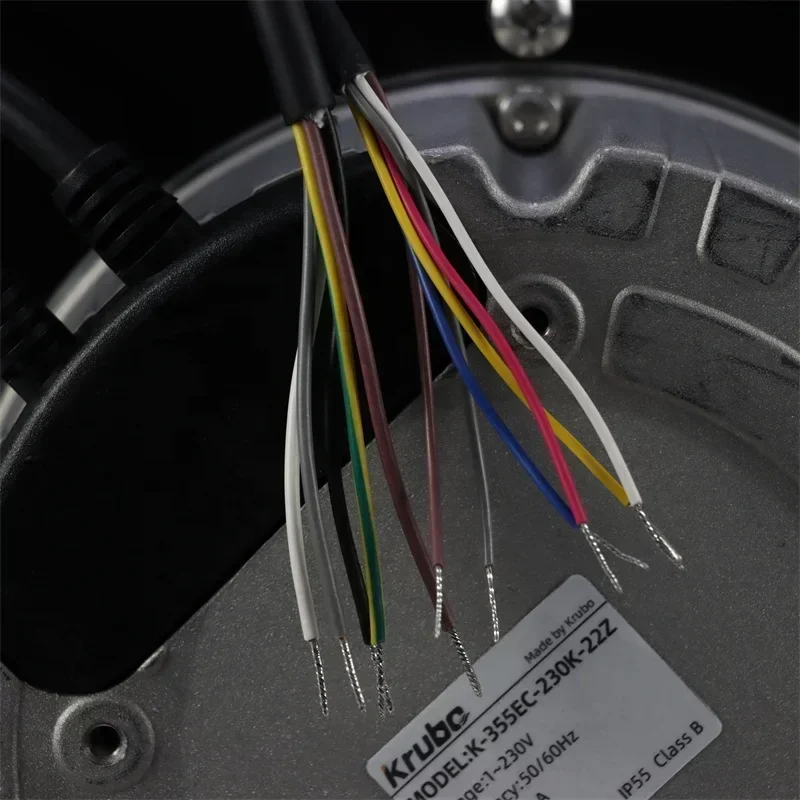

Control Interface: 0~10V DC / PWM Continuous Speed Regulation
Tachometer Feedback: Open-Collector Frequency Output
Bearing System: Dual Deep-Groove Sealed Ball Bearings
Ingress Protection: IP55
Insulation Class: Class F (155°C)
Operating Temperature Range: -25°C to +60°C
Balancing Quality Grade: ISO 1940 Grade G2.5
Impeller Material: Aerodynamically Optimized Sheet Steel / Composite
Weight: 4.6 kg
Control Logic and Motor Architecture:
The unit incorporates onboard microelectronics that eliminate the need for an external variable frequency drive (VFD). Direct connection to 230V AC mains is coupled with an auxiliary low-voltage interface accommodating 0-10V DC analog or PWM signals for stepless velocity adjustment. Internal protective logic includes active soft-start, locked-rotor shutdown, phase-loss compensation, and over-temperature cut-off. Technical Compatibility covers direct connection to industrial PLCs, building automation controllers, and specialized telemetry systems.
Industrial Application Profile:
The K-355EC-230K-22Z resolves severe thermal dissipation challenges within high-density power electronics enclosures, telecom base stations, and precision air handling units (AHU). In environments featuring elevated system resistance and dense filter arrangements, the backward-curved centrifugal design maintains required static pressure gradients without stalling. The IP55 protection rating shields the drive module from ambient particulate contamination and moisture ingress, mitigating unplanned downtime in critical installations.
Lifecycle and Procurement:
Manufactured under strict Original Engineering standards, each fan maintains verified dimensional and operational interchangeability for maintenance, overhaul, and OEM production. Inquire with technical sales to confirm current Lead Time and batch logistics support.
Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade Material: Metal
Electric Current Type: DC
Customized support: OEM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: K-355EC-230K-22Z
Place of origin: Germany
Brand name: Krubo
Voltage: 230V
Size: 500mm
Current: 3.1A
Power: 700W
Speed: 2200RPM
IP rating: IP55
Bearings: Ball bearings
Insuation class: B
Mode: S1
Impeller material: Aluminiium alloy
Packaging and Delivery
Packaging Details: Carton Package
Port of dispatch: Tianjin port
Selling Units: Single item
Single package size: 45X45X24 cm
Single gross weight: 55.000 kg
