$307.14

SKU: 825221334080 Brand:

Description

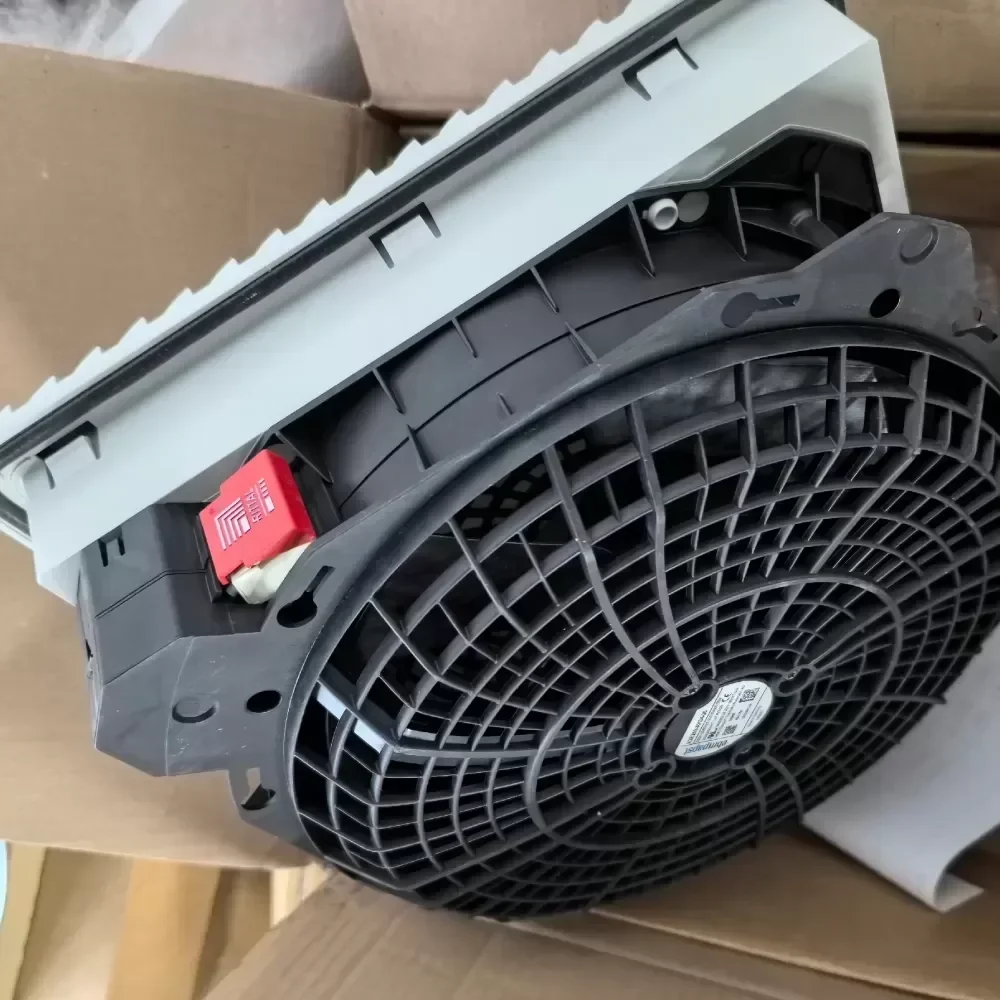

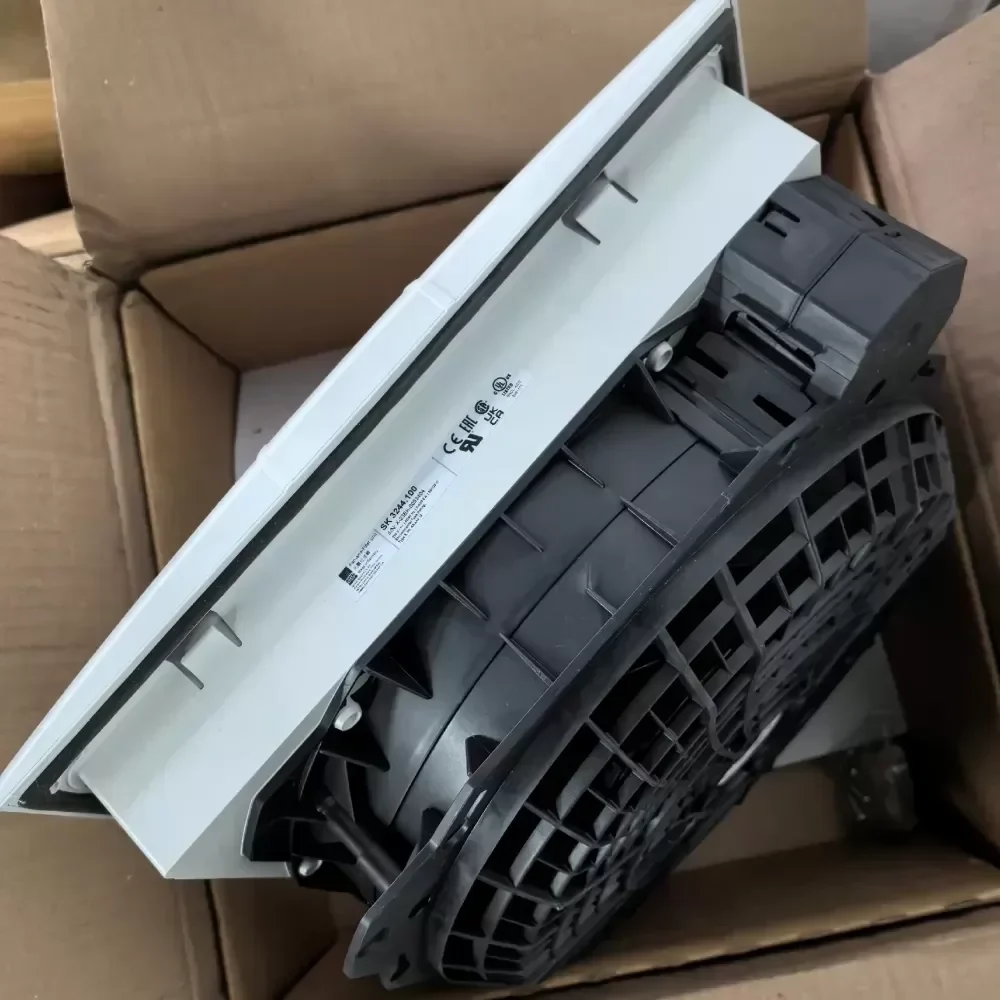

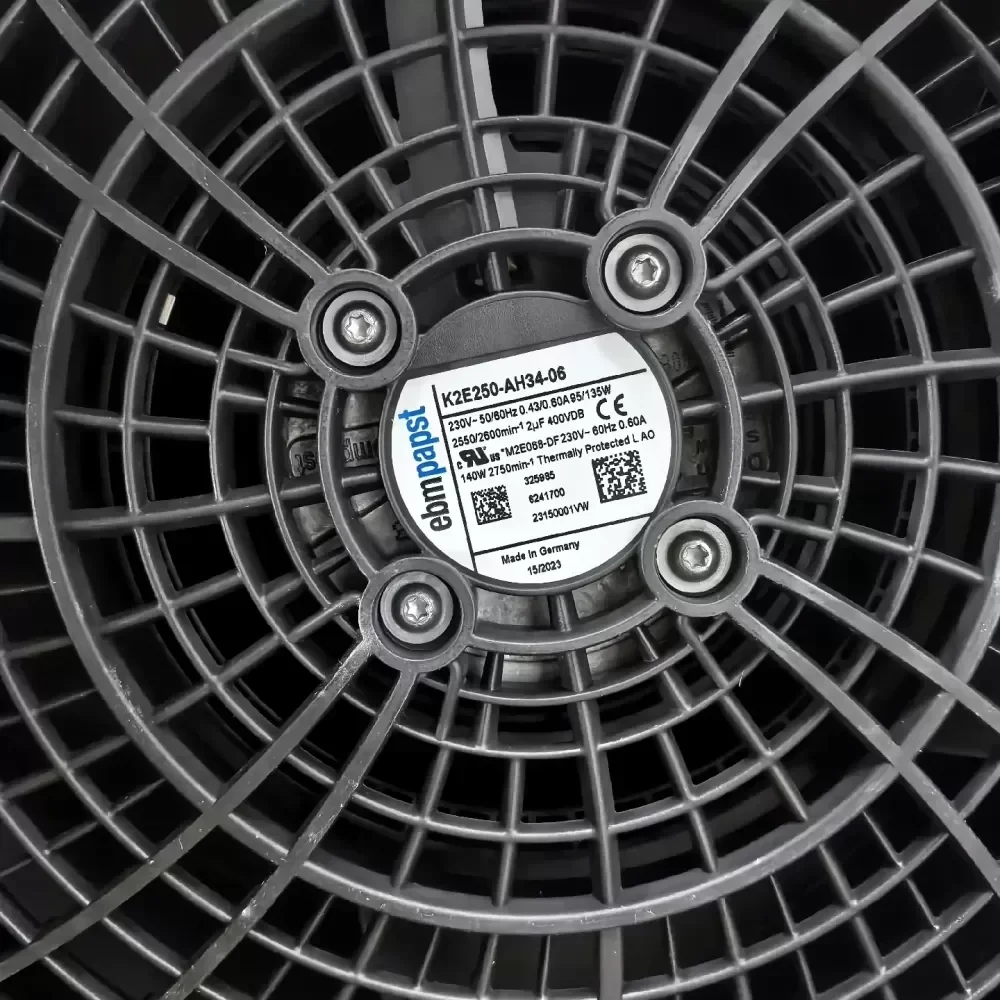

Product Overview: EBM-PAPST K2E250-AH34-06 Centrifugal Fan
Manufacturer: EBM-PAPST
Model Number: K2E250-AH34-06
Industry Reference: SK3344.100 (Rittal Chassis Cabinet Compatibility)
Origin: Germany

Technical Specifications:
Fan Type: Backward Curved Centrifugal Fan
Motor Type: M2E068-DF
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2500 RPM (50Hz) / 2650 RPM (60Hz)
Power Consumption: 155 W (50Hz) / 215 W (60Hz)
Current Draw: 0.68 A (50Hz) / 0.95 A (60Hz)
Max Airflow: 1350 m³/h (50Hz) / 1450 m³/h (60Hz)
Capacitor Requirement: 5.0 µF / 450 VDB
Sound Pressure Level: 70 dB(A)
Impeller Material: Sheet steel, painted black
Number of Blades: 11
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP44
Insulation Class: F
Operating Temperature Range: -25 °C to +55 °C
Weight: 3.5 kg

Mechanical Dimensions:
Impeller Diameter: 250 mm
Width: 99 mm
Mounting Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation Drainage Holes: On rotor side
Bearing Type: Maintenance-free ball bearings

Industrial Application and Technical Compatibility:
The K2E250-AH34-06 is engineered specifically for high-static pressure environments within industrial chassis cabinets and server enclosures. It serves as the primary thermal management component for Rittal SK3344.100 cooling units. This model utilizes Original Engineering logic to ensure laminar airflow across densely packed electronic components, preventing localized hotspots that lead to system failure. Its backward-curved design allows for high efficiency in restricted spaces where traditional axial fans fail to overcome system resistance.

Quality Assurance and Lifecycle:
This unit is a genuine EBM-PAPST component imported from Germany, ensuring full Technical Compatibility with existing HVAC and enclosure control systems. The robust sheet steel construction and IP44 rating provide long-term reliability in harsh industrial environments. Lead Time for this specific model is optimized for critical maintenance cycles to minimize downtime in data centers and automated production lines.

K2E250-AH34-06 Chassis and exhaust fan SK3344.100

K2E250-AH34-06 Chassis and exhaust fan SK3344.100

K2E250-AH34-06 Chassis and exhaust fan SK3344.100

K2E250-AH34-06 Chassis and exhaust fan SK3344.100

K2E250-AH34-06 Chassis and exhaust fan SK3344.100

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
