Description

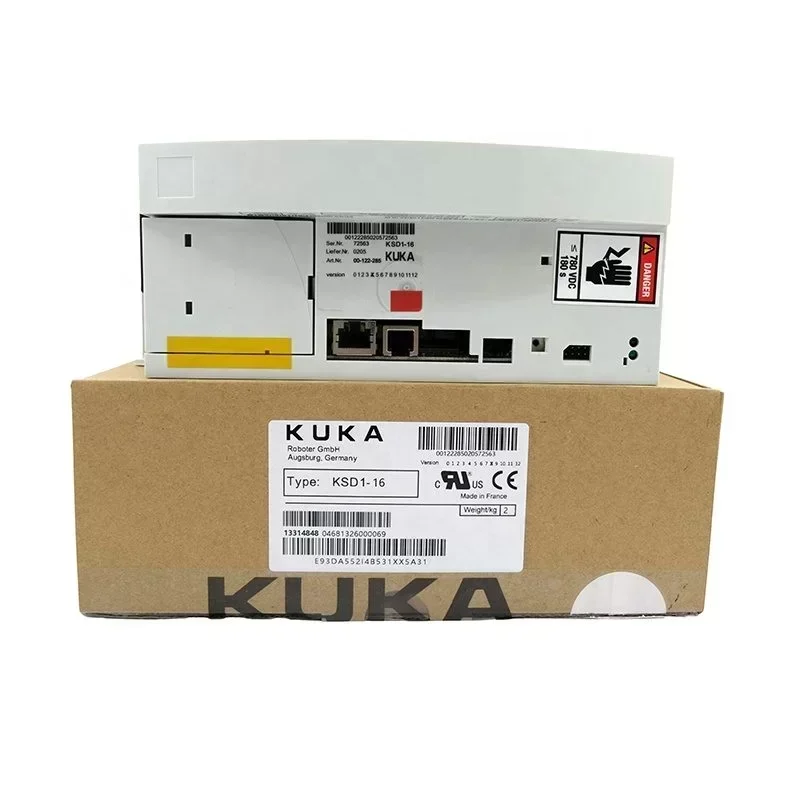

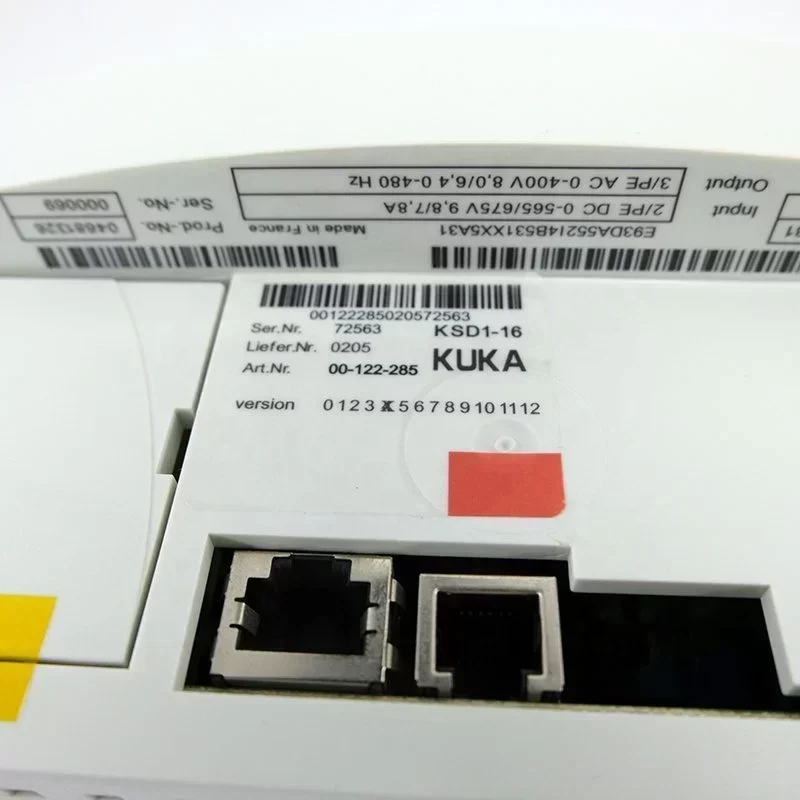

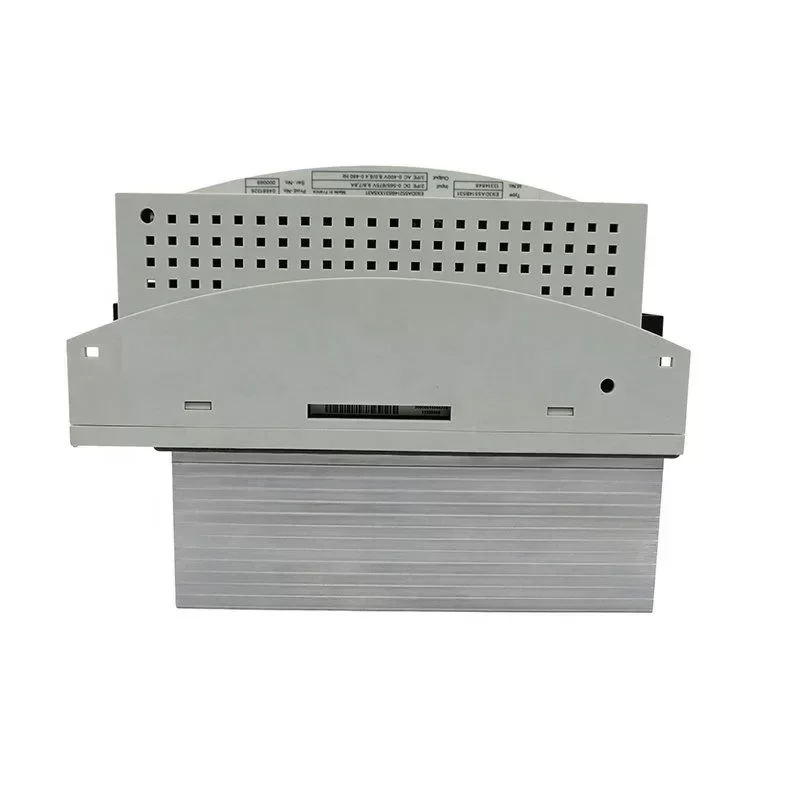

The KUKA 00-122-285 (KSD1-16) is a high-performance AC Servo Drive Module engineered for precise motion control within KUKA KRC2 robotic control cabinets. As a critical component in the kinematic chain, this servo amplifier regulates power distribution to the manipulator’s axes, ensuring exact positioning, rapid acceleration, and optimal torque management.
Technical Specifications
Manufacturer: KUKA
Model Number: KSD1-16
Part Number: 00-122-285
Component Type: AC Servo Drive Module / Amplifier
Rated Current: 16 A
Input Voltage: 600V DC (via KPS DC Bus)
Output Voltage: 3-Phase AC (PWM controlled)
Operating Temperature: +5 °C to +45 °C

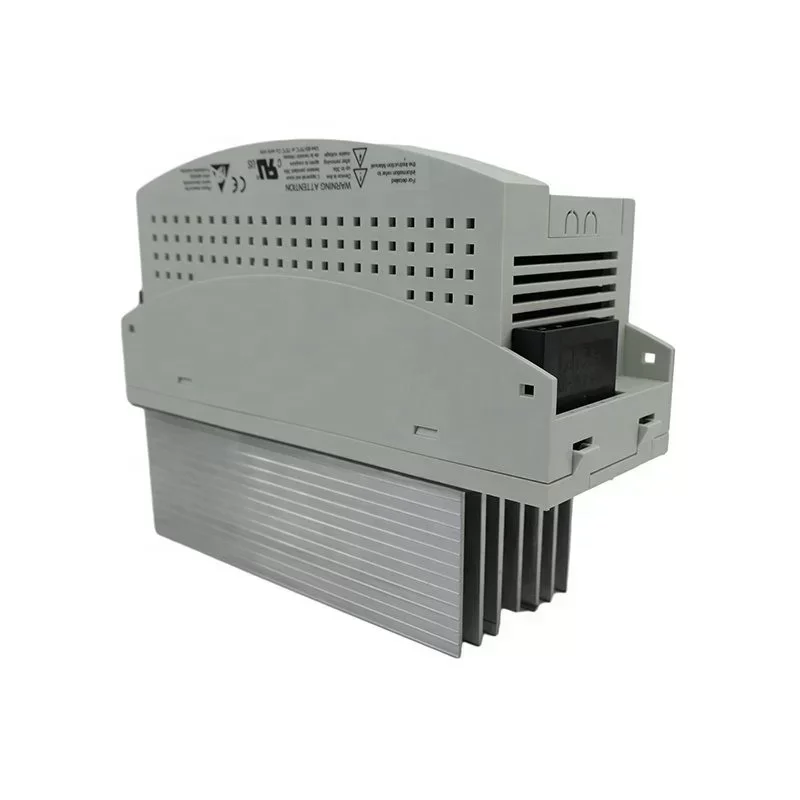

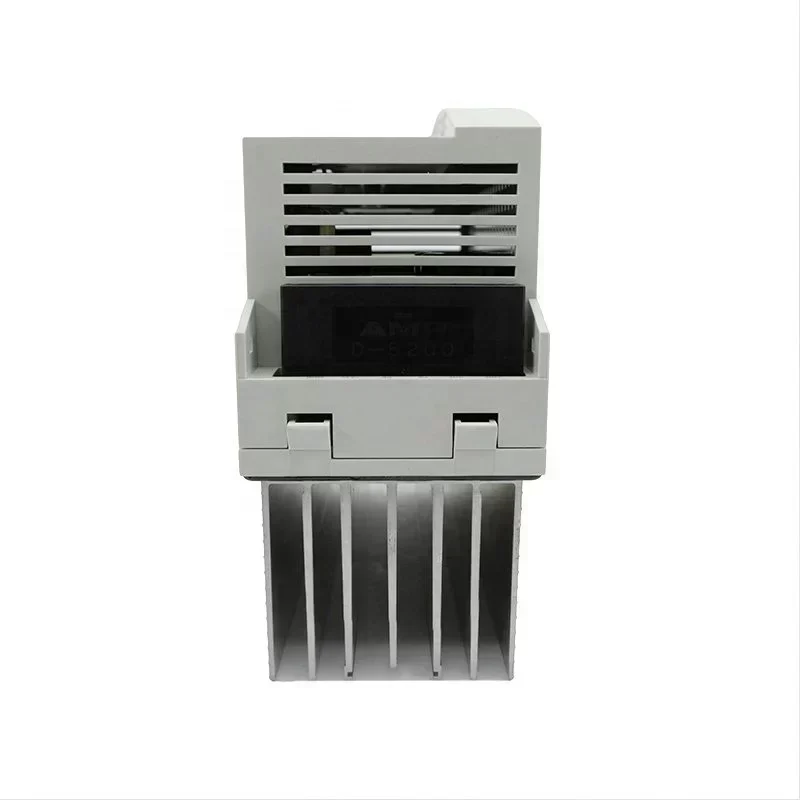

Cooling Method: Passive heatsink with cabinet forced-air integration
Weight: 2.4 kg
Protection Rating: IP20 (Cabinet installation required)
System Architecture & Technical Compatibility
The KSD1-16 module is designed for seamless integration into KUKA KRC2 and KRC2 ed05 controller architectures. It interfaces directly with the KUKA Power Supply (KPS) and the DSE-IBS (Digital Servo Electronics – Interbus) for real-time axis synchronization. Technical Compatibility is guaranteed for specific payload axes on KR C2 generation manipulators, requiring zero parameterization upon hardware replacement due to centralized controller logic.
Industrial Application
This servo module is essential for high-cycle robotic welding, precision material handling, and automated milling applications. In a high-throughput automotive body-in-white assembly line, a failure in axis control leads to immediate line stoppage. The KSD1-16 restores exact path accuracy and torque limits, preventing tool center point (TCP) deviation during complex multi-axis interpolation.
Lifecycle Value & Procurement
Maintaining Original Engineering standards is critical for the longevity of KUKA robotic systems. Utilizing authentic KSD1-16 modules ensures optimal thermal management and eliminates the risk of back-EMF damage to the controller bus. We maintain a streamlined supply chain to minimize Lead Time, delivering fully tested, production-ready modules to reduce critical downtime in 24/7 manufacturing environments.
Key Attributes
Place of Origin: Germany
Model Number: 00-122-285
Brand Name: Kuka
Type: Universal Ac Drive
Product Name: Kuka Module
Payment Method: Western Union&T/T& Paypal
Quality: Original New
Payment Term: All terms are accepted
Warranty: 3 Months for Used and 12 Months for New
Service: One-stop Service
Port of Export: ShenZhen
MOQ: 1 Piece
Lead Time: In Stock
Package: With Carton Package
Packaging and Delivery
Selling Units: Single item
Single package size: 30X20X20 cm
Single gross weight: 5.000 kg
