Description
Manufacturer: Kyoritsu Electrical Instruments Works, Ltd.

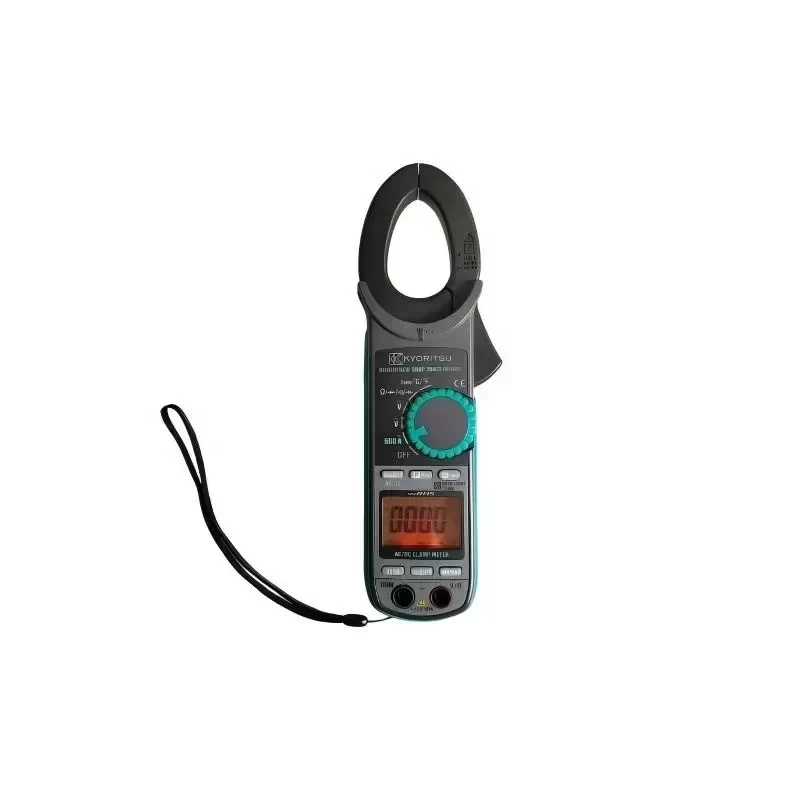

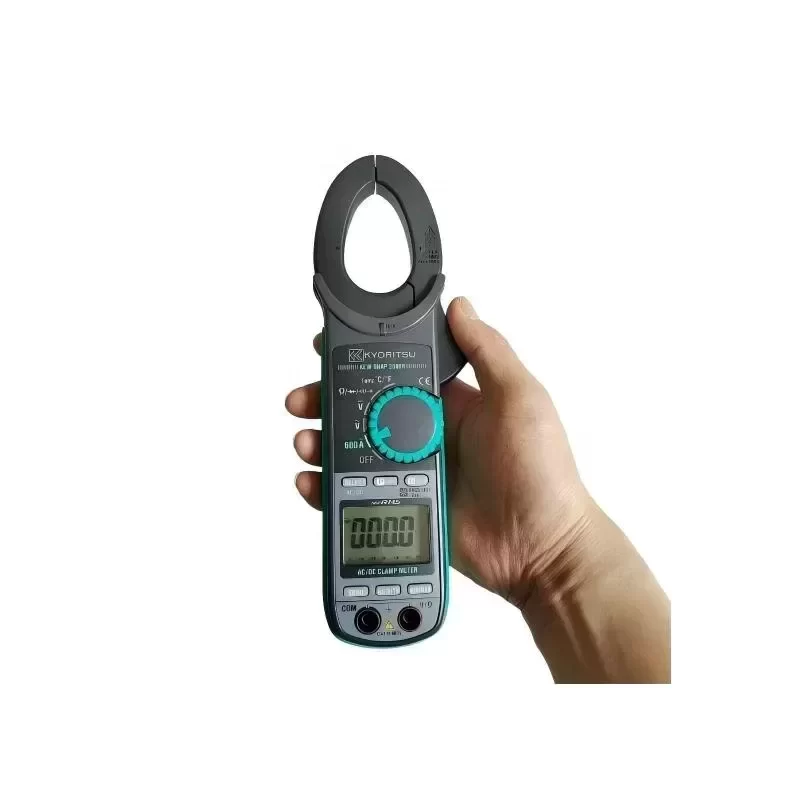

Model: 2046R
Product Category: Professional Digital Clamp Meter (True RMS)
Technical Specifications:
AC Current Range: 0 to 600.0A (±2.0%rdg ±5dgt 50/60Hz)
DC Current Range: 0 to 600.0A (±1.5%rdg ±5dgt)
AC Voltage Range: 6.000V to 600.0V (±1.5%rdg ±4dgt 50/60Hz)
DC Voltage Range: 600.0mV to 600.0V (±1.0%rdg ±3dgt)
Resistance: 600.0Ω to 60.00MΩ (±1.0%rdg ±5dgt)
Frequency: 10.0Hz to 10.0kHz (±0.1%rdg ±2dgt)
Capacitance: 40.00nF to 4000µF (±3.0%rdg ±5dgt)
Temperature: -50°C to +300°C (Using 8216 probe)
Conductor Size: Ø33mm maximum
Measurement Type: True RMS (Root Mean Square)
Safety Standard: IEC 61010-1 CAT IV 600V
Withstand Voltage: 6880V AC for 5 seconds
Power Source: R03 (1.5V) × 2
Dimensions: 243mm (L) × 77mm (W) × 36mm (D)
Weight: Approximately 300g (including batteries)
Operational Features:
Non-Contact Voltage (NCV) Detection: Integrated red LED indicator for live circuit identification.
Data Functions: Peak Hold, Data Hold, and Max/Min recording capabilities.
Display: 6039 count digital display with backlight for low-light environments.
Construction: Double molded housing for enhanced durability in industrial settings.
Industrial Application:
The Kyoritsu 2046R is engineered for high-demand electrical maintenance and troubleshooting in utility distribution and industrial automation. Its CAT IV 600V rating ensures safety for measurements at the primary supply source, while the True RMS capability allows for accurate readings on non-sinusoidal waveforms typically generated by Variable Frequency Drives (VFDs) and switching power supplies. The DC current measurement feature makes it essential for servicing solar PV arrays and battery backup systems.
Logistics and Compliance:
Original Engineering: Japanese precision instrumentation.

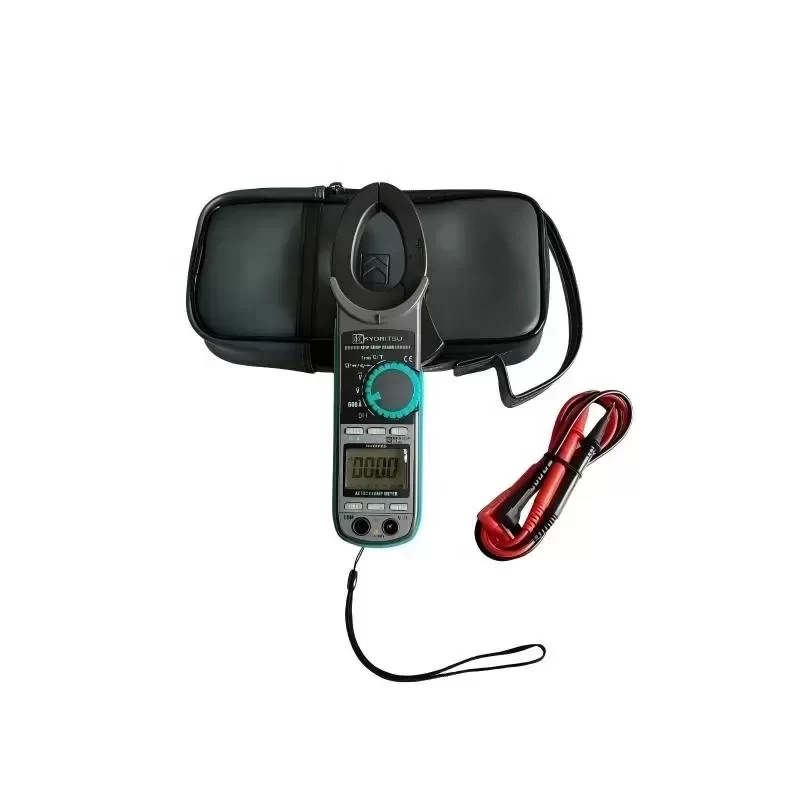

Technical Compatibility: Compatible with standard 4mm shrouded test leads and K-type thermocouples.
Lead Time: Typically available for immediate dispatch via global B2B distribution channels.
Key Attributes
Max. Ac Current: 600A
Max. DC Current: 600 A
Measuring Voltage Range: 600V
Place of Origin: Thailand
Model Number: KEW2046R
Brand Name: Kyoritsu
Dimensions: 243 x 77 x 36mm
Display Type: Digital Only
Instrument Safety Rating: CAT III 600V
Max. Ac Voltage: 600 V
Max. DC Voltage: 600 V
Measuring Capacitance Range: 40uF
Measuring Current Range: 0 to 600.0A
Measuring Inductance Range: 10 Hz-10 kHz
Measuring Resistance Range: 60MΩ
Operating Temperature: 0 °C ~ 45 °C
Parameters Measured: DC Current, AC Voltage, Frequency
Weight: 300g
Withstand Voltage: 6880V AC for 5 seconds
Applicable Standard: IEC61010-1 CAT.IV600V
Power Source: 2 x "AAA" 1.5V Batteries

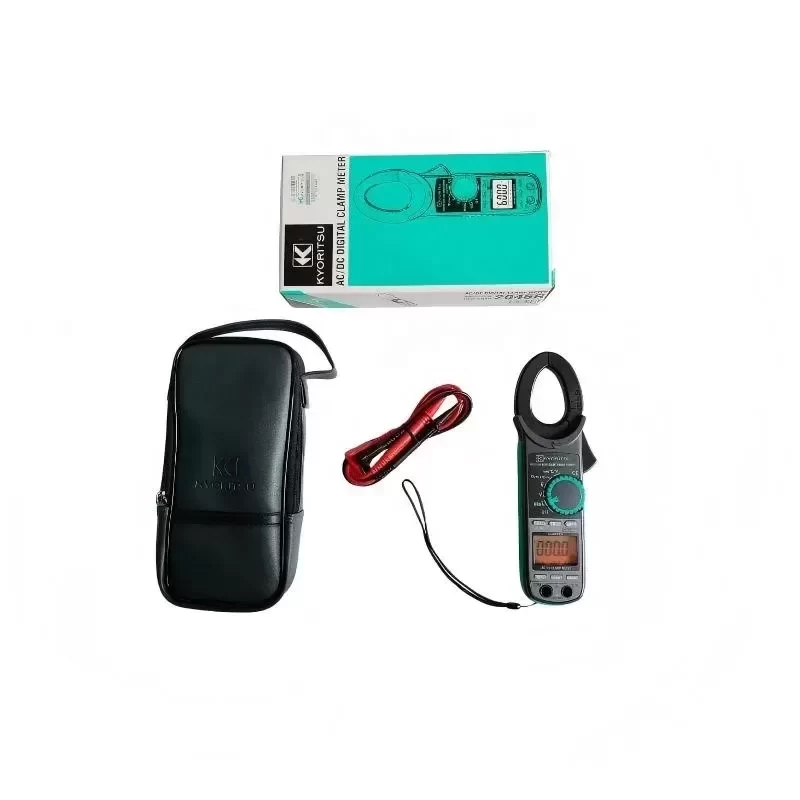

Packaging and Delivery
Selling Units: Single item
Single package size: 31X16X14 cm
Single gross weight: 1.000 kg
