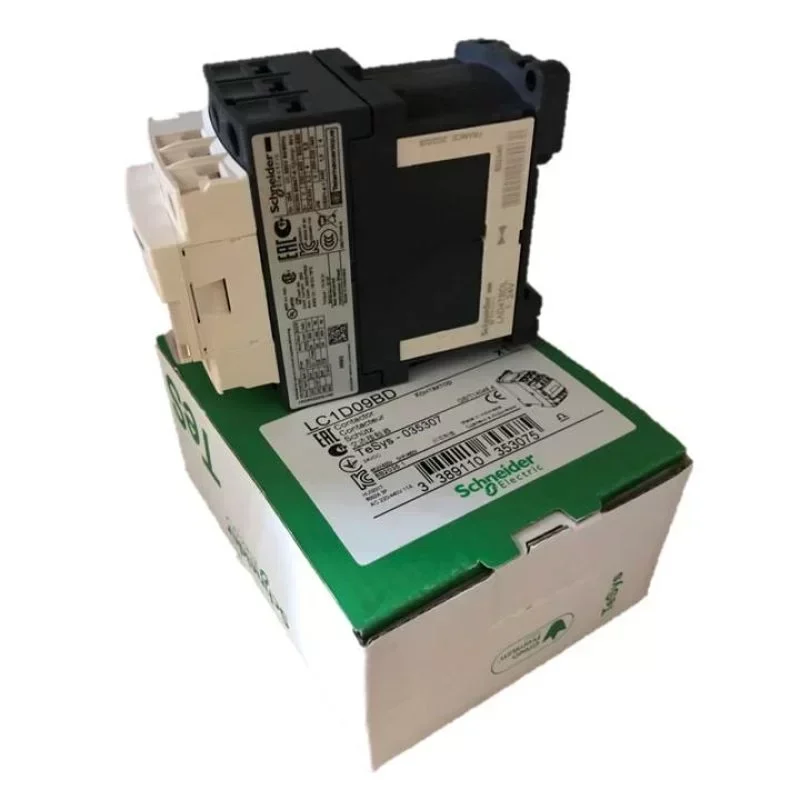

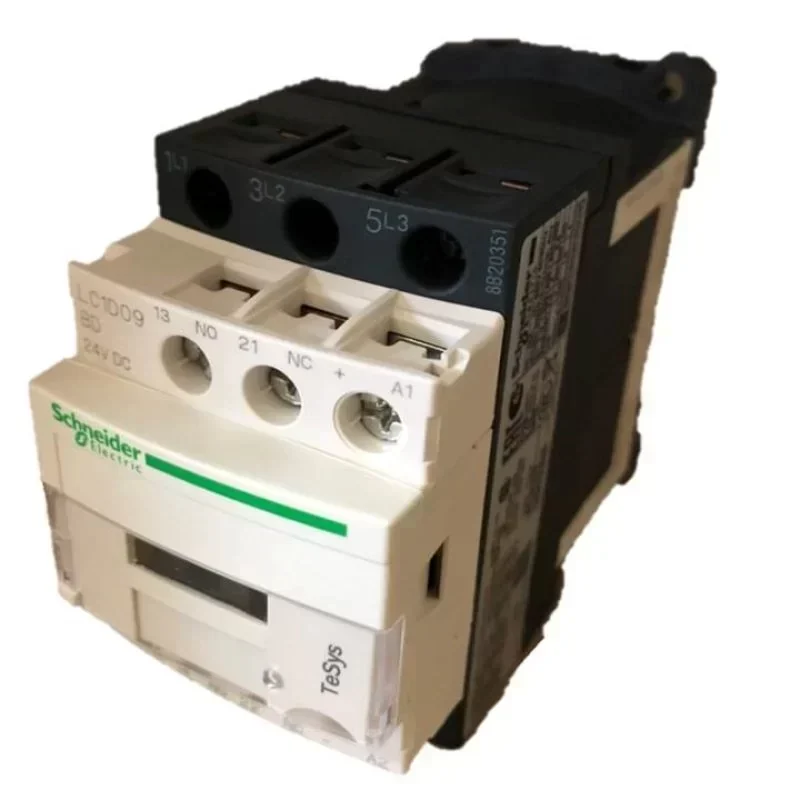

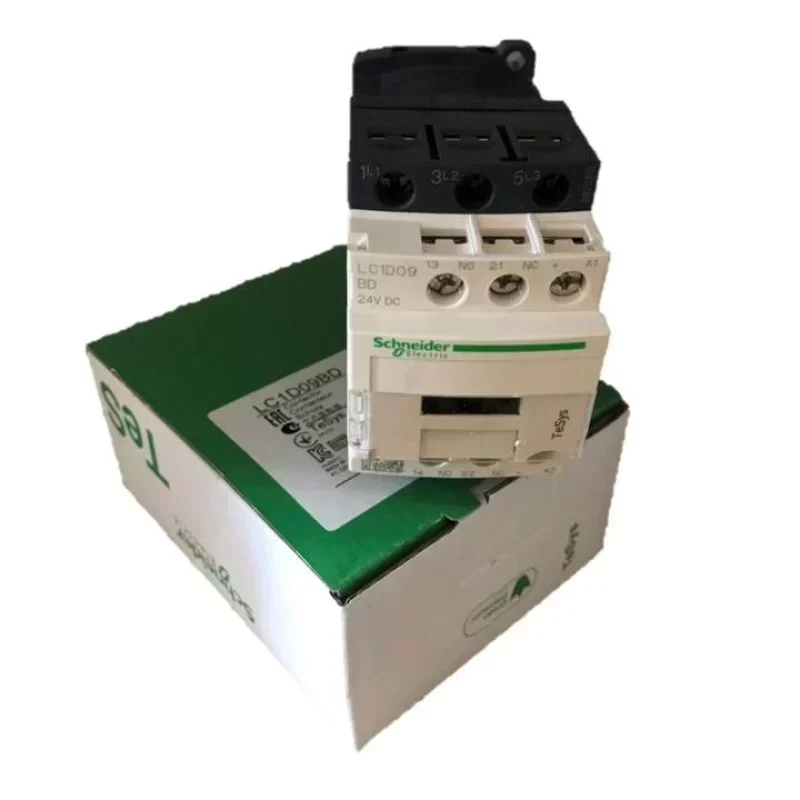

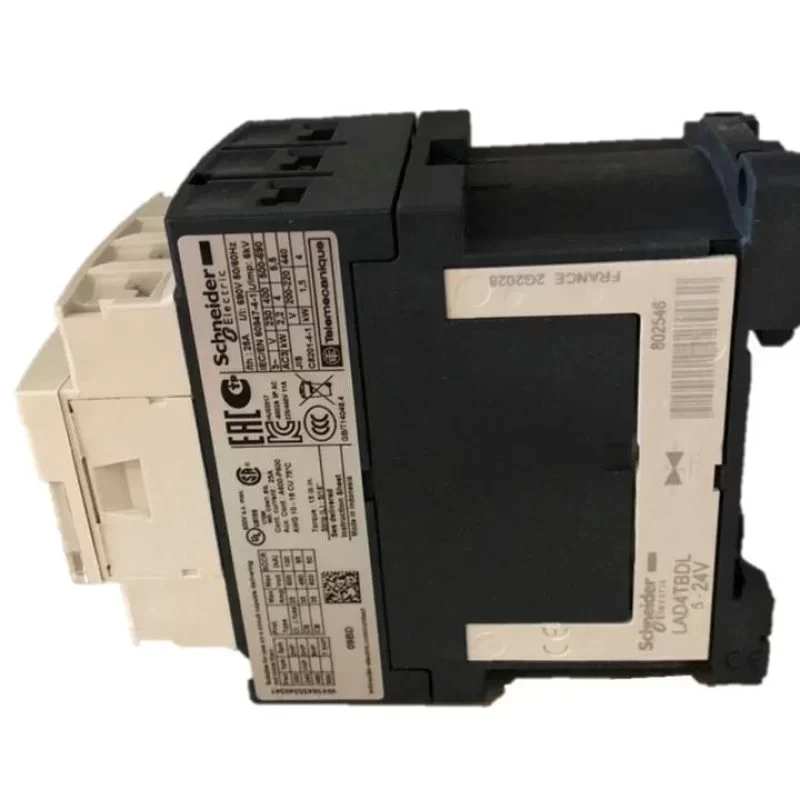

LC1D09BD 9A 250A 24VDC 3P Schneider DC Magnetic Contactor

Description

The Schneider Electric LC1D09BD is a highly reliable 3-pole magnetic contactor from the TeSys Deca series, engineered for demanding motor control and resistive load applications. Featuring a 24V DC standard coil with an integrated suppression device, this contactor ensures seamless Technical Compatibility with modern PLC outputs and automation architectures. Built with Original Engineering standards, it delivers exceptional mechanical and electrical durability for continuous industrial operations.

Technical Specifications
Manufacturer: Schneider Electric
Product Range: TeSys Deca
Model Number: LC1D09BD
Product Type: DC Magnetic Contactor
Number of Poles: 3P (3 NO)
Control Circuit Voltage: 24 V DC
Control Circuit Voltage Limits: 0.7…1.25 Uc operational, 0.1…0.25 Uc drop-out
Rated Operational Current (AC-3): 9 A (at <= 440 V, <= 60 °C)
Rated Operational Current (AC-1): 25 A (at <= 440 V, <= 60 °C)
Rated Breaking Capacity: 250 A at 440 V (IEC 60947)
Motor Power (AC-3): 4 kW at 380/400 V AC 50/60 Hz
Auxiliary Contacts: 1 NO + 1 NC
Rated Insulation Voltage (Ui): 690 V (IEC 60947-4-1)
Rated Impulse Withstand Voltage (Uimp): 6 kV (IEC 60947)
Power Dissipation per Pole: 1.56 W (AC-1), 0.2 W (AC-3)
Coil Technology: Built-in bidirectional peak limiting diode suppressor
Inrush Power: 5.4 W at 20 °C
Hold-in Power Consumption: 5.4 W at 20 °C
Operating Time: 53.55…72.45 ms closing, 16…24 ms opening
Mechanical Durability: 30,000,000 cycles
Maximum Operating Rate: 3600 cycles/hour at <= 60 °C

Physical and Environmental Data
Terminal Type: Screw clamp terminals
Mounting Support: 35 mm DIN rail or plate
Height: 77 mm
Width: 45 mm
Depth: 95 mm
Weight: 0.48 kg
Ambient Operating Temperature: -40 °C to 60 °C
Degree of Protection: IP20 front face (IEC 60529)
Pollution Degree: 3
Flame Retardance: V1 (UL 94)
Certifications: UL, CSA, CCC, EAC, UKCA, CB Scheme

Industrial Application
The LC1D09BD is specifically designed for high-precision automated manufacturing environments, such as packaging machinery, conveyor systems, and HVAC control panels. Its 24V DC coil with built-in transient suppression makes it ideal for direct interfacing with low-voltage programmable logic controllers (PLCs) without requiring interposing relays. This direct-drive capability reduces panel space and wiring complexity, solving critical space constraints in high-density control cabinets while preventing voltage spikes from damaging sensitive electronic components.

Procurement and Lifecycle
Optimizing your supply chain requires predictable Lead Time and guaranteed component authenticity. This contactor represents the pinnacle of Original Engineering, ensuring exact drop-in replacement for existing TeSys D installations. Its robust design minimizes maintenance intervals and maximizes machine uptime across its 30-million cycle mechanical lifespan.

Key Attributes
Main Circuit Rating Current: 250A
Phase: 3
Place of Origin: Indonesia
Electricity Type: DC
Model Number: LC1D09BD
Brand Name: Schneider
Product Name: LC1D09BD 9A 24VDC 3P Schneider DC Magnetic Contactor
Coil Voltage: 24 VDC
Rated Current: 9 A
Type of shipping: Express
IP degree: IP20 (IEC 60529)
Operation & storage temp.: -40...60 °C / -60...80 °C
Fire resistance: 850 °C
Contact: 1NO+1NC
Weight: 0.48 kg

Packaging and Delivery
Selling Units: Single item
Single package size: 8X6X10 cm
Single gross weight: 2.000 kg
