Description
The Lutron VT-8204 is a high-precision, dual-function industrial diagnostic instrument designed for comprehensive rotating machinery analysis. By integrating a professional vibration meter with a high-accuracy laser and contact tachometer, this device provides maintenance engineers with a complete diagnostic toolset. The unit features built-in data logging capabilities to capture real-time measurements with precise timestamps, facilitating predictive maintenance and root-cause failure analysis.
TECHNICAL SPECIFICATIONS
Manufacturer: Lutron Electronic Enterprise Co., Ltd.
Model: VT-8204
Functionality: Vibration Meter and Tachometer (Photo/Contact)
Vibration Acceleration Range: 0.5 to 199.9 m/s²
Vibration Velocity Range: 0.5 to 199.9 mm/s
Vibration Displacement Range: 0.005 to 1.999 mm (Peak-to-Peak)
Vibration Frequency Range: 10 Hz to 1 kHz (ISO 2954 compliant)
Photo Tachometer Range: 10 to 99,999 RPM
Contact Tachometer Range: 0.5 to 19,999 RPM
Surface Speed Range: 0.05 to 1,999.9 m/min
Data Logger Capacity: Manual or Auto (1 to 3600 seconds sampling time)

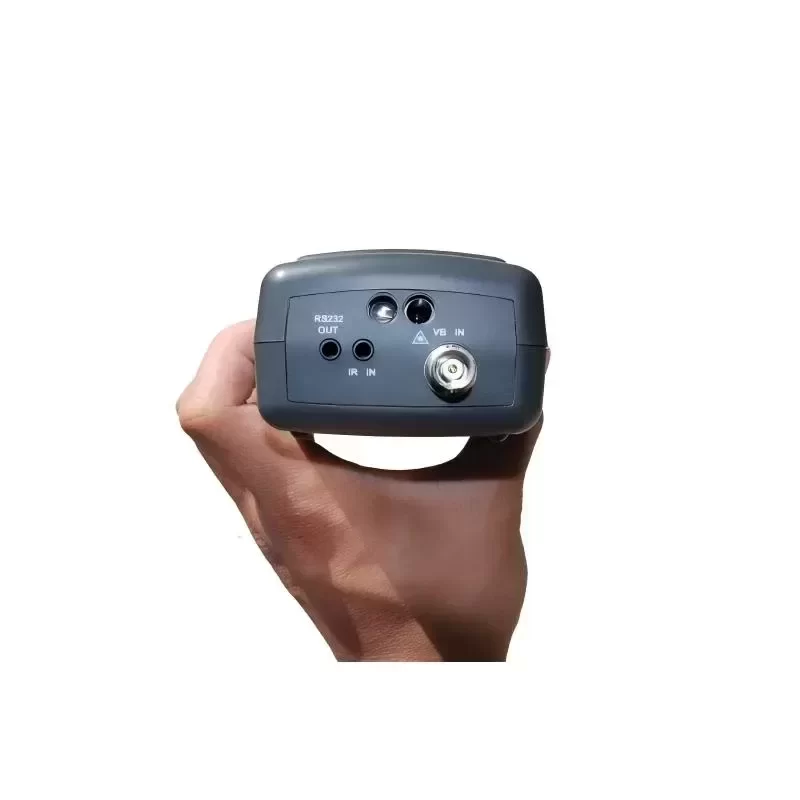

Data Interface: RS232 / USB PC connection
Display: 52 mm x 38 mm LCD with green backlight
Operating Temperature: 0 to 50 °C
Operating Humidity: Less than 80% R.H.
Power Supply: 1.5 V AA (UM-3) battery x 4 or DC 9V adapter
Weight (Meter): 455 g
Weight (Vibration Probe): 110 g
Dimensions (Meter): 188 mm x 76 mm x 47 mm
Dimensions (Vibration Probe): Ø 37 mm x 45 mm
INDUSTRIAL APPLICATION SCENARIO
In large-scale power generation and chemical processing plants, critical machinery such as high-capacity centrifugal pumps and steam turbines require continuous monitoring to prevent catastrophic mechanical failure. The Lutron VT-8204 solves this by allowing field engineers to perform dual-parameter diagnostics. While the tachometer measures exact rotational speeds to verify operational limits, the magnetic-mount vibration probe simultaneously assesses velocity and displacement to detect shaft misalignment, rotor unbalance, or bearing wear. The real-time data logger captures these parameters during transient states (startup/shutdown), providing the precise data required to schedule preventative maintenance before costly downtime occurs.
ORIGINAL ENGINEERING AND SYSTEM INTEGRATION
Featuring Original Engineering from Lutron, the VT-8204 ensures absolute measurement fidelity and long-term calibration stability. Its Technical Compatibility with standard RS232 and USB interfaces allows seamless integration into existing plant asset management software and data analysis workflows.
COMMERCIAL AND WARRANTY INFORMATION
Warranty: 1-Year Manufacturer Warranty
Standard Lead Time: Contact sales for immediate dispatch availability

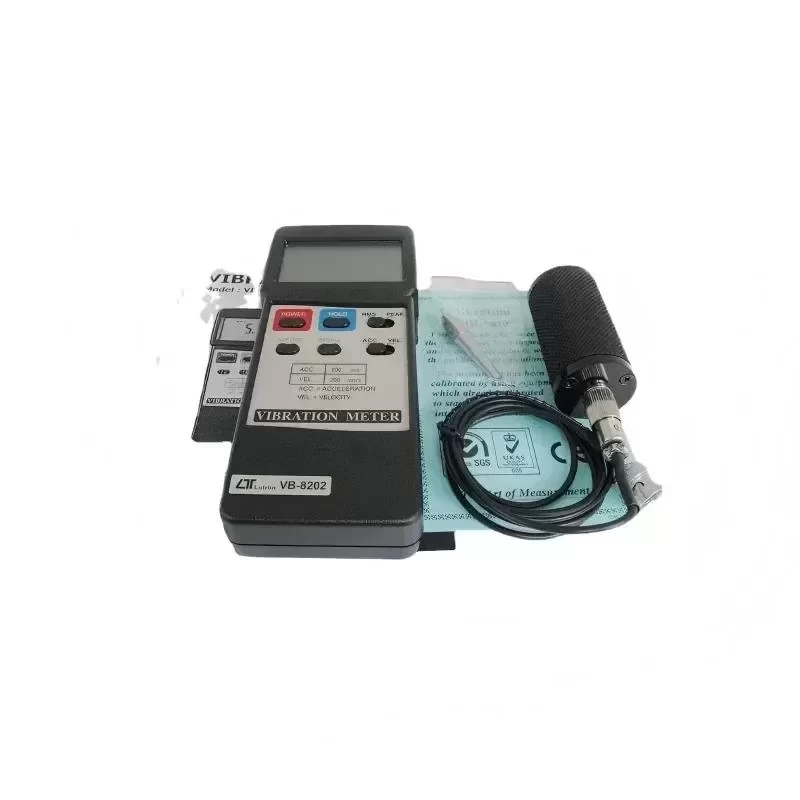

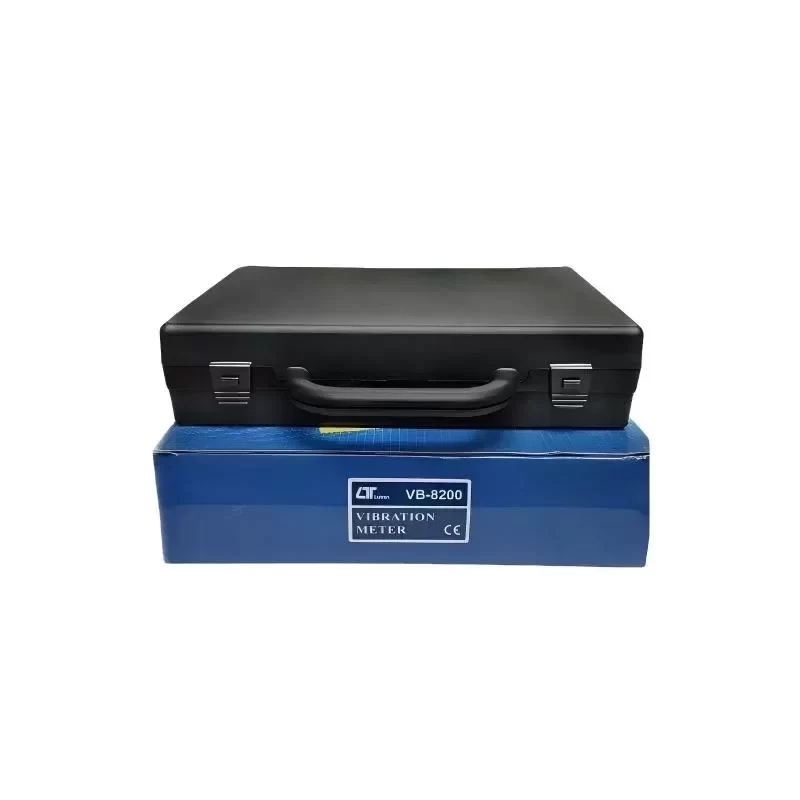

Package Includes: Instruction manual, Vibration sensor with magnetic base, Reflective tape, Carrying case
Key Attributes
Type: Vibration Meter
Accuracy: ± ( 0.05 % + 1 digit )
Place of origin: China
Customized support: Software Reengineering
Power: 10 Hz - 1 kHz
Protection Class: IP65
Voltage: 1.5 V batteries
Logo/graphic design: 3D Printing
Brand name: LUTRON
Application: Vibration Meter Tachometer
Warranty: 1 Year
Photo Tachometer: 10 to 99,999 RPM
Contact Tachometer: 0.5 to 19,999 RPM
Surface Speed: 0.2 to 6,560 ft/min
Frequency range: 10 Hz to 1 KHz
Accuracy: ± ( 0.05 % + 1 digit ).
Data Output: RS232 serial (cable sold separately)
Packaging and Delivery
Selling Units: Single item
Single package size: 35X21X15 cm
Single gross weight: 2.300 kg
