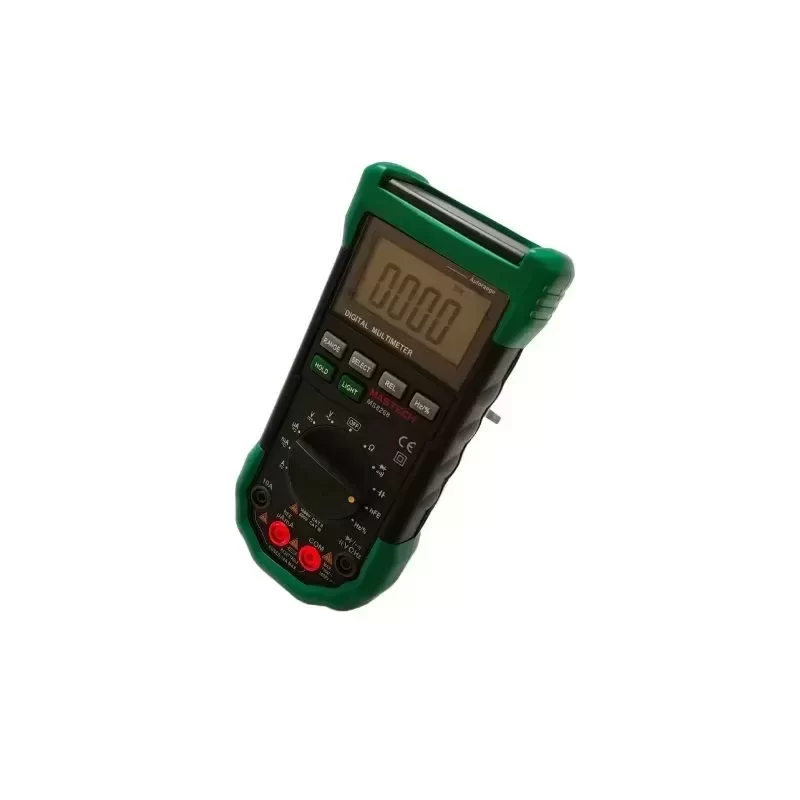

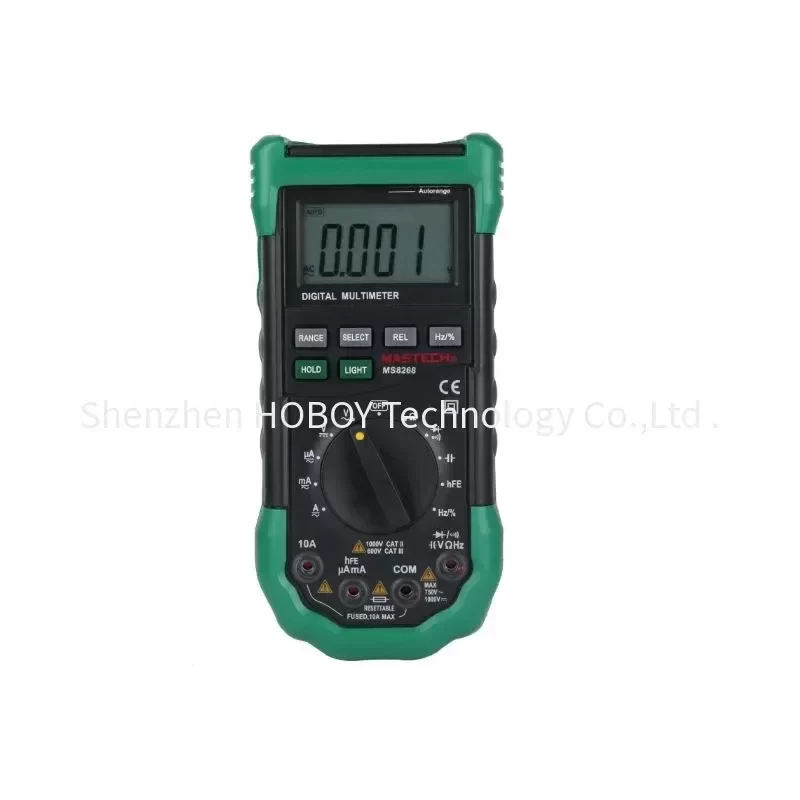

Mastech MS8268 Digital Multimeter

Description

The Mastech MS8268 is a high-precision, auto-ranging digital multimeter engineered for professional electrical diagnostics and industrial maintenance. This model features a robust architecture designed to meet IEC 61010-1 safety standards, providing reliable measurement for complex electronic circuits and power distribution systems.

Technical Specifications:
Model Number: MS8268
Measurement Type: Auto and Manual Ranging
DC Voltage Range: 400mV / 4V / 40V / 400V / 1000V
DC Voltage Accuracy: ±(0.7% + 2)
AC Voltage Range: 400mV / 4V / 40V / 400V / 750V
AC Voltage Accuracy: ±(0.8% + 3)
DC Current Range: 400µA / 4000µA / 40mA / 400mA / 10A
DC Current Accuracy: ±(1.2% + 3)
AC Current Range: 400µA / 4000µA / 40mA / 400mA / 10A
AC Current Accuracy: ±(1.5% + 5)
Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Resistance Accuracy: ±(1.2% + 2)
Capacitance Range: 4nF / 40nF / 400nF / 4µF / 40µF / 200µF
Capacitance Accuracy: ±(3.0% + 5)
Frequency Range: 10Hz / 100Hz / 1000Hz / 10kHz / 200kHz
Frequency Accuracy: ±(2.0% + 5)
Duty Cycle: 0.1% to 99.9%
Display: 4000 Counts Backlit LCD
Safety Rating: CAT II 1000V / CAT III 600V
Power Supply: 3 x 1.5V AAA Batteries
Dimensions: 192mm x 92mm x 55mm
Weight: Approximately 380g

Advanced Functional Features:
Sound and Light Warning: Integrated misconnection alarm for input terminals to prevent fuse damage.
Data Hold: Freezes displayed value for documentation in restricted access areas.
Relative Measurement: Enables zeroing out lead resistance for low-ohm testing.
Auto Power Off: Preserves battery lifecycle during extended field operations.
Diode and Continuity Test: Audible buzzer for rapid circuit verification.
Transistor hFE Test: Integrated socket for NPN and PNP gain measurement.

Industrial Application and Technical Compatibility:
The MS8268 is optimized for Original Engineering environments where precise voltage and current monitoring are critical for system uptime. Its high input impedance and frequency response make it suitable for troubleshooting Variable Frequency Drives (VFDs) and PLC I/O modules. The device ensures Technical Compatibility with standard 4mm shrouded safety probes, facilitating seamless integration into existing toolkits. With a competitive Lead Time for global procurement, this multimeter is a vital component for facility management and electrical engineering departments requiring durable, high-fidelity diagnostic equipment.

Key Attributes
Measuring Current Range: 10A
Measuring Voltage Range: 1000V
Parameters Measured: DC Current, AC Voltage, Frequency, Temperature, Low Input Impedance
Place of Origin: Guangdong, China
Model Number: MS8268
Brand Name: Mastech
Application: Industrial Use, Household Use
Dimensions: 195x92x55mm
Feature: Waterproof
Low Battery Indicator: Yes
Material: PVC
Max. AC Current: 10A
Max. AC Voltage: 750 V
Max. DC Current: 10A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 200μF
Measuring Inductance Range: 200kHz
Measuring Resistance Range: 40MΩ
Operating Temperature: -10.0-50.0℃
Display: Counts
APO: Auto power off
Transistor hFE: 0~1000
REL: Relative measurement
LBD: Low battery display
Power supply: 3x1.5V AAA

Packaging and Delivery
Selling Units: Single item
Single package size: 25X18X12 cm
Single gross weight: 0.740 kg
