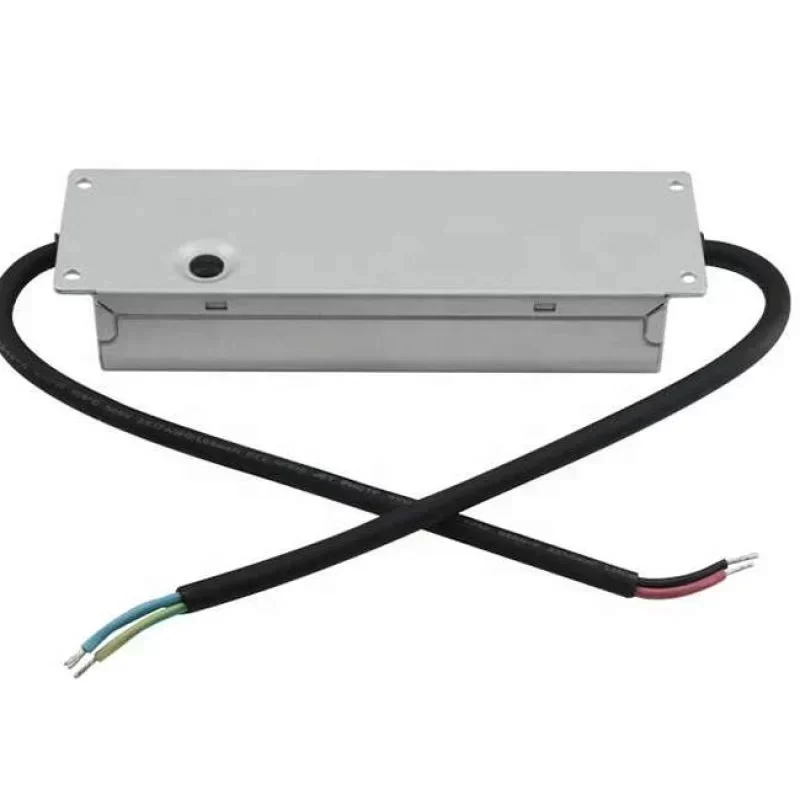

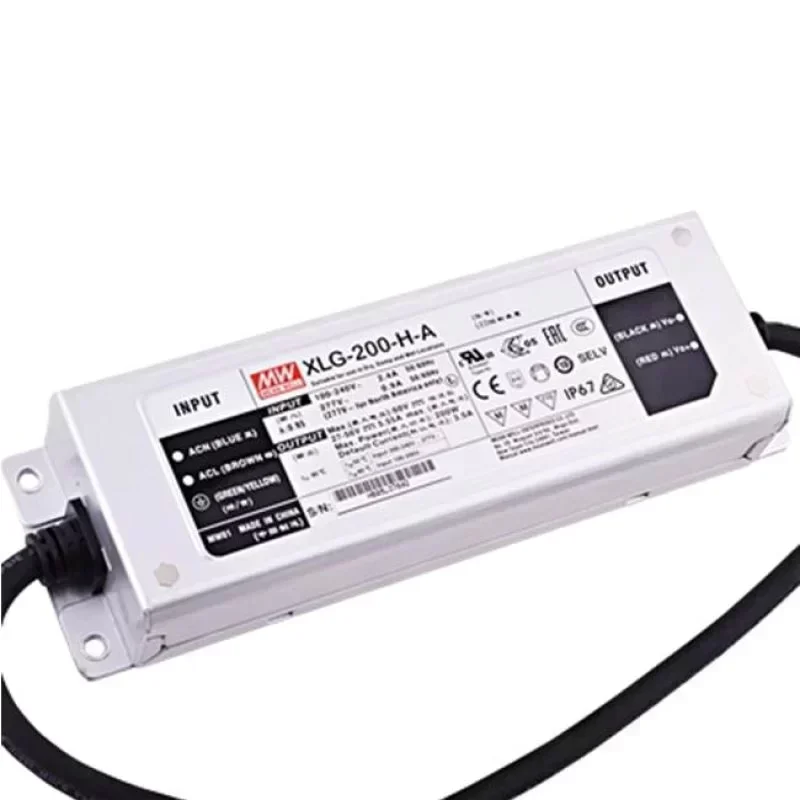

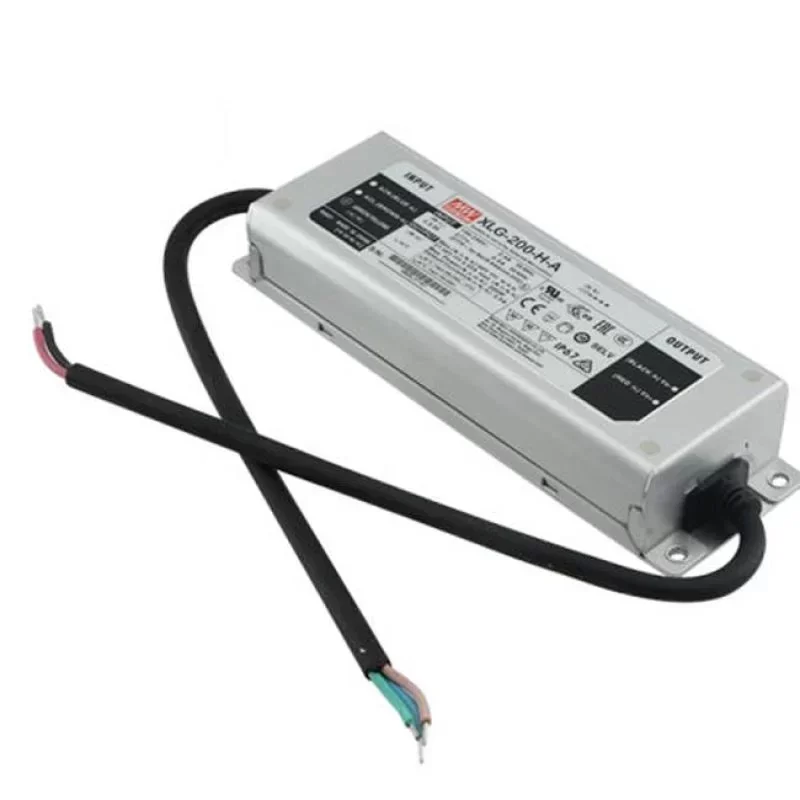

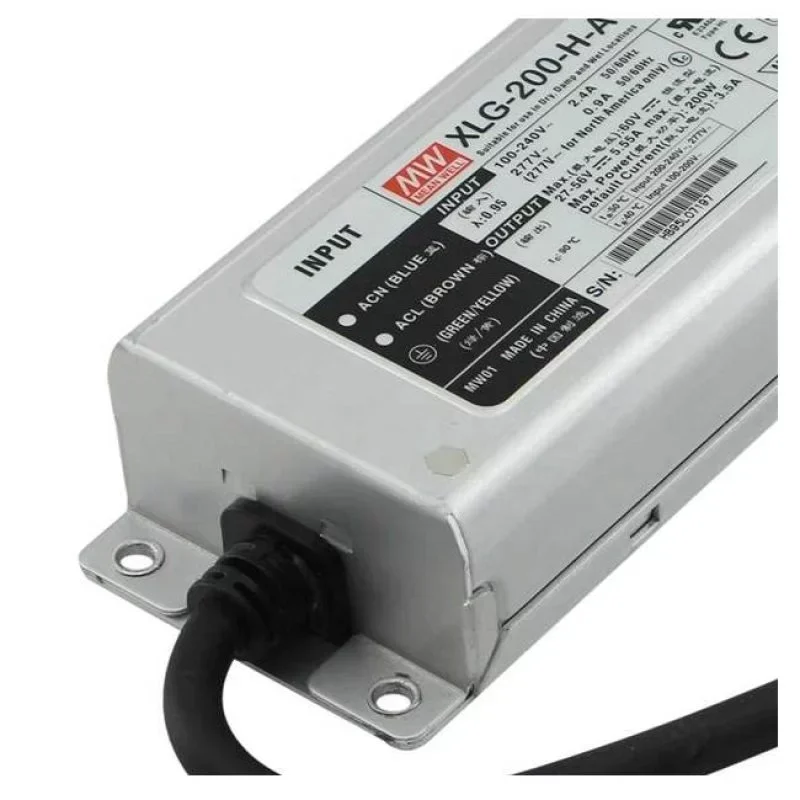

Meanwell Power Supply XLG-200-H-A 200w 12V 24V

Description

The Mean Well XLG-200-H-A is a 200W AC/DC LED driver featuring a constant power mode and high voltage output. Designed for Original Engineering applications in industrial and outdoor lighting, this unit ensures maximum Technical Compatibility with a wide range of LED arrays. While the XLG-200 series encompasses dedicated 12V and 24V models, the H-A variant specifically offers a wide adjustable output range to maintain constant power delivery, mitigating voltage drop across extensive lighting circuits.

Model Decoding
Series: XLG (Constant Power Mode LED Driver)
Power Rating: 200 (200W Rated Output)
Output Type: H (High Voltage Output Range)
Feature: A (Output current adjustable via built-in potentiometer)

Technical Specifications
Brand: Mean Well
Model: XLG-200-H-A
Rated Power: 200W
Input Voltage Range: 100 ~ 305VAC / 142 ~ 431VDC
Output Voltage Range: 27 ~ 56VDC
Adjustable Current Range: 1750 ~ 5600mA
Efficiency: 94%
Power Factor (PFC): >0.95 at 230VAC
Surge Protection: 6KV (Line to Ground) / 4KV (Line to Line)
Ingress Protection: IP67
Operating Temperature: -40°C to +90°C (Case temperature)
Cooling Method: Free air convection
Dimensions: 199 x 63 x 35.5 mm
Weight: 0.85 kg
Housing Material: Aluminum alloy
Certifications: UL8750, ENEC EN61347-1, CE, UKCA, FCC

Industrial Application
This power supply is engineered for harsh environment deployments such as street lighting, high-bay industrial facility illumination, and horticultural greenhouse lighting. The IP67-rated metal housing and 6KV surge protection resolve critical vulnerabilities to moisture, dust, and electrical transients. The constant power architecture allows system integrators to drive various LED configurations without stocking multiple driver models, streamlining inventory and reducing Lead Time for large-scale infrastructure maintenance and upgrades.

Key Attributes
Input Voltage: 100~305 VAC
Output Current: 3500mA
Output Voltage: 12V/24V
Place of Origin: Taiwan, China
Output Power: 101 - 200W
Model Number: MWXLG200HA
Brand Name: Meanwell
Output Frequency: 47~63 Hz
Output Type: Single
Efficiency: 93%
AC Current: 180 ~ 305 VAC
Working Temp: -40~ +90°C
Working Humidity: 20 ~ 95 % RH
Over current: 95~108%
IP Rate: IP 67
Weight: 0.85kg
Dimension: 199*63*35.5mm

Packaging and Delivery
Packaging Details: 0.85KG; 16pcs/14.2KGs/0.72 CUFT
Port of dispatch: Taiwan
Selling Units: Single item
