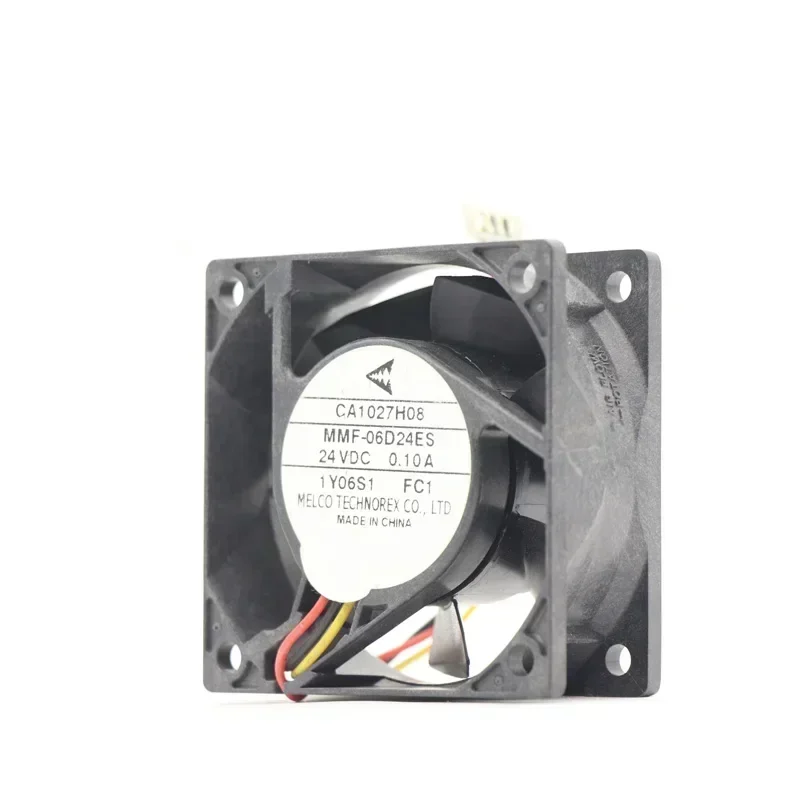

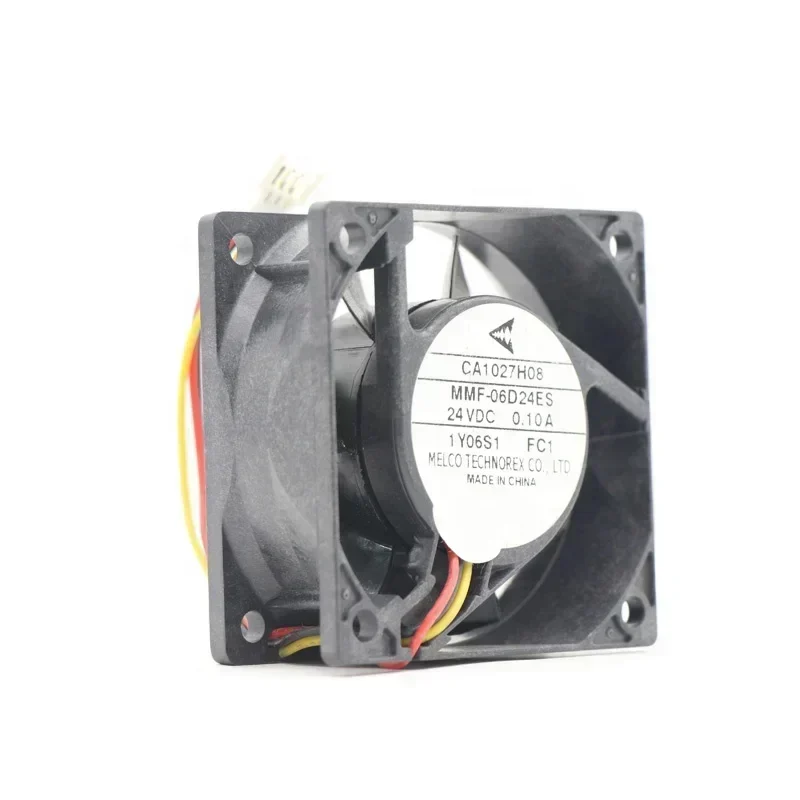

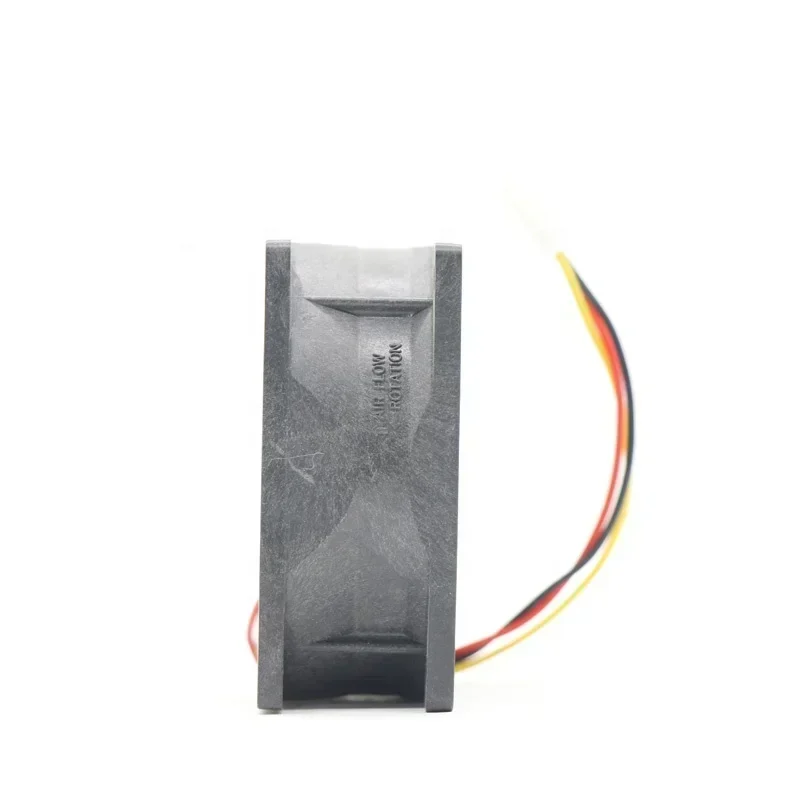

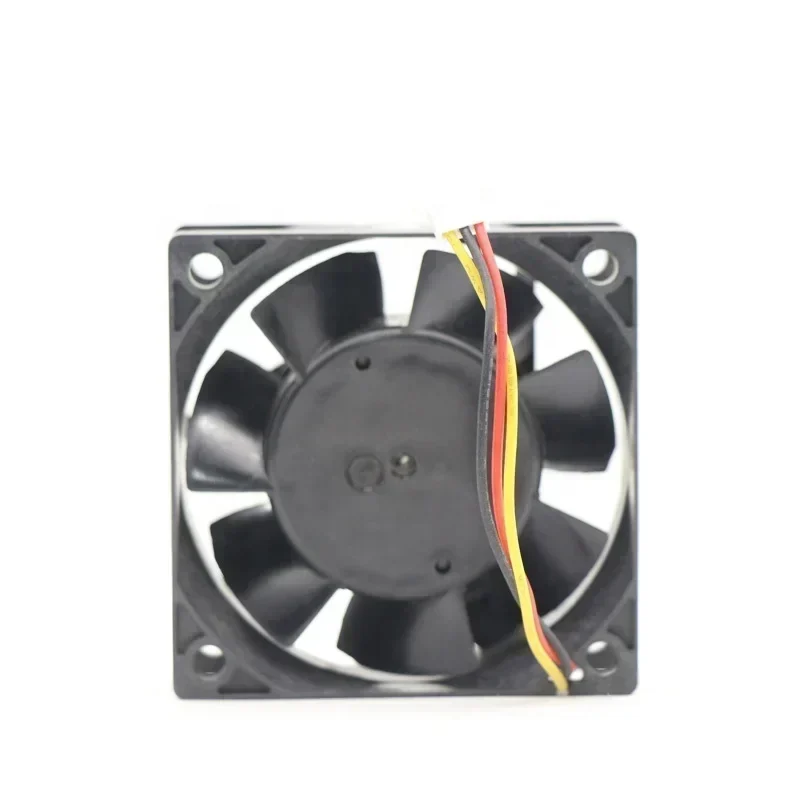

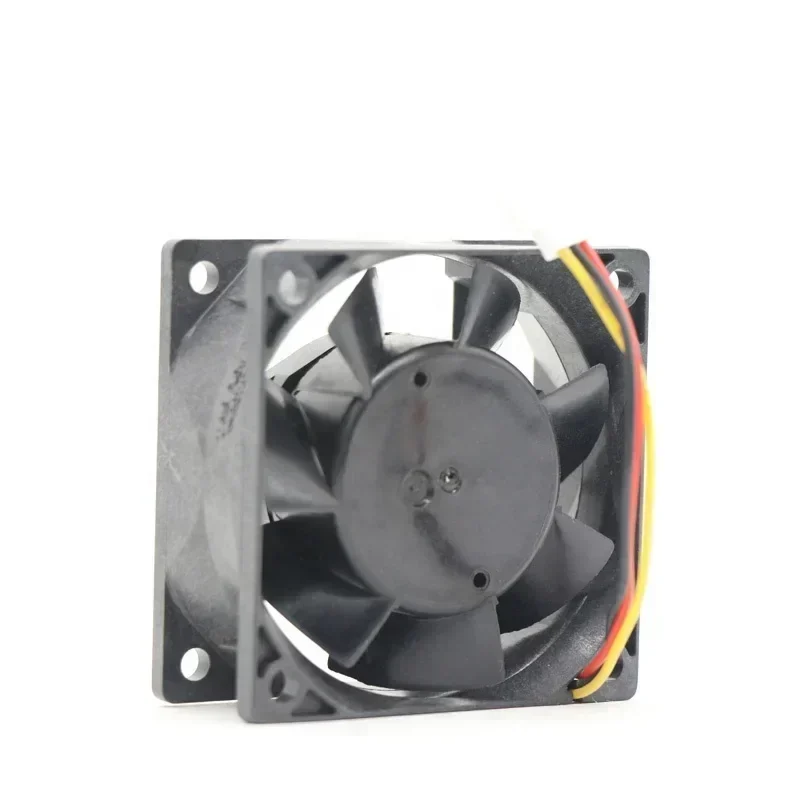

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan
Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan
Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan
Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan
Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan
Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

$6.10

SKU: 62196965547 Brand:

Description

The Mitsubishi MMF-06D24ES-FC1 and MMF-06D24ES-FC4 represent high-performance thermal management solutions engineered for critical industrial electronics. These 60mm axial fans are specifically designed for continuous operation within Mitsubishi inverters and high-density power modules where thermal stability is paramount.

Technical Specifications:
Manufacturer: Mitsubishi Electric (Melco)
Model Series: MMF-06D24ES
Voltage: 24V DC
Operating Voltage Range: 20.4V to 27.6V DC
Current: 0.10A
Power Rating: 2.4W
Rotational Speed: 2500 RPM
Airflow Capacity: 30 CFM (0.85 m³/min)
Static Pressure: 35 Pa
Noise Level: 28 dB(A)

Mechanical and Material Profile:
Dimensions: 60 x 60 x 25 mm
Frame Material: Reinforced PBT Thermoplastic (UL94V-0)
Impeller Material: Reinforced PBT Thermoplastic (UL94V-0)
Bearing System: Precision Dual Ball Bearing
Wiring Configuration: 3-Wire Lead (Signal Output Included)
Connector Type: FC1/FC4 Specification
Weight: 80g

Environmental and Reliability Standards:
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Expected Service Life: 60,000 Hours (L10 at 40°C)
Insulation Resistance: 10M Ω minimum at 500V DC
Dielectric Strength: 500V AC for 1 minute
Certifications: UL, CSA, TUV, CE Compliant

Industrial Application and Compatibility:
This unit is a critical component for maintaining the thermal equilibrium of Mitsubishi FR-series inverters and CNC control cabinets. Its Original Engineering ensures seamless Technical Compatibility with existing mounting patterns and electrical headers. In high-duty cycle environments, the MMF-06D24ES series prevents localized hotspots that lead to semiconductor degradation. We maintain optimized Lead Time for these essential spare parts to minimize downtime in automated production lines.

Key Attributes
Mounting: Free Standing
Voltage: 24V
Blade material: Plastic
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: Japan
Brand name: Mitsubishi
Product name: MMF-06D24ES-FC1
Current: 0.10A
Voltage: 24V
Specifications: 60*60*25mm
Port: Tianjin port
Package: 40*40*25 for Carton
Texture of material: Plastic

Packaging and Delivery
Selling Units: Single item
Single package size: 15X11X11 cm
Single gross weight: 0.500 kg

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Mitsubishi MMF-06D24ES-FC1 MMF-06D24ES-FC4 24V DC 0.1A 6025 60x60x25mm 3 Wires 30CFM 2500RPM Compact Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
