$11.43

SKU: 705531678499 Brand:

Description

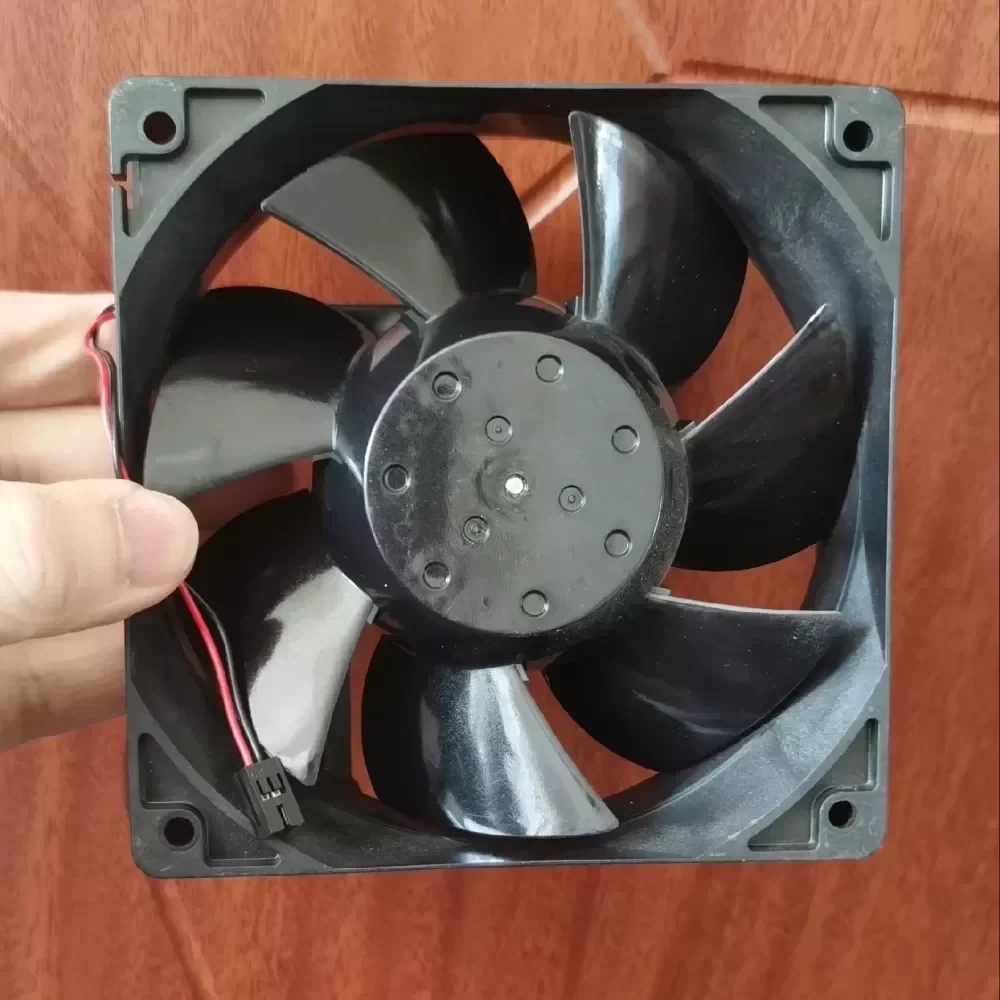

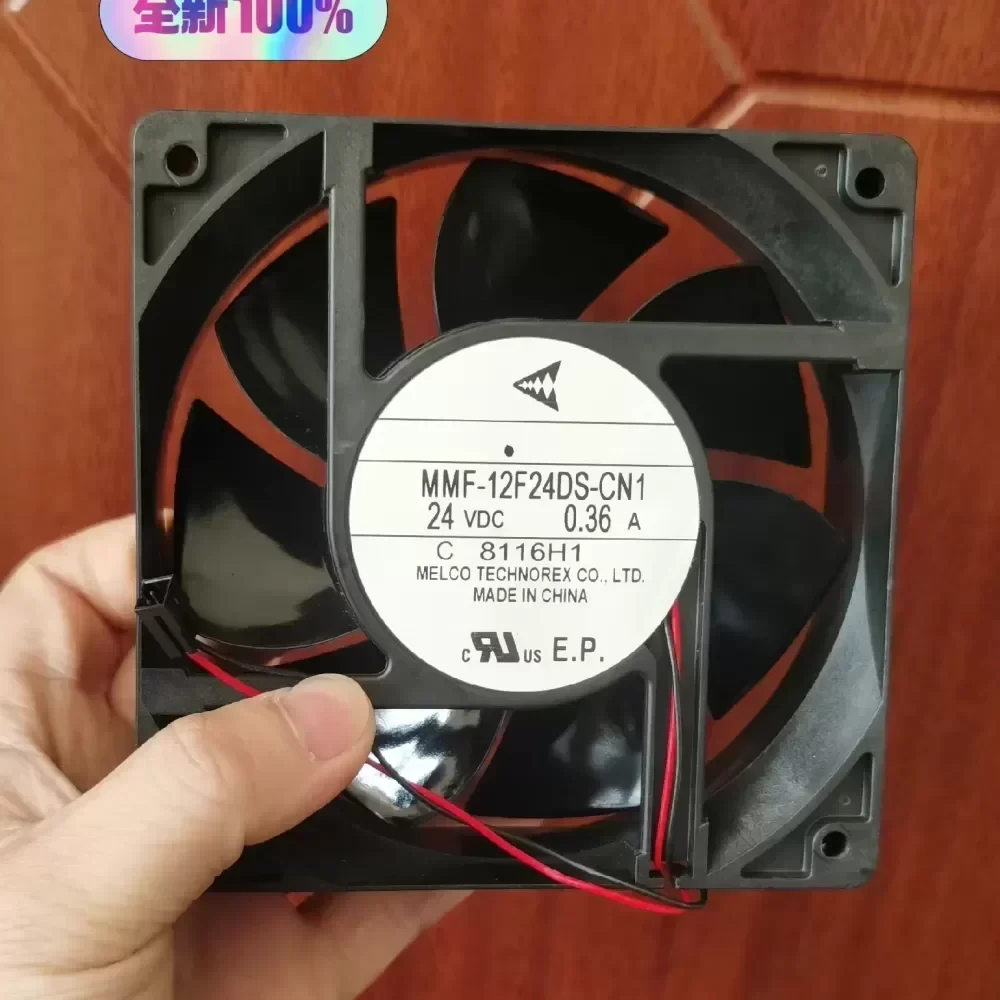

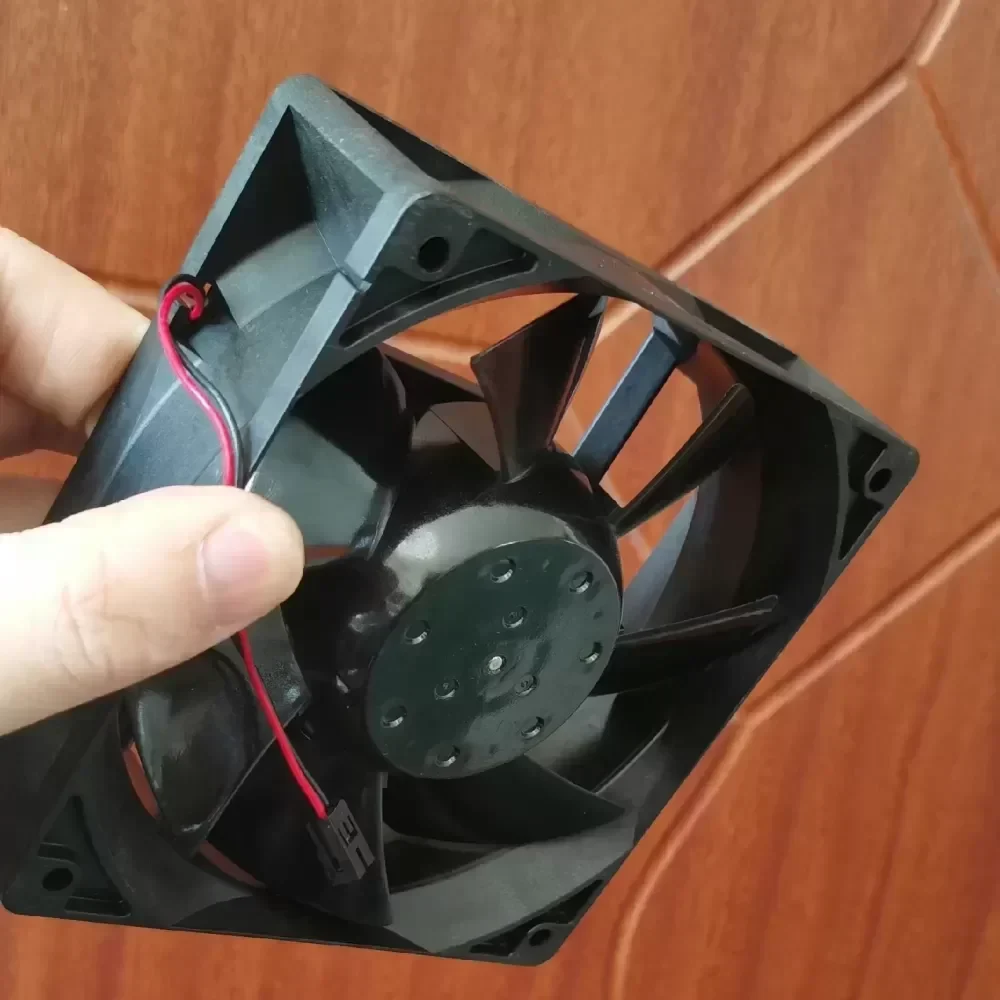

The Mitsubishi MMF-12F24 DS-CN1 is a high-performance DC axial cooling fan engineered specifically for thermal management in industrial automation equipment. Designed to maintain optimal operating temperatures for variable frequency drives (VFDs), inverters, and CNC chassis, this 12038 form-factor fan ensures continuous heat dissipation in high-density control cabinets.

Technical Specifications:
Manufacturer: Mitsubishi Electric
Model Number: MMF-12F24 DS-CN1
Fan Type: DC Axial Cooling Fan
Dimensions: 120 mm x 120 mm x 38 mm
Rated Voltage: 24.0 V DC
Operating Voltage Range: 12.0 V to 27.6 V DC
Rated Current: 0.36 A ± 10%
Power Consumption: 8.64 W
Bearing System: High-Precision Dual Ball Bearing
Maximum Airflow: 3.1 m³/min
Acoustic Noise: 45 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Connection Type: 3-Wire with DS-CN1 specialized connector (includes stall sensor)
Operating Temperature: -10°C to +70°C
Weight: 0.26 kg
Certifications: CE, UL, RoHS

Industrial Applications & Compatibility:
This cooling fan is a critical component for preventing thermal throttling and hardware failure in heavy-duty industrial environments. The MMF-12F24 DS-CN1 provides exact Technical Compatibility with a wide range of Mitsubishi inverters, servo drives, and power supply modules. Its integrated stall sensor communicates directly with the drive logic board to trigger immediate safety shutdowns if airflow is compromised, protecting expensive semiconductor components from catastrophic thermal damage.

Procurement & Lifecycle Value:
Sourcing Original Engineering components guarantees exact fitment and restores factory-certified thermal performance. We maintain optimized inventory networks to ensure minimal Lead Time for critical spare parts, reducing costly machine downtime and extending the operational lifecycle of your automation infrastructure.

Mitsubishi MMF-12F24 DS-CN1 new original 12038/

Mitsubishi MMF-12F24 DS-CN1 new original 12038/

Mitsubishi MMF-12F24 DS-CN1 new original 12038/

Mitsubishi MMF-12F24 DS-CN1 new original 12038/

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
