Product Overview
The Mitutoyo 511-921-20 is a comprehensive Dial Bore Gauge Set engineered for high-precision internal diameter measurements across a wide measurement range. Designed to meet stringent metrology standards, this set integrates three distinct bore gauges to cover internal dimensions from 18 mm to 150 mm, ensuring Technical Compatibility with diverse machining and quality control requirements.
Technical Specifications
Manufacturer: Mitutoyo
Model Number: 511-921-20
Measurement Range: 18 mm to 150 mm

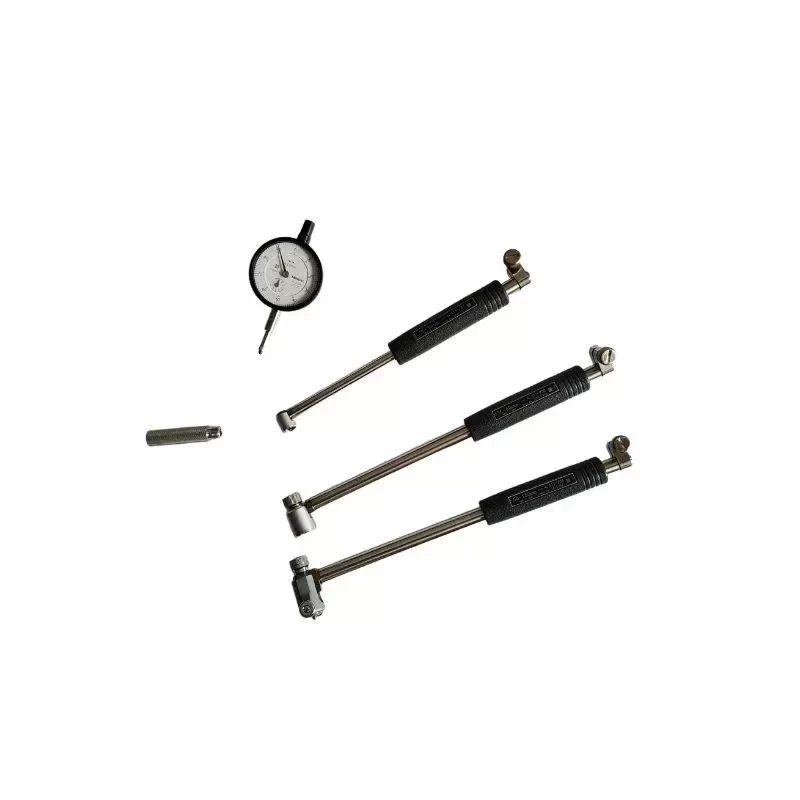

Included Gauges: 18-35 mm, 35-60 mm, 50-150 mm
Graduation: 0.01 mm
Repeatability: ± 2 µm
Contact Point Material: Tungsten Carbide
Anvil Type: Interchangeable
Grip Design: Hollow structure for thermal isolation
Weight: 1.5 kg
Operating Temperature: 20 °C (Standard reference temperature)
Engineering & Design Features
This Original Engineering measurement set utilizes carbide-tipped contact points to maximize wear resistance and maintain long-term dimensional stability. The specialized hollow grip design effectively isolates the gauge from operator body heat, preventing thermal expansion errors during prolonged inspection cycles. The interchangeable anvils allow for rapid reconfiguration, minimizing downtime during multi-diameter inspection tasks.
Industrial Application
The 511-921-20 is critical for precision machining environments, specifically in automotive engine manufacturing for cylinder block bore inspection, and in aerospace engineering for verifying bearing housing tolerances. Its ability to detect out-of-roundness and taper in deep bores makes it indispensable for strict quality assurance protocols.
Logistics & Availability
Standard Lead Time applies based on global distribution networks. Verify Technical Compatibility with existing calibration masters and setting rings prior to integration.
Key Attributes
Accuracy: ±0.002 mm
Material: Stainless Steel
Resolution: 0.01 mm
Place of origin: Japan
Model number: 511-921-20
Brand name: Mitutoyo
Customized support: No
Warranty: 1 years
Gage Range: 18-150mm

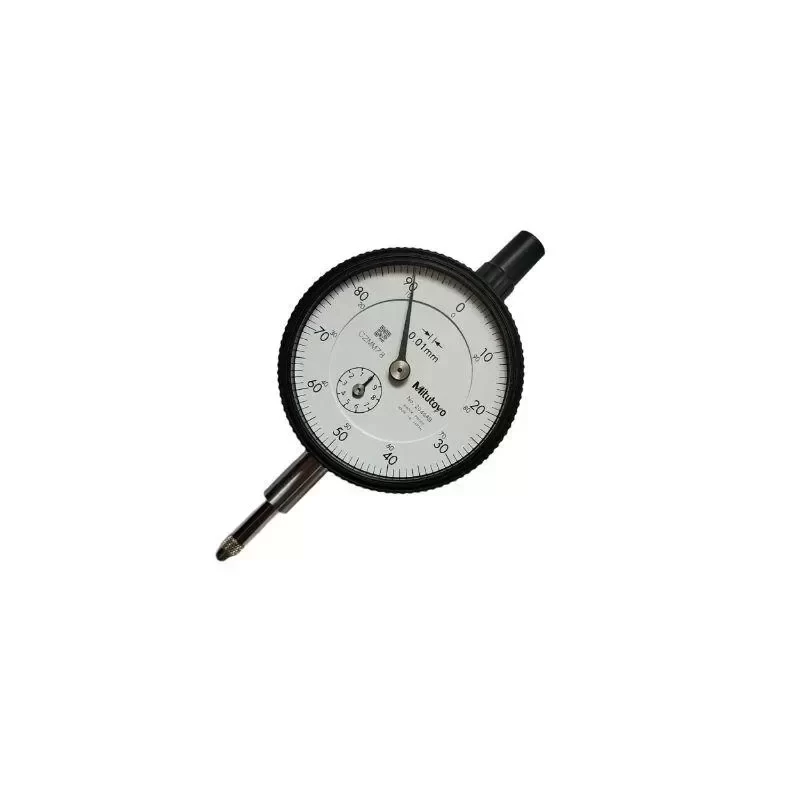

Dial Indicator: 2046AB
Anvils / Washers: 26 (50mm Sub Anvil) / 10
Packaging and Delivery
Selling Units: Single item
Single package size: 36X26X14 cm
Single gross weight: 2.000 kg
