Description

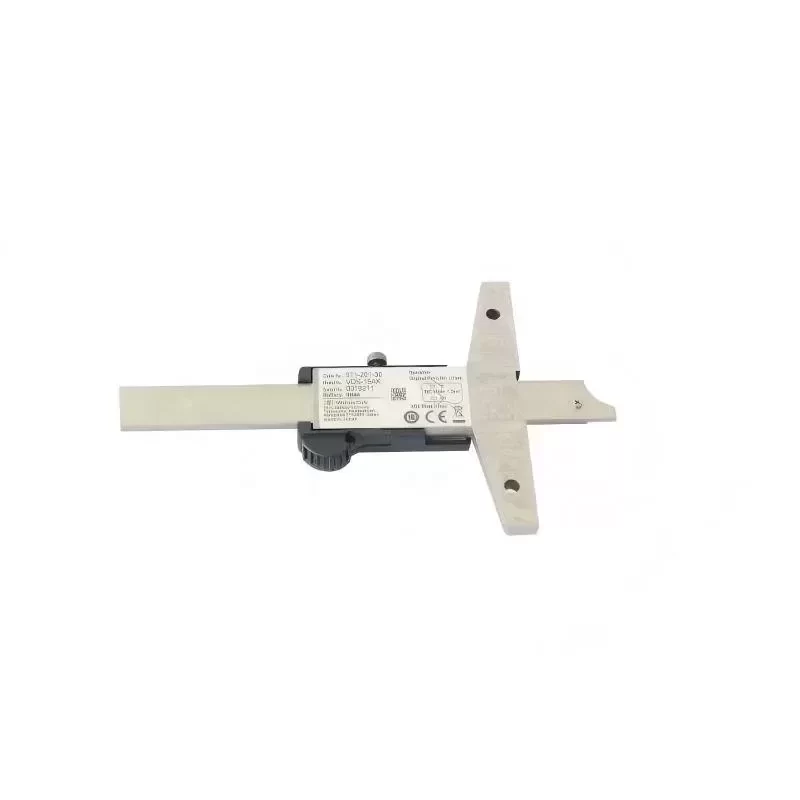

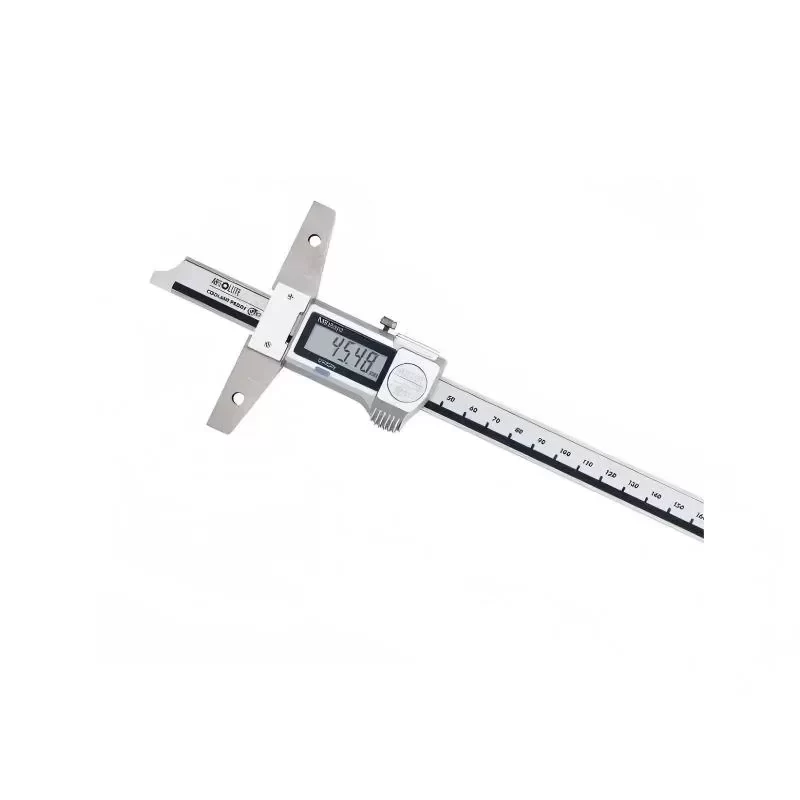

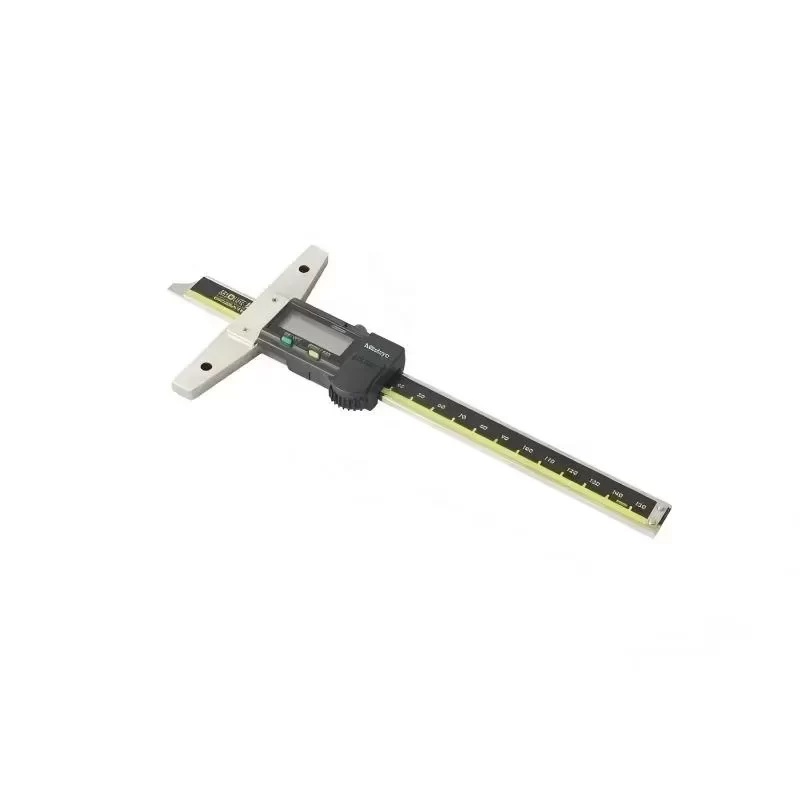

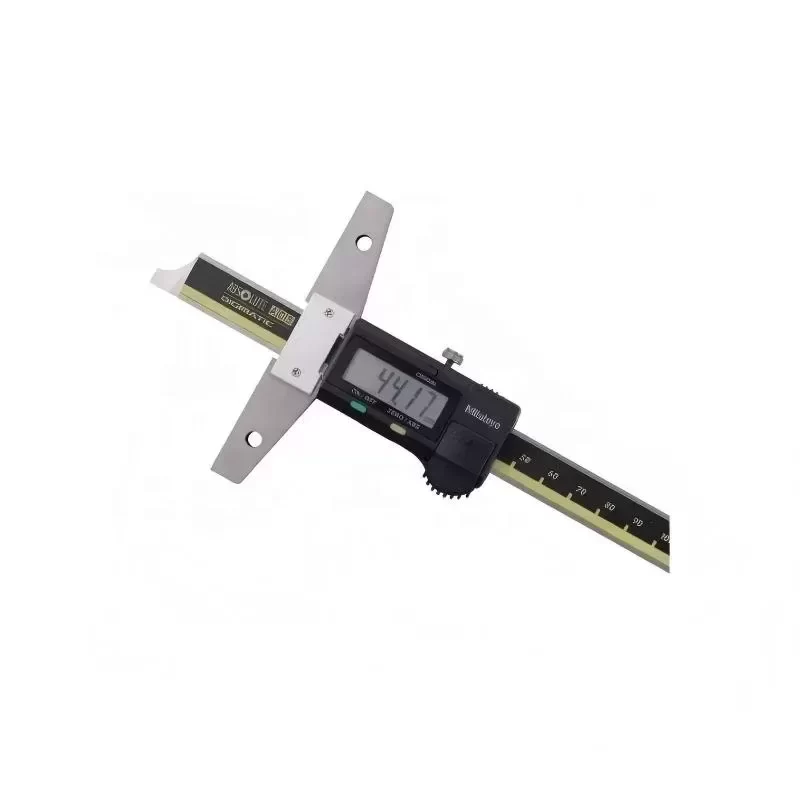

The Mitutoyo 571-212-30 is a high-precision digital depth gauge engineered for rigorous industrial metrology applications. Utilizing Mitutoyo’s proprietary ABSOLUTE (ABS) electrostatic capacitance linear encoder, this instrument eliminates the need to set the origin point every time the unit is powered on. This ensures immediate, error-free measurements and prevents overspeed errors during rapid spindle movements. Designed for dual-scale readouts (Inch/Metric), it provides seamless integration into global manufacturing environments requiring strict dimensional verification.
Technical Specifications:
Measuring Range: 0 to 8 inches / 0 to 200 mm
Resolution: 0.0005 inch / 0.01 mm
Accuracy: ±0.001 inch / ±0.02 mm
Base Dimensions: 100 mm length x 6 mm thickness
Display: High-contrast LCD
Encoder Type: ABSOLUTE Electrostatic Capacitance Linear Encoder
Material: Hardened Stainless Steel
Data Output: SPC (Statistical Process Control) compatible
Power Supply: 1x SR44 Silver Oxide Button Cell
Battery Life: Approximately 20,000 hours under normal use
Weight: 195 g
Advanced Features:
Origin-set function for absolute measurement reference
Zero-setting for incremental comparative measurements
Data hold capability for complex inspection routines
Low voltage alarm to ensure uninterrupted precision
Industrial Application:
The 571-212-30 is critical for quality assurance in CNC machining, aerospace component manufacturing, and automotive powertrain assembly. Its precise depth measurement capabilities solve the challenge of verifying blind hole depths, stepped geometries, and recessed features in complex machined parts. By integrating SPC data output, it supports automated quality control systems and traceability requirements.
Procurement and Integration:
Original Engineering: Manufactured by Mitutoyo, ensuring unparalleled metrological reliability and compliance with international standards.
Technical Compatibility: Fully compatible with Mitutoyo SPC cables and U-WAVE wireless data transmitters for seamless digital factory integration.
Lead Time: Optimized inventory management ensures minimal lead time for critical inspection facility upgrades.
Key Attributes
Accuracy: ±0.002 mm
Material: Stainless Steel
Resolution: 0.01 mm
Place of origin: Japan
Model number: 571-212-30
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Range: 0 - 8in /0 - 200mm
Accuracy: 0.001in
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Battery: SR44 (1 pc.) (938882)
Battery life (normal use): Approx. 20,000 hours

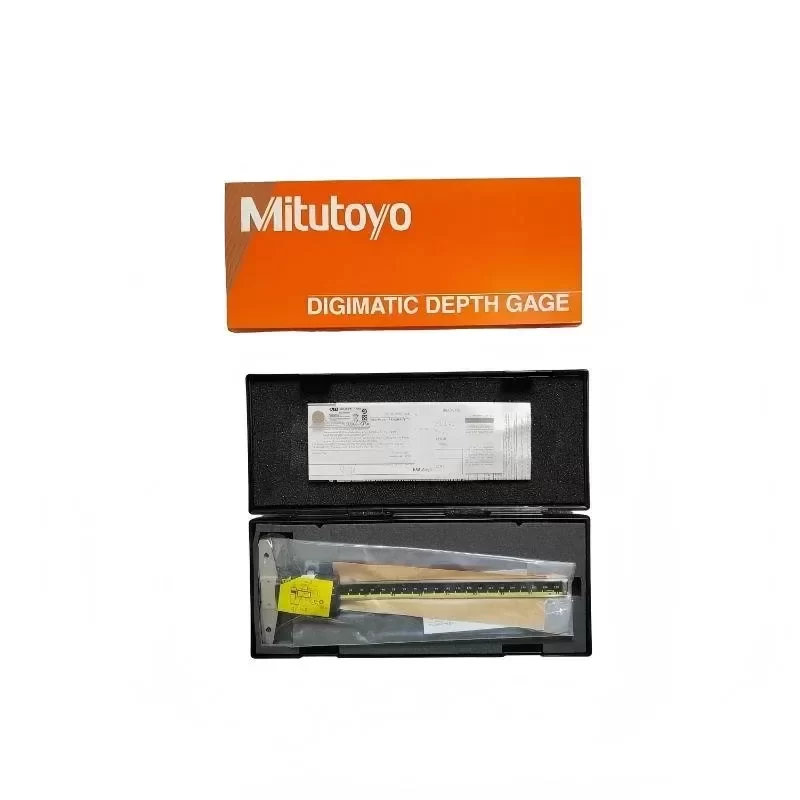

Packaging and Delivery
Selling Units: Single item
Single package size: 42X21X14 cm
Single gross weight: 2.000 kg
