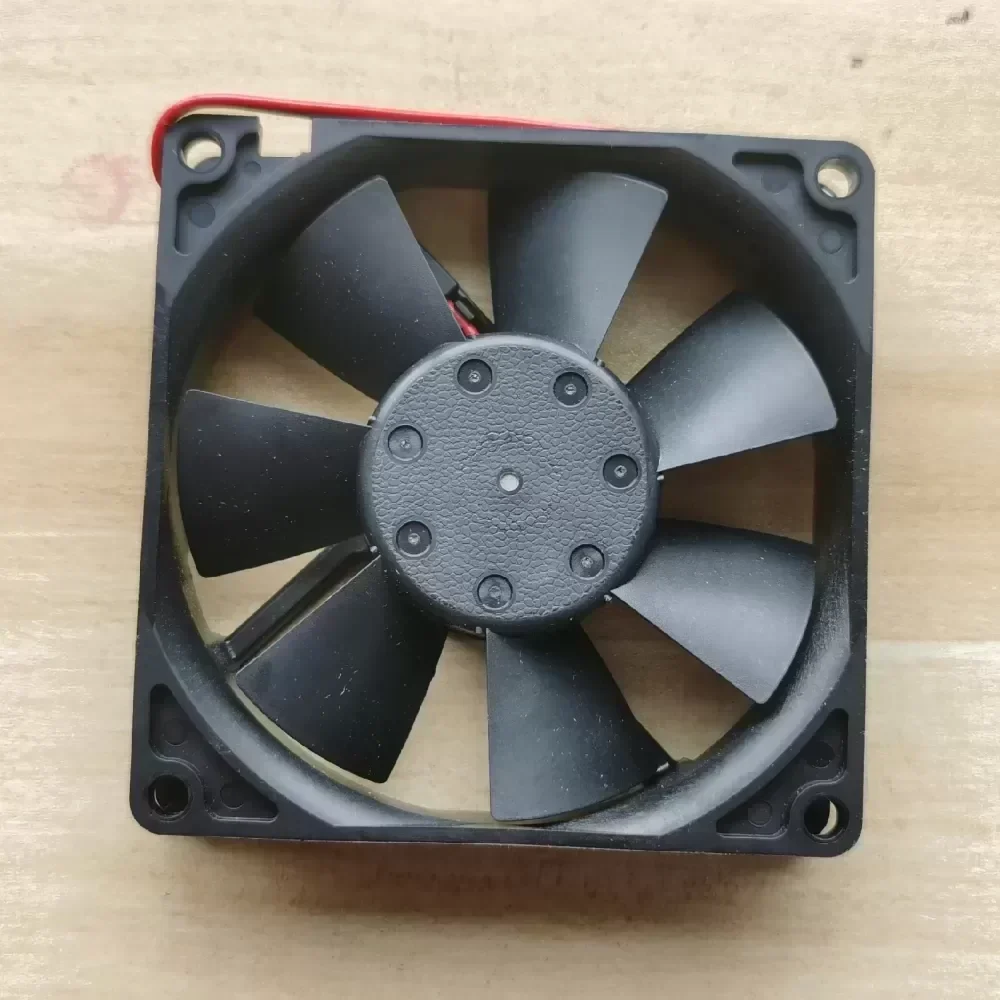

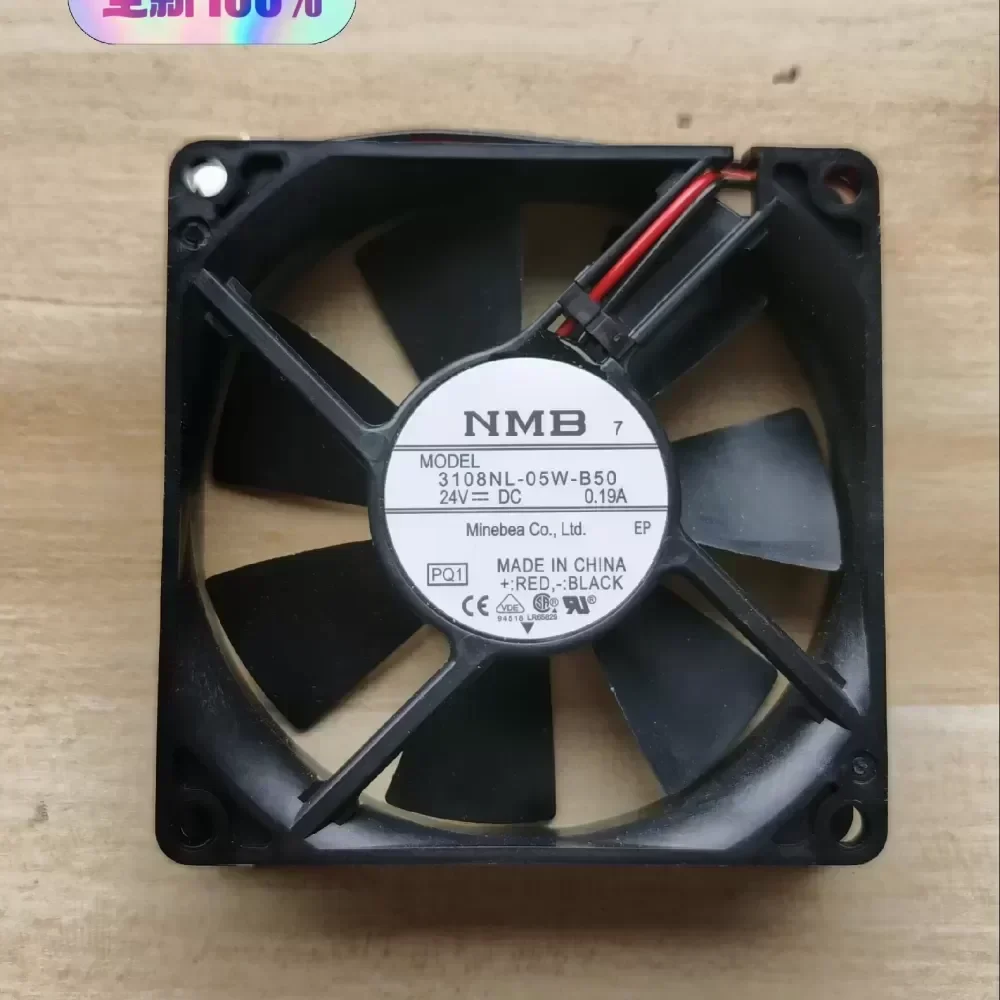

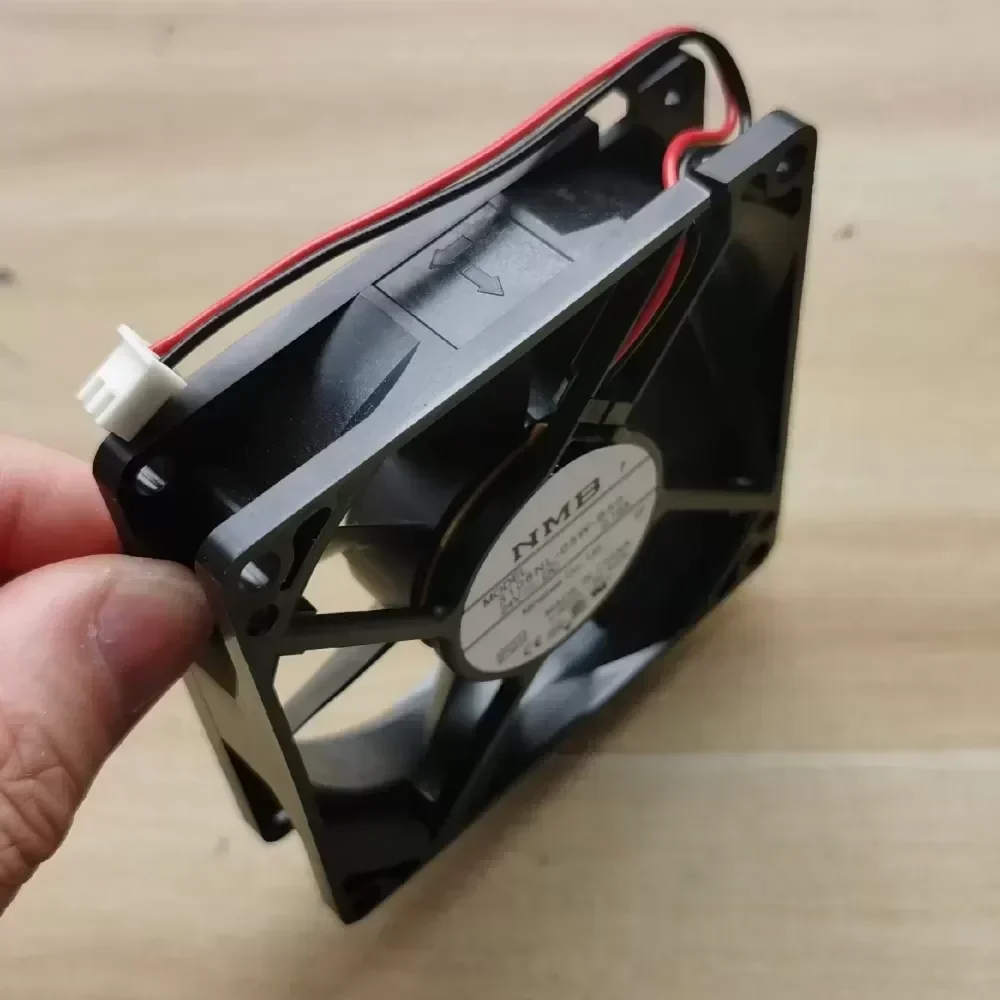

New 3108NL-05W-B50 8020/24V NMB fan
New 3108NL-05W-B50 8020/24V NMB fan
New 3108NL-05W-B50 8020/24V NMB fan
New 3108NL-05W-B50 8020/24V NMB fan

New 3108NL-05W-B50 8020/24V NMB fan

$7.14

SKU: 702690516687 Brand:

Description

The NMB-MAT 3108NL-05W-B50 is a high-performance industrial axial fan engineered by MinebeaMitsumi for critical thermal management in power electronics. This original equipment manufacturer (OEM) component is specifically designed for continuous operation in high-demand inverter environments, providing high static pressure and reliable airflow to prevent thermal throttling in power conversion systems.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 3108NL-05W-B50
Frame Size: 80mm x 80mm x 20mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V – 27.6V DC
Rated Current: 0.12A
Input Power: 2.88W
Rotational Speed: 3400 RPM
Maximum Airflow: 34.2 CFM (0.97 m³/min)
Static Pressure: 36.3 Pa
Noise Level: 33.0 dB(A)
Bearing Type: Dual Precision Ball Bearings
Termination: 2-Wire Lead (Stripped and Tinned)
Weight: 85g

Material and Environmental Ratings:
Casing Material: Reinforced PBT Plastic (UL94V-0)
Impeller Material: Reinforced PBT Plastic (UL94V-0)
Insulation Resistance: 10M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 700V 1s
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life (L10): 50,000 hours at 25°C
Certifications: UL, CSA, VDE, CE

Industrial Application and Technical Compatibility:
This model is a critical spare part for industrial frequency inverters, servo drives, and uninterruptible power supplies (UPS). Its 20mm slim profile allows for integration into compact chassis where standard 25mm fans cannot fit. The 3108NL-05W-B50 is frequently utilized in Meipeia and other high-end Japanese power electronics for cooling IGBT modules. The dual ball bearing system ensures Original Engineering standards are met for vertical or horizontal mounting orientations, maintaining long-term stability in high-vibration environments.

Logistics and Procurement:
Condition: New Original
Lead Time: Immediate dispatch available for standard inventory
Technical Compatibility: Direct replacement for 8020 24V DC configurations

New 3108NL-05W-B50 8020/24V NMB fan

New 3108NL-05W-B50 8020/24V NMB fan

New 3108NL-05W-B50 8020/24V NMB fan

New 3108NL-05W-B50 8020/24V NMB fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
