$9.29

SKU: 692096904840 Brand:

Description

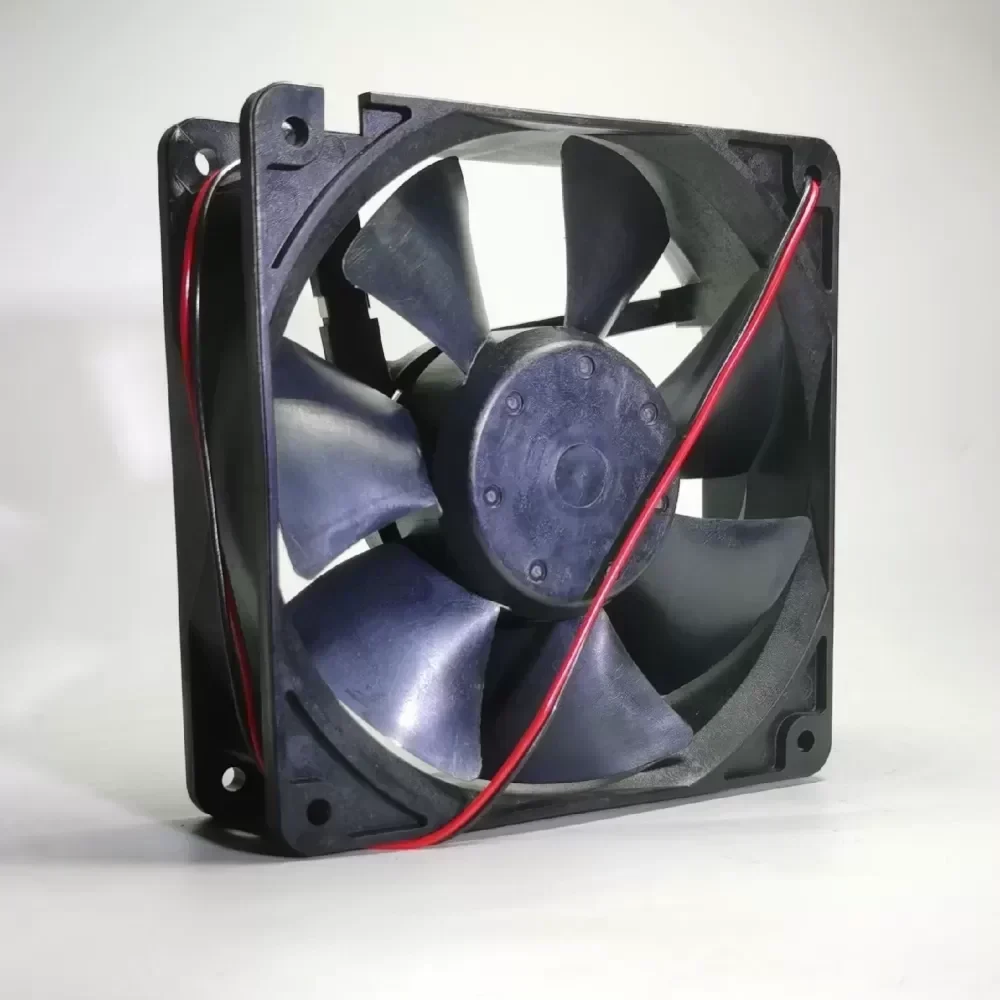

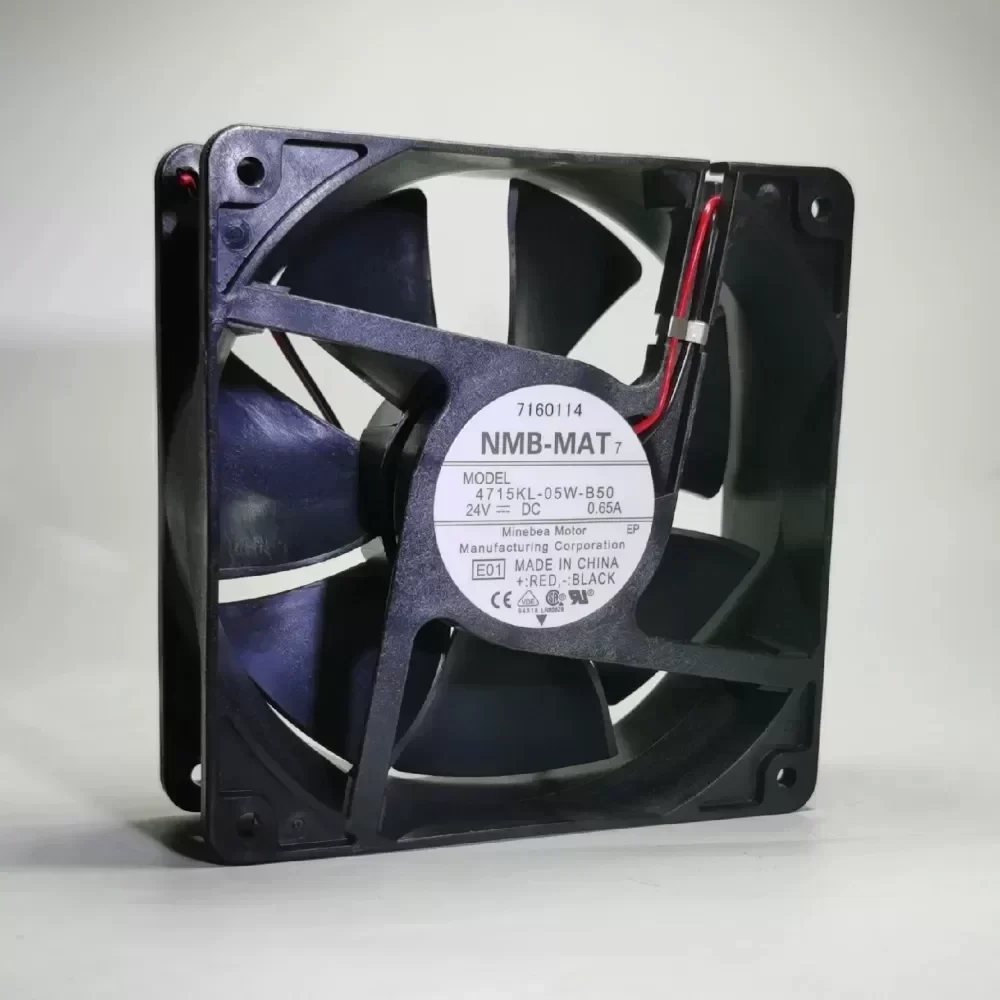

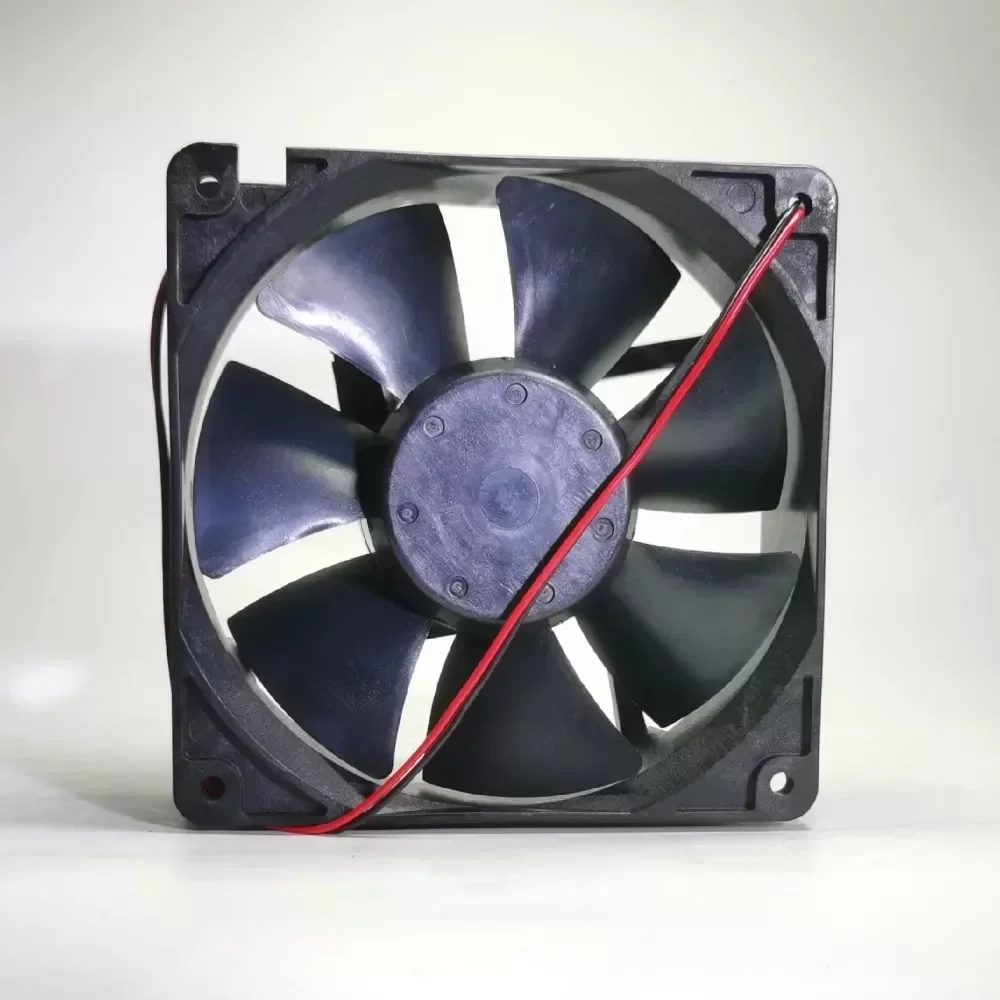

The NMB Minebea 4715KL-05W-B50 is a high-performance DC axial cooling fan engineered for demanding industrial environments. Designed specifically for inverter cooling and chassis thermal management, this 12038 form factor fan delivers exceptional airflow and static pressure to prevent thermal degradation in critical electronic components. Built with Original Engineering standards, it ensures maximum reliability and extended lifecycle value for continuous-duty applications.

Technical Specifications

Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 4715KL-05W-B50
Fan Type: DC Axial Fan
Frame Dimensions: 119mm x 119mm x 38mm (12038)
Rated Voltage: 24V DC
Operating Voltage Range: 10.0V to 27.6V DC
Nominal Current: 0.46 A
Input Power: 11.0 W
Rated Speed: 3200 RPM ±10%
Maximum Airflow: 118.0 CFM (3.34 m³/min)
Maximum Static Pressure: 85.0 Pa (0.34 inH2O)
Acoustic Noise Level: 50.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Frame Material: Aluminum Alloy
Impeller Material: Plastic (UL94V-0)
Termination: Lead Wires (AWG 24)
Operating Temperature Range: -10°C to +70°C
Weight: 260 g
Certifications: UL, CSA, VDE, CE, RoHS Compliant

Application & Technical Compatibility

The 4715KL-05W-B50 is specifically calibrated for high-density industrial applications requiring aggressive thermal dissipation. Its robust aluminum frame and precision ball bearing architecture make it highly resistant to vibration and thermal stress, solving critical overheating issues in variable frequency drives (VFDs), telecom enclosures, power supply units, and automated control chassis. The 24V DC operating voltage ensures seamless Technical Compatibility with standard industrial control loops and heavy-duty inverter systems.

Procurement & Lifecycle Value

Sourcing this authentic NMB component guarantees exact physical and electrical drop-in replacement for existing 12038 cooling modules. We maintain optimized inventory to ensure minimal Lead Time for critical maintenance operations, safeguarding your infrastructure against unscheduled downtime.

New 4715KL-05W-B50 12038/24V transformer

New 4715KL-05W-B50 12038/24V transformer

New 4715KL-05W-B50 12038/24V transformer

New 4715KL-05W-B50 12038/24V transformer

New 4715KL-05W-B50 12038/24V transformer

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.

FAQ

JinBuy is a trusted supplier of industrial and home appliance spare parts, offering high-quality components for cooling systems, HVAC units, vacuum cleaners, printers, compressors, CNC machines, and more. We provide reliable products, competitive prices, and fast worldwide delivery.
