New Delta AFB1224EHE Original 12038/24V
New Delta AFB1224EHE Original 12038/24V

New Delta AFB1224EHE Original 12038/24V

$11.43

SKU: 710747368599 Brand:

Description

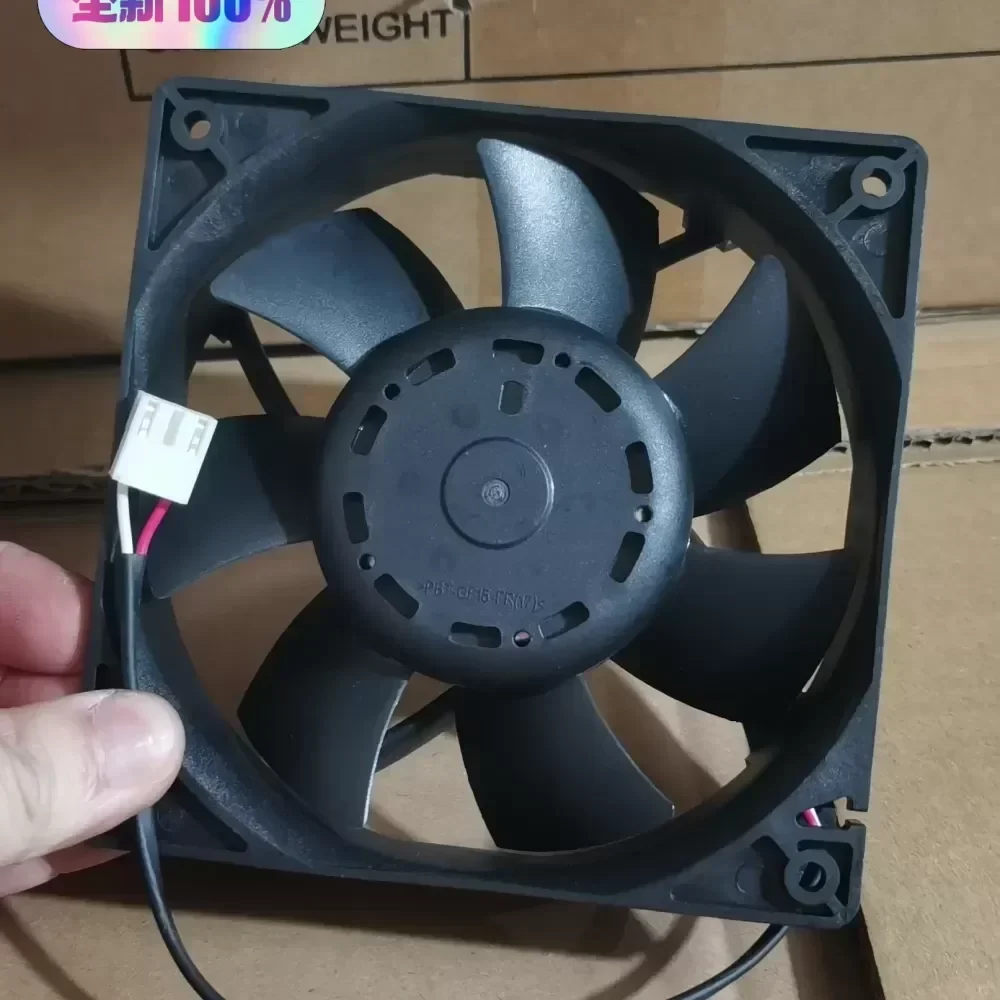

The Delta Electronics AFB1224EHE is a high-performance, industrial-grade DC axial cooling fan engineered for continuous operation in demanding thermal management systems. Designed with a 120x120x38mm form factor, this component delivers exceptional airflow and static pressure, making it a critical asset for high-density electronic enclosures and industrial inverters.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: AFB1224EHE
Fan Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Nominal Current: 1.05A
Input Power: 25.2W
Rated Speed: 4000 RPM ± 10%
Maximum Airflow: 190.0 CFM (5.38 m³/min)
Maximum Static Pressure: 17.78 mmH2O
Acoustic Noise: 59.0 dB(A)
Bearing System: High-precision Dual Ball Bearing
Housing Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C
Weight: 330g
Termination: Wire Leads

Industrial Application:
The AFB1224EHE is specifically deployed in heavy-duty variable frequency drives (VFDs), solar inverters, and telecom chassis where rapid heat dissipation is mandatory to prevent thermal throttling. Its extreme high-speed impeller design ensures optimal static pressure to push air through densely packed heat sinks and restrictive chassis architectures.

Procurement and Lifecycle Value:
Original Engineering guarantees exact Technical Compatibility with existing Delta-cooled systems, eliminating the risk of airflow impedance or electrical mismatch. Sourcing authentic components ensures predictable maintenance cycles and minimizes downtime. Contact our procurement team to verify current Lead Time and secure inventory for your maintenance schedules.

New Delta AFB1224EHE Original 12038/24V

New Delta AFB1224EHE Original 12038/24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
