$12.57

SKU: 677447941258 Brand:

Description

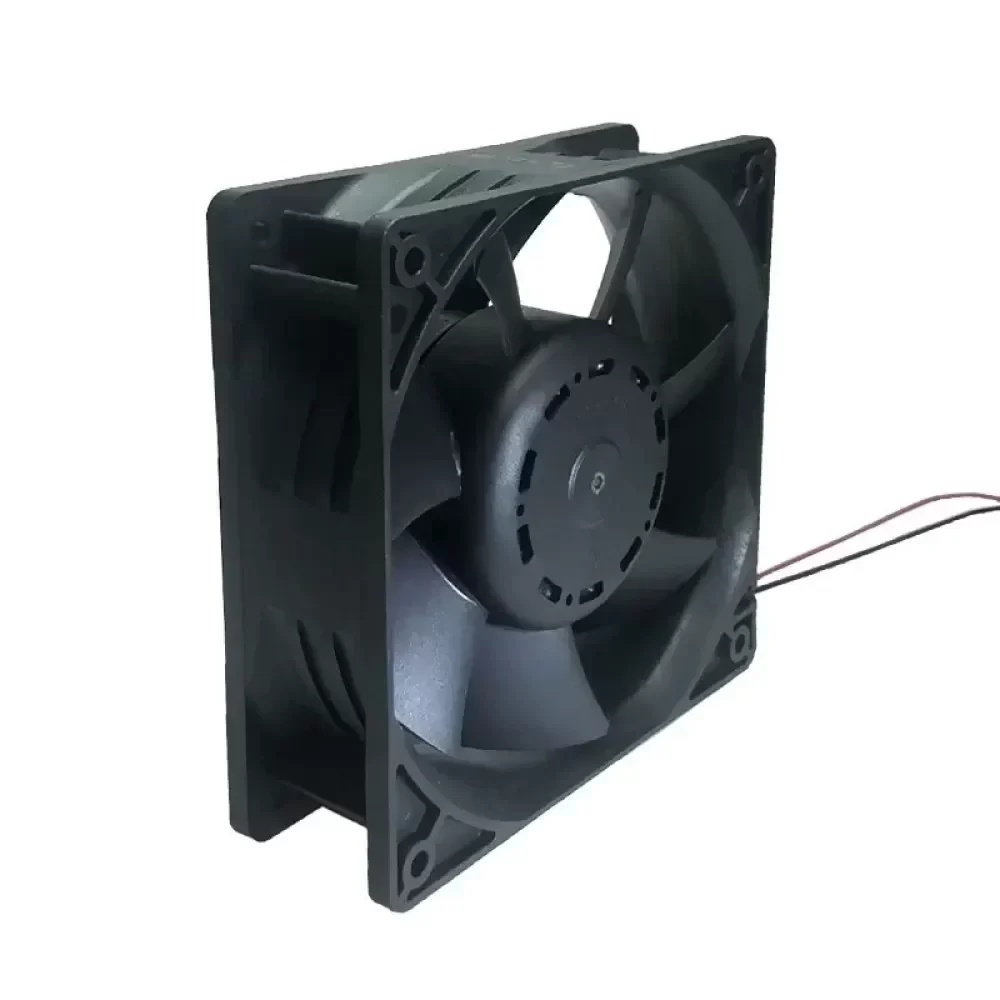

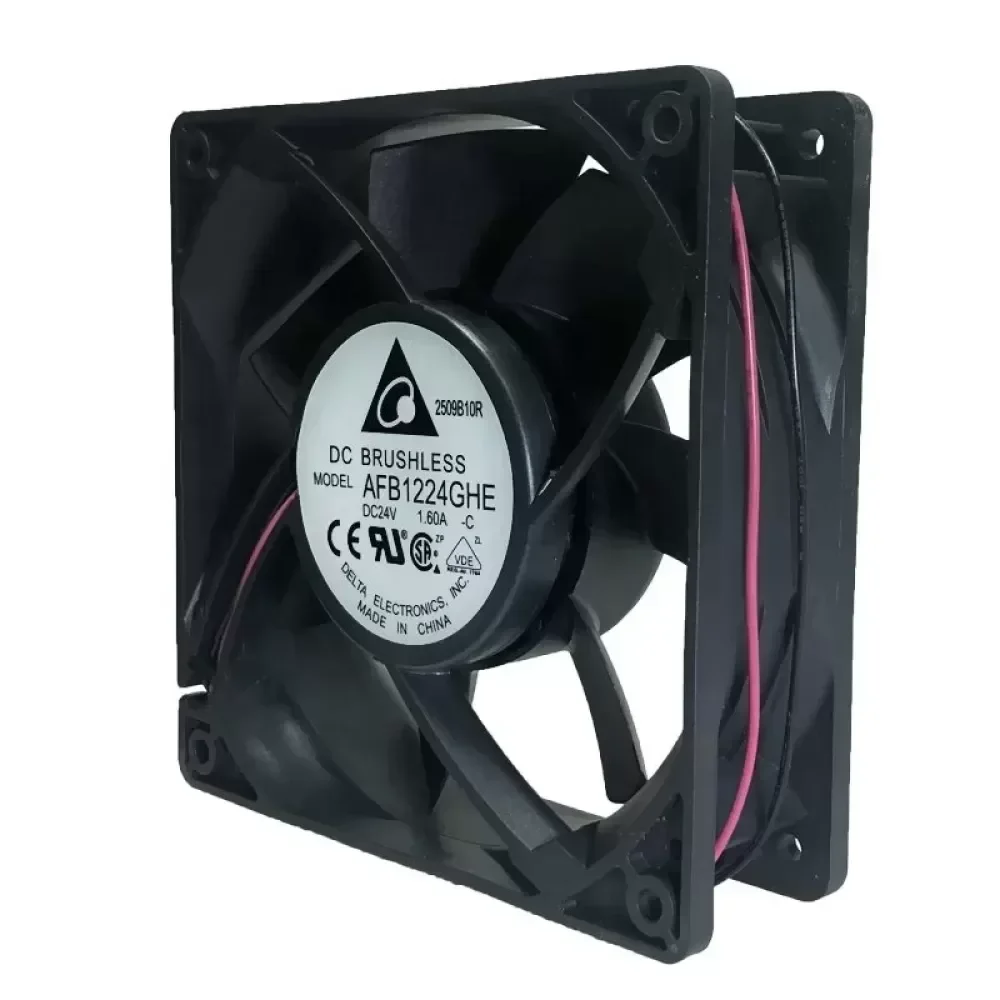

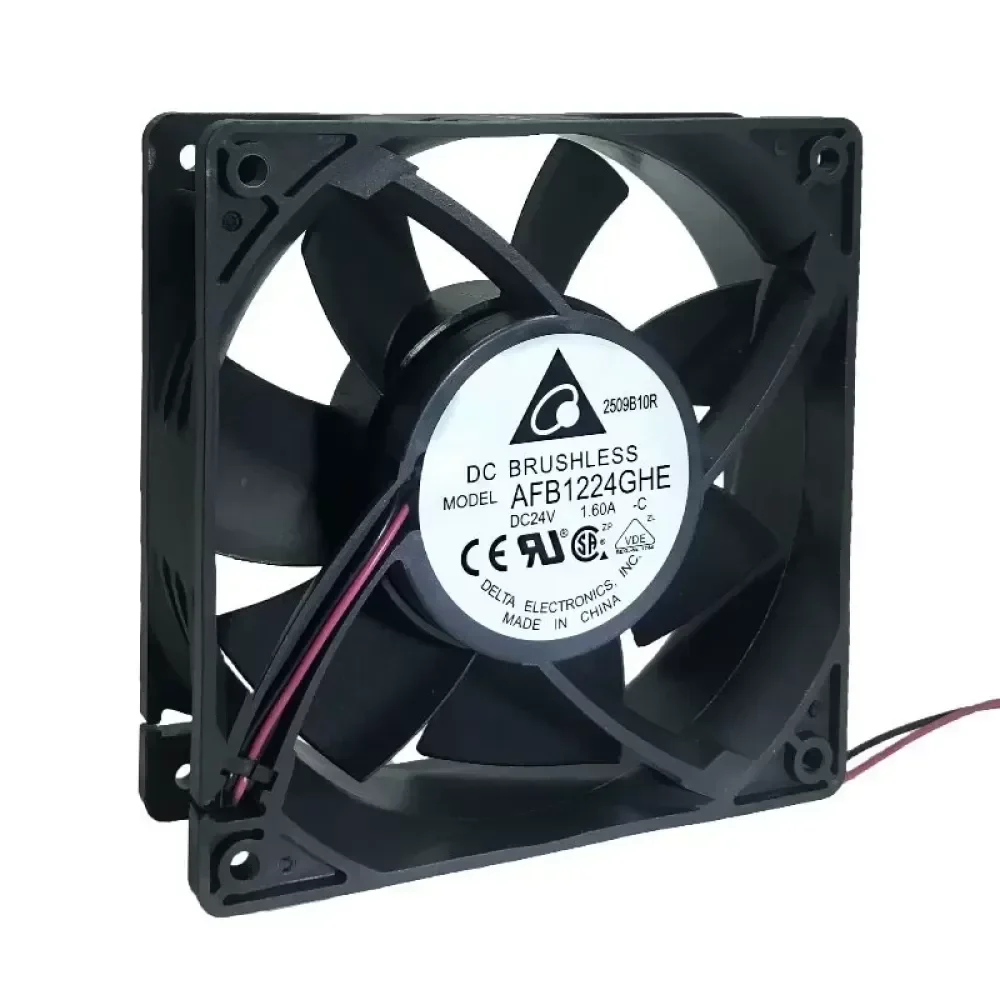

The Delta AFB1224GHE is a high-performance, industrial-grade axial cooling fan engineered for extreme thermal management applications. Designed to deliver massive air volume and high static pressure, this 120x120x38mm unit is specifically calibrated for heavy-duty inverter cooling and dense electronic enclosures.

Technical Specifications

Brand: Delta Electronics
Model: AFB1224GHE
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 1.60A
Input Power: 38.4W
Nominal Speed: 5200 RPM ± 10%
Maximum Airflow: 240.0 CFM (6.8 m³/min)
Static Pressure: 27.48 mmH2O
Acoustic Noise: 62.0 dB(A)
Bearing System: High-precision Dual Ball Bearing
Housing Material: UL 94V-0 Plastic
Impeller Material: UL 94V-0 Plastic
Weight: 330g
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C

Industrial Application

This high-velocity cooling fan is critical for dissipating heat in high-load industrial environments. Its primary application involves active thermal regulation within variable frequency drives (VFDs), solar inverters, telecommunication cabinets, and high-density server racks. The extreme airflow capacity ensures that critical semiconductor components remain within safe operating temperature thresholds, preventing thermal throttling and hardware failure.

Procurement and Integration

This component guarantees Technical Compatibility with standard 12038 mounting profiles. Manufactured under strict Original Engineering standards, it ensures seamless integration into existing thermal management systems. Contact our procurement team for current Lead Time and bulk availability. Backed by a comprehensive one-year warranty for industrial reliability.

New Delta AFB1224GHE 12038 24V

New Delta AFB1224GHE 12038 24V

New Delta AFB1224GHE 12038 24V

New Delta AFB1224GHE 12038 24V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
