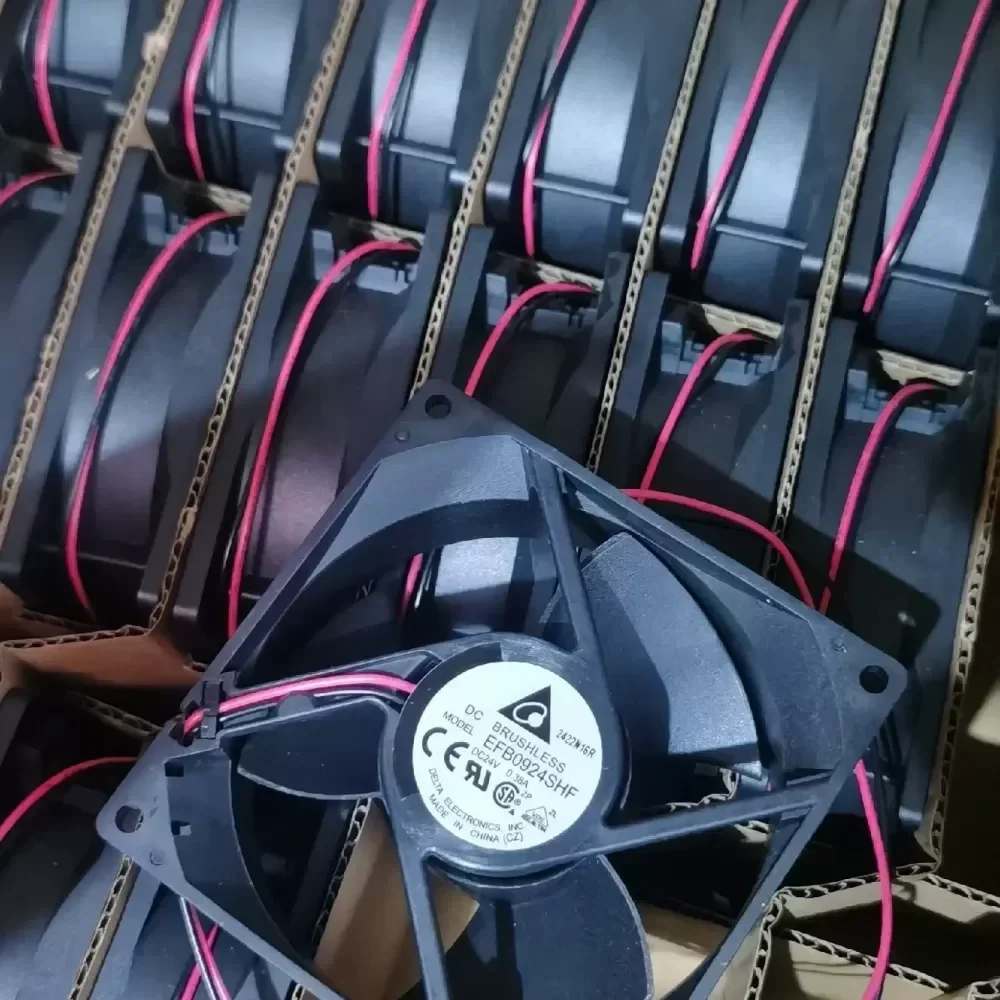

New EFB0924SHF 9232/24V Delta fan
New EFB0924SHF 9232/24V Delta fan
New EFB0924SHF 9232/24V Delta fan

New EFB0924SHF 9232/24V Delta fan

$6.43

SKU: 691096657722 Brand:

Description

The Delta Electronics EFB0924SHF is a high-performance DC axial cooling fan engineered specifically for thermal management in industrial inverters, variable frequency drives (VFDs), and high-density control cabinets. Utilizing Original Engineering principles, this 92x92x32mm fan delivers exceptional static pressure and volumetric airflow to prevent thermal throttling in continuous-duty power electronics.

Equipped with a precision dual ball bearing system, the EFB0924SHF ensures an extended operational lifespan even in harsh industrial environments with elevated ambient temperatures. Its optimized blade geometry minimizes turbulence, providing a highly efficient cooling solution that maintains critical machine compatibility and reduces overall system downtime.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: EFB0924SHF
Frame Dimensions: 92mm x 92mm x 32mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Input Current: 0.38A
Power Consumption: 9.12W
Rated Speed: 3800 RPM ± 10%
Maximum Airflow: 85.0 CFM (2.40 m³/min)
Acoustic Noise: 48.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Housing Material: UL 94V-0 Flame Retardant Plastic
Operating Temperature: -10°C to +70°C
Weight: 120g

Industrial Application:
This cooling fan is strictly designed for integration into high-load inverter systems and servo drives where rapid heat dissipation is mandatory. By maintaining optimal operating temperatures for sensitive semiconductor components, it directly extends the lifecycle value of the host equipment. We guarantee competitive Lead Time and strict Technical Compatibility for seamless drop-in replacement during critical maintenance cycles.

New EFB0924SHF 9232/24V Delta fan

New EFB0924SHF 9232/24V Delta fan

New EFB0924SHF 9232/24V Delta fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
