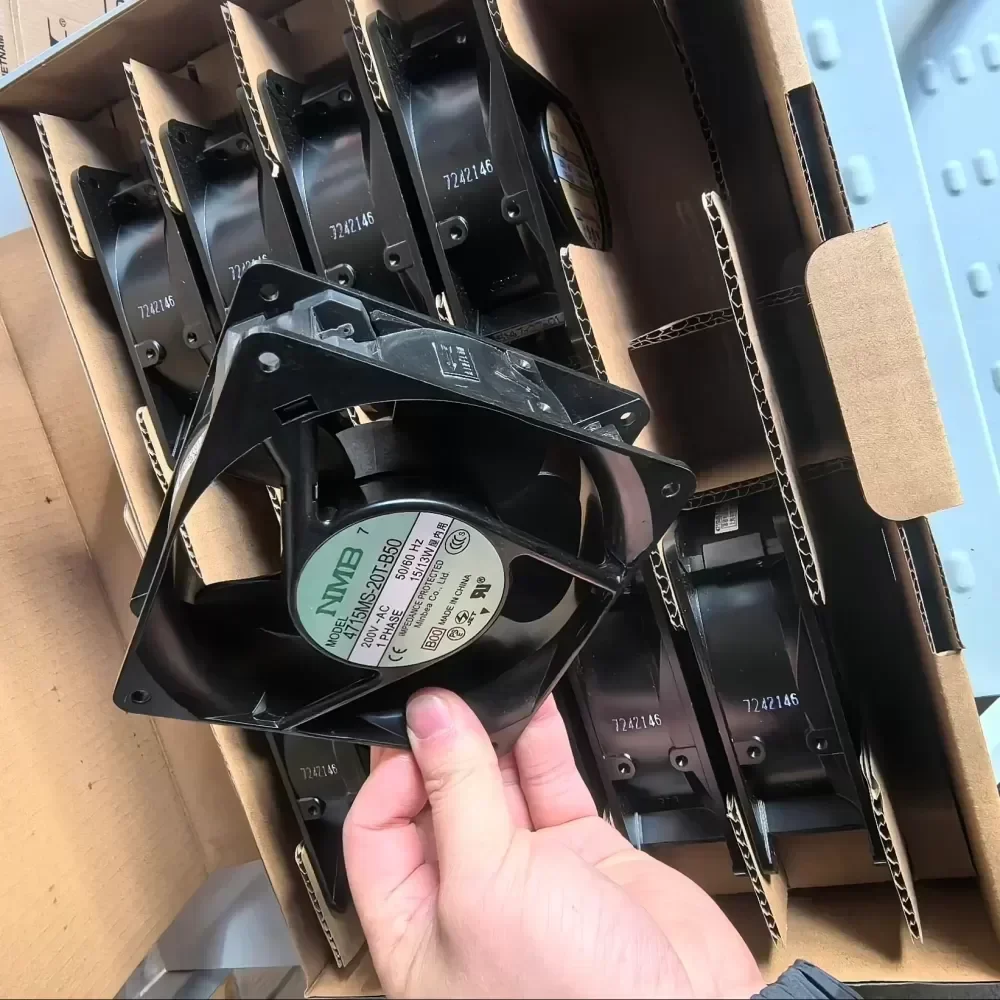

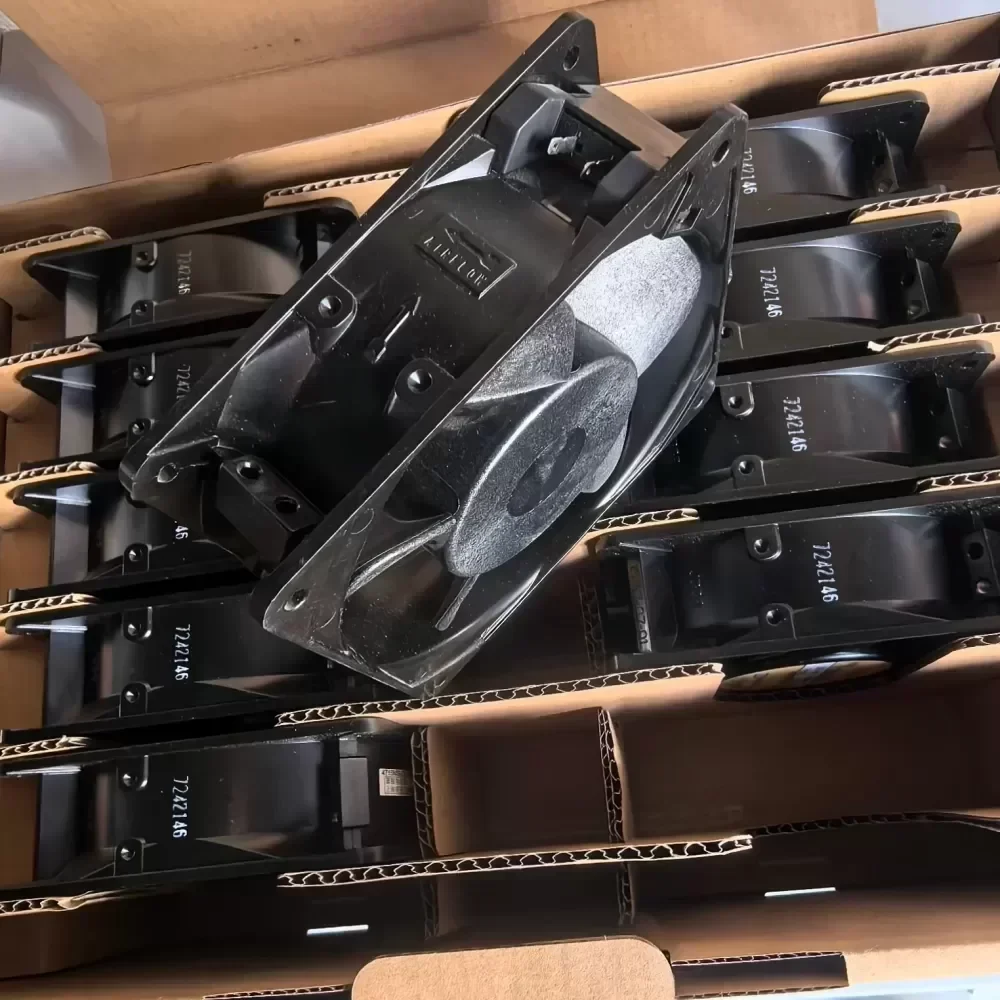

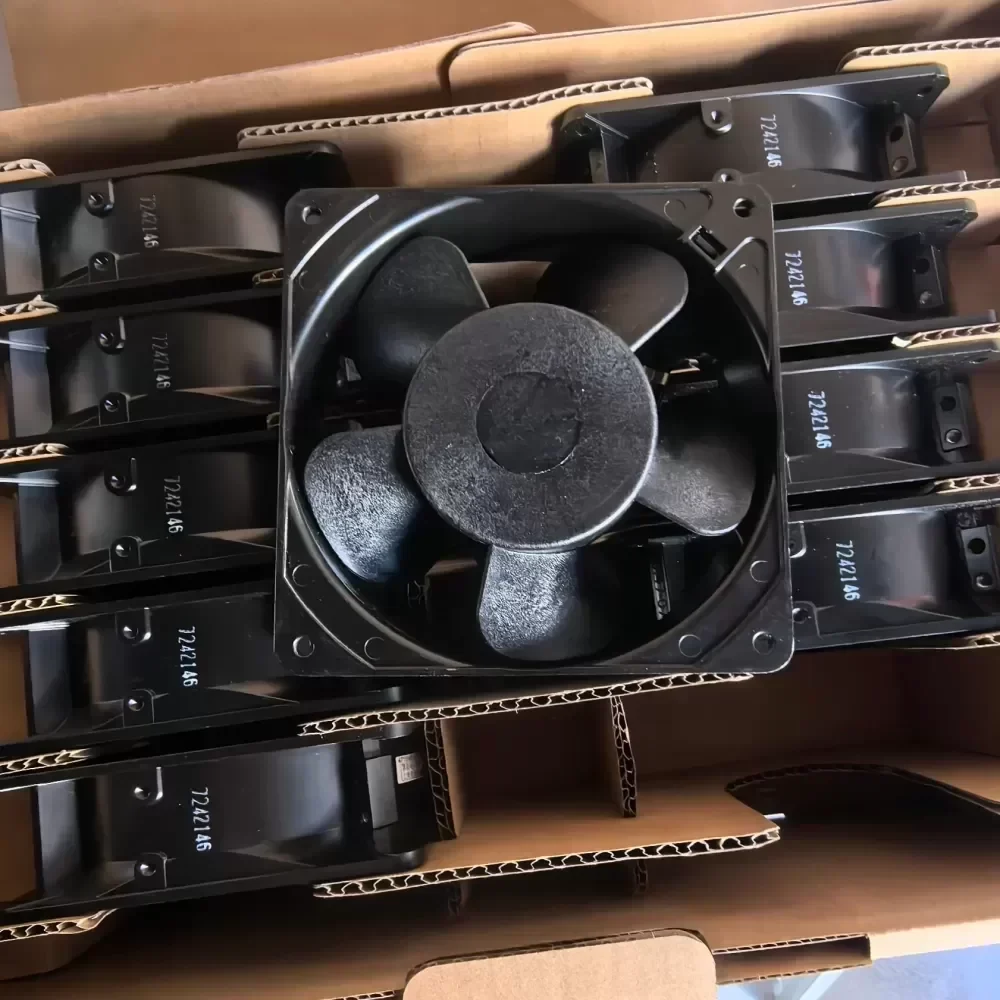

New NMB fan 4715MS-20T-B50 200V
New NMB fan 4715MS-20T-B50 200V
New NMB fan 4715MS-20T-B50 200V
New NMB fan 4715MS-20T-B50 200V

New NMB fan 4715MS-20T-B50 200V

$9.71

SKU: 878237869356 Brand:

Description

The NMB 4715MS-20T-B50 is an industrial-grade AC axial fan engineered by MinebeaMitsumi for high-reliability thermal management. Designed for continuous operation in demanding environments, this 200V AC single-phase cooling fan delivers exceptional aerodynamic efficiency and structural durability. Utilizing Original Engineering principles, it ensures optimal Technical Compatibility with standard control cabinets, server chassis, and automated machinery enclosures.

Technical Specifications
Manufacturer: NMB Technologies
Model Number: 4715MS-20T-B50
Frame Dimensions: 119mm x 119mm x 38mm
Operating Voltage: 200V AC
Phase: Single Phase
Frequency: 50/60 Hz
Power Consumption: 15W (50Hz) / 13W (60Hz)
Maximum Airflow: 2.50 m³/min (50Hz) / 2.90 m³/min (60Hz)
Acoustic Noise: 37 dB(A) (50Hz) / 41 dB(A) (60Hz)
Bearing System: Precision Dual Ball Bearing
Termination Style: Terminals
Housing Material: Die-Cast Aluminum
Impeller Material: UL94V-0 Plastic
Operating Temperature Range: -10°C to +70°C
Weight: 550g

Industrial Application
This high-performance axial fan is specifically deployed in industrial control panels, CNC machine tool cabinets, and telecommunications racks where localized heat dissipation is critical. The robust die-cast aluminum frame and precision ball bearing system prevent thermal throttling of sensitive variable frequency drives (VFDs) and PLCs, ensuring uninterrupted production cycles.

Procurement Information
Condition: Factory New
Lead Time: Available for immediate dispatch based on current inventory levels.
Quality Assurance: 100% functional integrity verified prior to shipment.

New NMB fan 4715MS-20T-B50 200V

New NMB fan 4715MS-20T-B50 200V

New NMB fan 4715MS-20T-B50 200V

New NMB fan 4715MS-20T-B50 200V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
