Description

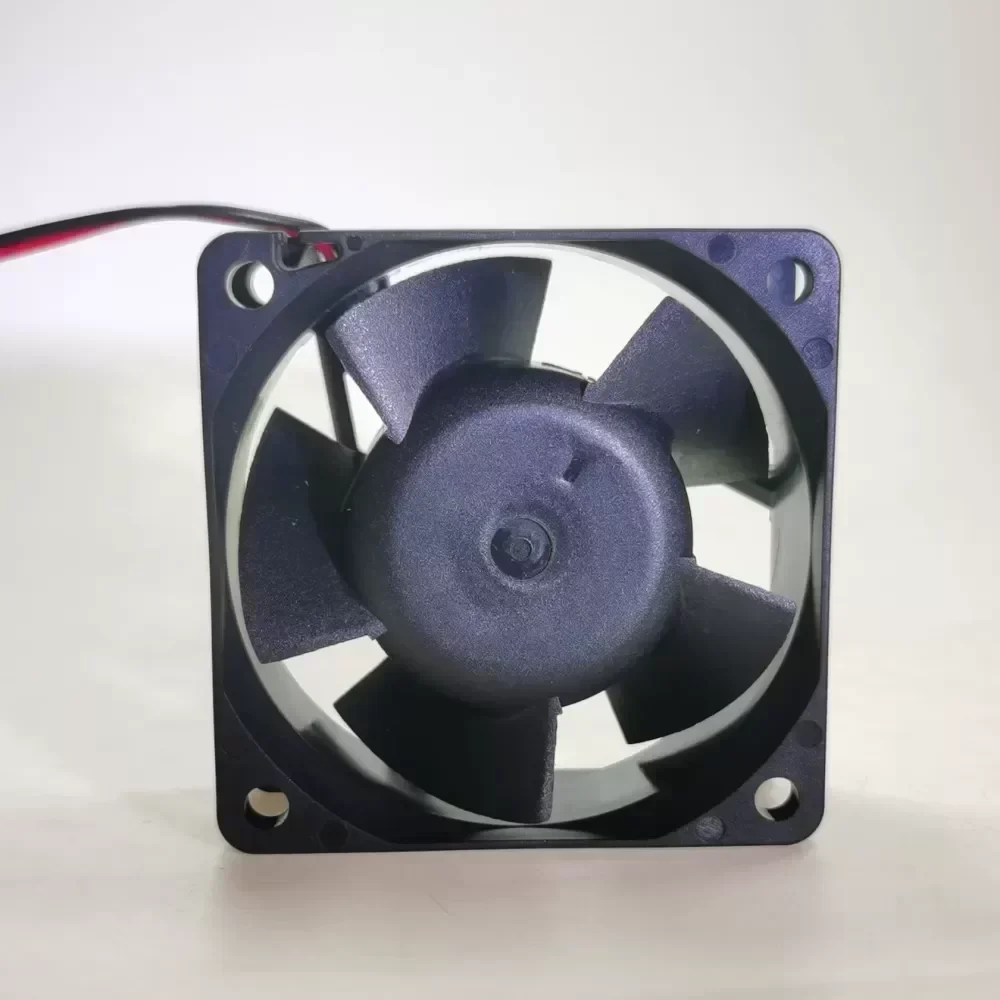

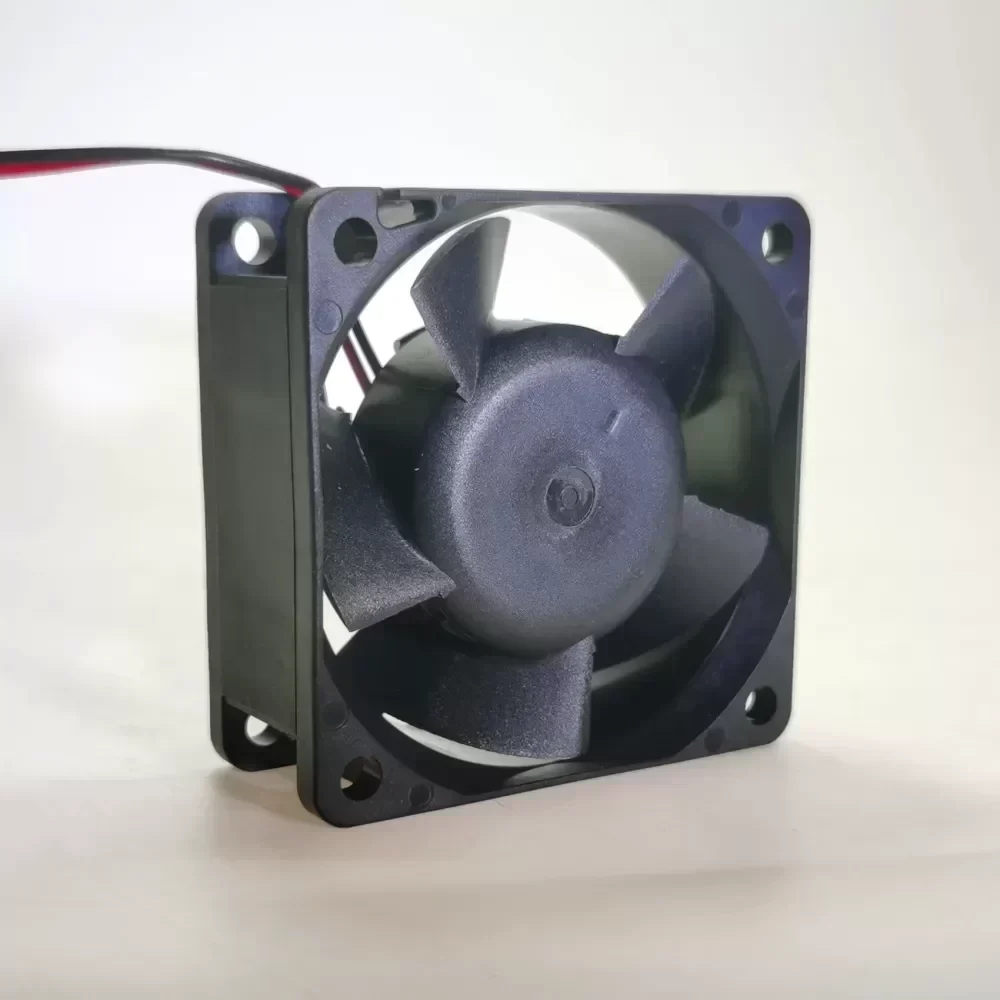

The SUNON PE60252BX-000C-A99 is a high-performance DC axial cooling fan engineered for demanding industrial thermal management. Utilizing Original Engineering from SUNON, this 60x60x25mm component features a precision dual ball bearing system designed to deliver continuous, high-static pressure airflow in restricted environments. It is specifically optimized for frequency converters, power supplies, and automated control cabinets requiring reliable heat dissipation.

Technical Specifications:
Brand: SUNON
Model: PE60252BX-000C-A99
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10.0 – 27.6V DC
Bearing Type: Precision Dual Ball Bearing
Speed Category: Super High Speed (X)
Rated Speed: 5200 ± 10% RPM
Airflow: 40.0 CFM
Static Pressure: 0.31 In-H2O
Acoustic Noise: 40.5 dB(A)
Rated Current: 0.16 A
Power Consumption: 3.84 W
Weight: 75.0 g
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours at 40°C
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Motor Protection: Auto Restart / Polarity Protection

Industrial Application:
This cooling fan is critical for variable frequency drives (VFDs) and high-density power conversion systems. In these applications, thermal throttling can cause catastrophic system failure. The PE60252BX-000C-A99 solves this by maintaining aggressive airflow over heat sinks, preventing thermal accumulation in confined control panels. Its dual ball bearing architecture ensures stability under continuous 24/7 operation, even in high-vibration industrial environments.

Lifecycle and Integration:
Ensuring strict Technical Compatibility with standard 60mm mounting profiles, this fan serves as a direct drop-in replacement for legacy cooling units in industrial machinery. We maintain an optimized Lead Time to minimize facility downtime, providing authentic, factory-tested components that guarantee long-term operational integrity and compliance with global safety standards.

Newly built SUNON PE60252Bx-000C-A99

Newly built SUNON PE60252Bx-000C-A99

Newly built SUNON PE60252Bx-000C-A99

Newly built SUNON PE60252Bx-000C-A99

Newly built SUNON PE60252Bx-000C-A99

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
