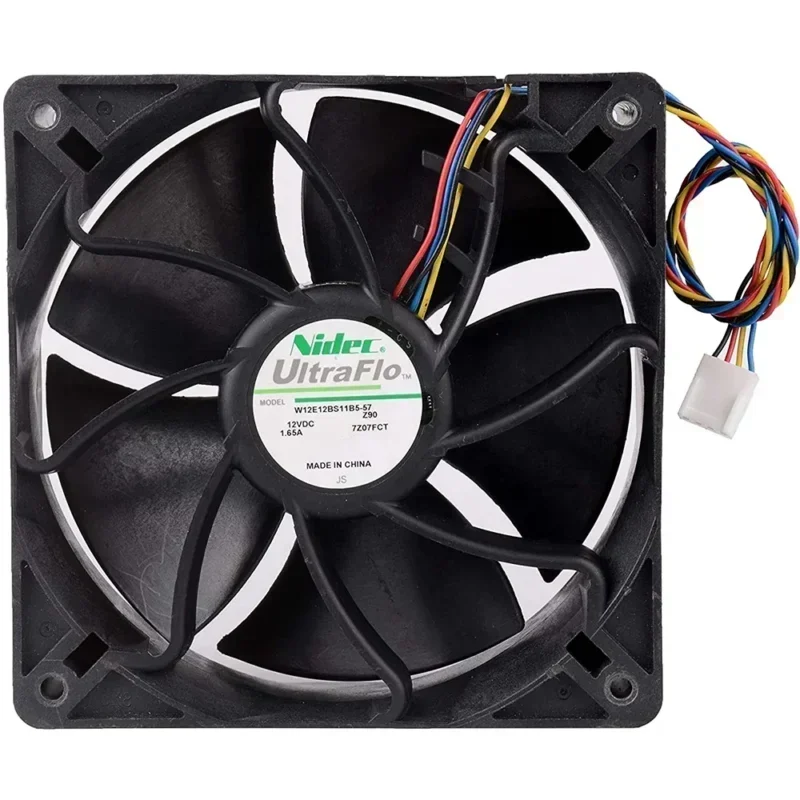

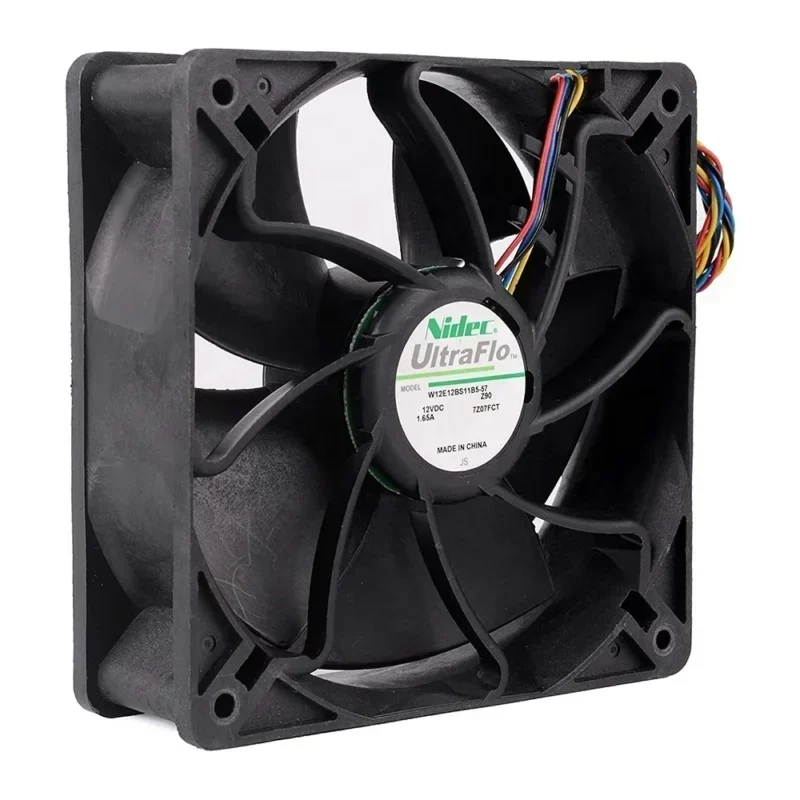

NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan
NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan
NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan

NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan

$8.10

SKU: 1600273093053 Brand:

Description

The Nidec W12E12BS11B5-57 is a high-performance industrial axial cooling fan engineered for extreme thermal management in high-density electronic enclosures. Designed to deliver a massive air volume of 267 CFM, this 12038 form factor fan is optimized for continuous operation in demanding server cabinets and industrial chassis. Utilizing premium dual ball bearings and an optimized impeller geometry, it ensures rapid heat dissipation for mission-critical hardware.

Technical Specifications:
Manufacturer: Nidec
Model Number: W12E12BS11B5-57
Fan Type: DC Axial Cooling Fan
Dimensions: 120 x 120 x 38 mm (12038)
Operating Voltage: 12V DC (± 10%)
Current Rating: 1.65 A
Power Consumption: 19.8 W
Maximum Airflow: 267 CFM
Bearing System: Dual Ball Bearing
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Mounting Hole Diameter: Ø 4.3 mm
Weight: 330 g

Industrial Application:
This high-capacity cooling fan is specifically deployed in telecom base stations, enterprise server racks, and industrial automation control cabinets where localized heat buildup threatens system stability. The exceptional 267 CFM airflow provides the necessary static pressure to force ambient air through densely packed heat sinks and electronic arrays, preventing thermal throttling and extending component lifespan.

Procurement and Lifecycle:
This component represents Original Engineering from Nidec, ensuring exact Technical Compatibility with existing 12V DC chassis cooling infrastructure. We maintain an optimized supply chain to minimize Lead Time for critical replacement parts and facility upgrades.

Key Attributes
Voltage: 12V
Electric current type: DC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM
After-sales service provided: Online support
Place of origin: Japan
Brand name: NIDEC
Model number: W12E12BS11B5-57
Part Type: Cooling Fan
Model: W12E12BS11B5-57
Size: 120*120*38mm
Brand: Nidec
Voltage: 12V
Current: 1.65A
Bearin: Ball Bearing
Speed: 6500RPM
Noise: 70.5DBA
Wires: 4

Packaging and Delivery
Port of dispatch: Tianjin port
Selling Units: Single item

NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan

NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan

NIDEC W12E12BS11B5-57 12V DC 1.65A 120x120x38mm 12cm 12038 267CFM Chassis Large Air Volume Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
