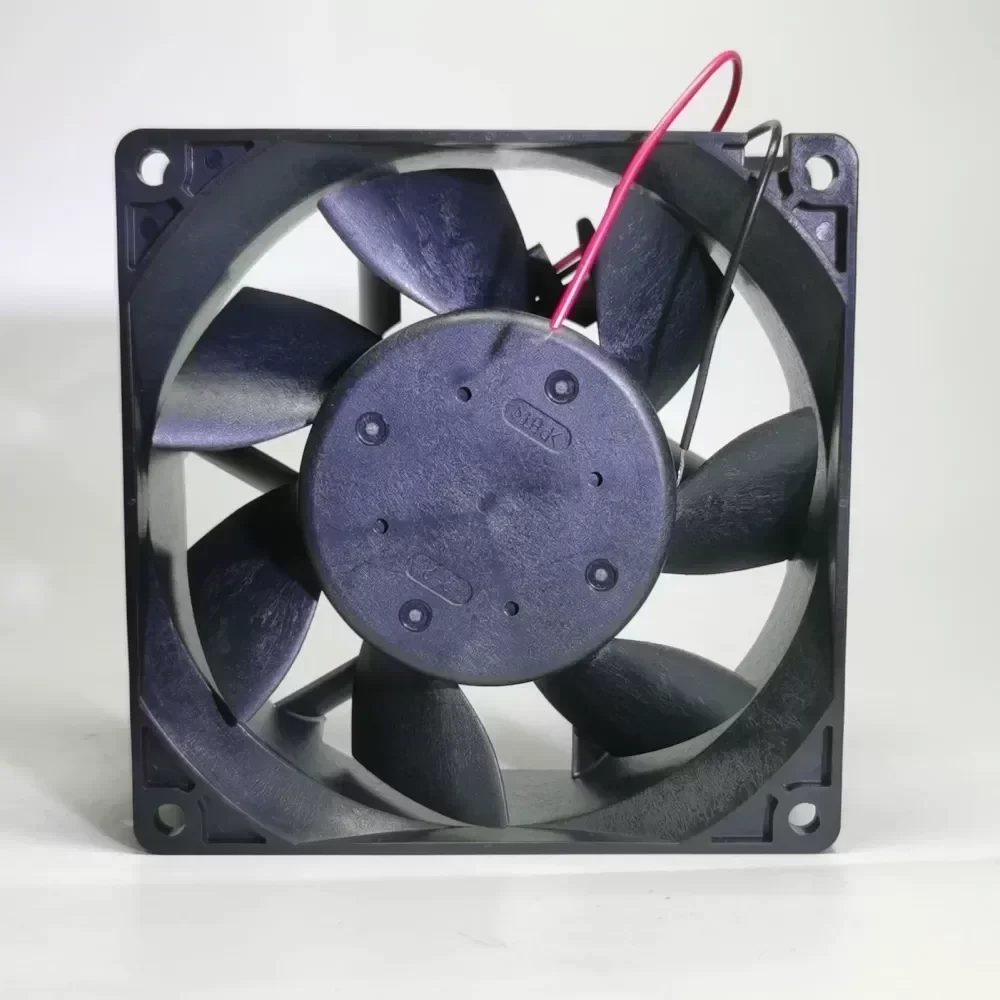

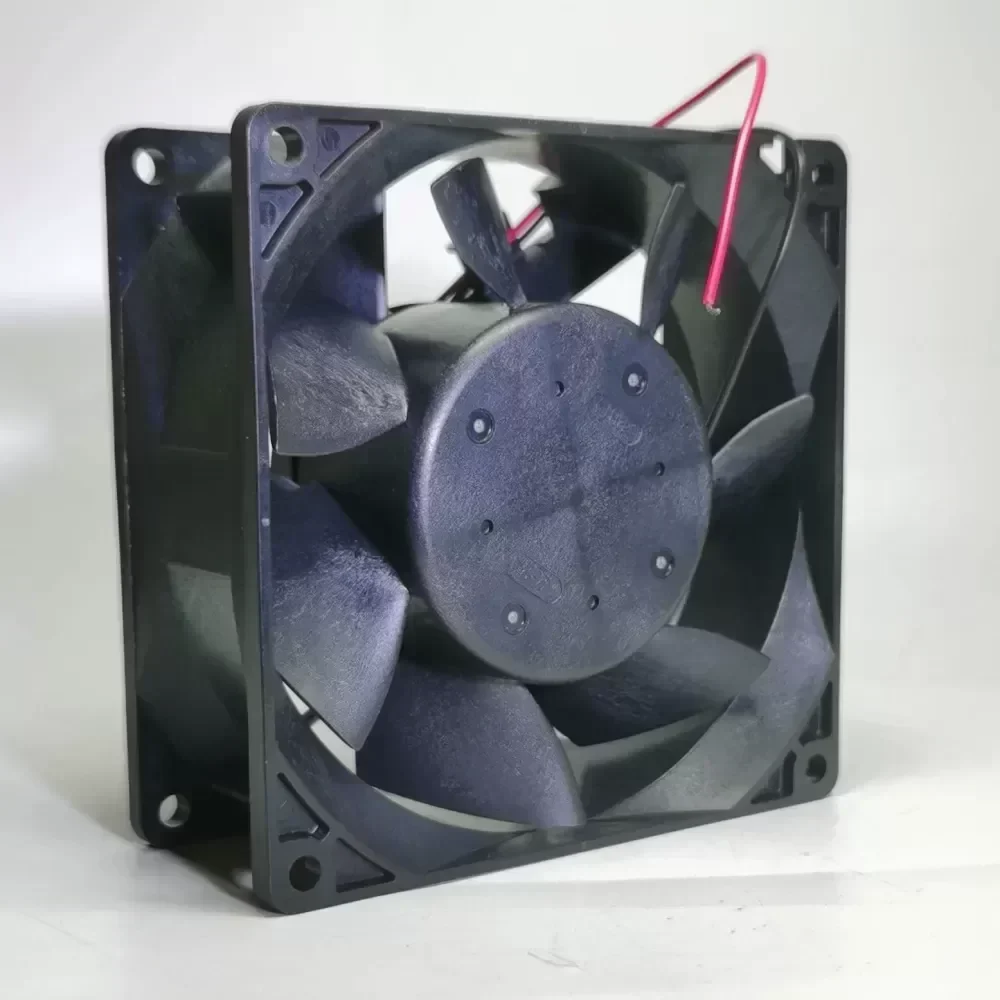

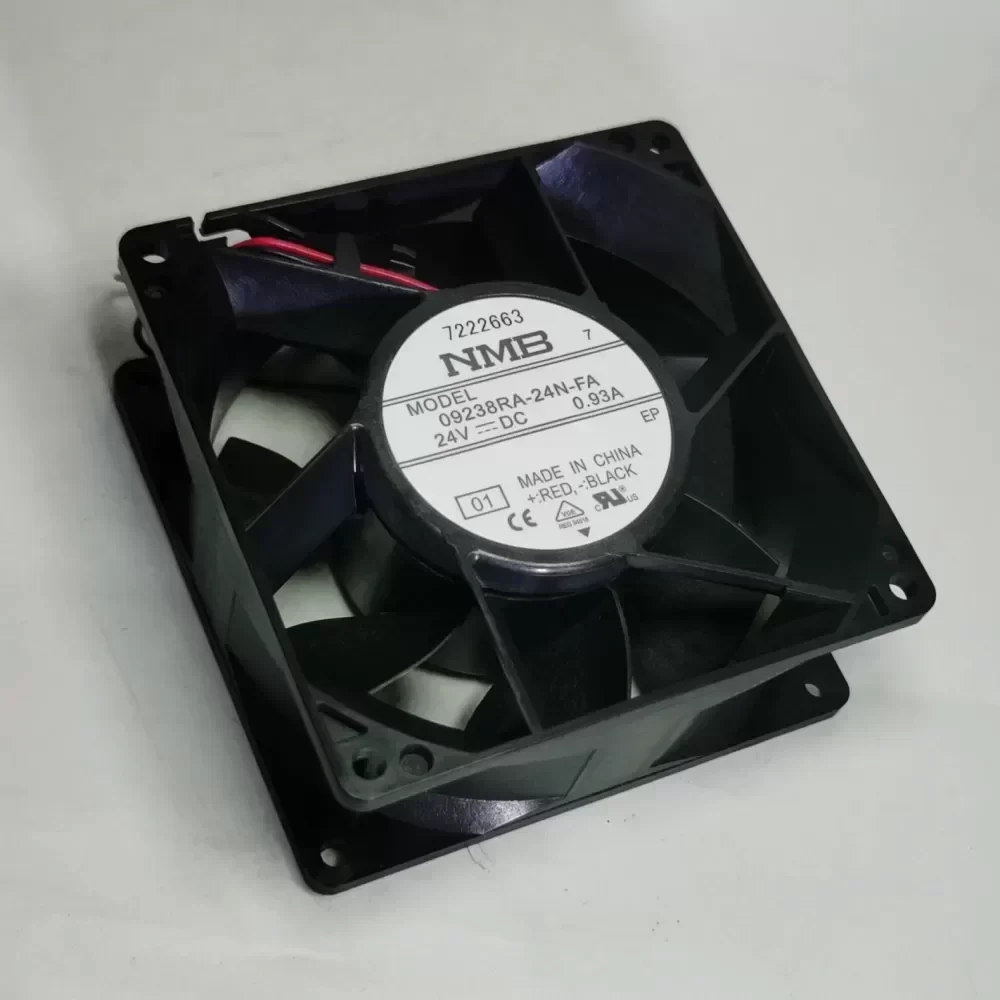

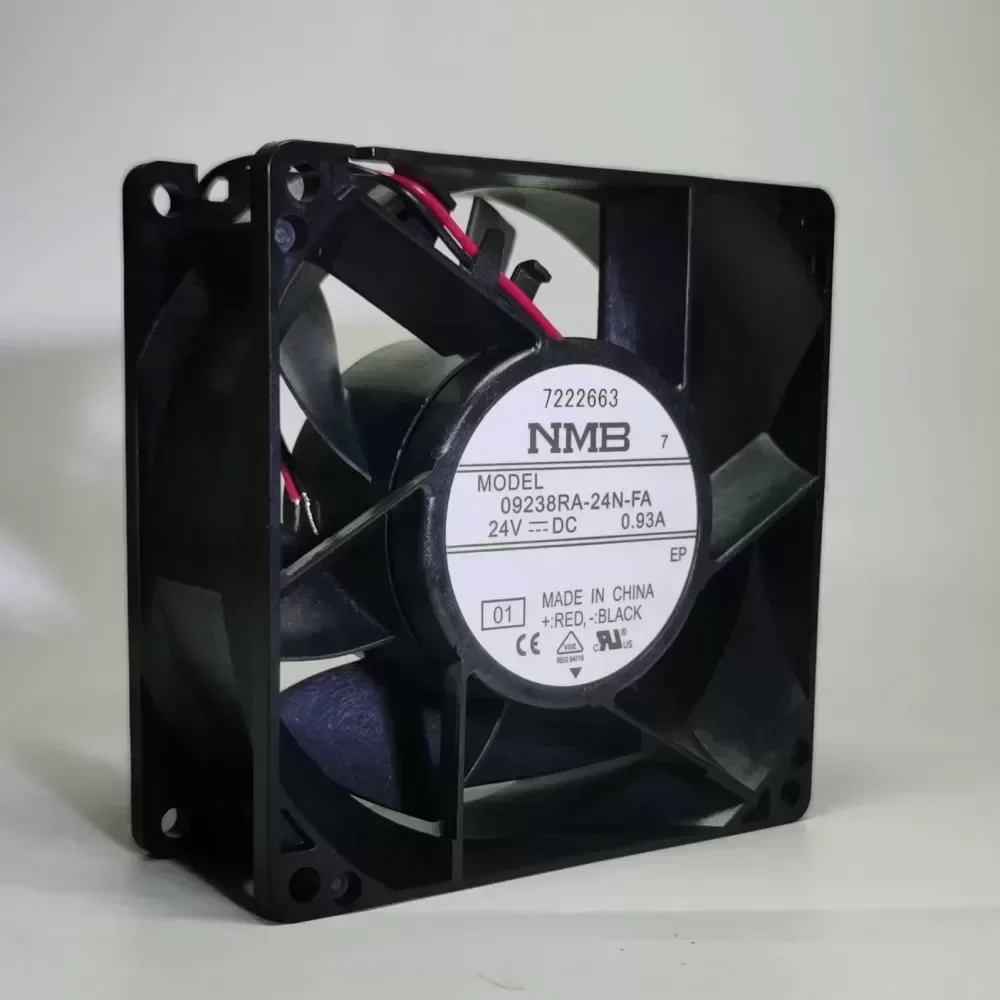

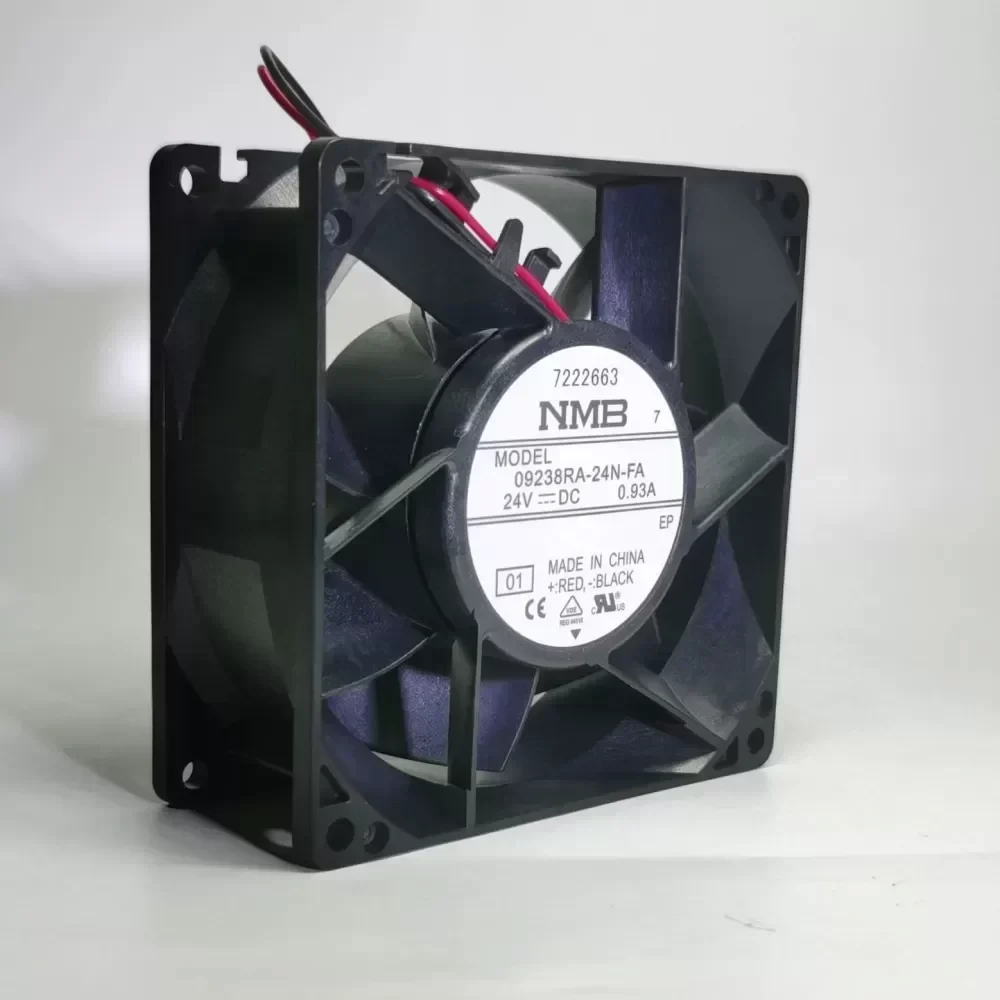

NMB 09238RA-24N-FA 9238/24V fan
NMB 09238RA-24N-FA 9238/24V fan
NMB 09238RA-24N-FA 9238/24V fan
NMB 09238RA-24N-FA 9238/24V fan
NMB 09238RA-24N-FA 9238/24V fan
NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

$11.43

SKU: 685425034167 Brand:

Description

The NMB 09238RA-24N-FA is a high-performance DC axial cooling fan engineered for demanding industrial environments. Manufactured by MinebeaMitsumi, this 92mm x 92mm x 38mm fan delivers exceptional thermal management for high-density electronic enclosures. Operating at 24V DC with a robust current draw of 0.93A, it provides the aggressive airflow necessary for cooling critical components such as industrial inverters, variable frequency drives (VFDs), and telecommunication chassis. The integration of a high-precision dual ball bearing system ensures extended operational longevity and reliable performance under continuous duty cycles.

Technical Specifications

Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Number: 09238RA-24N-FA
Fan Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 38mm (Ø 92mm)
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.93A
Input Power: 22.32W
Bearing System: Dual Ball Bearing
Estimated Speed: 5500 RPM ± 10%
Max Airflow: Approx. 120 CFM (3.40 m³/min)
Acoustic Noise: 58.0 dB(A)
Frame Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 190g
Termination: Wire Leads

Application & Integration

This cooling fan is specifically designed for integration into industrial inverter systems and high-density server chassis where thermal throttling is a critical concern. The 09238RA-24N-FA resolves heat dissipation bottlenecks in compact spaces, ensuring that variable frequency drives and power supplies maintain optimal operating temperatures. With guaranteed Original Engineering, this component ensures seamless Technical Compatibility with existing NMB chassis configurations. We maintain optimized inventory logistics to ensure minimal Lead Time for critical replacement parts and OEM production runs, safeguarding your facility against costly thermal-induced downtime.

NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

NMB 09238RA-24N-FA 9238/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
