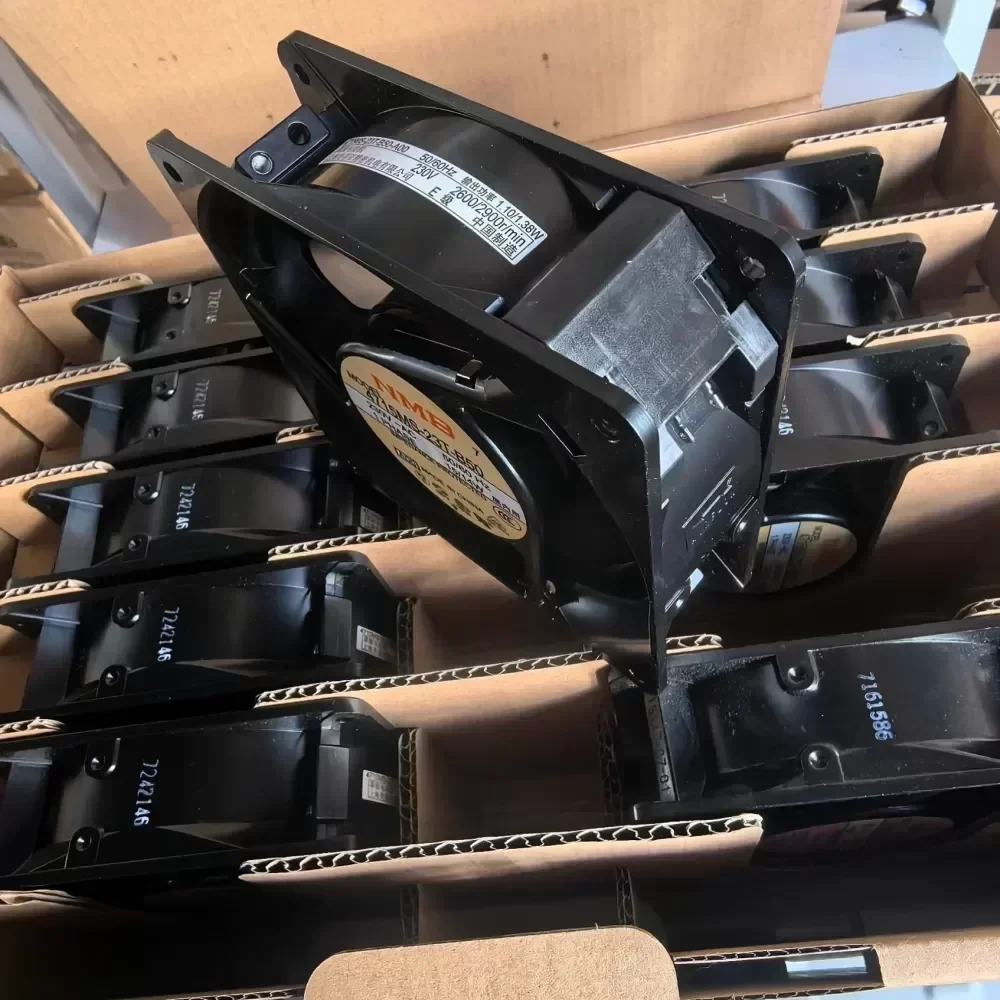

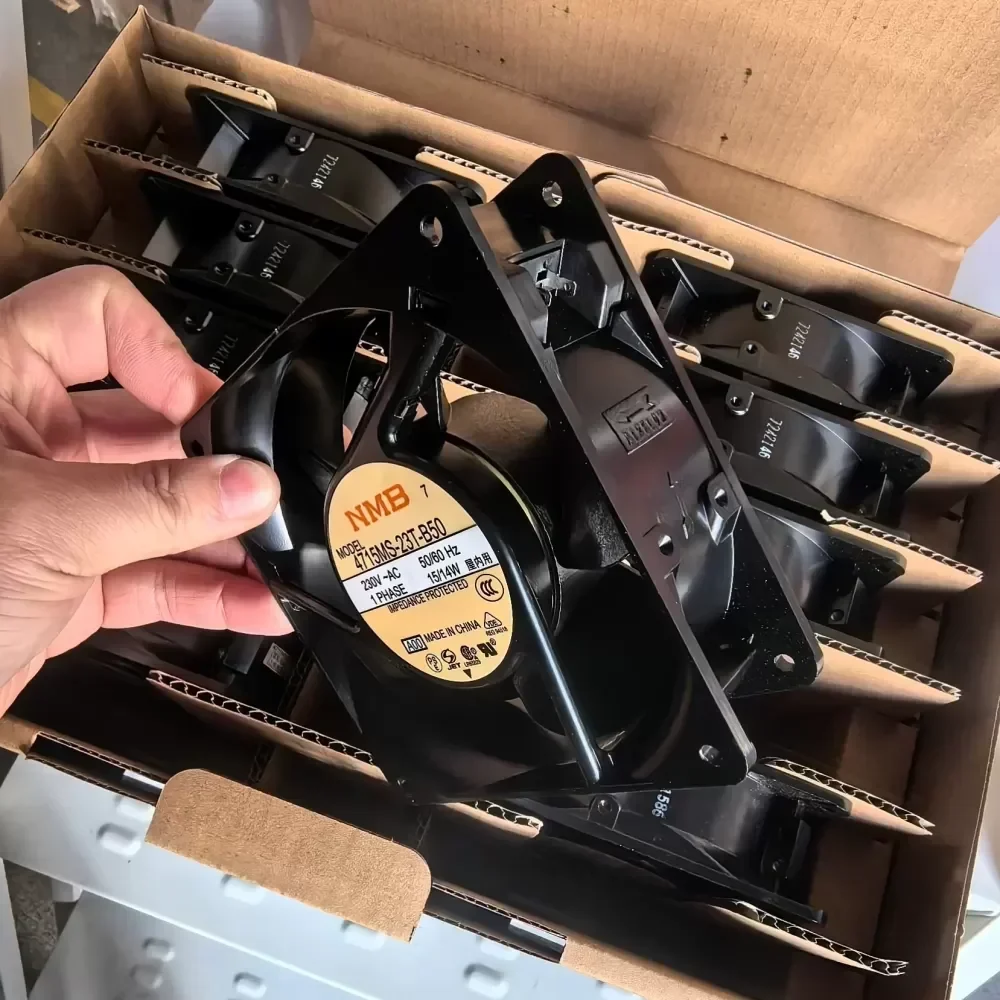

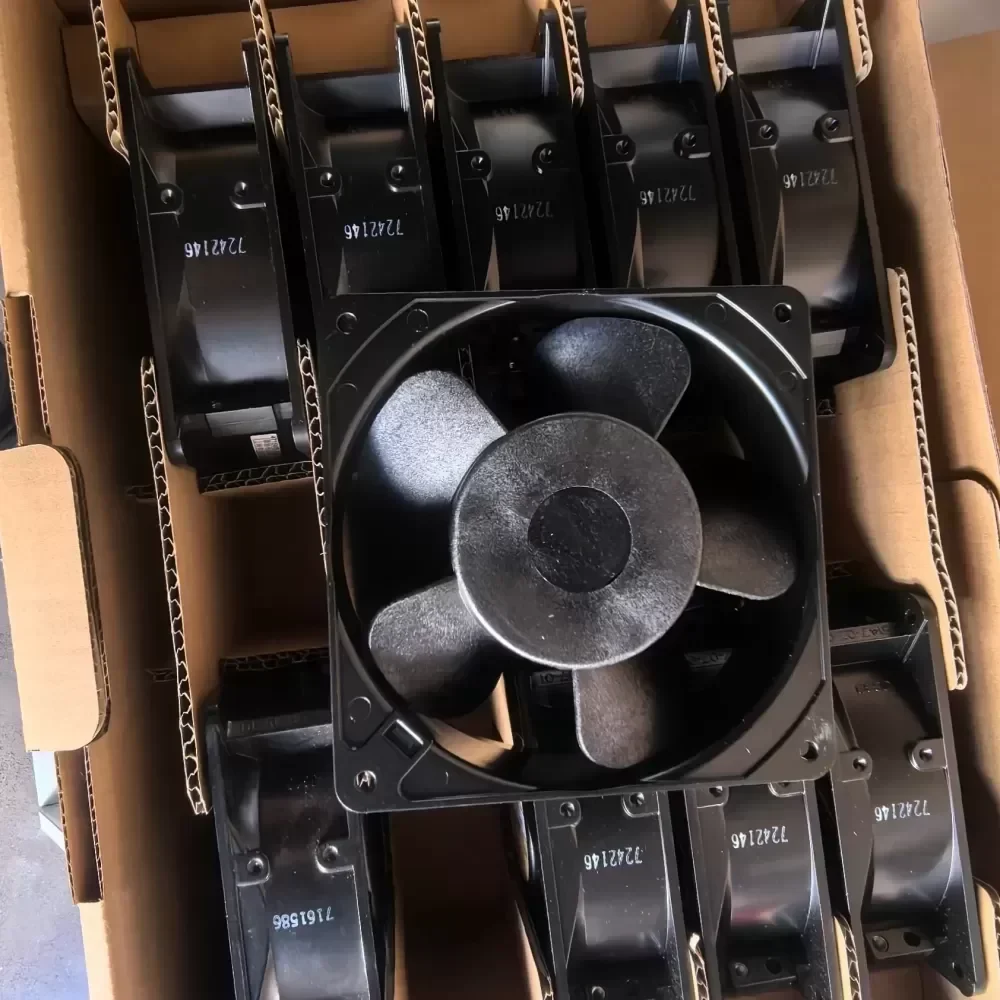

NMB 4715MS-23T-B50 fan
NMB 4715MS-23T-B50 fan
NMB 4715MS-23T-B50 fan
NMB 4715MS-23T-B50 fan

NMB 4715MS-23T-B50 fan

$9.71

SKU: 877656359548 Brand:

Description

The NMB 4715MS-23T-B50 is engineered for high-duty cycle environments requiring consistent thermal management. This model is a critical component for CNC machinery cabinets, server rack enclosures, and industrial power supply cooling. Its dual ball bearing architecture ensures Technical Compatibility with vertical or horizontal mounting orientations without compromising the 50,000-hour MTBF.

NMB-MAT INDUSTRIAL THERMAL SOLUTIONS
Model: 4715MS-23T-B50
Manufacturer: NMB Technologies (MinebeaMitsumi Group)
Product Category: AC Axial Cooling Fan

TECHNICAL SPECIFICATIONS
Frame Size: 119mm x 119mm x 38mm (4.7in x 1.5in)
Bearing Type: Dual Precision Stainless Steel Ball Bearings
Rated Voltage: 230V AC
Voltage Range: 180V – 250V AC
Frequency: 50/60 Hz
Input Power: 15.0W / 14.0W
Rated Current: 0.12A / 0.10A
Rotational Speed: 2600 RPM (50Hz) / 2900 RPM (60Hz)
Maximum Airflow: 88.2 CFM (2.50 m³/min) / 102.0 CFM (2.90 m³/min)
Static Pressure: 63.7 Pa / 84.3 Pa
Noise Level: 37 dB(A) / 41 dB(A)
Termination: Faston #110 Terminals (2-Terminal Configuration)
Motor Structure: Shaded Pole Induction Motor
Insulation Resistance: 100M Ω or over with a DC500V Megger
Dielectric Withstand Voltage: AC 1800V 3s

MATERIAL AND ENVIRONMENTAL RATINGS
Casing Material: Aluminum Die-Cast (Black Coating)
Impeller Material: Polycarbonate (Glass Fiber Reinforced, UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life (L10): 50,000 Hours at 25°C
Weight: 550g
Certifications: UL, CSA, VDE, CE, RoHS Compliant

PROCUREMENT DATA
Condition: Original Engineering Grade – New Factory Stock
Lead Time: Immediate Dispatch Available
Quality Assurance: 100% Performance Tested to Manufacturer Specifications

NMB 4715MS-23T-B50 fan

NMB 4715MS-23T-B50 fan

NMB 4715MS-23T-B50 fan

NMB 4715MS-23T-B50 fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
