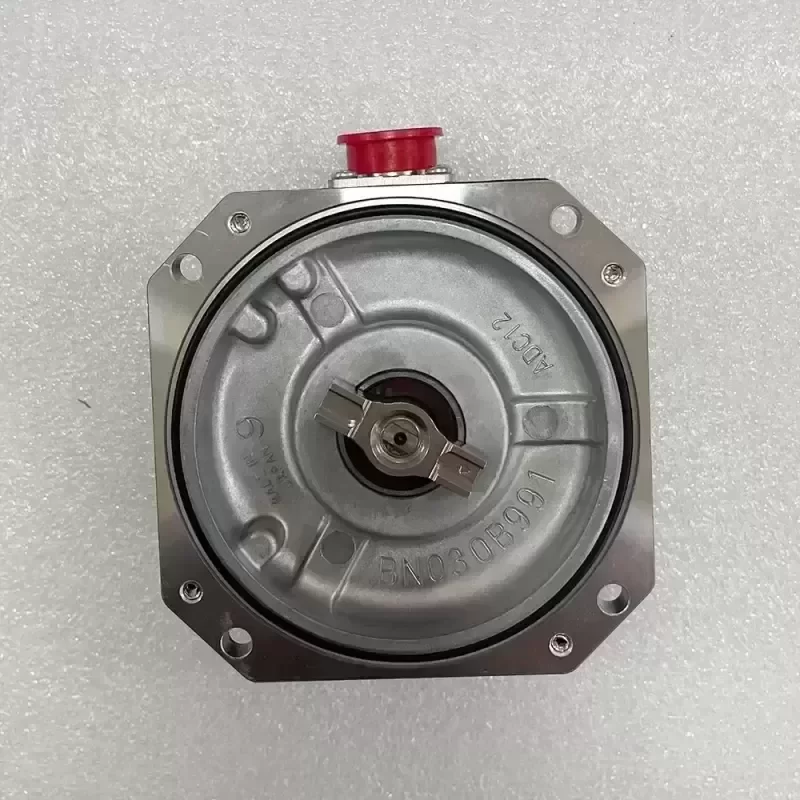

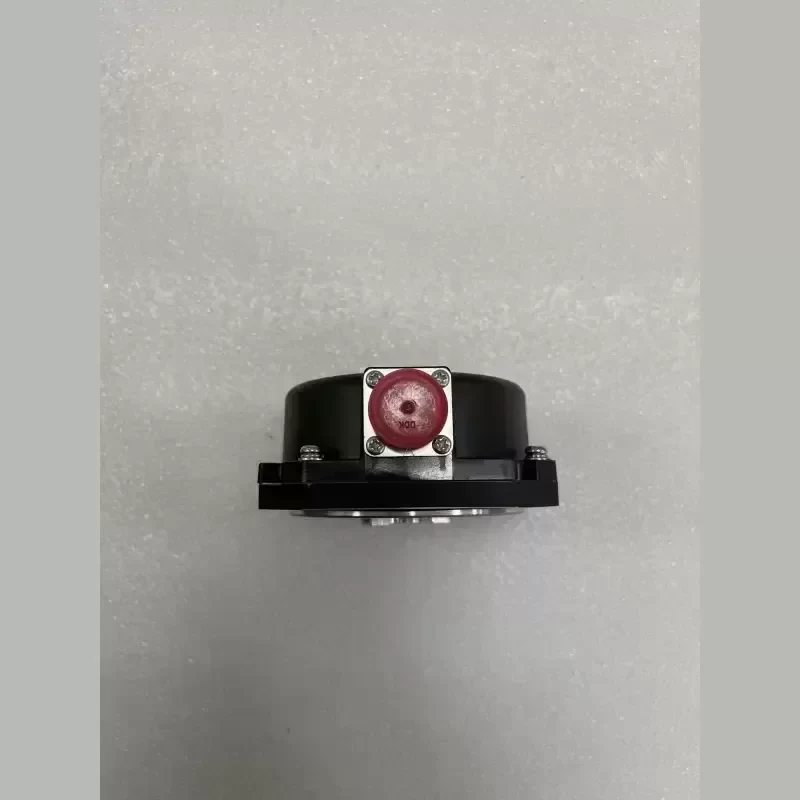

OSA24R-C10 Cnc Machine Encoder

Description

The Mitsubishi OSA24R-C10 is a high-precision absolute rotary encoder engineered specifically for advanced CNC machine tool applications and servo motor feedback systems. Designed to deliver uncompromising accuracy in demanding industrial environments, this component ensures optimal position and velocity control for multi-axis machining centers.

Technical Specifications:
Manufacturer: Mitsubishi Electric
Model Number: OSA24R-C10
Component Type: Absolute Rotary Encoder
Signal Output: High-speed serial data transmission
Supply Voltage: 5V DC ±5%
Current Consumption: Max 150 mA
Operating Temperature: 0°C to +85°C
Storage Temperature: -20°C to +85°C
Protection Class: IP67
Vibration Resistance: 98 m/s²
Shock Resistance: 980 m/s²
Weight: 0.45 kg
Connection Type: Dedicated serial communication cable (C10 designation)

Industrial Application:
The OSA24R-C10 is critical for high-speed milling and turning operations where exact spindle positioning and servo axis synchronization are required. Its robust optical and electronic architecture prevents signal degradation in environments with heavy electromagnetic interference, cutting fluids, and continuous vibration. By providing absolute position data upon power-up, it eliminates the need for zero-return operations, significantly reducing machine downtime and improving overall equipment effectiveness.

Lifecycle and Procurement:
This component guarantees Technical Compatibility with Mitsubishi MDS series servo drives and Meldas CNC controllers. Procuring this unit ensures adherence to Original Engineering standards, maintaining the precise tolerances required by the OEM. We provide a comprehensive warranty and an optimized Lead Time to ensure your production lines experience minimal disruption during critical maintenance or retrofitting cycles.

Key Attributes
Application: Automation, Cnc Machine, Electric Power Transmission, Electronic Equipment, Industrial Equipment, Power Station
Material: Plastic
Place of Origin: Japan
Model Number: OSA24R-C10
Brand Name: MITSUBISH
Product name: OSA24R-C10
Condition: Original new
Warranty: 12 Months
Stock: Available
Payment terms: All terms are accepted
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece

Packaging and Delivery
Selling Units: Single item
