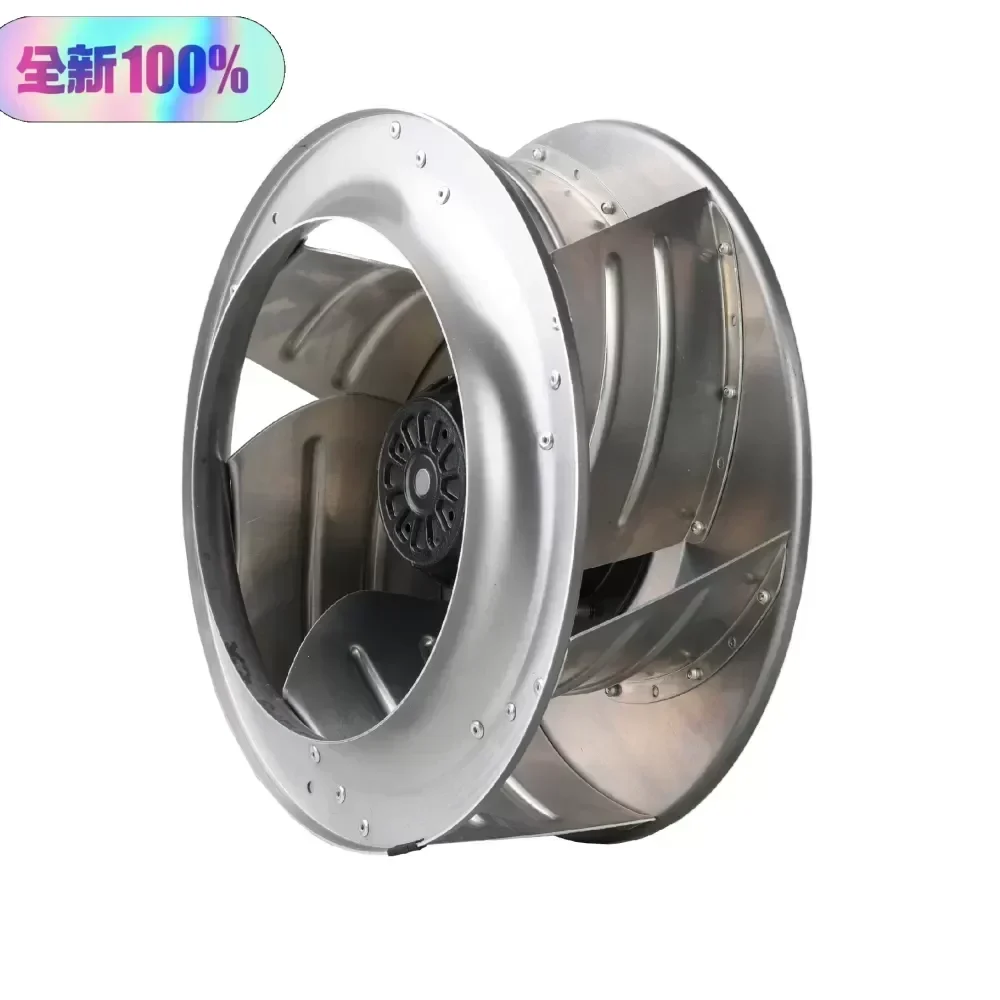

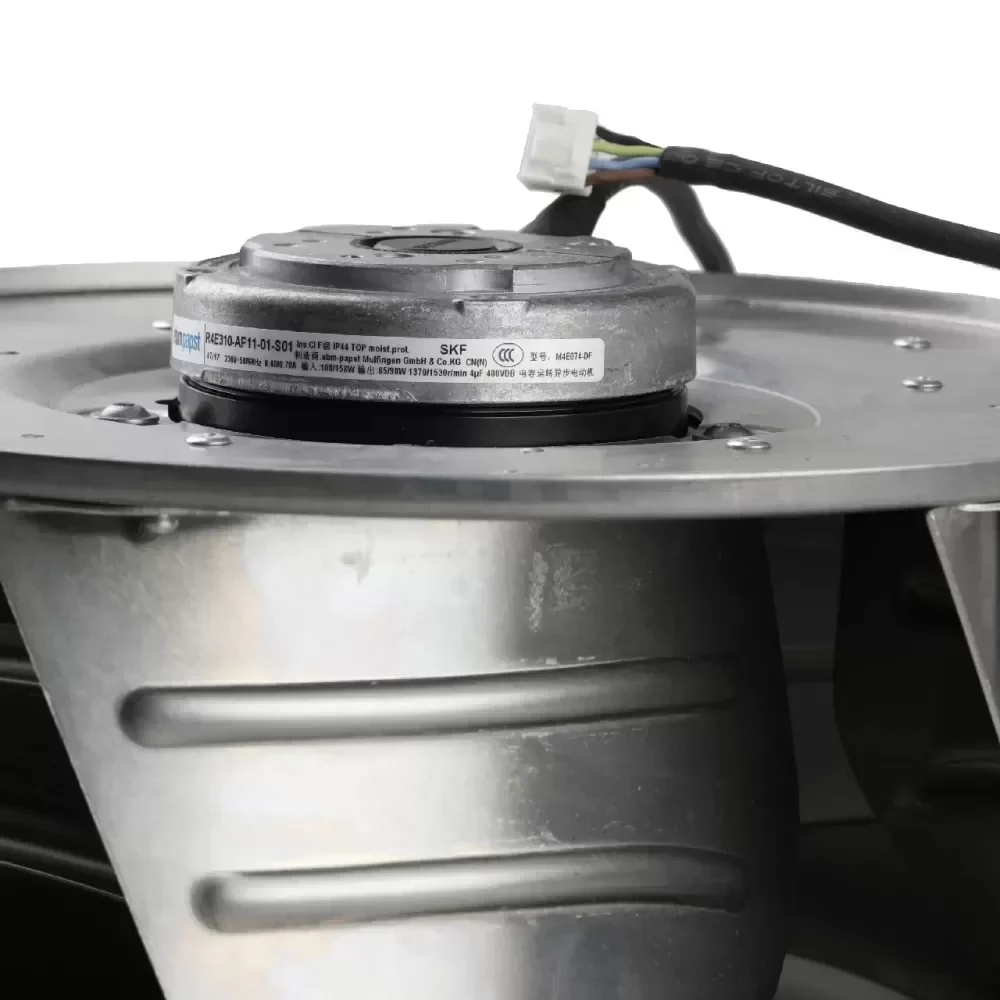

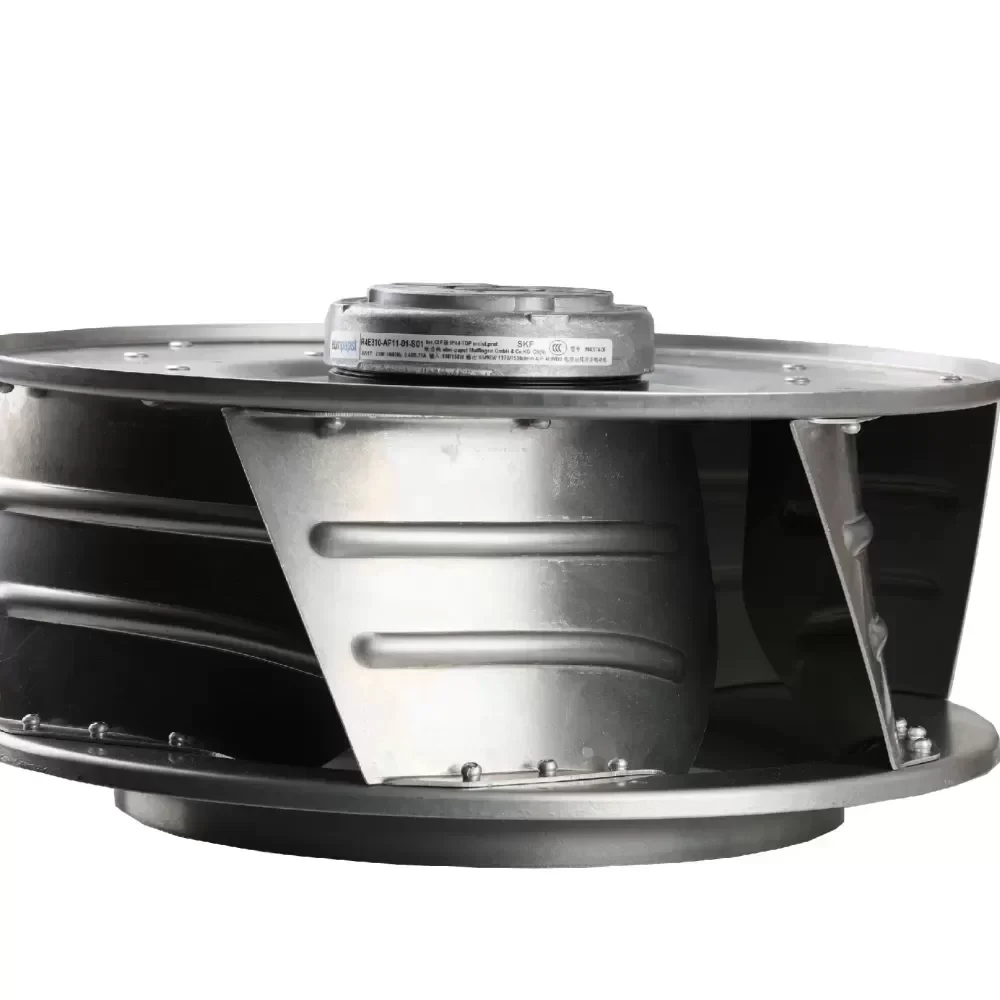

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan
R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan
R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan
R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

$78.57

SKU: 714035927820 Brand:

Description

Manufacturer: ebm-papst
Model: R4E310-AF11-01-S01
Product Category: AC Centrifugal Fan (RadiCal Series)
Origin: Germany
Condition: Original Engineering New

Technical Specifications:
Motor Type: M4E094-EA
Impeller Diameter: 310 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Speed: 1390 / 1530 RPM
Power Consumption: 145 / 215 W
Current Draw: 0.64 / 0.95 A
Air Flow: 2260 / 2490 m³/h
Capacitance: 6.0 µF / 400 VDB
Sound Pressure Level: 60 / 63 dB(A)
Minimum Ambient Temperature: -40 °C
Maximum Ambient Temperature: +65 °C
Protection Class: IP44
Insulation Class: F
Bearing Type: Maintenance-free ball bearings
Weight: 5.2 kg

Material and Construction:
Impeller Material: Plastic PA66, fiberglass-reinforced
Motor Housing: Die-cast aluminum
Surface Treatment: Rotor galvanized in black
Direction of Rotation: Clockwise, viewed toward rotor
Number of Blades: 7

Industrial Application and Technical Compatibility:
The R4E310-AF11-01-S01 is a high-performance backward-curved centrifugal turbine designed for critical ventilation and cooling in industrial air purifiers, HVAC systems, and server room heat exchangers. Its aerodynamic RadiCal impeller geometry minimizes turbulence and noise while maximizing pressure stability. The stainless steel and reinforced composite construction ensures long-term reliability in environments requiring continuous duty (S1) operation. This unit is a direct replacement part for high-end filtration systems where precise airflow control and low energy consumption are mandatory. Lead Time and global shipping availability are managed via specialized industrial logistics channels.

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

R4E310-AF11-01-S01 ebmpapst 310/220V centrifugal fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
