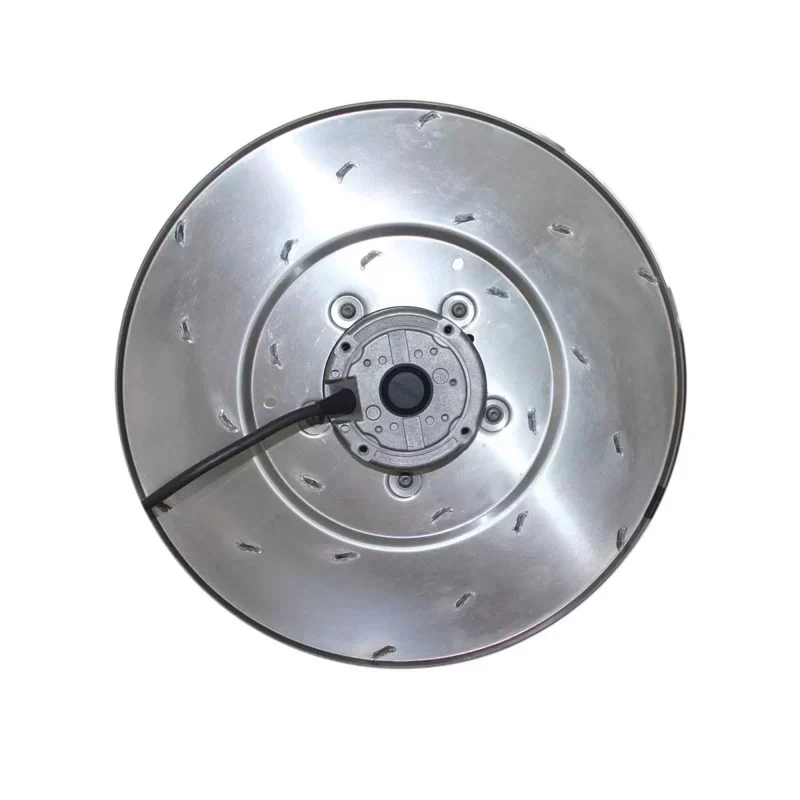

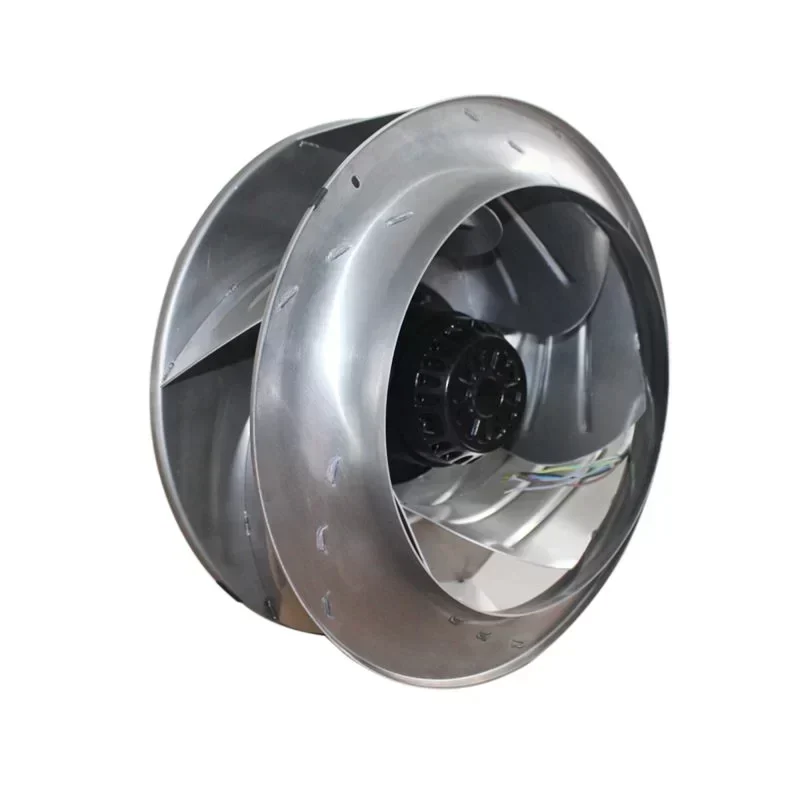

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan
R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan
R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan
R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

$102.10

SKU: 1600159643196 Brand:

Description

The ebm-papst R4E355-AK05-12 is a high-performance backward-curved centrifugal fan engineered for demanding industrial ventilation and air purification systems. Powered by the robust M4E074-EI single-phase AC motor, this Ø 355 mm motorized impeller delivers exceptional aerodynamic efficiency and acoustic performance. Designed specifically for Fan Filter Units (FFU) and cleanroom purification applications, it ensures optimal airflow distribution while maintaining low energy consumption. The integration of the motor and impeller into a single compact unit maximizes Technical Compatibility across various HVAC and industrial cooling platforms, reducing installation complexity and system footprint.

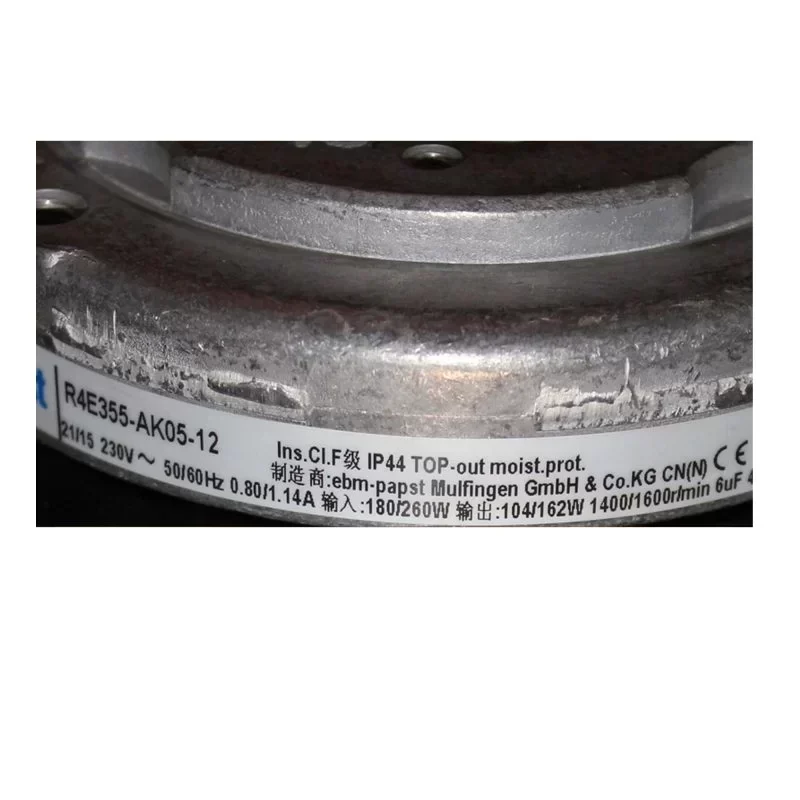

Technical Specifications:
Brand: ebm-papst
Model Number: R4E355-AK05-12
Motor Model: M4E074-EI
Fan Type: Centrifugal Fan (Backward Curved)
Impeller Diameter: Ø 355 mm
Nominal Voltage: 230 VAC (220V – 240V compatible)
Frequency: 50 / 60 Hz
Phase: 1~ (Single Phase)
Nominal Speed: 1400 RPM
Power Consumption: 250 W
Nominal Current: 1.1 A
Motor Capacitor: 8.0 µF / 400 VDB
Maximum Airflow: 2800 m³/h
Operating Temperature Range: -25°C to +60°C
Degree of Protection: IP44
Insulation Class: F
Bearing System: High-precision Ball Bearings
Impeller Material: Sheet Aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Weight: 6.5 kg

Application & Lifecycle Value:
This turbine centrifugal cooling fan is purpose-built for critical environments requiring continuous, reliable air circulation. Its primary application is within Fan Filter Units (FFUs) used in semiconductor manufacturing cleanrooms, pharmaceutical laboratories, and industrial air purification systems. The backward-curved blade design prevents motor overloading and provides stable pressure generation even against high system resistance from HEPA filters. By utilizing Original Engineering standards, the R4E355-AK05-12 guarantees extended operational longevity and minimal maintenance requirements. With optimized Lead Time for in-stock availability, facility managers can rapidly deploy this component to prevent costly downtime in mission-critical purification infrastructure.

Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade Material: Aluminum
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R4E355-AK05-12
Place of origin: China

Packaging and Delivery
Selling Units: Single item
Single package size: 48X48X30 cm
Single gross weight: 5.200 kg

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

R4E355-AK05-12 M4E074-EI 230v 220v 355mm Centrifugal Fan FFU Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
