Description

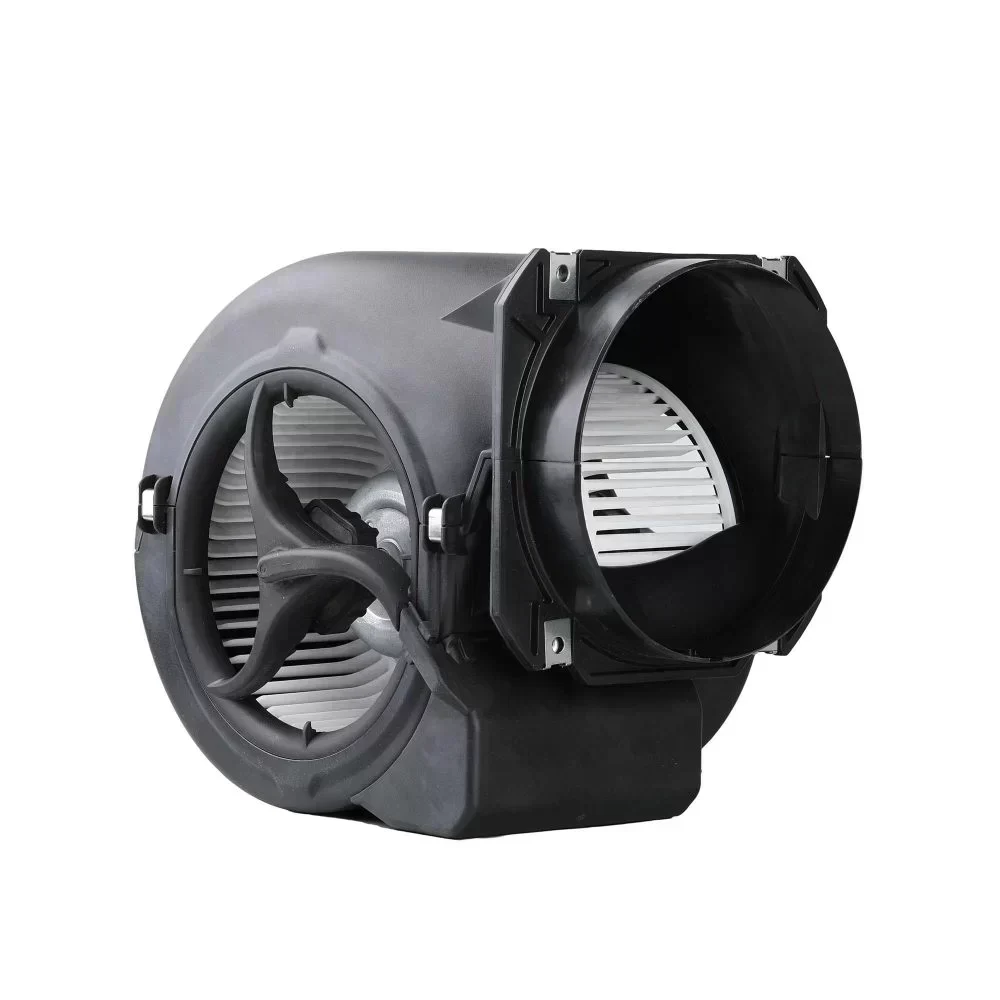

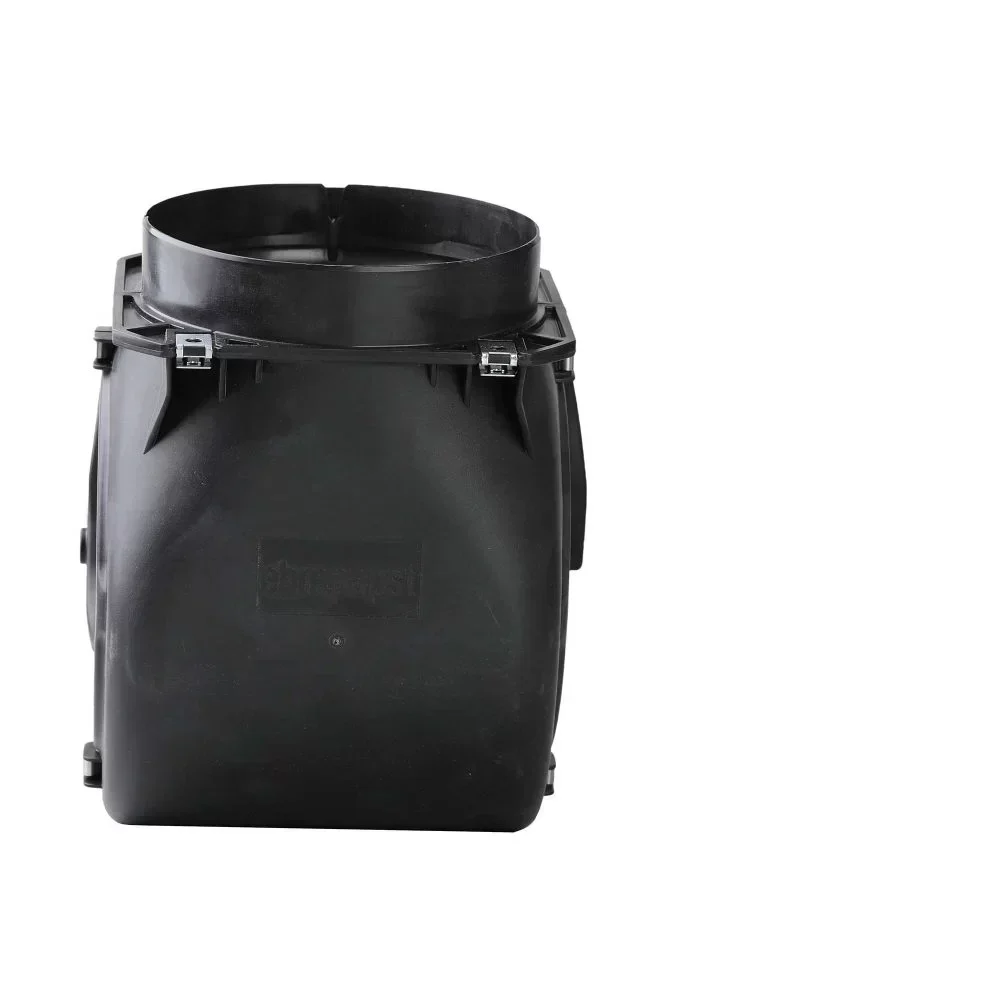

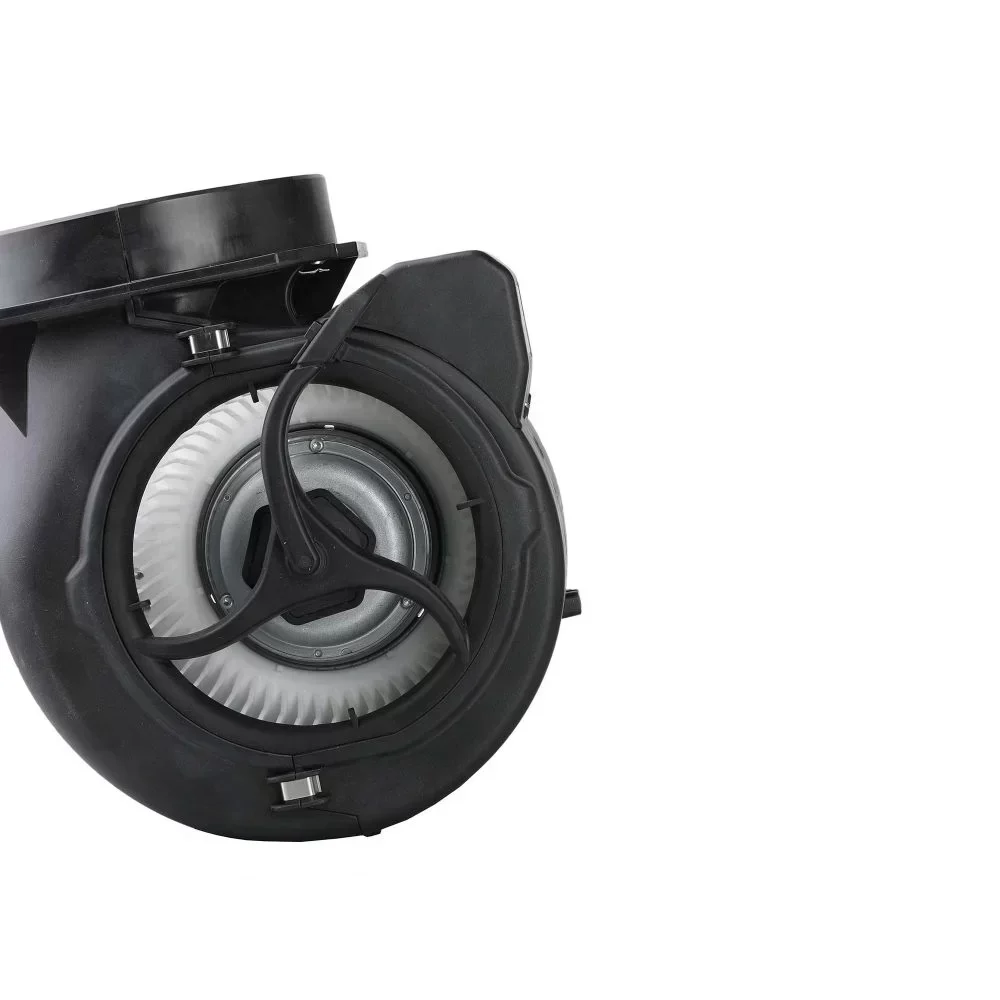

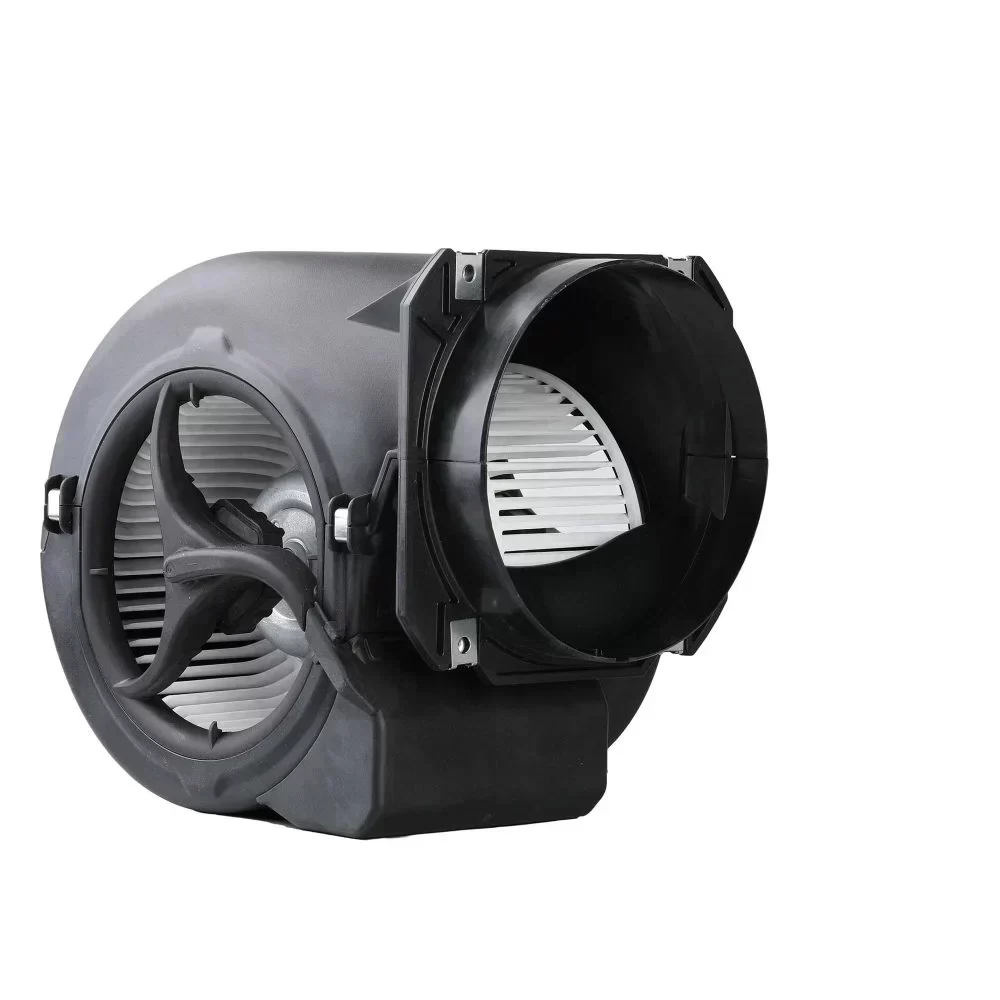

The ebmpapst RG190-RD45-03 is a high-performance centrifugal compact fan engineered for demanding industrial ventilation and thermal management applications. Utilizing advanced Electronically Commutated (EC) motor technology, this blower delivers exceptional aerodynamic efficiency, precise speed control, and continuous operation reliability. The integrated scroll housing maximizes static pressure generation, making it an optimal solution for high-impedance airflow systems.
TECHNICAL SPECIFICATIONS
Manufacturer: ebmpapst
Model Number: RG190-RD45-03
Fan Type: Centrifugal Blower with Scroll Housing
Motor Technology: EC (Electronically Commutated) Direct Current
Impeller Diameter: Ø 190 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 16 to 28 VDC
Input Frequency Compatibility: 50Hz / 60Hz (via integrated or external AC/DC conversion)
Max Airflow: 650 m³/h
Max Static Pressure: 450 Pa
Nominal Speed: 3200 RPM
Power Consumption: 55 W
Operating Temperature Range: -20 °C to +60 °C
Protection Class: IP54
Insulation Class: B
Bearing System: High-precision Ball Bearings
Impeller Material: Fiberglass-reinforced plastic (PA)
Housing Material: Galvanized sheet steel
Weight: 1.8 kg
Certifications: CE, UL, CSA, RoHS
INDUSTRIAL APPLICATION & INTEGRATION
The RG190-RD45-03 is specifically designed for integration into telecommunications base stations, industrial control cabinets, and precision HVAC systems. Its high static pressure capabilities allow it to push air through dense heat sinks, heavily populated PCB racks, and complex ducting where standard axial fans fail. The EC motor architecture enables seamless PWM speed control, allowing automated thermal management systems to dynamically adjust airflow based on real-time sensor data, thereby reducing acoustic noise and minimizing energy consumption.
PROCUREMENT & LIFECYCLE VALUE
Ensuring strict Technical Compatibility with existing ebm-papst infrastructure, this unit serves as a direct drop-in replacement for legacy cooling systems. Sourcing this component guarantees Original Engineering standards, maintaining the precise aerodynamic and electrical tolerances required by OEM equipment. We utilize optimized supply chain logistics to provide a minimized Lead Time, ensuring critical industrial processes experience zero unnecessary downtime.
Mounting: Free Standing
Voltage: 230V
Blade Material: Plastic
Electric Current Type: EC
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: RG190-RD45-03
Place of origin: Germany
Brand name: Ebmpapst
Application: General industry
Product name: Ebmpapst centrifugal EC fan
Size: 176 x 178 x 98 mm
Bearing Type: Ball bearing
Frequency: 50HZ
Selling Units: Single item
