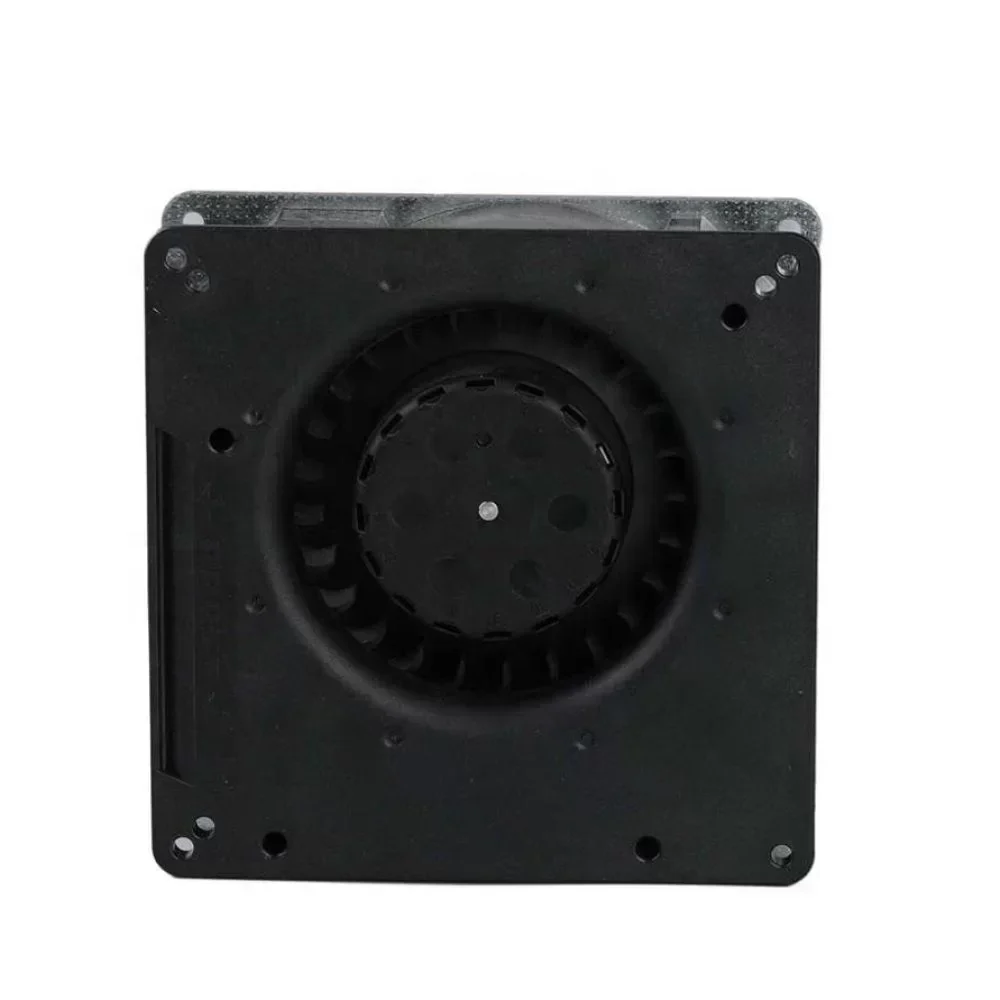

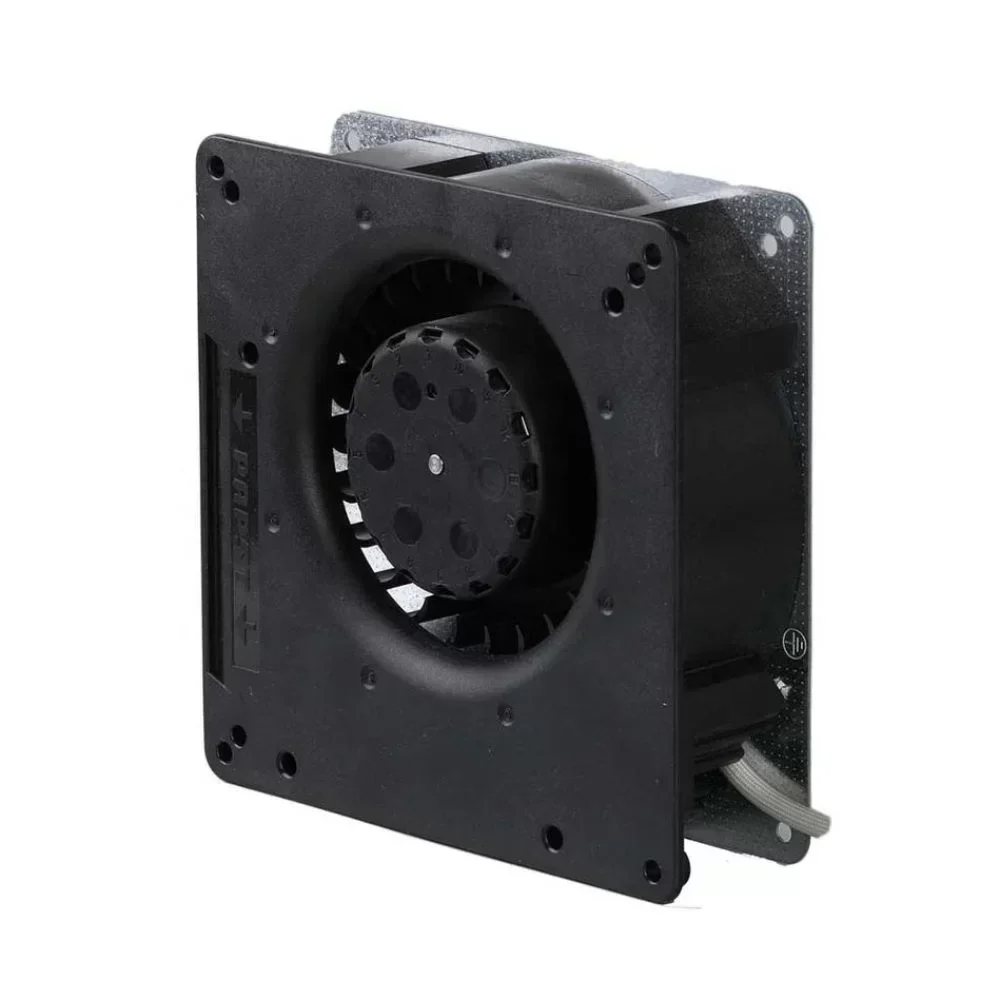

RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V
RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V
RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V

RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V

$66.00

SKU: 60820097376 Brand:

Description

The ebm-papst RG90-18/12 N is a high-performance DC centrifugal fan engineered for demanding industrial cooling and ventilation applications. Utilizing Original Engineering principles, this compact blower delivers exceptional aerodynamic efficiency and reliable thermal management for densely packed electronic enclosures. The single-inlet design, coupled with a highly optimized scroll housing, ensures maximum pressure generation while maintaining a minimal acoustic footprint.

When evaluating Technical Compatibility, the RG90-18/12 N integrates seamlessly into 12V DC architectures, offering a robust solution for telecommunications, medical equipment, and automation control cabinets. Our streamlined supply chain ensures an optimized Lead Time, minimizing downtime for critical infrastructure maintenance and OEM production schedules.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: RG90-18/12 N
Fan Type: DC Centrifugal Blower (Single Inlet)
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 to 15.0 VDC
Maximum Airflow: 54 m³/h
Nominal Speed: 3200 RPM
Power Consumption: 5.8 W
Acoustic Noise Level: 58 dB(A)
Operating Temperature Range: -20°C to +70°C
Bearing System: Precision Ball Bearing
Impeller Material: Glass-fiber reinforced plastic (PA)
Housing Material: Glass-fiber reinforced plastic (PBT)
Dimensions: 135 x 135 x 38 mm
Impeller Diameter: Ø 90 mm
Weight: 0.170 kg
Connection Type: Flying leads AWG 22
Protection Class: IP20
Approvals: CE, VDE, CSA, UL

Application Scenario:
The RG90-18/12 N is specifically designed for forced convection cooling in rack-mounted server systems and industrial motor drives. In these environments, high static pressure is required to push air through restrictive heat sinks and densely populated printed circuit boards. The centrifugal design prevents motor overloading under high back-pressure conditions, ensuring continuous, fail-safe operation in 24/7 mission-critical data centers and automated manufacturing floors.

Mounting: Free Standing
Voltage: 12V
Blade Material: Plastic
Electric Current Type: AC
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: RG90-18/12 N
Place of origin: Germany
Brand name: Ebmpapst
Product name: Ebmpapst centrifugal fan
Size: 135 x 135 x 38 mm
Bearing: Ball bearing
Air Flow: 55m3/h
Noise level: 5.5B
Impeller material: Glass-fiber reinforced plastic
Weight: 0.440 kg
Delivery Time: In stock
Color: Black&Silver
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 1.000 kg

RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V

RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V

RG90-18/12 N ebmpapst Centrifugal Fan ebmpapst TYPE:RG90-18/12N 12V

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
