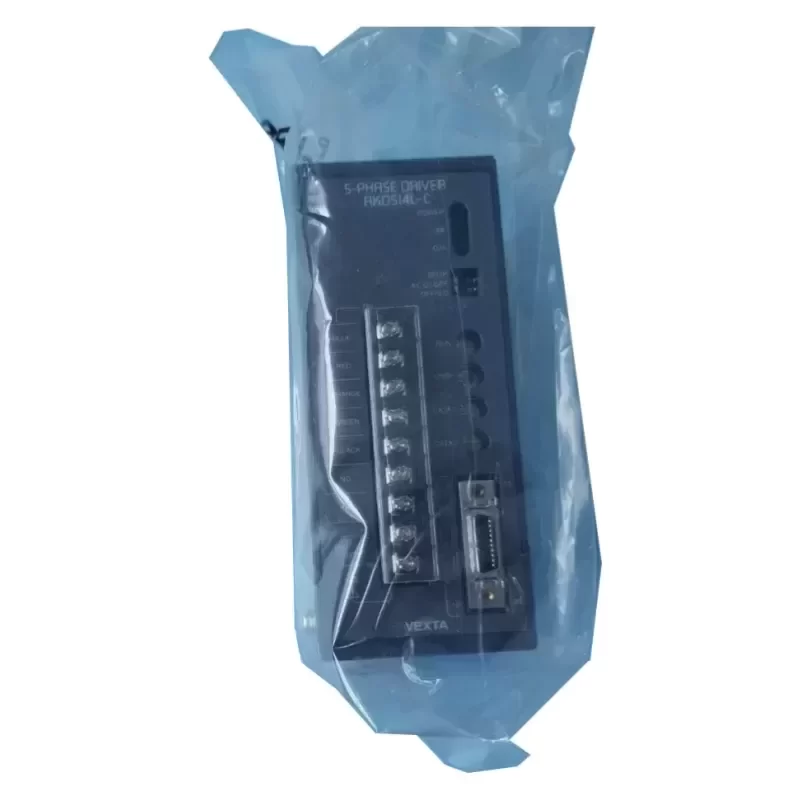

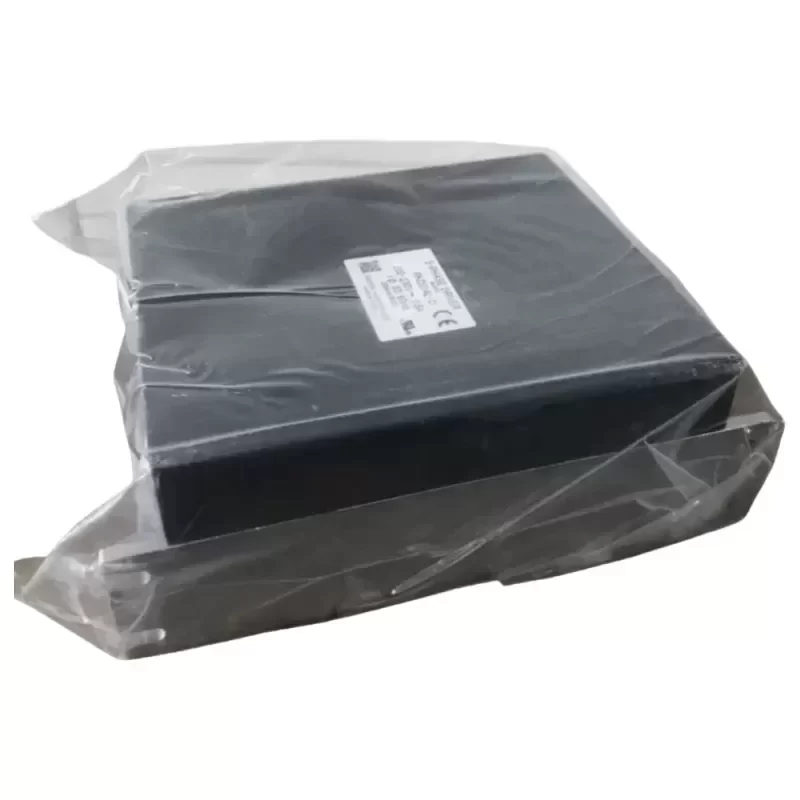

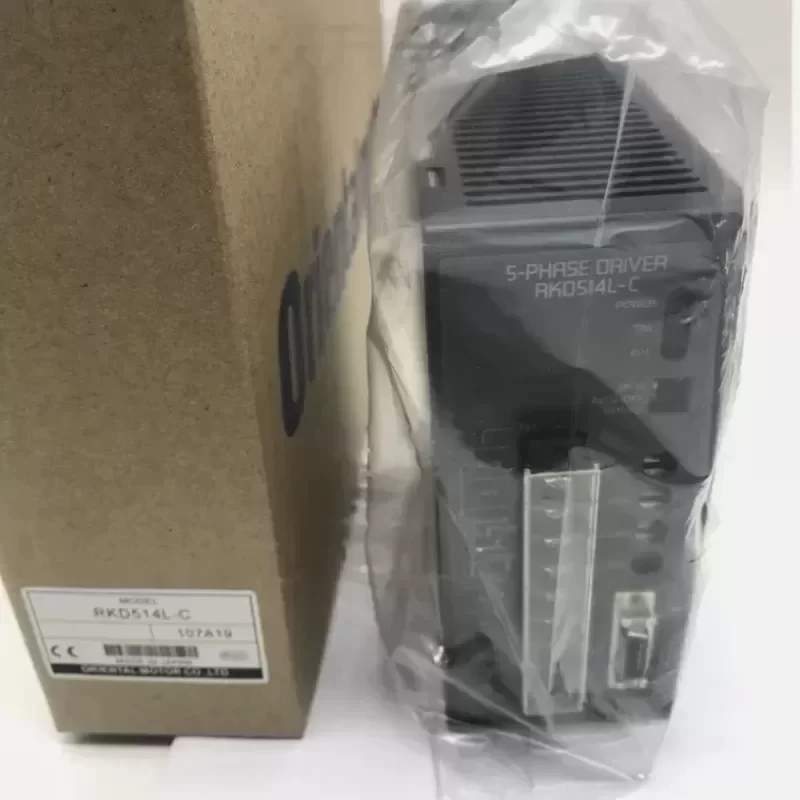

RKD514L-C for Oriental Motor Control Circuit Electrical Equipment Driver for Stepper Motor

Description

The Oriental Motor RKD514L-C is an advanced 5-phase stepper motor driver designed for high-precision industrial motion control. Utilizing Original Engineering, this control circuit delivers superior microstepping performance, significantly reducing motor resonance and vibration at low speeds. It ensures exact Technical Compatibility with Oriental Motor 5-phase stepper motors, providing a reliable drop-in solution for automated systems.

Technical Specifications:
Manufacturer: Oriental Motor
Model Number: RKD514L-C
Product Type: 5-Phase Stepper Motor Driver
Input Voltage: Single-Phase 200-230 VAC ±10%
Input Frequency: 50/60 Hz
Output Current: 1.4 A/phase
Drive Method: Microstepping / Smooth Drive Function
Operating Temperature: 0°C to +40°C
Ambient Humidity: 85% or less (non-condensing)
Weight: 0.5 kg
Cooling Method: Natural Air Cooling
Certifications: CE, RoHS Compliant

Industrial Application:
The RKD514L-C is specifically engineered for precision-critical applications such as semiconductor wafer handling, optical inspection stages, and CNC positioning tables. In these environments, the driver’s smooth drive function eliminates low-speed micro-vibrations, ensuring flawless optical alignment and high-resolution positioning without mechanical backlash.

Procurement and Lifecycle Value:
Sourced to maintain your facility’s operational integrity, this driver offers a predictable Lead Time to support urgent maintenance schedules. Its robust electrical architecture guarantees long-term reliability, reducing the frequency of component replacement and optimizing overall machine lifecycle value.

Key Attributes
Application: Electronic Equipment
Material: Aluminum, Plastic, Steel
Motor Type: Universal
Place of Origin: Guangdong, China
Model Number: RKD514L-C
Brand Name: Oriental Motor
Product name: Control Circuit
Color: Picture Shown
Warranty: Used parts is 3 months, new parts is 1-year
Condition: Original
Feature: Easy To Operate
Shipping By: UPS, DHL, FEDEX, TNT And EMS
Payment term: TT, Western Union, MoneyGram
Service: 24 Hours Online Service

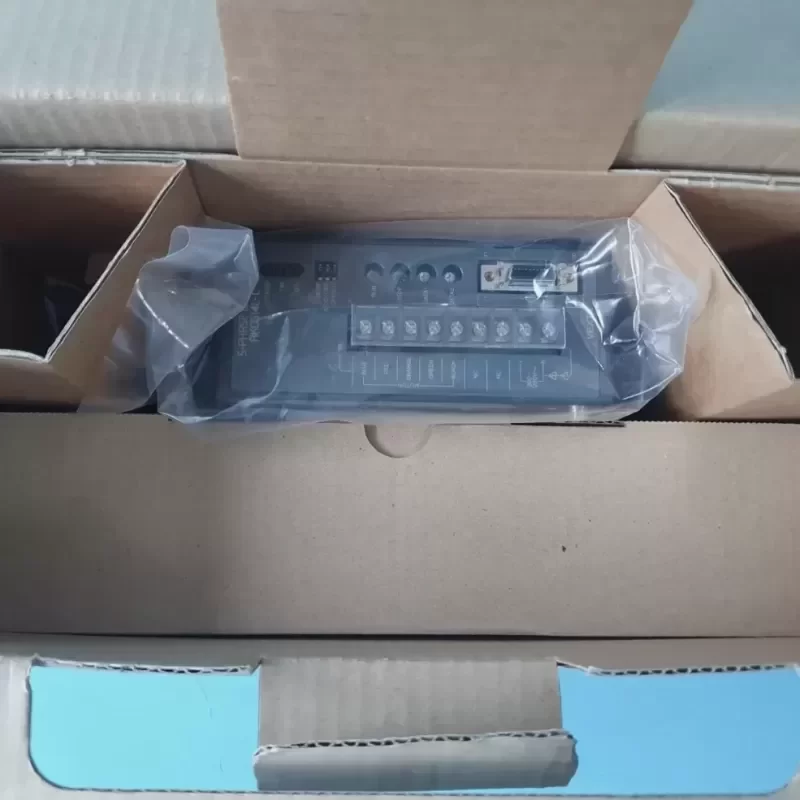

Packaging: Standard Original Packing
Quality: 100% Testing

Packaging and Delivery
Selling Units: Single item
