Description

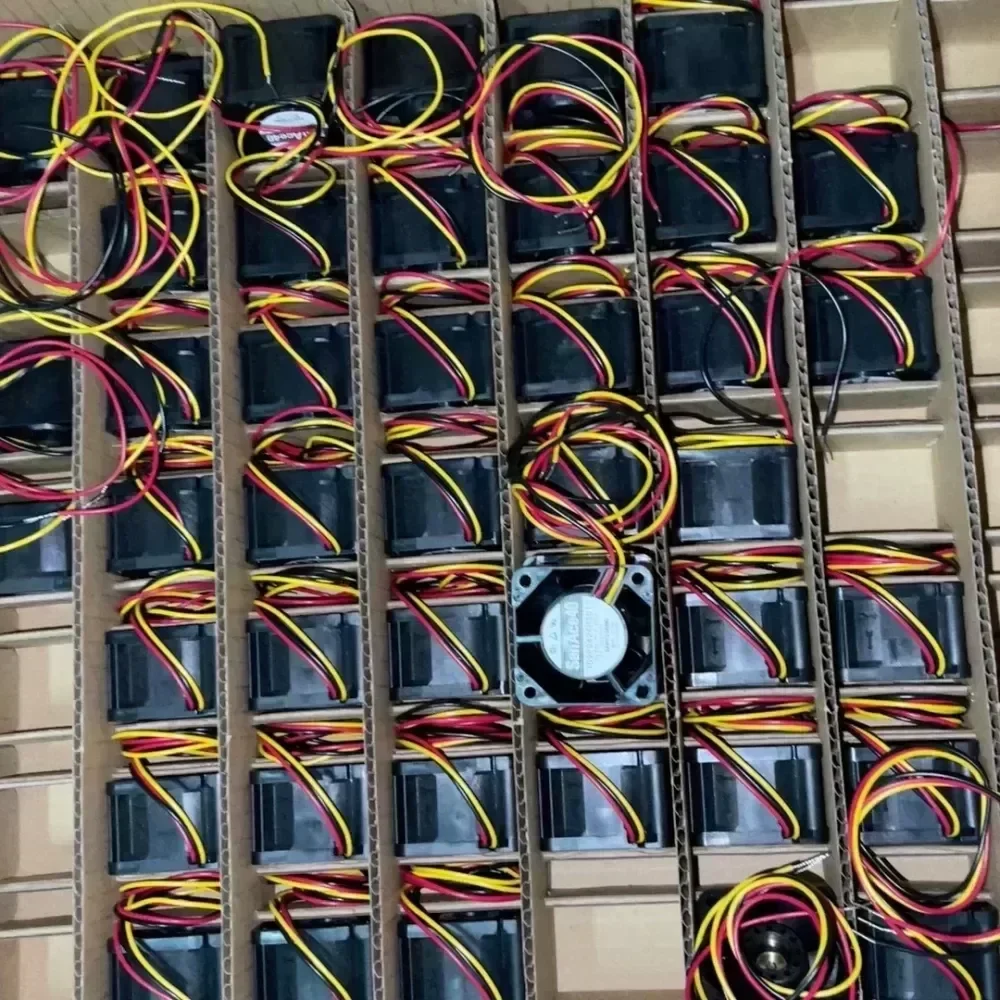

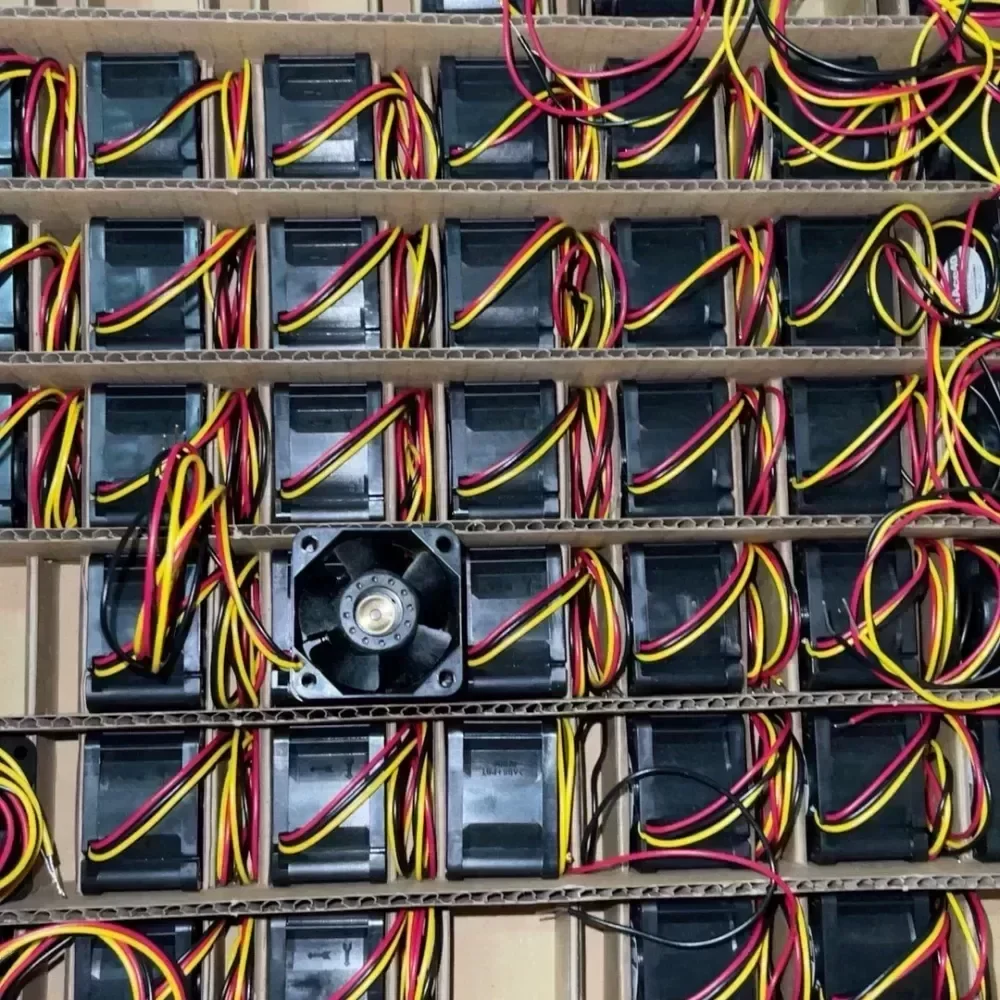

The Sanyo Denki San Ace 40 (Model 109P0424H3013) is an industrial-grade, high-performance DC axial fan engineered for dense electronic enclosures and high-impedance thermal management. Featuring an optimized blade profile and dual precision ball bearing assembly, this unit delivers high static pressure and reliable continuous airflow in severe thermal environments.
Technical Specifications
Manufacturer: Sanyo Denki
Series: San Ace 40

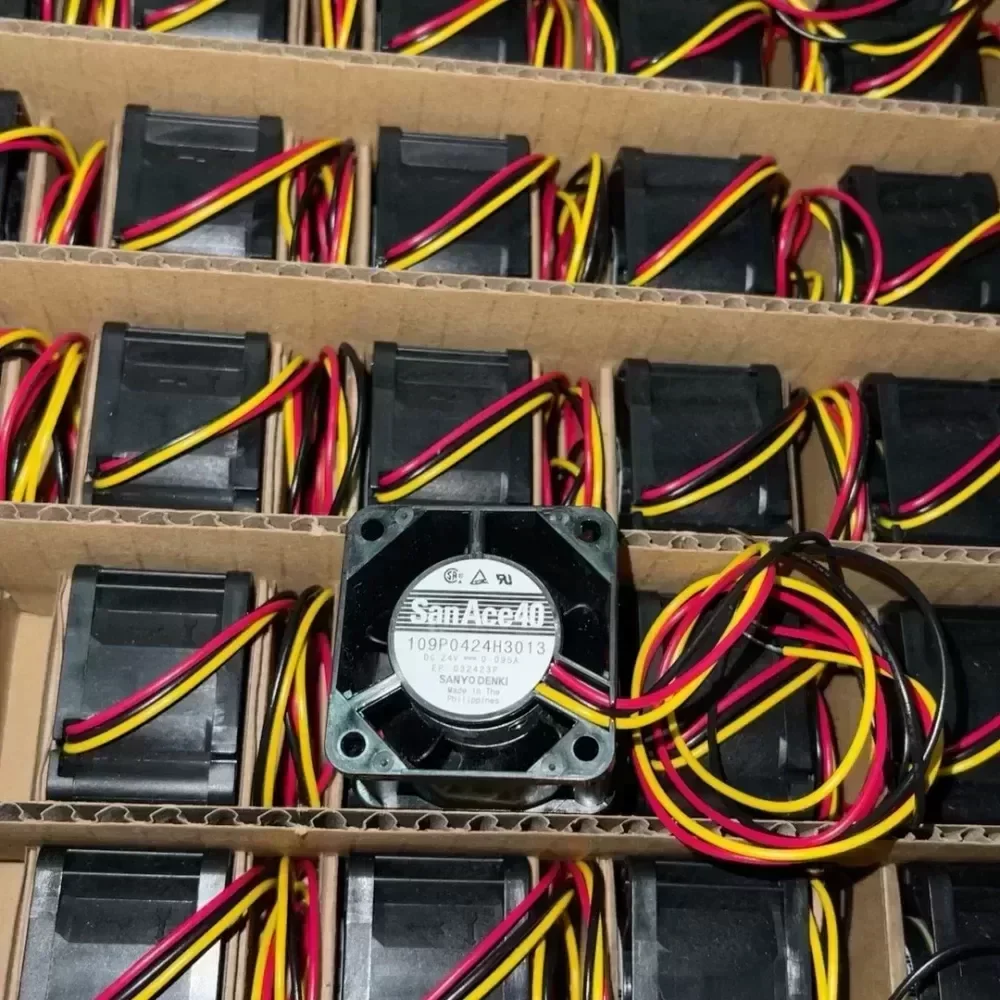

Model Number: 109P0424H3013
Product Category: DC Axial Cooling Fan
Form Factor: 40 mm x 40 mm x 28 mm (4028)
Nominal Voltage: 24 V DC
Operating Voltage Range: 14.0 V DC to 27.6 V DC
Rated Current: 0.18 A (Peak Operating: up to 0.35 A)
Rated Power Input: 4.32 W
Rotational Speed: 9,500 RPM
Maximum Airflow: 0.45 m³/min (15.9 CFM)
Maximum Static Pressure: 147 Pa (0.59 inch H2O)

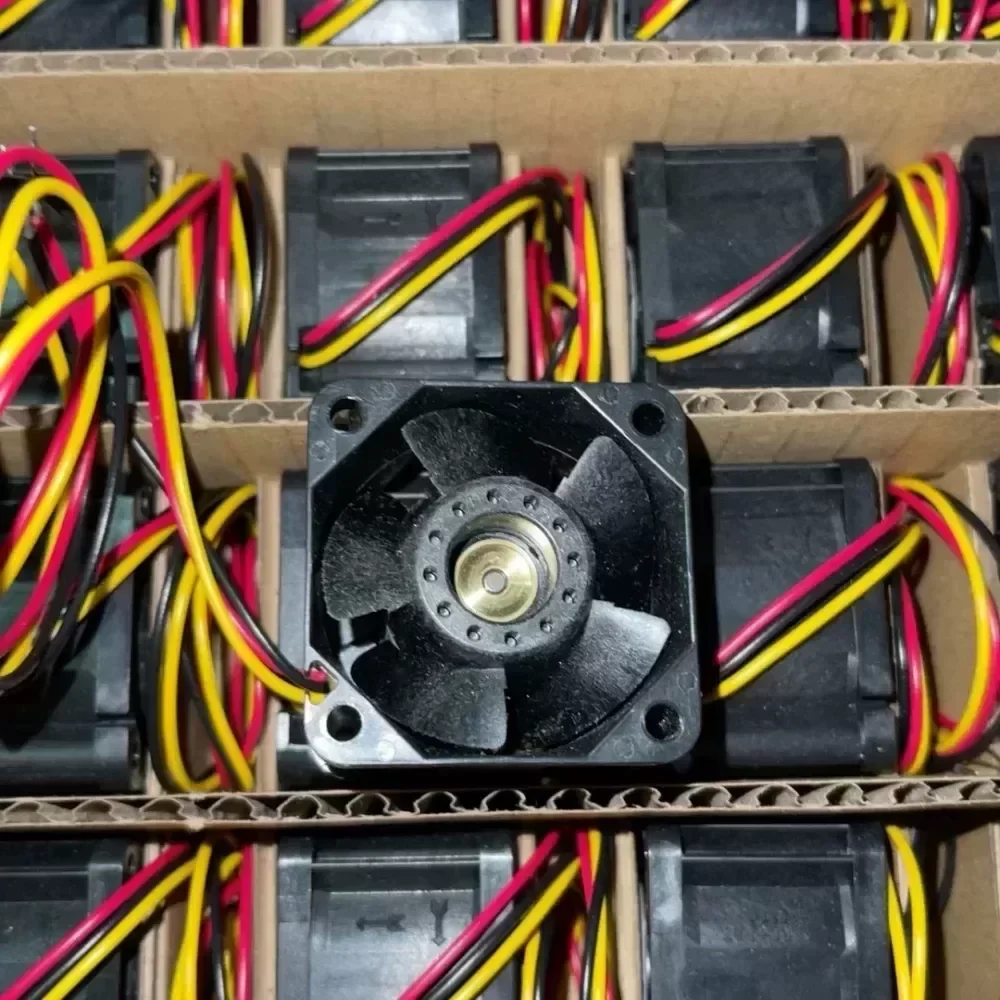

Bearing System: Dual Precision Ball Bearings
Frame Material: Flame-Retardant PBT Plastic (UL 94V-0)
Impeller Material: Flame-Retardant PBT Plastic (UL 94V-0)
Motor Protection: Locked Rotor Protection and Reverse Polarity Protection
Insulation Resistance: 10 MΩ minimum at 500 V DC
Dielectric Strength: 500 V AC for 1 minute (between frame and leads)
Expected Service Life (L10): 60,000 Hours at 60 °C (90% survival rate)
Operating Temperature Range: -20 °C to +70 °C
Storage Temperature Range: -30 °C to +70 °C
Termination: Multi-conductor Lead Wire (UL 1007, AWG26)
Signal Output: Integrated Tachometer / Speed Sensor (Pulse Generator)
Weight: 55 g
Certifications: UL, CSA, TÜV, RoHS Compliant
Industrial Application and Integration
The 109P0424H3013 is optimized for forced-air cooling in high-density rackmount equipment where spatial constraints cause significant system impedance. Its 28 mm thickness generates superior static pressure compared to standard 10 mm or 20 mm fans, enabling effective heat extraction through densely packed heatsinks, high-power switched-mode power supplies (SMPS), 1U network switches, telecommunications routers, and embedded industrial automation controllers. The integrated pulse sensor allows real-time RPM monitoring via central BMC or controller logic, preventing thermal runaway and unplanned equipment downtime.
Procurement and System Compatibility
Technical Compatibility: Direct drop-in replacement for standard 4028 high-output DC fan footprints requiring pulse monitoring and 24 V DC input rails.
Original Engineering: Manufactured to strict OEM industrial standards to ensure mechanical tolerances, vibration damping, and electrical consistency.

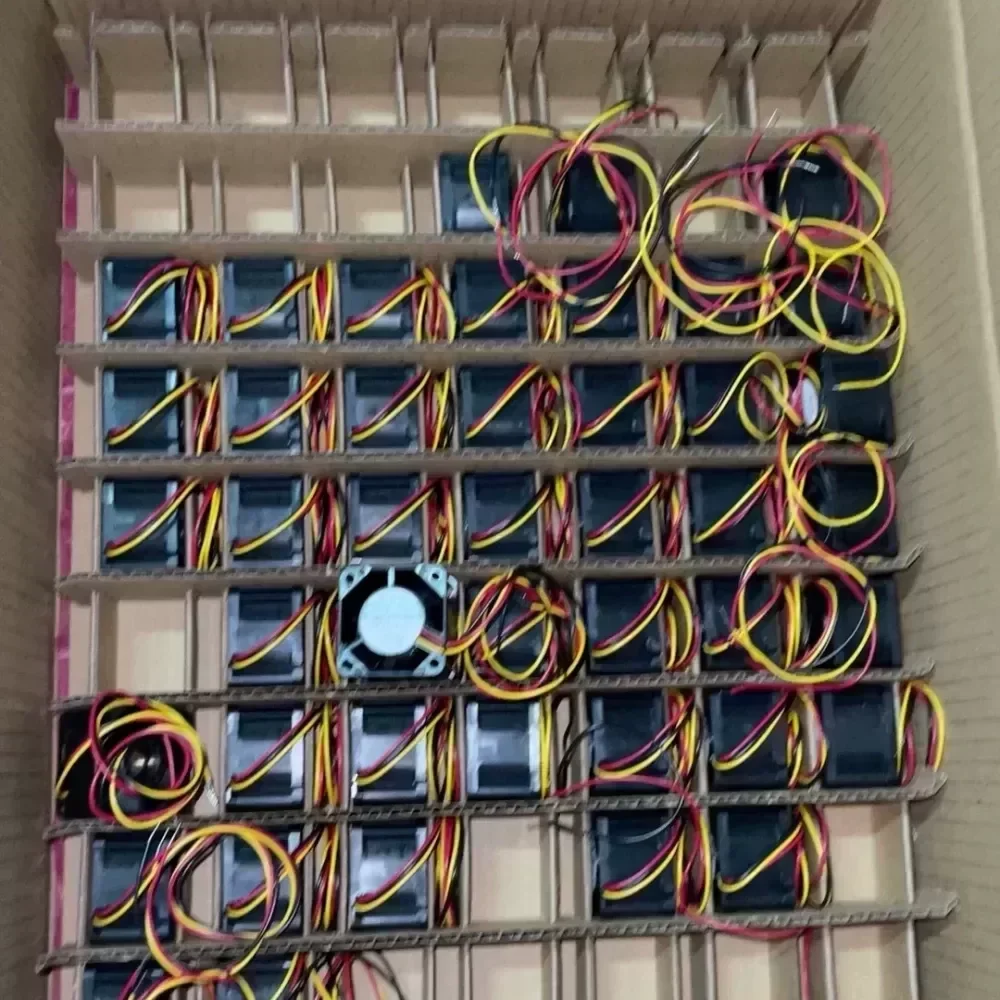

Lead Time and Logistics: Available for rapid fulfillment in single-unit replacement and volume B2B batch orders. Verified through functional bench testing prior to packaging.
