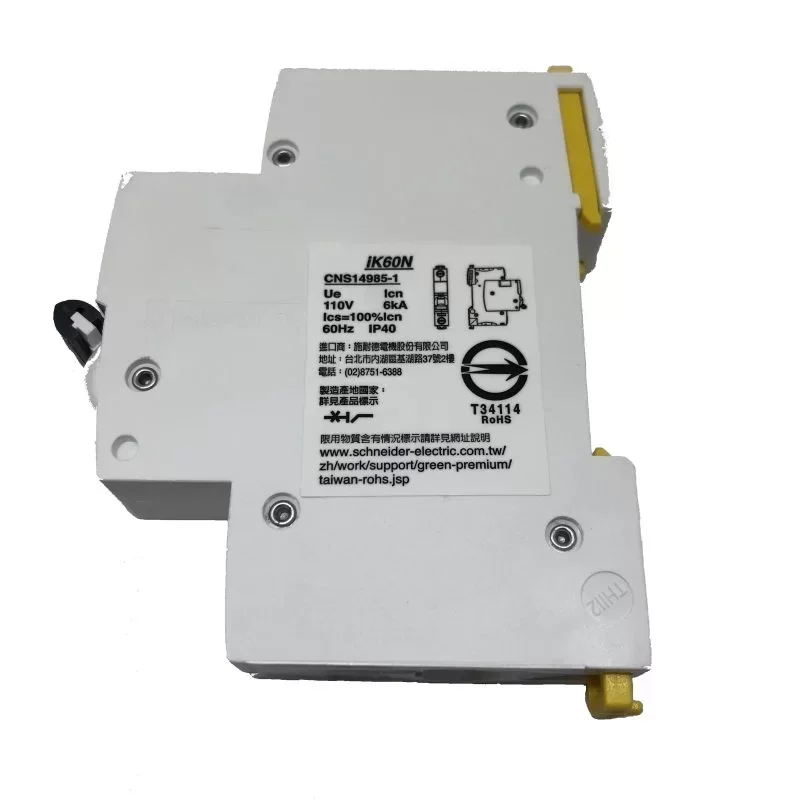

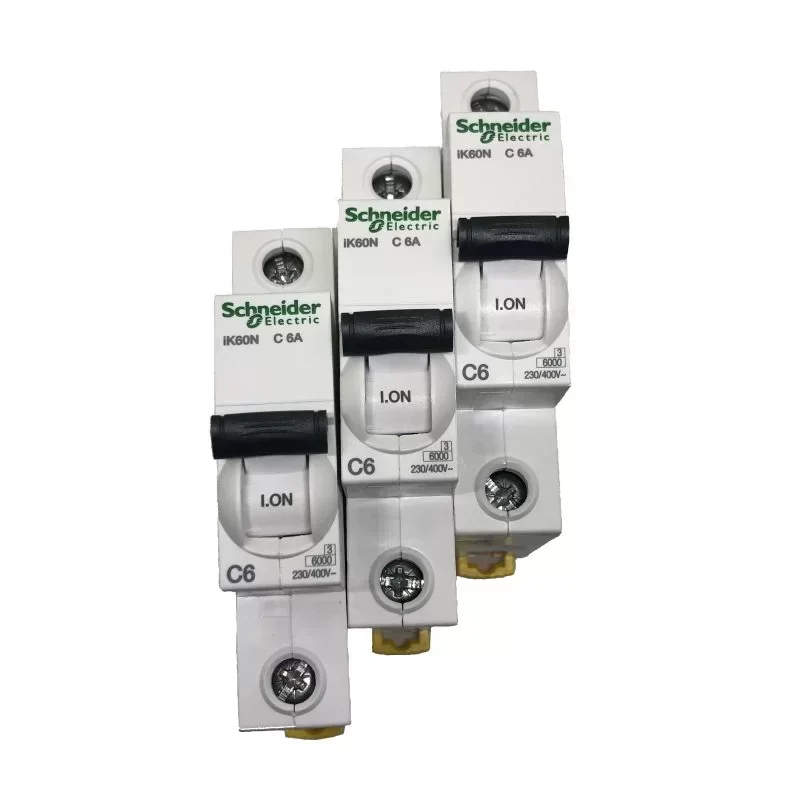

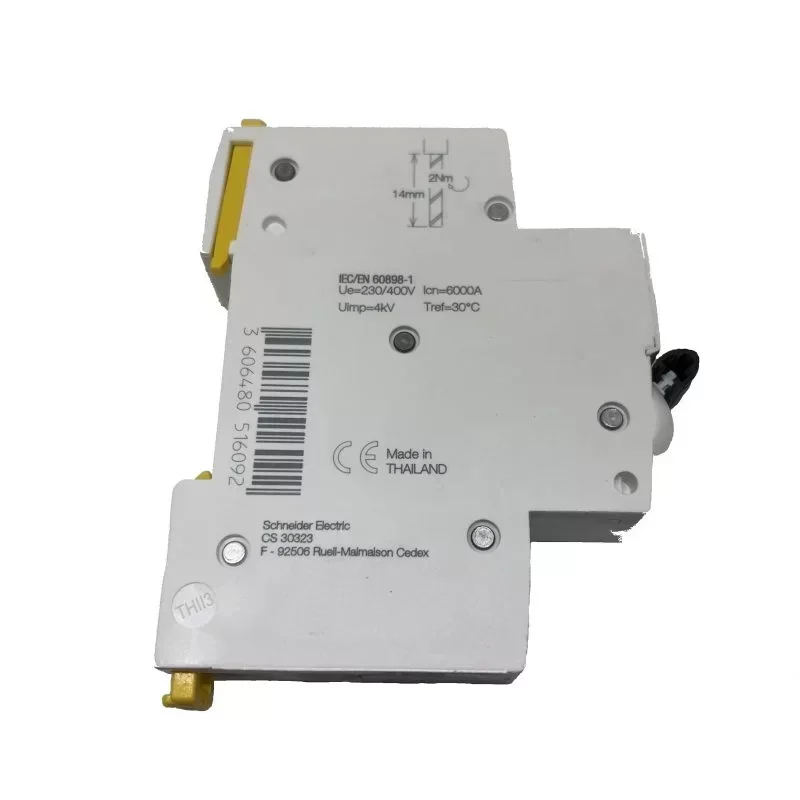

Schneider Electrical A9K27106 MCB Miniature Circuit Breaker

Description

The Schneider Electric A9K27106 is a high-performance miniature circuit breaker (MCB) from the Acti9 iK60N series, engineered for precise short-circuit and overload protection in demanding electrical networks. Designed with Original Engineering standards, this 1-pole, 6A device features a C-curve tripping characteristic, making it optimal for standard load protection where moderate inrush currents are anticipated.

Technical Specifications:
Manufacturer: Schneider Electric
Product Series: Acti9 iK60N
Part Number: A9K27106
Device Type: Miniature Circuit Breaker (MCB)
Number of Poles: 1P
Rated Current (In): 6 A
Tripping Curve: C (5 to 10 x In)
Network Type: AC
Rated Operational Voltage (Ue): 230 V AC 50/60 Hz
Breaking Capacity (Icn): 6000 A at 230 V AC (EN/IEC 60898-1)
Rated Insulation Voltage (Ui): 440 V AC
Rated Impulse Withstand Voltage (Uimp): 4 kV
Mechanical Durability: 20000 cycles
Electrical Durability: 10000 cycles
Mounting Support: 35mm DIN rail (Clip-on)
Terminal Capacity: Tunnel type terminals 1 to 25 mm² (rigid) / 1 to 16 mm² (flexible)
Dimensions (H x W x D): 85 mm x 18 mm x 78.5 mm
Weight: 0.10 kg
Operating Temperature: -25°C to 60°C
Degree of Protection: IP20
Certifications: CE, RoHS, IEC/EN 60898-1

Industrial Application:
The A9K27106 is specifically deployed in industrial automation control panels and commercial distribution boards. Its 6A C-curve profile is critical for protecting PLC power supplies, auxiliary control circuits, and low-wattage lighting systems where inductive loads may generate brief, moderate surges. By isolating faults rapidly, it prevents cascading failures across the control architecture.

Procurement and Integration:
Ensuring strict Technical Compatibility with existing Acti9 distribution systems, this MCB integrates seamlessly via standard DIN rail mounting. We maintain optimized supply chain logistics to minimize Lead Time for critical replacement components. Relying on Original Engineering guarantees compliance with global safety directives and maximizes the operational lifespan of your electrical infrastructure.

Key Attributes
BCD Curve: C
Breaking Capacity: 1P
Rated Voltage: Other
Place of Origin: Indonesia
Number of Pole: 1
Rated Current: 6A
Model Number: A9K27106
Brand Name: Schneider
Protection: Other
Rated Frequency (Hz): 50/60 Hz
Type: MCB
Poles Number: Schneider electrical A9K27106 MCB Miniature circuit breaker
Type: Mini
Efficiency: 84.5%~91%
Rated Power: 66W~110.4W
AC current(typ.): 1.9A/115VAC
Rated current: 2.3A~20A
DC voltage: 3.3V~48V
Dimension: 129*97*30mm (L*W*H)
Warranty: 1 Year

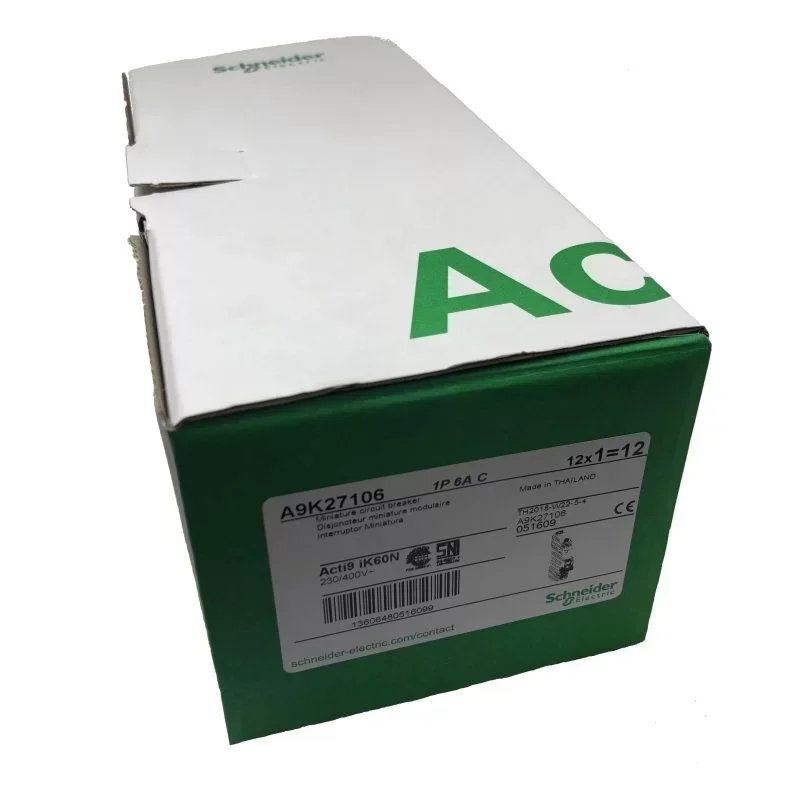

Packaging and Delivery
Packaging Details: 40*30*30 cm
Port of dispatch: Kaohsiung, Taiwan
Selling Units: Single item
