Description

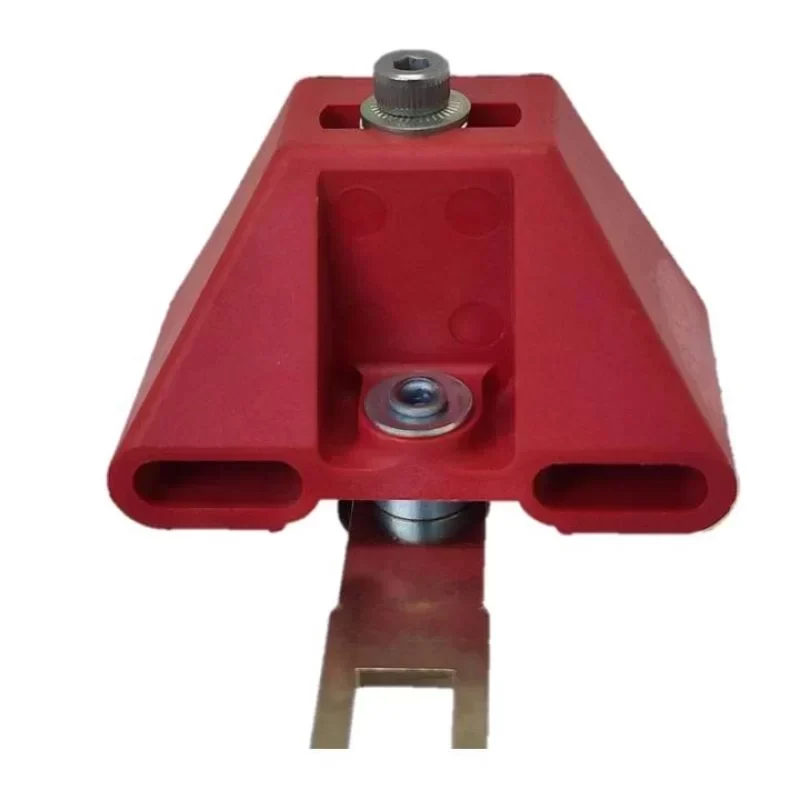

The XCSZ01 pivoting actuator is engineered for industrial safety systems where precise alignment between the guard and the switch body is challenging. The integrated pivot joint compensates for door sag or misalignment, ensuring consistent insertion into the interlock head without mechanical binding. This design significantly reduces shear stress on the switch head, extending the operational lifecycle of the safety system.
Manufacturer: Schneider Electric
Product Series: Preventa XCS Safety Switches
Model: XCSZ01
Component Type: Pivoting Actuator
Technical Specifications:

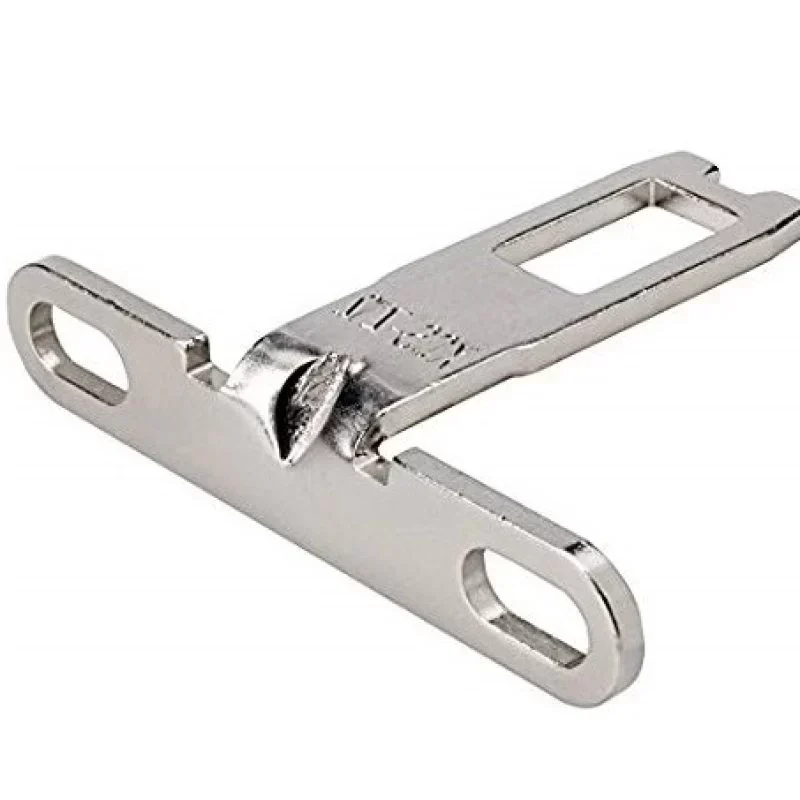

Actuator Profile: Straight with Pivoting Joint
Material: High-Strength Stainless Steel
Compatibility: XCSPA, XCSTA, XCSTE Safety Interlock Switches
Mounting Direction: Multi-directional (Left, Right, Front, Rear)
Mechanical Durability: 1,000,000 cycles
Approach Speed: Minimum 0.01 m/s, Maximum 0.5 m/s
Actuation Radius: Adjustable for swinging or pivoting doors
Weight: 0.095 kg
Technical Compatibility and Installation:
This component is a direct replacement part for Schneider Electric XCS series safety interlock switches. It is designed for mounting on hinged or sliding guards with a minimum operating radius. The pivoting mechanism allows for a ±10° angular deviation, providing Technical Compatibility with non-linear door trajectories.
Industrial Application:
Ideal for high-vibration environments and heavy-duty machinery guards in automotive assembly lines and packaging facilities. By utilizing Original Engineering standards, this actuator ensures compliance with ISO 14119 interlocking device requirements.
Logistics and Quality:
Condition: New Original Equipment
Lead Time: Available for immediate dispatch
Certifications: RoHS Compliant, REACH
Key Attributes
Max. Current: 10A
Max. Voltage: 10VAC
Model Number: XCSZ03/XCSZ05/XCSZ11/XCSZ12/XCSZ13
Place of Origin: French
Brand Name: Schneider
Range of product: Preventa Safety detection
Series: Preventa XCS
Product or component type: Actuator
Model: XCSZ
Designation: Pivoting / Straight

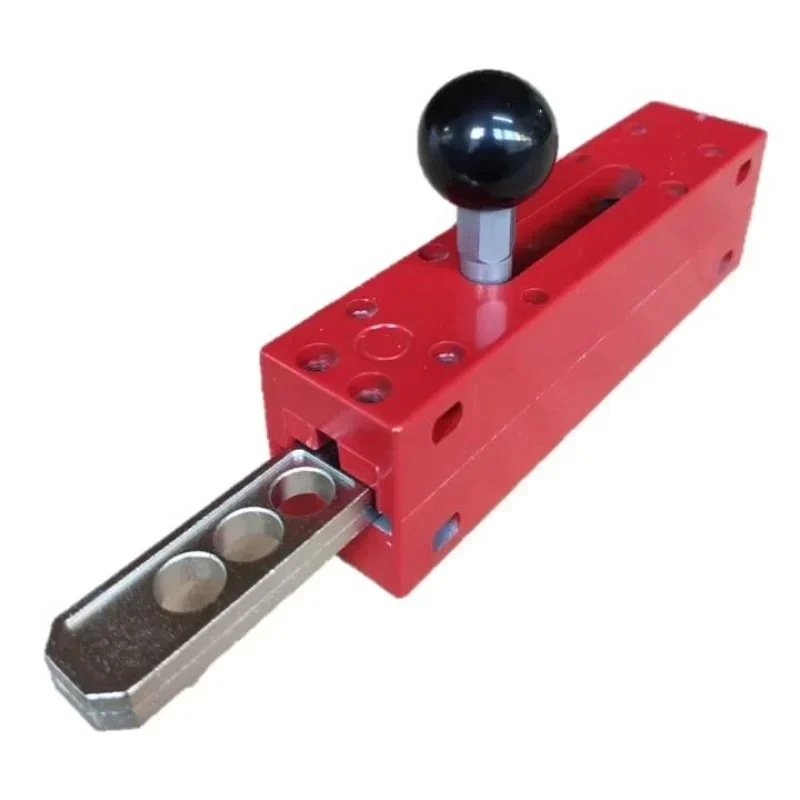

Part: Latch for sliding doors
Color: Red
Material: Metal / Plastic
Weight: 0.015/0.095/0.6KGS
Status: Green Premium
Packaging and Delivery
Packaging Details: 40*30*30CM
Port of dispatch: Any port in Taiwan
Selling Units: Single item
