Description

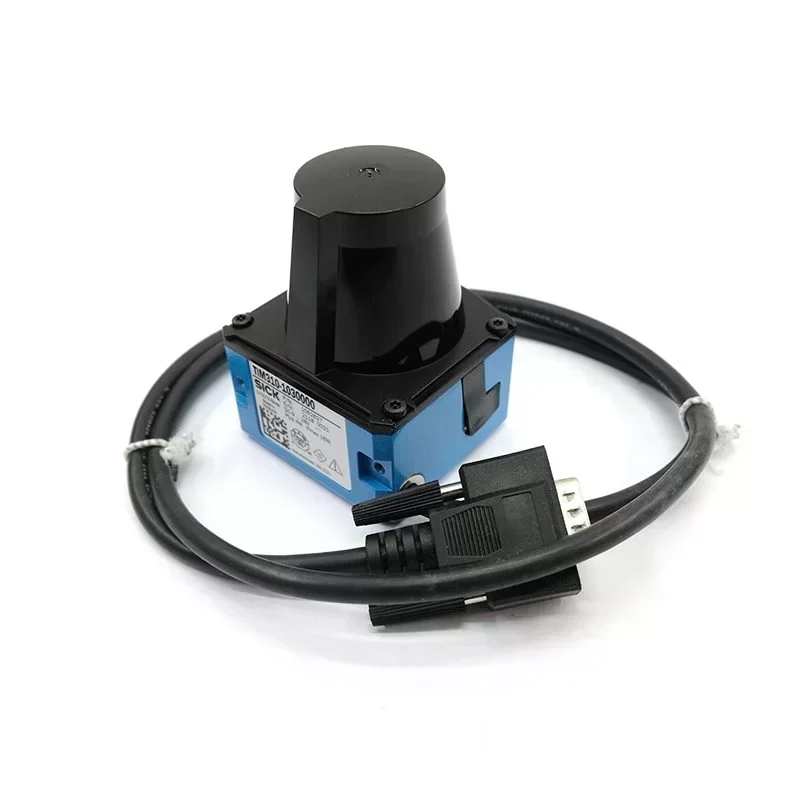

The SICK TiM310-1030000 (Part Number 1052627) is a highly compact, industrial-grade 2D LiDAR sensor engineered for precise area monitoring and object detection. Utilizing advanced HDDM (High Definition Distance Measurement) technology, this scanner delivers exceptional measurement stability even in environments with high ambient light or optical interference. Designed for seamless Technical Compatibility with automated guided vehicles (AGVs) and stationary robotic cells, it provides reliable non-contact profiling.
Technical Specifications:
Manufacturer: SICK
Model Number: TiM310-1030000
Part Number: 1052627
Sensor Principle: 2D LiDAR (Laser Scanner)
Light Source: Infrared (850 nm)
Laser Class: 1 (Eye-safe per IEC 60825-1:2014)
Aperture Angle: 270°
Scanning Frequency: 15 Hz
Angular Resolution: 1°
Working Range: 0.05 m to 4 m
Supply Voltage: 9 V DC to 28 V DC
Power Consumption: 3 W (Typical)
Switching Outputs: 4 (PNP)
Configuration Interface: USB
Enclosure Rating: IP65
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -30 °C to +70 °C
Ambient Light Immunity: 80,000 lx
Weight: 150 g
Dimensions: 60 mm x 60 mm x 79 mm
System Architecture and Integration:
The TiM310-1030000 integrates into existing industrial control architectures via its discrete switching outputs and USB configuration port. The sensor evaluates pre-defined field sets (up to 16 configurable fields) internally, triggering immediate output state changes upon object intrusion. This localized processing reduces the computational load on the central PLC, ensuring rapid response times critical for collision avoidance and presence detection. The device utilizes a robust M12 12-pin male connector for secure power and I/O transmission.
Industrial Application:
In automated intralogistics, the TiM310-1030000 is deployed as the primary collision avoidance system for mobile robots and AGVs. Its 270° scanning angle provides comprehensive forward and lateral coverage, while the 4 m range allows for dynamic speed adjustment based on obstacle proximity. The IP65-rated housing ensures continuous operation in dusty warehouse environments, making it highly effective for overhang detection and blind-spot monitoring in high-traffic distribution centers.
Procurement and Lifecycle:
Procuring Original Engineering components guarantees optimal system performance and adherence to strict industrial safety protocols. We maintain strategic inventory to minimize Lead Time, ensuring your production facilities experience zero unnecessary downtime during critical sensor replacement or fleet expansion.
Key Attributes
Place of Origin: Germany
Model Number: TIM310-1030000
Brand Name: Sick
Product Name: Sick Sensor
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days

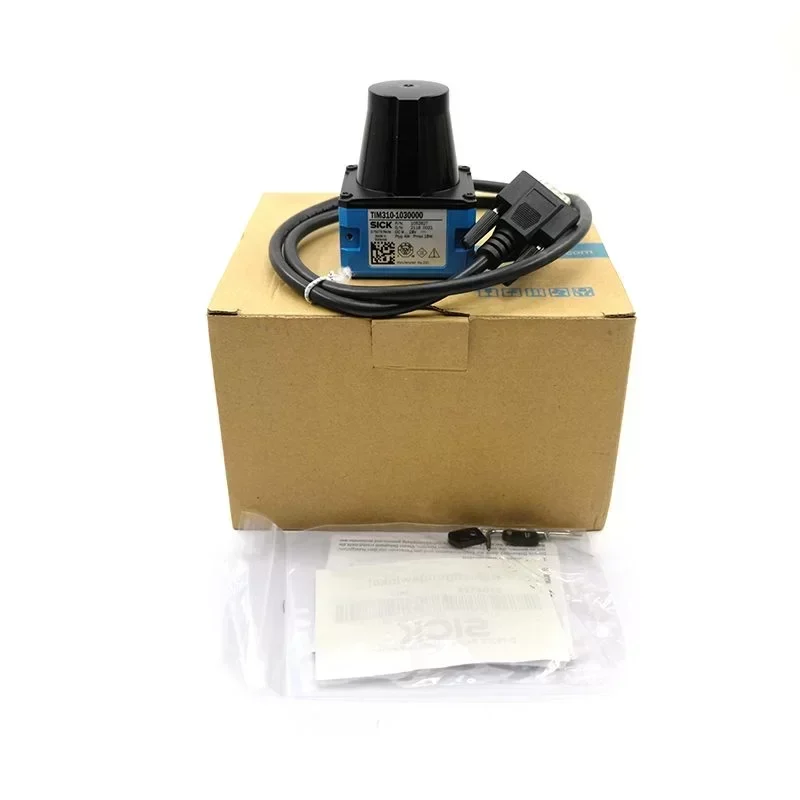

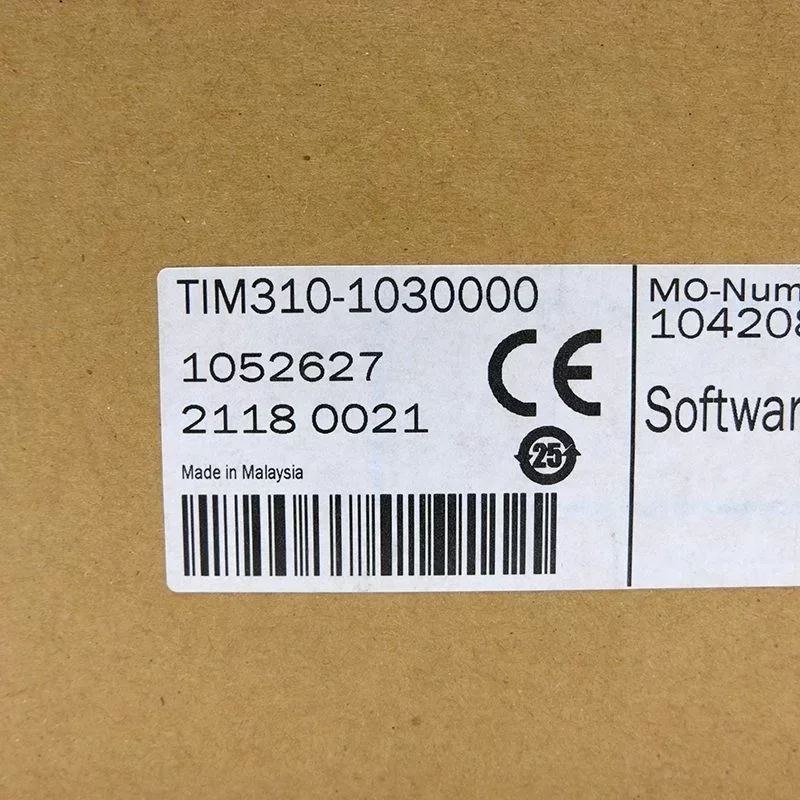

Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
Single package size: 18X16X12 cm
Single gross weight: 0.500 kg
