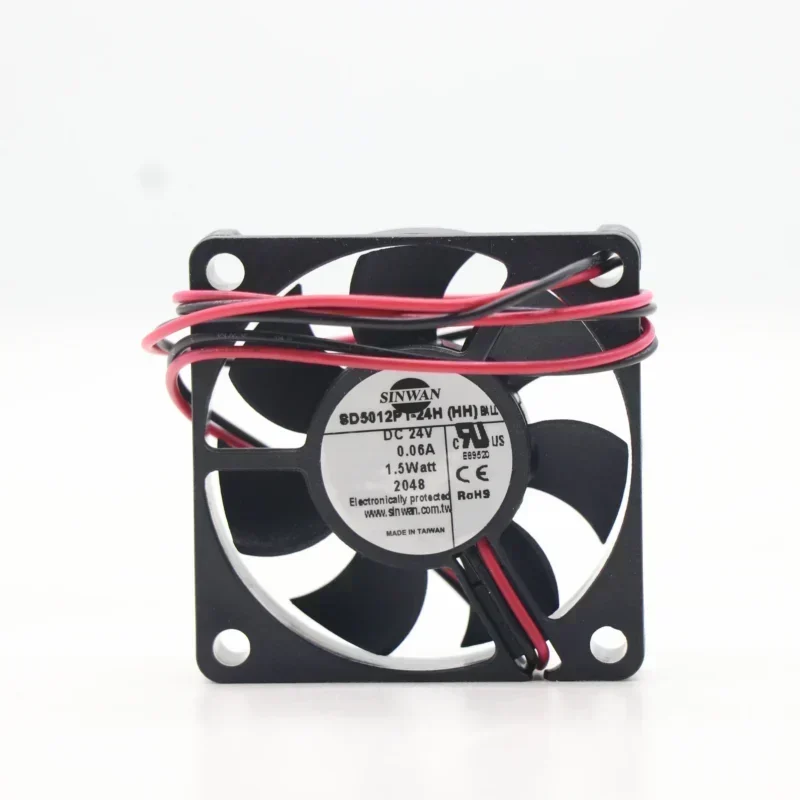

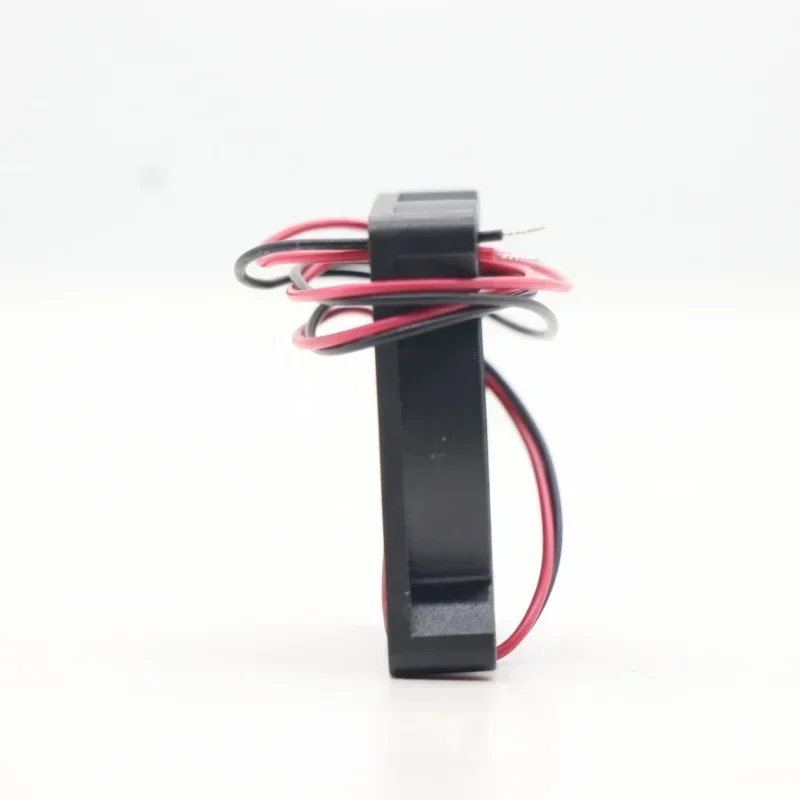

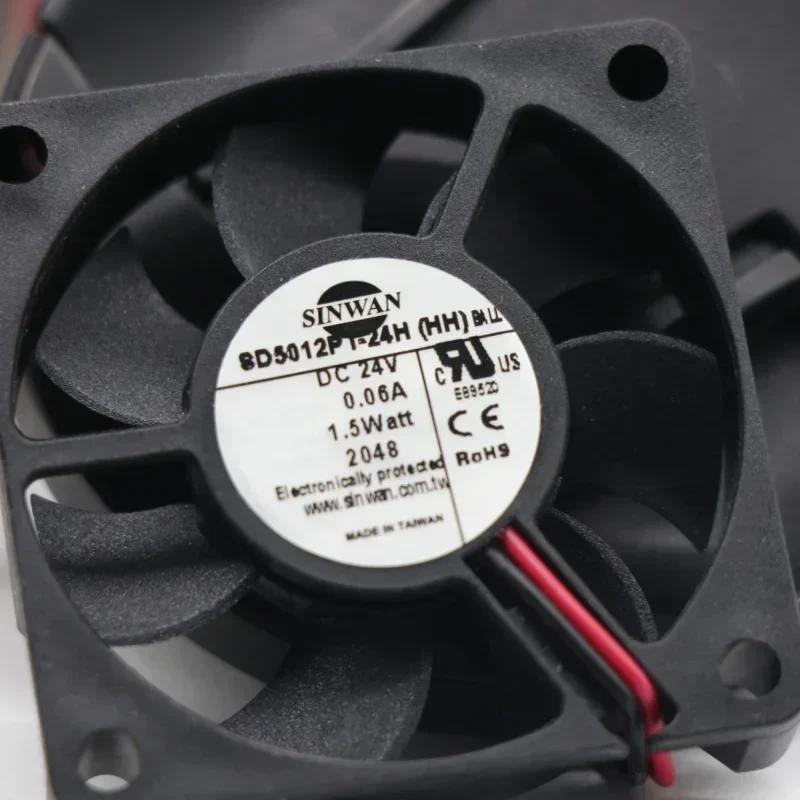

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan
Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan
Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan
Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

$18.50

SKU: SD5012PT-24H(HH)Brand:

Description

The Sinwan SD5012PT-24H(HH) is a high-performance 50x50x10mm axial cooling fan engineered for precise thermal management in space-constrained industrial electronics. Utilizing dual ball bearing technology, this unit delivers reliable heat dissipation under continuous duty cycles, making it a critical component for maintaining system stability.

Technical Specifications:
Manufacturer: Sinwan
Model Number: SD5012PT-24H(HH)
Frame Dimensions: 50 mm x 50 mm x 10 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 VDC to 27.6 VDC
Rated Current: 0.06 A
Power Consumption: 1.5 W
Rated Speed: 5700 RPM
Bearing Type: Precision Dual Ball Bearing
Frame Material: PBT Thermoplastic (UL 94V-0 Rated)
Impeller Material: PBT Thermoplastic (UL 94V-0 Rated)
Termination: Lead Wires
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +70 °C
Life Expectancy: 70,000 Hours at 40 °C
Safety Certifications: UL, CUL, TUV, CE

Industrial Application Scenario:
This compact axial fan is optimized for integration into industrial variable frequency drives (VFDs), solar inverters, and high-density power supply modules. In these environments, localized heat buildup can cause thermal throttling or component failure. The high static pressure and compact 10mm profile of the SD5012PT-24H(HH) allow it to force cooling air through tightly packed heatsink fins, ensuring optimal semiconductor operating temperatures.

Procurement and Compatibility:
Designed with Original Engineering standards, this fan ensures exact drop-in Technical Compatibility with existing OEM cabinet designs and cooling modules. Standard Lead Time applies for bulk industrial orders, with expedited shipping options available to minimize facility downtime.

Key Attributes
Voltage: 24V
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Cast Iron
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Taiwan China
Brand name: Sinwan
Model number: SD5012PT-24H (HH)
Type: Compact fan
Nominal voltage: 24V
Bearing Type: Ball Bearing
Power consumption: 1.5 W
Speed Control: 5700 r/min
Current: 0.06 (A)
Frequency: 50~60Hz
Pressure: 2.79
Maximum Airflow: 0.4 m3/h
Fan Type: Axial

Packaging and Delivery
Selling Units: Single item
Single package size: 15X11X11 cm
Single gross weight: 0.500 kg

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

Sinwan SD5012PT-24H(HH) 50x50x10mm 24V DC 5010 5cm 1.5W 0.06A 5700RPM Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
