Description

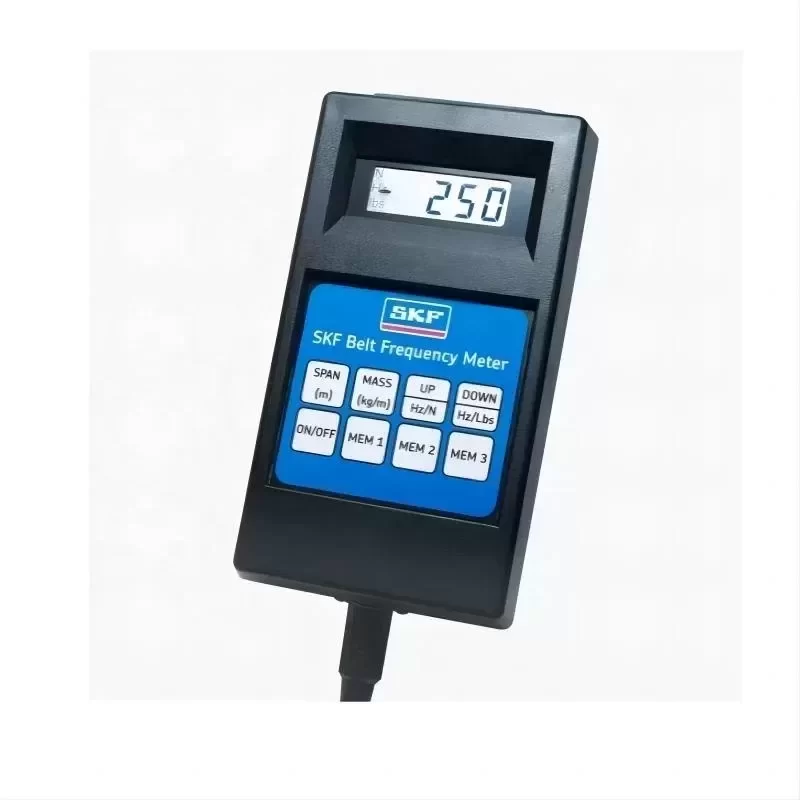

The SKF PHLFM10/400 Electronic Belt Frequency Meter is a precision diagnostic instrument engineered to optimize power transmission systems. Designed with Original Engineering standards, this device accurately measures belt tension by analyzing the natural vibration frequency of the belt span. Proper tensioning is critical for maximizing belt life, reducing bearing loads, and ensuring Technical Compatibility across various industrial drive configurations. With a reliable Lead Time, this tool is indispensable for predictive maintenance protocols.
Technical Specifications:
Manufacturer: SKF
Model Number: PHLFM10/400
Measurement Range: 10 to 400 Hz
Measurement Principle: Electronic Vibration Analysis
Display: Digital LCD
Accuracy: ± 1%
Operating Temperature: 0°C to +50°C
Power Supply: Battery Operated
Belt Compatibility: V-belts, Synchronous Belts, Ribbed Belts
Weight: 0.25 kg
Application Scenario:

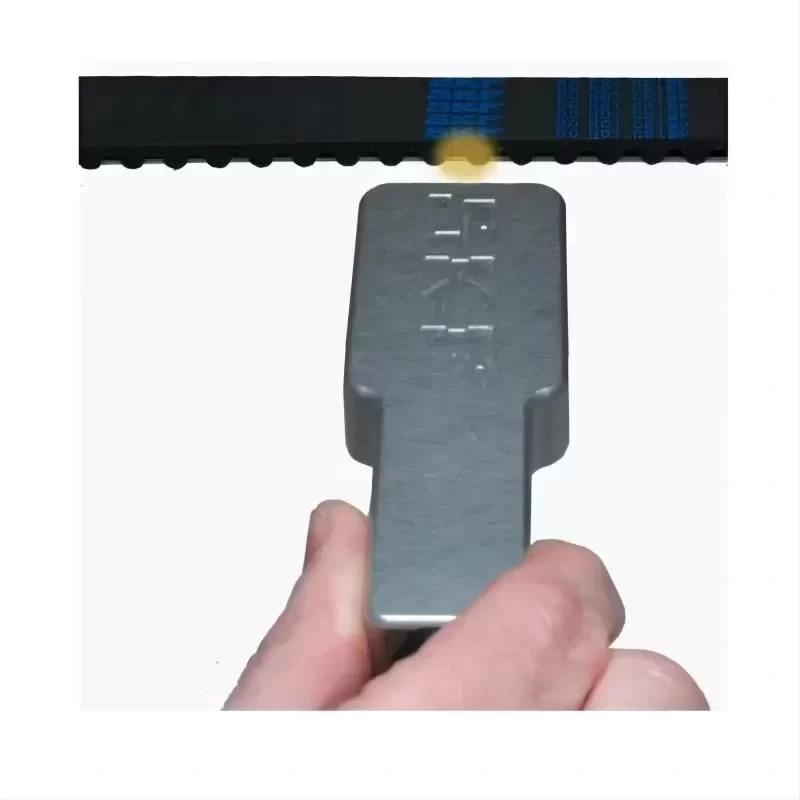

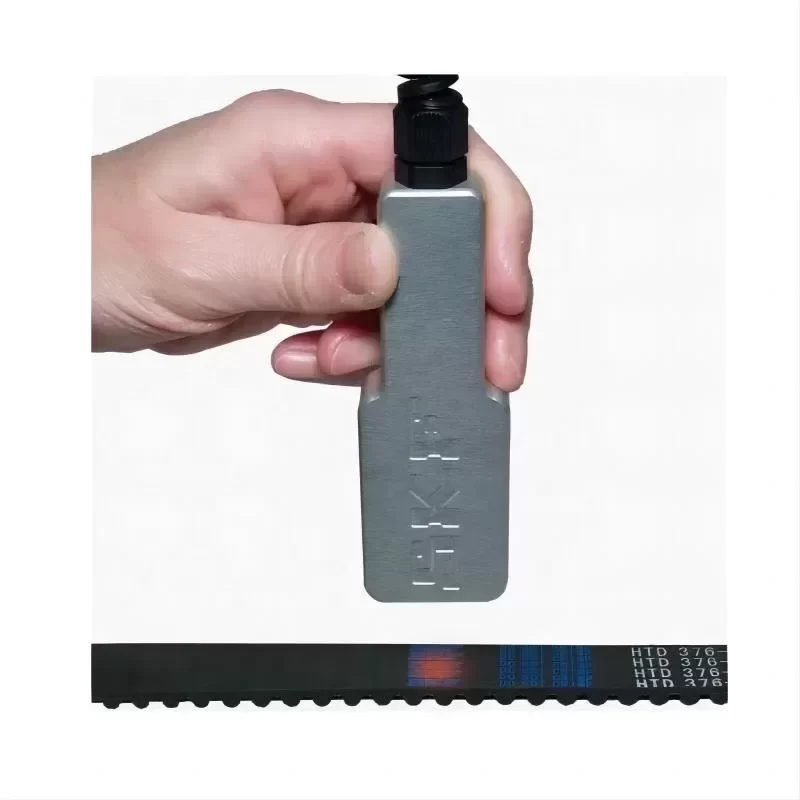

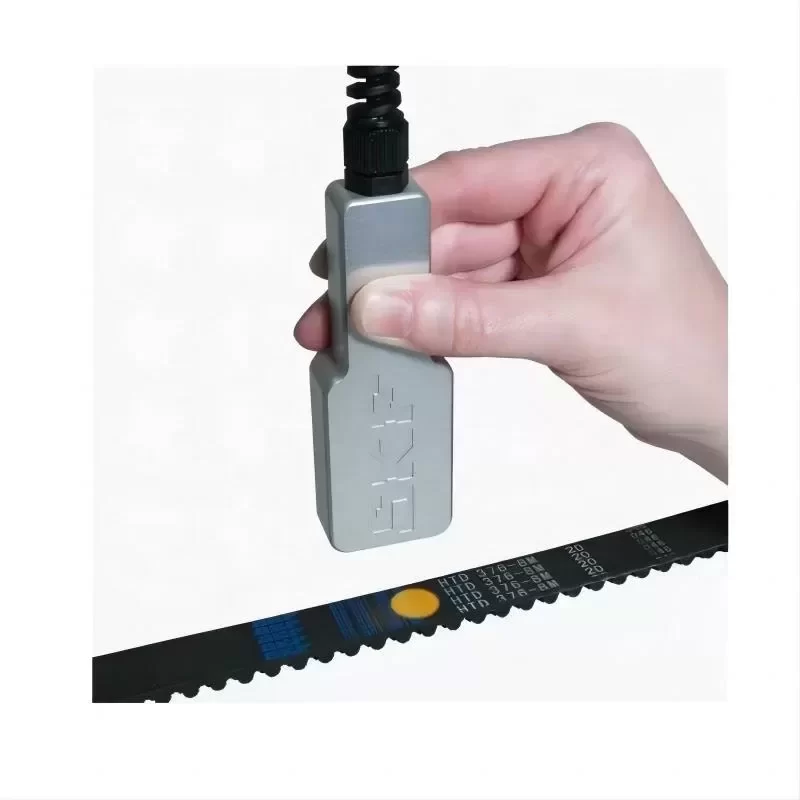

The PHLFM10/400 is specifically deployed in heavy-duty HVAC systems, conveyor drives, and compressor units where incorrect belt tension can lead to catastrophic bearing failure or energy loss. By plucking the belt and measuring the resulting vibration frequency from 10 to 400Hz, maintenance engineers can precisely calibrate tension to OEM specifications, eliminating the subjective errors associated with manual deflection testing.
Key Attributes
Place of origin: United Kingdom
Customized support: OEM, ODM
Brand name: SKF
Warranty: 1 years
Model number: PHL FM 10/400
Frequency range: 10 to 400 Hz
Measurement accuracy: Below 100 Hz ± 1 significant digit
Belt mass input range: 0,001 to 9,990 kg/m
Belt span input range: 0,001 to 9,99 m
Maximum belt tension display: 9 990 N / 2 200 lb
Operating temperature: +10 to +50 °C
Protection class: IP54
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 45X32X18 cm
Single gross weight: 2.500 kg
