$6.00

SKU: 676211193864 Brand:

Description

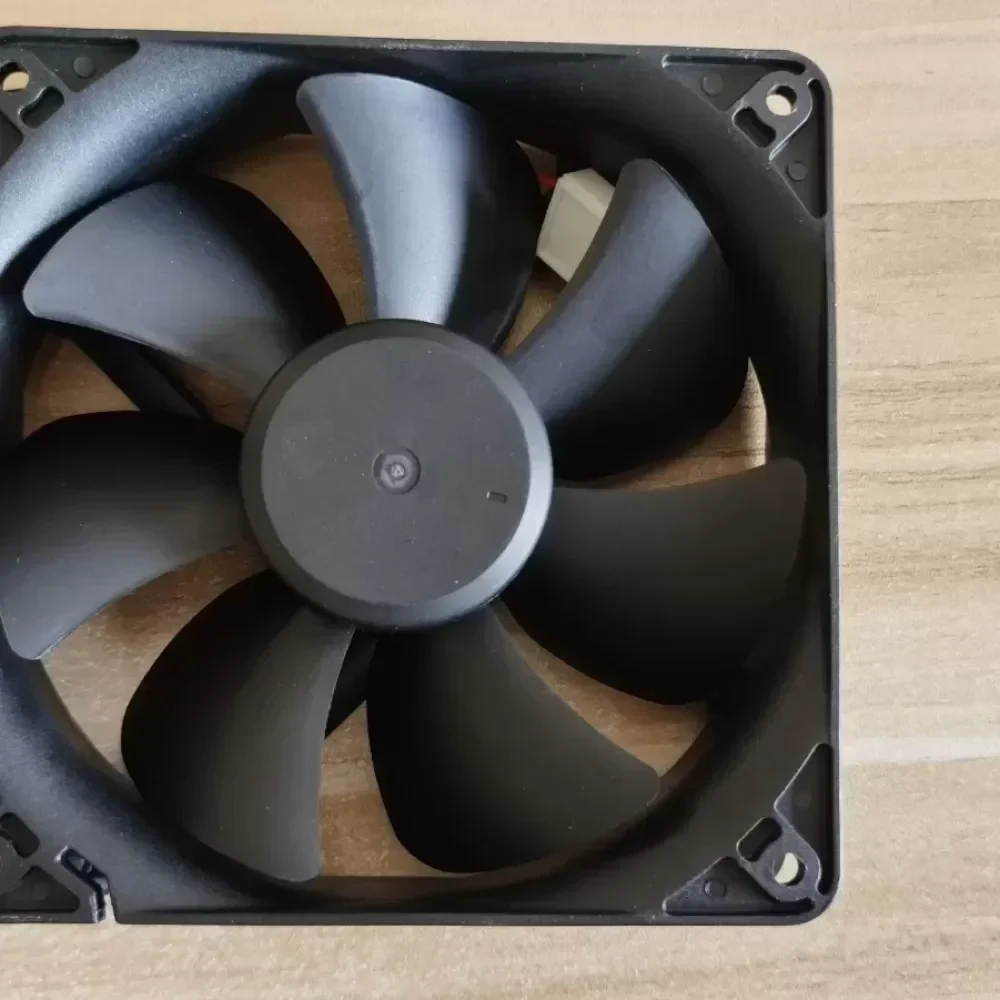

The Sunon EEC0382B1-000C-A99 is a high-performance DC axial fan engineered for demanding thermal management applications in industrial chassis and inverter systems. Utilizing advanced motor technology and a dual ball bearing architecture, this 120x120x38mm cooling module delivers exceptional airflow stability and extended operational longevity under continuous thermal loads.

Technical Specifications:
Manufacturer: Sunon
Model Number: EEC0382B1-000C-A99
Fan Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 27.6V DC
Power Consumption: 5.4W
Rated Current: 0.225 A
Bearing System: Dual Ball Bearing
Maximum Airflow: 138 CFM (3.9 m³/min)
Static Pressure: 0.36 in-H2O
Acoustic Noise: 48 dBA
Rated Speed: 3100 RPM ± 10%
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Weight: 214 g
Termination: Wire Leads

Application & Integration:
This cooling fan is specifically designed for integration into high-capacity variable frequency drives (VFDs), telecom base stations, and industrial power inverters where rapid heat dissipation is critical to preventing thermal throttling. The precise Original Engineering of the EEC0382B1-000C-A99 ensures seamless Technical Compatibility with standard 24V DC control architectures. Featuring robust environmental resistance and optimized aerodynamic blades, it minimizes maintenance intervals in mission-critical automation cabinets. Contact our procurement team to verify current Lead Time and secure authentic replacement components for your facility.

SUNON EEC0382B1-000C-A99 12038/24V chassis fan

SUNON EEC0382B1-000C-A99 12038/24V chassis fan

SUNON EEC0382B1-000C-A99 12038/24V chassis fan

SUNON EEC0382B1-000C-A99 12038/24V chassis fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
