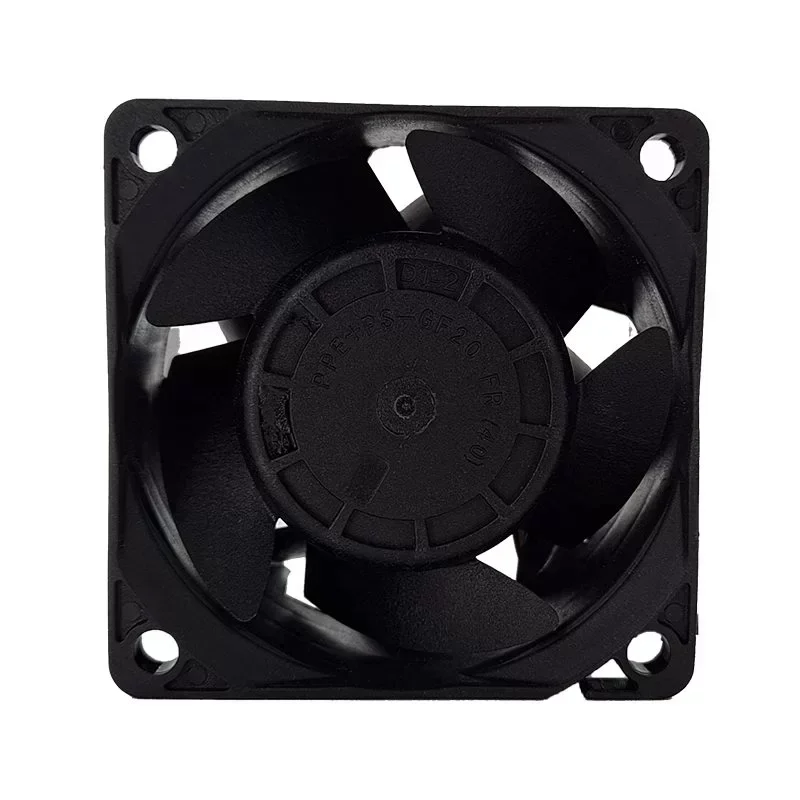

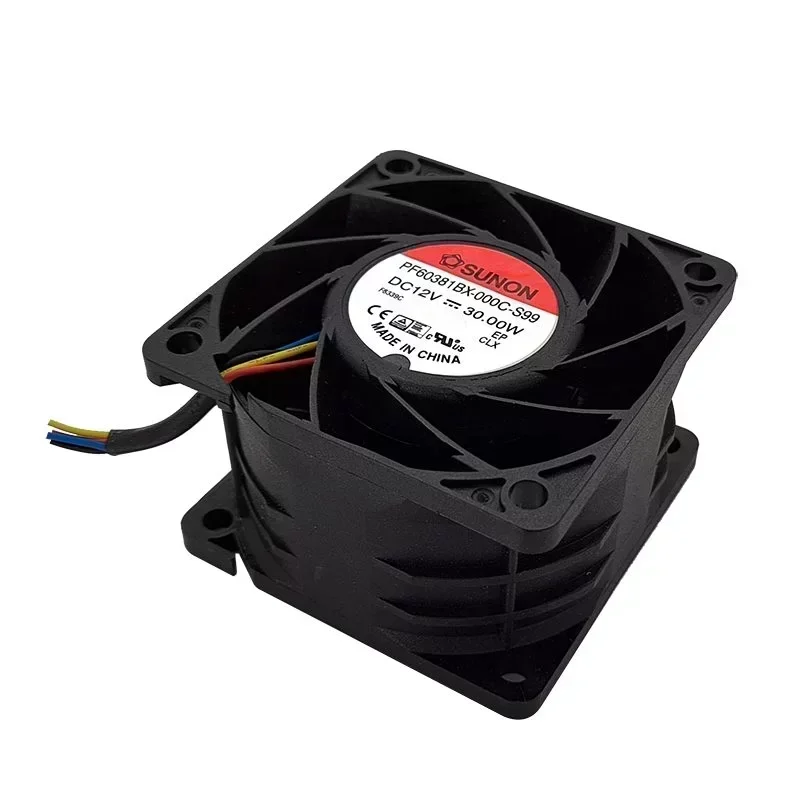

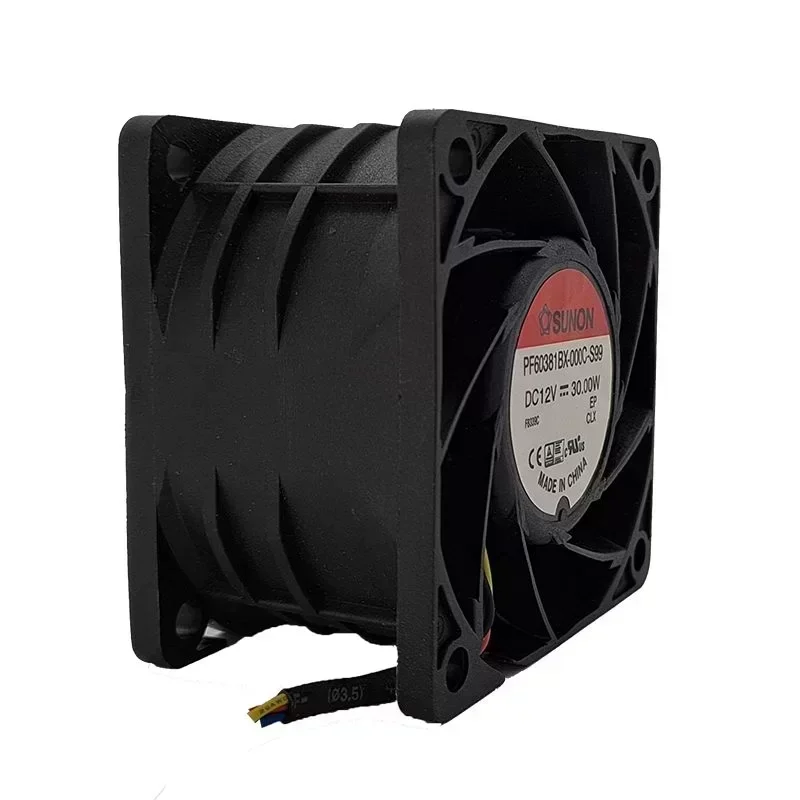

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM
SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM
SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM
SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

$10.67

SKU: 1601560007981 Brand:

Description

The SUNON PF60381BX-000C-S99 is a high-performance DC axial cooling fan designed for rigorous industrial and server-grade thermal management. Engineered to deliver maximum airflow within a compact form factor, this unit utilizes advanced aerodynamic blade design and a high-efficiency motor to achieve superior heat dissipation in space-constrained environments.

Technical Specifications
Brand: SUNON
Model: PF60381BX-000C-S99
Fan Type: DC Axial Cooling Fan
Dimensions: 60 x 60 x 38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.2 VDC
Power Consumption: 30.0 W
Rated Current: 2.50 A
Rated Speed: 16500 RPM ± 10%
Maximum Airflow: 75.2 CFM
Static Pressure: 3.20 in-H2O
Noise Level: 65.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Housing Material: Thermoplastic PBT UL94V-0
Impeller Material: Thermoplastic PBT UL94V-0
Termination: Wire Leads (OEM/ODM Customizable)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Weight: 130 g

Engineering Application & Lifecycle Value
The SUNON PF60381BX-000C-S99 is specifically engineered for extreme thermal management in high-density 1U/2U rackmount servers, telecommunications equipment, and industrial power supplies. Operating at a critical 16500 RPM, this axial fan delivers an exceptional 75.2 CFM of airflow, effectively mitigating thermal bottlenecks around densely packed microprocessors and power conversion modules. The precision dual ball bearing architecture ensures extended operational longevity and technical compatibility in continuous 24/7 environments. By adhering to Original Engineering standards, this component minimizes thermal throttling risks and extends the mean time between failures (MTBF) of the host system. Lead time for bulk OEM/ODM integration is optimized for rapid deployment in critical infrastructure upgrades.

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 16500 rpm
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: SUNON
Model number: PF60381BX-000C-S99

Packaging and Delivery
Selling Units: Single item

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

SUNON PF60381BX-000C-S99 12VDC 30W Axial Fan Ball Bearing Plastic 60x60x38mm 75.2CFM 16500RPM

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
