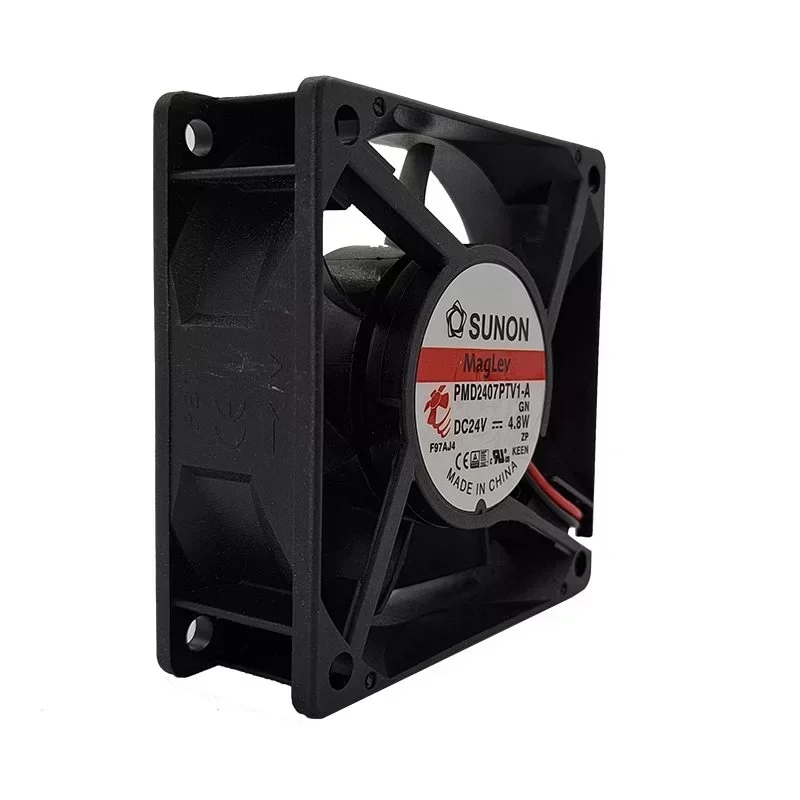

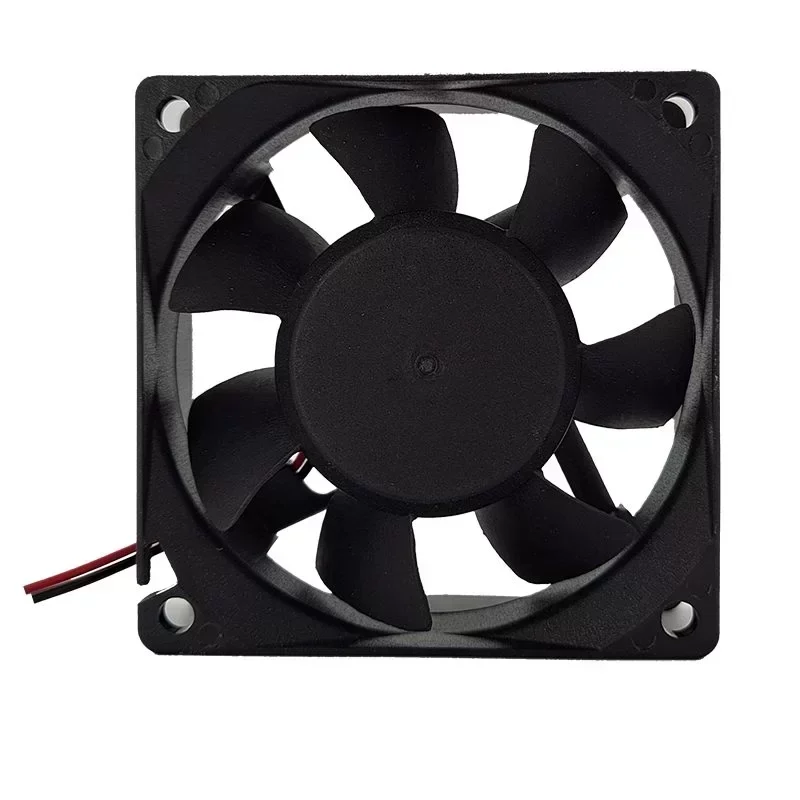

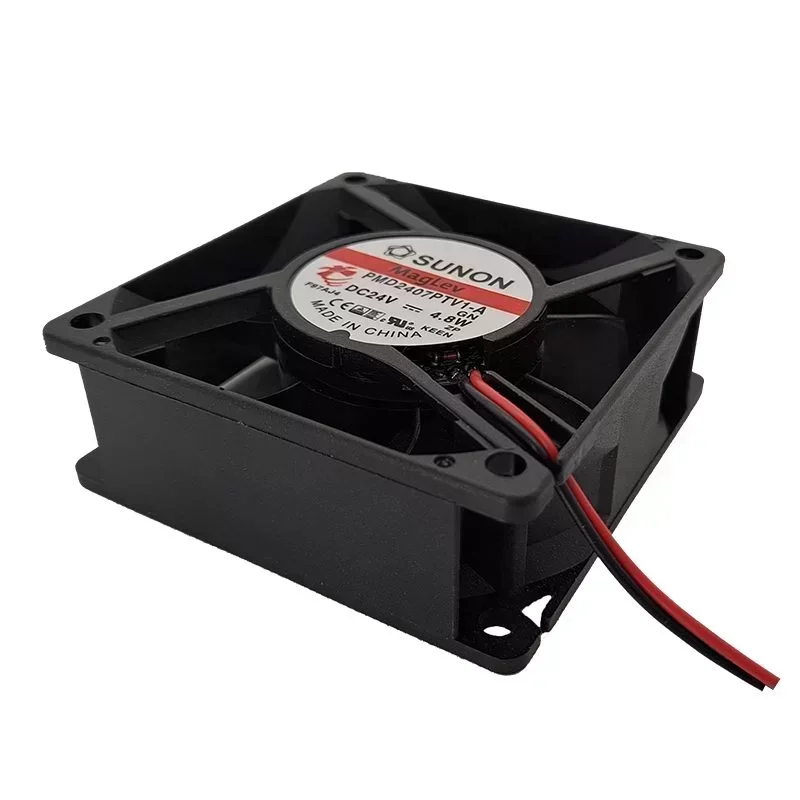

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC
SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC
SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC
SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

$5.78

SKU: 1601562700814 Brand:

Description

The SUNON PMD2407PTV1-AGN is a high-performance DC axial flow cooling fan engineered for demanding thermal management applications. Manufactured with Original Engineering standards, this 24VDC component ensures optimal heat dissipation in compact industrial systems. With reliable Lead Time and broad Technical Compatibility, it serves as a critical replacement or OEM integration part for continuous-duty cooling.

Technical Specifications:
Manufacturer: SUNON
Model Number: PMD2407PTV1-AGN
Fan Type: DC Axial Flow Fan
Dimensions: 70 x 70 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 10.0 to 27.6 VDC
Bearing System: VAPO Bearing (Magnetic Levitation)
Rated Speed: 5100 RPM ± 10%
Maximum Airflow: 49.0 CFM
Static Pressure: 0.36 inch-H2O
Acoustic Noise: 45.0 dB(A)
Rated Current: 0.18 A
Power Consumption: 4.3 W
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Weight: 90 g
Operating Temperature: -10°C to +70°C
Protection: Auto-restart capability
Compliance: RoHS, CE, UL, TUV

Application Scenario:
This specific cooling fan is highly suited for telecom enclosures, automated control cabinets, and high-density server racks. In these environments, the proprietary VAPO bearing technology eliminates physical friction, preventing dust accumulation and bearing wear. This solves the critical problem of premature fan failure in 24/7 operational facilities, ensuring stable internal temperatures and protecting sensitive microprocessors from thermal throttling.

Key Attributes
Voltage: 24 V
Material: Plastic
Speed: 5100RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: VAPO Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: SUNON
Model number: PMD2407PTV1-AGN

Packaging and Delivery
Selling Units: Single item

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

SUNON PMD2407PTV1-AGN Axial Fan VAPO Bearing Plastic Construction 70x70x25mm 24VDC

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
