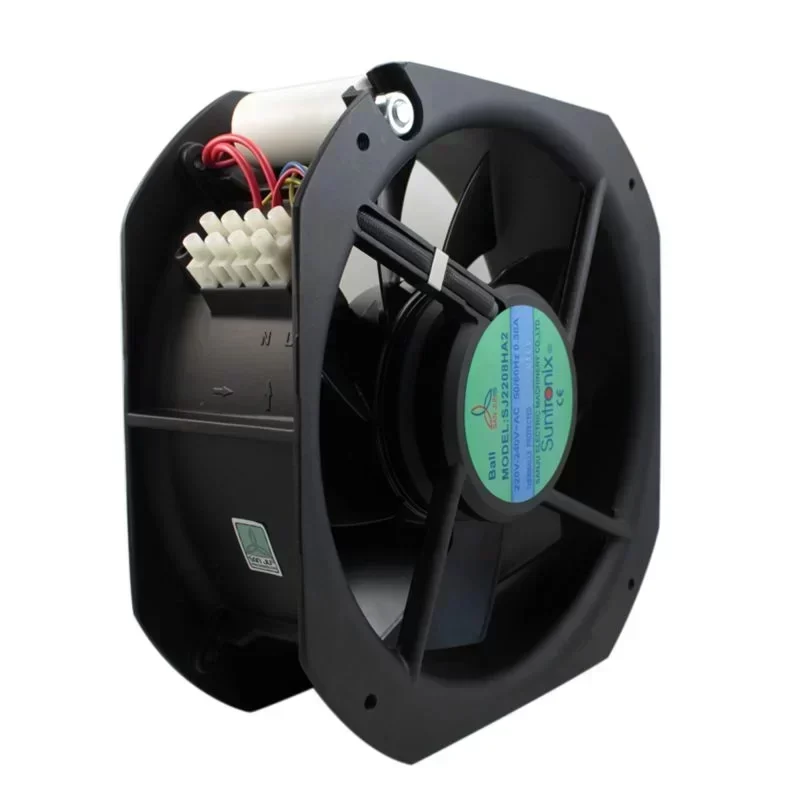

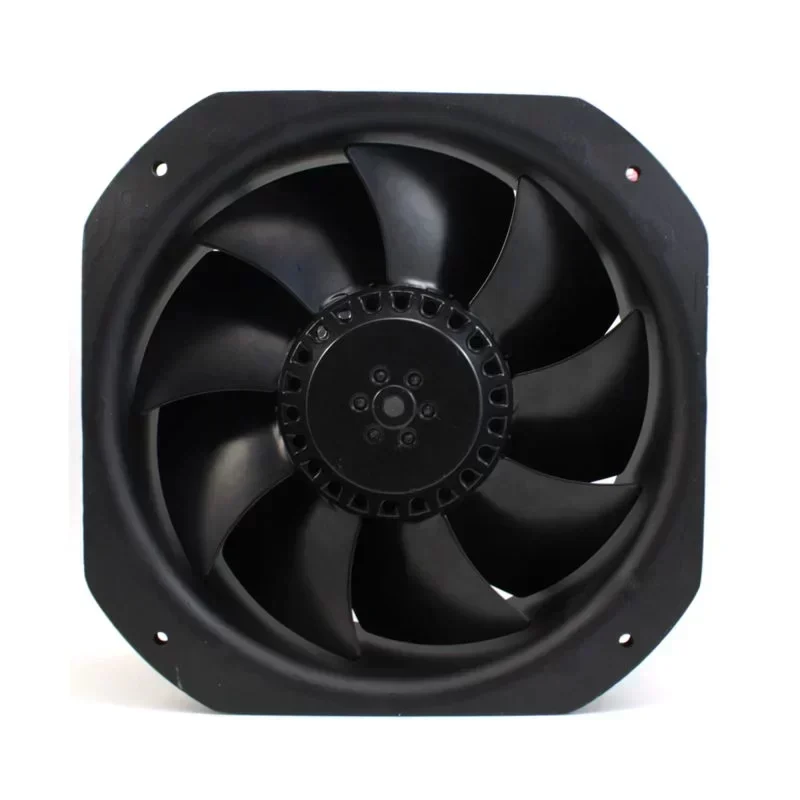

Suntronix SJ2208HA2 220V 0.38A 22580 Ball Control Cabinet Fan 225x225x80

Suntronix SJ2208HA2 220V 0.38A 22580 Ball Control Cabinet Fan 225x225x80

Name: Suntronix SJ2208HA2 220V 0.38A 22580 Ball Control Cabinet Fan 225x225x80
SKU: 1600144747200
Availability: InStock
Rating: 5 (4 reviews)

$35.65

SKU: 1600144747200

Description
Reviews (0)

Description

Suntronix SJ2208HA2 industrial-grade AC axial cooling fan engineered for high-volume thermal management in enclosed control cabinets, electrical enclosures, server racks, and CNC machinery. Designed utilizing Original Engineering standards to guarantee continuous, reliable operation under rigorous thermal and physical demands.

TECHNICAL SPECIFICATIONS
Manufacturer: Suntronix
Model Number: SJ2208HA2
Dimensions: 225 mm x 225 mm x 80 mm
Rated Voltage: 220V AC
Frequency: 50/60 Hz
Input Current: 0.38A
Input Power: 65W / 80W
Bearing Type: High-Precision Dual Ball Bearing
Rotational Speed: 2500 / 2800 RPM
Airflow Capacity: 1020 m³/h
Static Pressure: 155 Pa
Noise Level: 62 dB(A)
Housing Material: Die-Cast Aluminum Alloy
Impeller Material: Glass Fiber Reinforced Thermoplastic (UL94V-0)
Insulation Resistance: Minimum 100M Ohm at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Operating Temperature: -20 °C to +70 °C
Lifetime Expectancy: 50,000 Hours under continuous operation
Weight: 2.1 kg
Connection Type: Lead Wire
Safety Certifications: CE, UL Recognized

INDUSTRIAL APPLICATION PROFILE
The Suntronix SJ2208HA2 is optimized to solve critical heat dissipation problems in sealed electrical control cabinets and heavy machinery power bays. In industrial automation setups, excessive heat build-up degrades sensitive PLCs, variable frequency drives (VFDs), and power supplies. By providing 1020 m³/h of high-velocity airflow, this unit actively forces rapid thermal exchange, preventing components from reaching thermal-throttling or trip thresholds, thereby avoiding catastrophic system downtime.

PROCUREMENT AND INTEGRATION
With universal Technical Compatibility, this fan serves as a direct drop-in replacement for standard 22580 form-factor ventilation units in legacy and modern systems. For global logistics planning, dispatch details, and volume-specific Lead Time, please contact our technical sales department directly.

Key Attributes
Electric current type: AC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Thermoplastic UL94V-O
After-sales service provided: Online support
Place of origin: China
Brand name: Suntronix
Model number: SJ2208HA2
Certification: CE

Packaging and Delivery
Selling Units: Single item
Single package size: 29X29X12 cm
Single gross weight: 2.400 kg

Suntronix SJ2208HA2 220V 0.38A 22580 Ball Control Cabinet Fan 225x225x80

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
