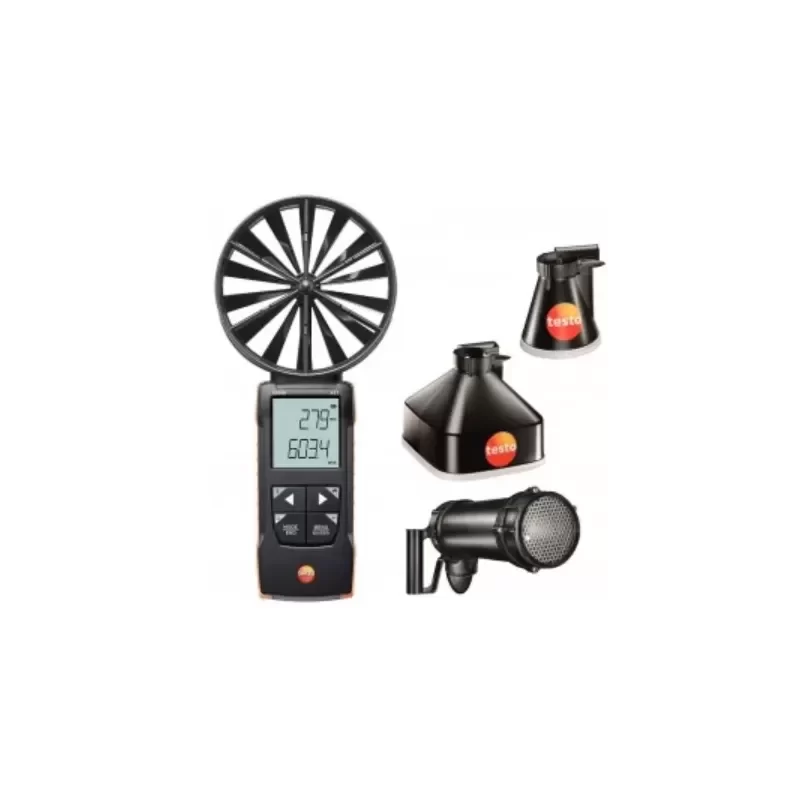

Testo 417 Kit2 Digital Vane Anemometer Kit with Measurement Funnels and Flow Straightener 59.1 to 3937 Fpm 0.1 to 118 CFM

Description

The Testo 417 Kit 2 is a professional-grade measurement architecture designed for the precise evaluation of air intake and exhaust systems. This system utilizes a 100 mm integrated vane to provide simultaneous measurement of flow velocity, volume flow, and temperature. By incorporating the testovent 417 flow straightener, the kit eliminates measurement errors inherent in turbulent airflows at swirl outlets, ensuring Original Engineering accuracy in complex HVAC environments. Technical Compatibility with the Testo Smart App allows for digital documentation, secondary display functionality, and remote data logging via mobile devices.

Technical Specifications:
Measurement Range Velocity: 0.3 to 20 m/s
Measurement Range Volume Flow: 0 to 99,999 m³/h
Measurement Range Temperature: 0 to +50 °C
Accuracy Velocity: ±(0.1 m/s + 1.5% of mv)
Accuracy Temperature: ±0.5 °C
Resolution Velocity: 0.01 m/s
Resolution Temperature: 0.1 °C
Vane Diameter: 100 mm
Operating Temperature: -20 to +50 °C
Storage Temperature: -20 to +50 °C
Battery Type: 3 x AA
Battery Life: 50 h
Housing Material: ABS and TPE
Protection Class: IP40
Wireless Connectivity: Bluetooth Low Energy 5.0
Weight: 243 g
Dimensions: 236 x 108 x 45 mm

Industrial Application:

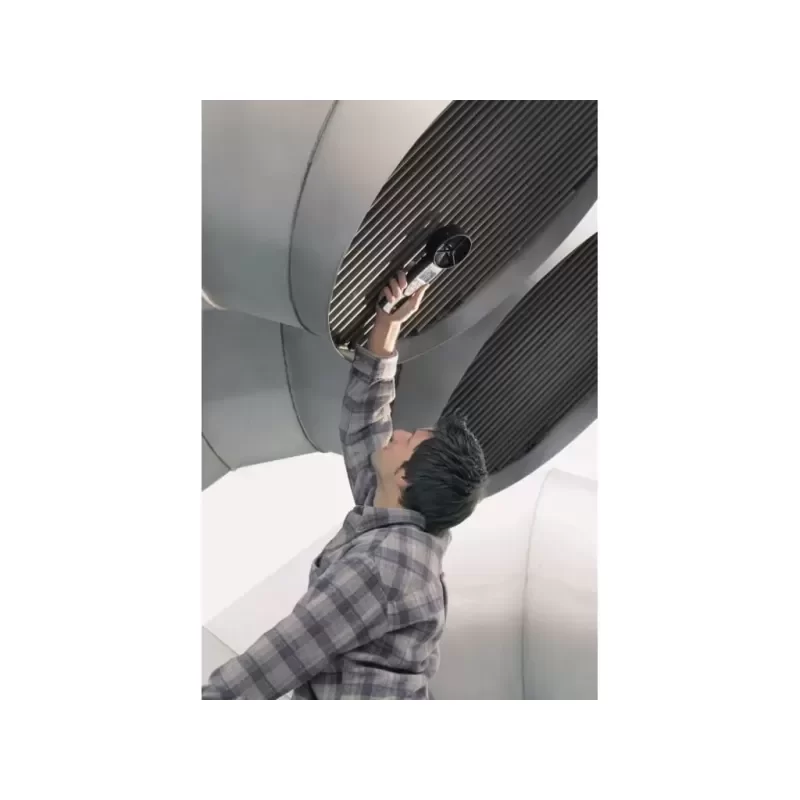

In large-scale commercial HVAC balancing, swirl diffusers often create significant turbulence that renders standard anemometer readings unreliable. The Testo 417 Kit 2 solves this critical problem by utilizing the patented flow straightener to laminarize the air before it reaches the vane, allowing for precise volume flow calculation at the point of discharge. This ensures optimal indoor air quality and energy efficiency in high-specification building management systems. Lead Time for this precision instrument is optimized for rapid deployment in commissioning and maintenance phases.

Key Attributes
Type: Anemometer
Place of Origin: China
Model Number: 417 kit2
Brand Name: Testo
Product name: Testo Anemometer
Model: 417 kit2
Measuring range: 59.1 to 3937 fpm 0.3 to 20 m/s
Accuracy: ±(0.1 m/s + 1.5% of mv)
Volume Flow Calculation: 0 to 58,857 CFM/0 to 99,999 m3/h
NTC Resolution: 0.1 CFM (0 to 58.8 CFM)
0.1 CFM (0 to 58.8 CFM): M/s, fpm, °F, °C, m3/h, cfm, l/s
Operating/Storage Temperature: -4 to 122°F (-20 to 50°C)
Protection Class: IP40
Housing Material: ABS + PC/TPE

Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 32X28X12 cm
Single gross weight: 2.500 kg
